Product Overview

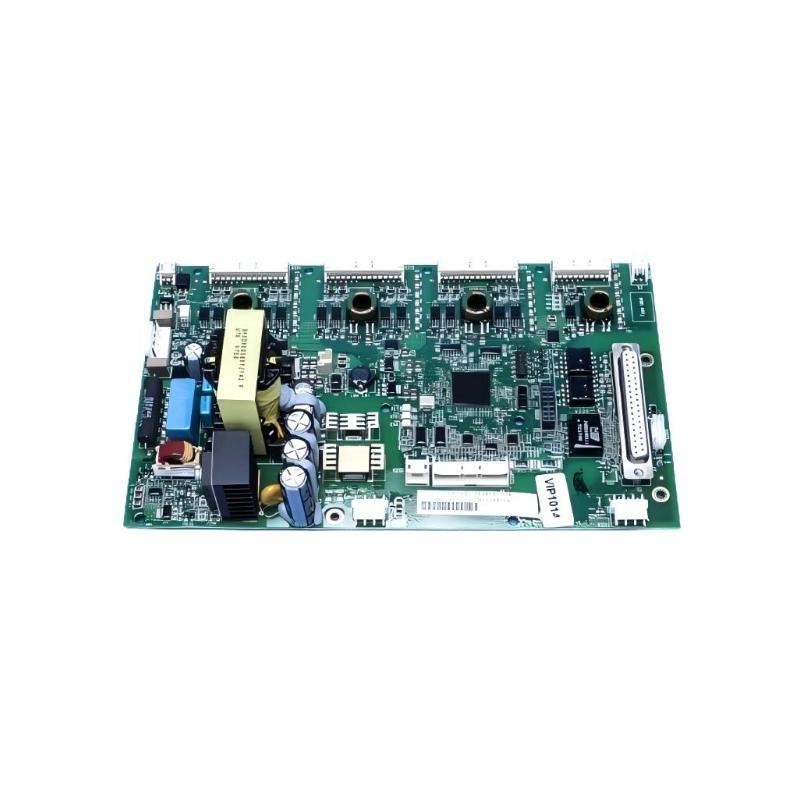

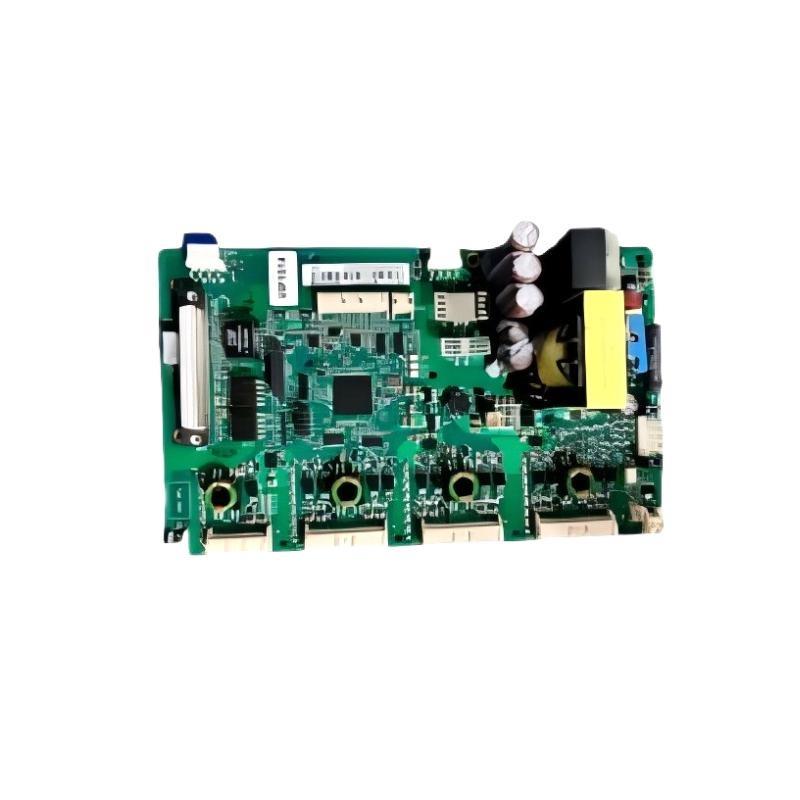

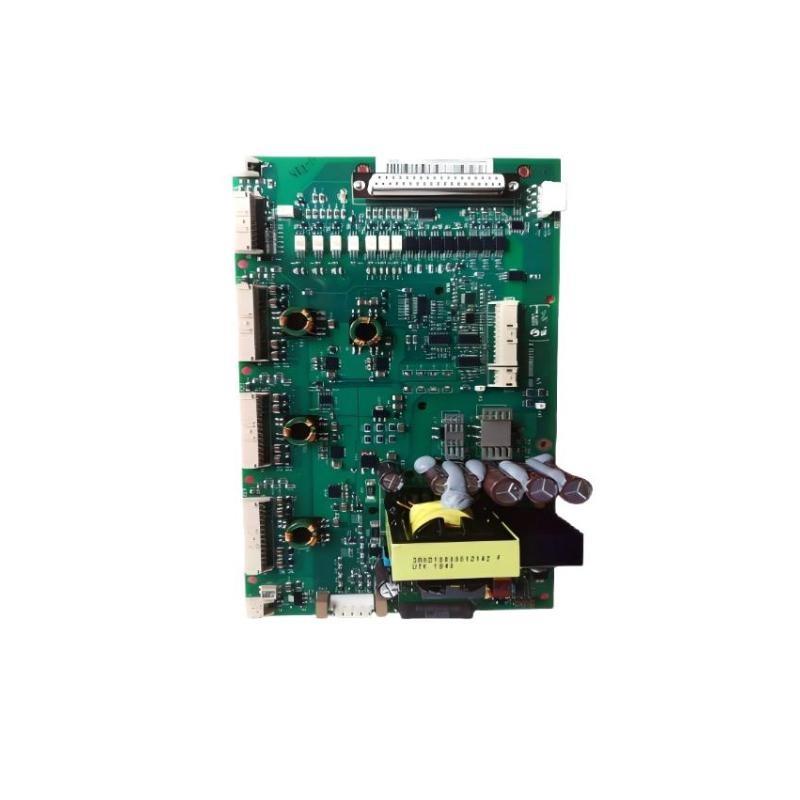

The ABB ZINT-592+N8205 MC Interface Board (part number: 3AXD50000030404) is a vital component in industrial automation systems, serving as the communication bridge between various devices and control systems. This board ensures reliable, real-time communication for seamless integration / ABB equipment with other industrial systems. The ZINT-592+N8205 /fers high flexibility in communication, with robust support for multiple protocols and interfaces, making it an ideal choice for complex, multi-device networks.
Designed with industrial environments in mind, this board provides superior durability and performance, ensuring continuous operation in challenging conditions. Its compact design and high compatibility make it a versatile solution for automation applications, enabling efficient data transmission and control in real-time.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | ZINT-592+N8205 |
| 型番 | 3AXD50000030404 |
| Interface Type | MC (Multichannel) Interface |
| Dimensions | 235 x 145 x 30 mm |
| 重量 | 0.4 kg |
| Voltage Supply | 24 VDC |
| Current Consumption | 0.5 A |
| Communication Protocols | MODBUS RTU, CANopen |
| Mounting Type | DIN Rail Mountable |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (Non-condensing) |
Applications
The ZINT-592+N8205 MC Interface Board is designed to meet the needs / various industrial automation and control systems. It is used in applications that require reliable and efficient communication between devices, including:
-
Industrial Automation: Integrates with PLCs, HMIs, and SCADA systems to ensure seamless data transmission across automation networks.
-
Machine Control: Provides real-time data exchange for controlling and monitoring machines on production lines.
-
Energy Management: Interfaces with smart meters and energy management systems to optimize energy consumption in industrial facilities.
-
Building Automation: Works within building management systems, enabling communication between HVAC systems, lighting, and security systems.
-
Process Control: Enhances communication within process control systems, facilitating the monitoring and control / manufacturing processes.
Product Advantages
-
High Performance: The ZINT-592+N8205 delivers fast and reliable data transfer, ensuring timely communication between devices and control systems.
-
Flexible Communication Protocols: It supports both MODBUS RTU and CANopen, making it adaptable to a wide range / automation applications.
-
Compact Design: The small size / the interface board (235 x 145 x 30 mm) allows it to be easily integrated into existing systems, even where space is limited.
-
Temperature Resistance: With an operating range / -20°C to +60°C, the ZINT-592+N8205 can function in various environments, from factory floors to temperature-controlled storage areas.
-
Reliable Integration: As part / ABB’s broader automation suite, it integrates easily with other ABB devices, /fering a cohesive and efficient control solution.
-
Energy Efficient: The interface board is designed to minimize power consumption, contributing to overall system energy savings.
FAQ (よくある質問)
-
What is the maximum operating temperature for the ZINT-592+N8205?
The maximum operating temperature is +60°C. -
Is the ZINT-592+N8205 compatible with other brands?
Yes, the board supports MODBUS RTU and CANopen protocols, making it compatible with devices from other manufacturers. -
What is the power supply requirement for this interface board?
It requires a 24 VDC power supply. -
How do I mount the ZINT-592+N8205?
The interface board can be mounted on a DIN rail, which makes installation easy and secure in industrial control cabinets. -
Can this interface board withstand extreme temperatures?
Yes, it operates in a temperature range from -20°C to +60°C, suitable for most industrial environments. -
What communication protocols does the ZINT-592+N8205 support?
The board supports MODBUS RTU and CANopen protocols, allowing it to communicate with a wide range / devices. -
What is the weight / the ZINT-592+N8205?
The board weighs 0.4 kg. -
Is the ZINT-592+N8205 suitable for building automation applications?
Yes, it can be used in building automation systems, connecting devices like HVAC systems, lighting, and security systems. -
How many channels can the ZINT-592+N8205 support?
The board supports multichannel communication, making it suitable for applications that involve multiple devices. -
What is the storage temperature range for the ZINT-592+N8205?
The storage temperature range is from -40°C to +85°C.
Recommended モデルs (Same Series or Related)
| モデル | 説明 | Dimensions | 重量 |
|---|---|---|---|
| ZINT-591+N8205 | Basic MC Interface Board | 235 x 145 x 30 mm | 0.38 kg |
| ZINT-591+N8206 | MC Interface Board, CANopen | 235 x 145 x 30 mm | 0.39 kg |
| ZINT-590+N8205 | Entry-level MC Interface Board | 235 x 145 x 30 mm | 0.37 kg |
| ZINT-592+N8206 | MC Interface Board with Extended Range | 235 x 145 x 30 mm | 0.42 kg |
| ZINT-593+N8205 | High-Speed MC Interface Board | 235 x 145 x 30 mm | 0.43 kg |
| ZINT-592+N8204 | MC Interface Board for Smart Systems | 235 x 145 x 30 mm | 0.44 kg |
Popular ABB モデルs
| モデル | 説明 | System Length | 重量 |
|---|---|---|---|
| ZINP-571 | MC input interface board, standard I/O isolation, for Symphony Plus systems | N/A | 0.620 kg |
| ZINP-771 | Enhanced MC input module with diagnostics, supports redundant applications | N/A | 0.640 kg |
| ZINT-511 | Interface board for controller communication, 2-channel, fast update rate | N/A | 0.610 kg |
| ZINT-541 | Extended function communication interface, EMI-resistant, 3-channel version | N/A | 0.650 kg |
| ZINT-571 | Standard MC interface module, multi-protocol support, compatible with N8205 | N/A | 0.660 kg |
| ZINT-521 | Compact interface board for I/O expansion, designed for tight panel spaces | N/A | 0.600 kg |
