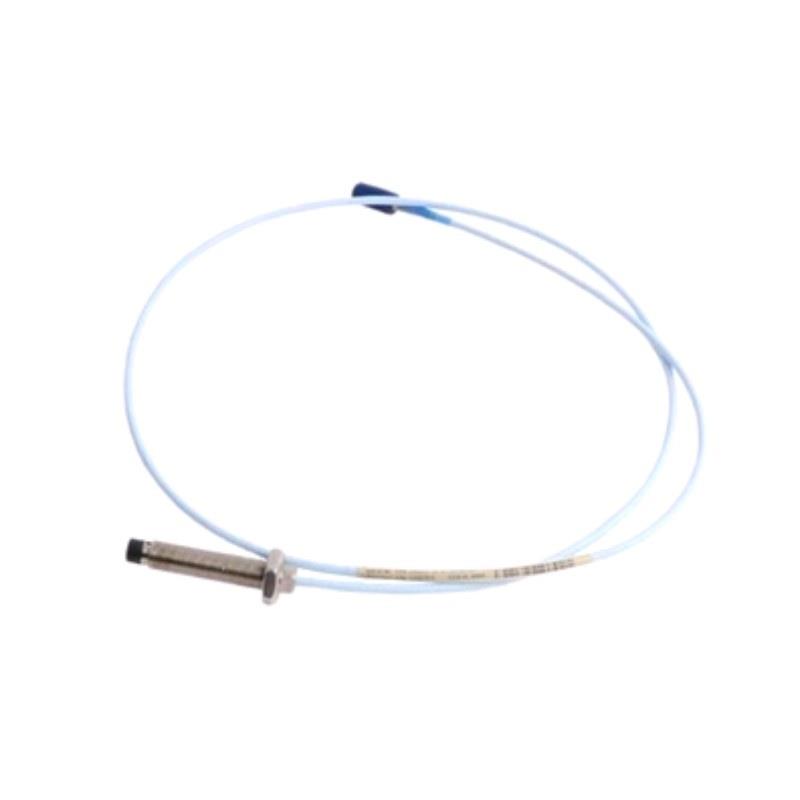

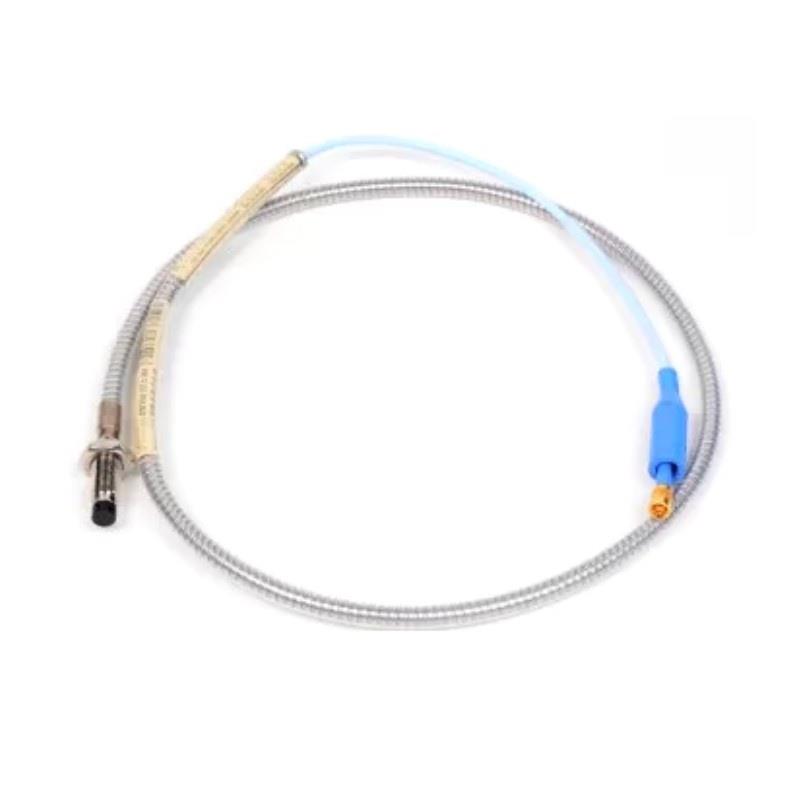

The Bently Nevada 330104-02-08-05-01-00 3300 XL 8 mm Proximity Probe is a high-precision, non-contact displacement sensor used for monitoring the position and vibration / rotating machinery. Designed for industrial reliability, this probe operates using eddy-current technology, providing accurate measurements in demanding environments such as turbines, compressors, and motors. The 8 mm probe diameter ensures compatibility with standard 3300 XL system installations while maintaining robustness in harsh operational conditions.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル Number | 330104-02-08-05-01-00 |
| Probe Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy-Current |
| Total Length | 0.5 m |
| 重量 | 0.162 kg |
| Tip Material | Hardened Stainless Steel |
| Operating Temperature | -40°C to 120°C |
| Cable Type | Shielded Twisted Pair |
| Connector Type | M12 (or compatible with 3300 XL system) |
| Sensitivity | 50 mV/mil typical |
| Linearity | ±1% / full scale |
| Frequency Response | DC to 25 kHz |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
Product Applications
-
Rotating machinery condition monitoring
-
Turbines, compressors, and pumps vibration analysis
-
Critical motors and generators displacement measurement
-
High-speed shaft alignment and diagnostics
-
Industrial plant predictive maintenance systems
-
Integration with 3300 XL Machinery Protection Systems
Product Advantages
-
High Accuracy: Eddy-current technology provides precise shaft position measurement for reliable monitoring.
-
Robust Design: Stainless steel housing and cable shielding allow operation in harsh industrial environments.
-
Wide Frequency Response: Suitable for both slow shaft displacements and high-speed vibrations.
-
Easy Integration: Compatible with Bently Nevada 3300 XL systems and standard mounting configurations.
-
Non-お問い合わせ Measurement: Prevents mechanical wear and extends operational reliability.
-
Durable Cable and Connector: Shielded cable ensures minimal electromagnetic interference.
FAQ
-
Q1: What is the typical sensitivity / the 330104-02-08-05-01-00 probe?
A1: The typical sensitivity is approximately 50 mV/mil. -
Q2: What type / signals can this probe detect?
A2: It can detect both static shaft displacement and dynamic vibration signals. -
Q3: Is the probe compatible with non-3300 XL systems?
A3: It is designed primarily for 3300 XL systems, but may work with other systems that support 8 mm eddy-current probes with proper signal conditioning. -
Q4: Can this probe operate in high-temperature environments?
A4: Yes, the operating temperature range is -40°C to 120°C. -
Q5: What is the frequency range / the probe?
A5: The probe responds from DC up to 25 kHz. -
Q6: Does the probe provide linear output over its range?
A6: Yes, it maintains ±1% linearity across its full measurement range. -
Q7: How resistant is the probe to vibration?
A7: The probe can tolerate vibration up to 50 g. -
Q8: What is the recommended cable type for installations?
A8: Shielded twisted pair cables are recommended to reduce noise and interference. -
Q9: What protection level does the probe have?
A9: The probe has an IP67 rating for dust and water resistance. -
Q10: Can this probe measure both radial and axial displacement?
A10: The probe measures displacement along the direction / its tip; radial and axial measurements require proper alignment and multiple probes.
Recommended Same-Series or Related モデルs
| モデル Number | 説明 |
|---|---|
| 330104-02-08-05-01-10 | 3300 XL 8 mm Proximity Probe with extended cable |
| 330104-02-08-10-01-00 | 3300 XL 8 mm Probe for high-temp applications |
| 330104-02-08-05-02-00 | 3300 XL 8 mm Probe with reinforced tip |
| 330104-02-08-05-03-00 | 3300 XL 8 mm Probe with shielded connector |
| 330104-02-08-05-04-00 | 3300 XL 8 mm Probe for high-vibration machinery |
| 330104-02-08-05-05-00 | 3300 XL 8 mm Probe with improved frequency response |
Recommended Popular モデルs from the Same ブランド
| モデル Number | 説明 |
|---|---|
| 330104-01-05-05-01-00 | 3300 XL 5 mm Proximity Probe |
| 330104-01-08-05-01-00 | 3300 XL 8 mm Proximity Probe |
| 330104-01-12-05-01-00 | 3300 XL 12 mm Proximity Probe |
| 330104-02-08-05-01-10 | 3300 XL Extended Cable Probe |
| 330104-02-08-10-01-00 | 3300 XL High-Temp Probe |
| 330104-03-08-05-01-00 | 3300 XL Vibration Enhanced Probe |
