製品紹介

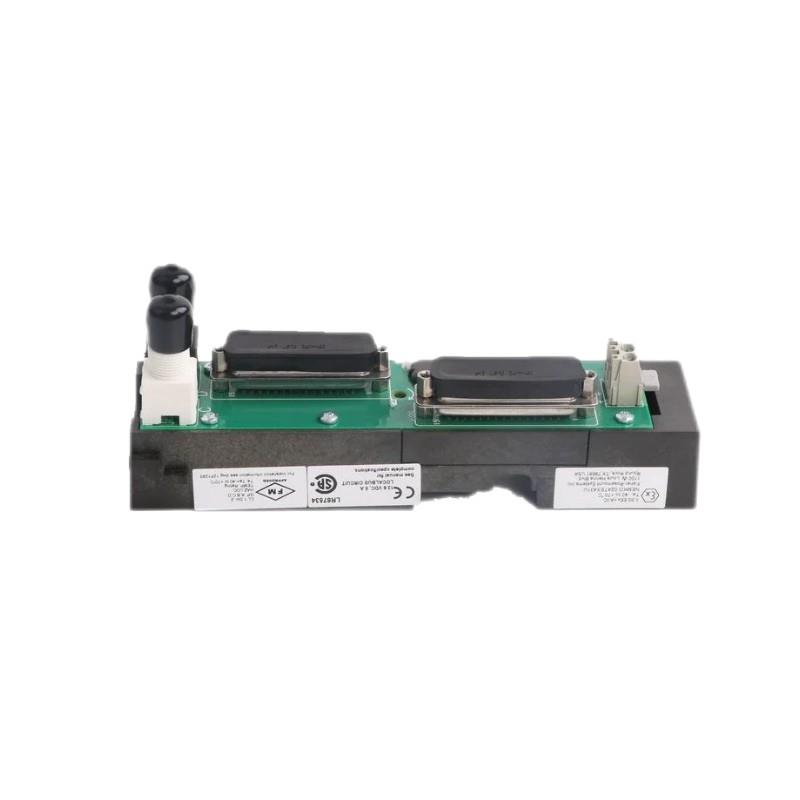

The Emerson KJ4001X1-NB1 12P3368X012 is a Horizontal LocalBus Dual Left Cable Extender designed for use within Emerson’s DeltaV™ control system. This component facilitates the extension / the LocalBus communication pathway, allowing for increased flexibility in system layout and the accommodation / additional I/O modules. Its dual left configuration enables multiple connections, enhancing the scalability / the control system.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | KJ4001X1-NB1 |
| 型番 | 12P3368X012 |
| Product Type | Horizontal LocalBus Dual Left Cable Extender |
| Series | DeltaV™ |
| Power Supply | 12 VDC |
| Current Rating | 8 A |
| Dimensions (W x H x D) | 35 x 55 x 155 mm |
| 重量 | 0.2 kg |
| Operating Temperature | -40°C to +70°C |
| Shock Resistance | 10g, ½ Sinewave for 11 ms |
| Vibration Resistance | 1mm Peak to Peak (5–16Hz), 0.5g (16–150Hz) |
| Humidity Tolerance | 5–95% non-condensing |
| Protection Rating | IP20 |
| Certifications | CE, suitable for hazardous environments |
Product Applications
The KJ4001X1-NB1 is utilized in various industrial settings where extension / the LocalBus is necessary. Its applications include:
-
Industrial Automation: Extending communication pathways between controllers and I/O modules in manufacturing plants.
-
Oil and Gas: Facilitating remote connections in refineries and /fshore platforms.
-
Chemical Processing: Enhancing system layout flexibility in chemical plants.
-
Power Generation: Connecting distributed control components in power plants.
-
Water Treatment: Linking control systems across expansive treatment facilities.
Product Advantages
-
Enhanced System Flexibility: Allows for extended placement / I/O modules, accommodating complex system layouts.
-
Dual Left Configuration: Provides multiple connection points, supporting system scalability.
-
Robust Construction: Designed to withstand harsh industrial environments with high shock and vibration resistance.
-
Compact Design: Facilitates easy installation in space-constrained areas.
-
Compliance with Standards: Certified for use in hazardous environments, ensuring safety and reliability.
よくある質問 (FAQ)
-
What is the primary function / the KJ4001X1-NB1?
-
It extends the LocalBus communication pathway in DeltaV™ systems, allowing for additional I/O modules.
-
-
Can this extender be used in hazardous environments?
-
Yes, it is certified for use in hazardous areas, complying with relevant safety standards.
-
-
What is the maximum current rating / the device?
-
The extender supports up to 8 A at 12 VDC.
-
-
What are the dimensions and weight / the extender?
-
Dimensions: 35 x 55 x 155 mm; 重量: 0.2 kg.
-
-
Is the device hot-swappable?
-
No, power must be de-energized before disconnecting or connecting the extender.
-
-
What is the maximum allowable length for a combination / I/O carriers and extenders?
-
The total length must not exceed 6.5 meters.
-
-
Does the extender require calibration?
-
No, it does not require calibration.
-
-
What is the recommended installation environment?
-
Indoor industrial settings with temperatures ranging from -40°C to +70°C and humidity between 5–95% non-condensing.
-
-
Can the extender be mounted on a DIN rail?
-
Yes, it supports DIN rail mounting.
-
-
What maintenance is required for this device?
-
The 台 contains no user-serviceable parts and should not be disassembled; routine inspection for physical damage is recommended.
-
Related モデルs (Same Series or Functionality)
| モデル | Type | 説明 |
|---|---|---|
| KJ4001X1-NA1 | LocalBus Dual Right Cable Extender | Extends LocalBus to the right side |
| KJ4001X1-NB2 | LocalBus Single Left Cable Extender | Single left extension for LocalBus |
| KJ4001X1-NC1 | LocalBus Dual Left/Right Cable Extender | Extends LocalBus on both sides |
| KJ4001X1-ND1 | LocalBus Right Angle Cable Extender | Right angle extension for space constraints |
| KJ4001X1-NE1 | LocalBus Vertical Cable Extender | Vertical extension for multi-level setups |
| KJ4001X1-NF1 | LocalBus Flexible Cable Extender | Flexible cable for dynamic installations |
Popular Emerson モデルs (All Categories)
| モデル | Type | Function |
|---|---|---|
| KJ3001X1-BB1 | Analog Input Module | 8-channel AI module for DeltaV™ systems |
| KJ3002X1-BB1 | Analog Output Module | 8-channel AO module for precise control |
| KJ3221X1-BA1 | Digital Input Module | 16-channel DI module for status monitoring |
| KJ3241X1-BA1 | Digital Output Module | 16-channel DO module for actuator control |
| KJ2003X1-BB1 | Controller Module | Central processing 台 for DeltaV™ systems |
| KJ4001X1-CA1 | Power Supply Module | Provides power to DeltaV™ system components |
