Product Overview

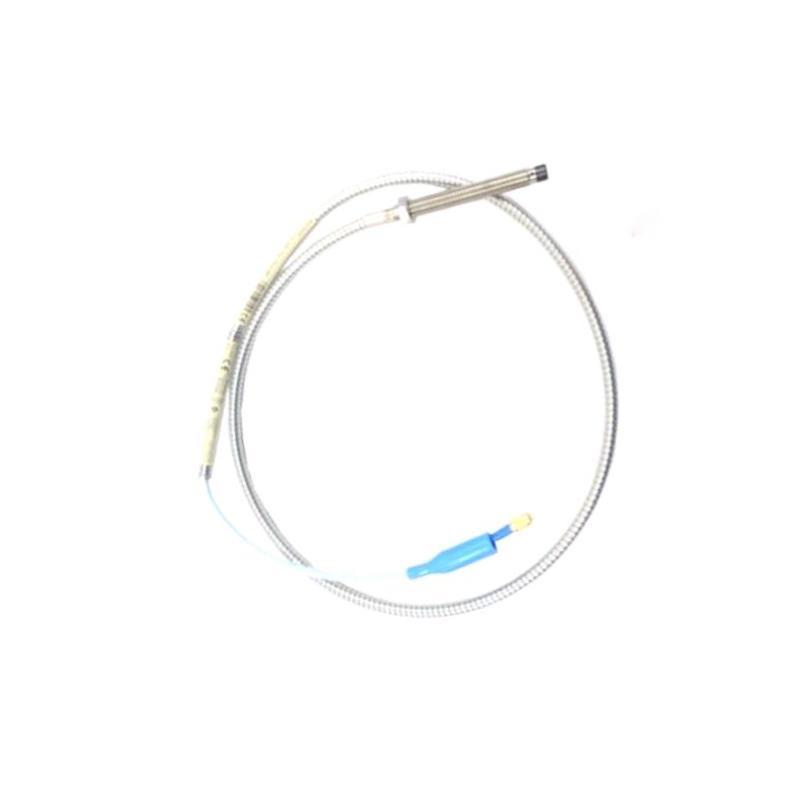

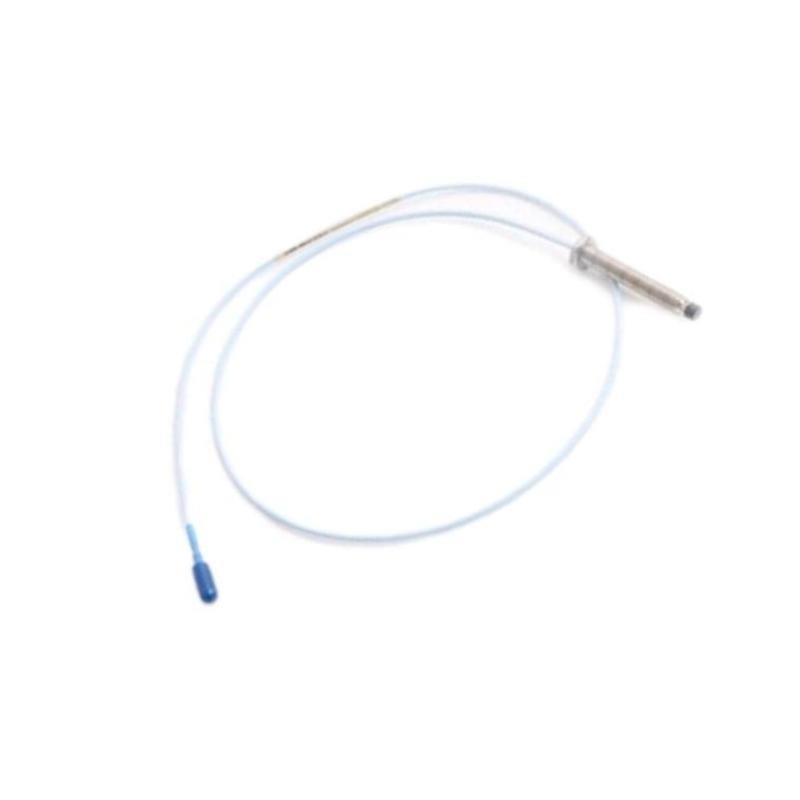

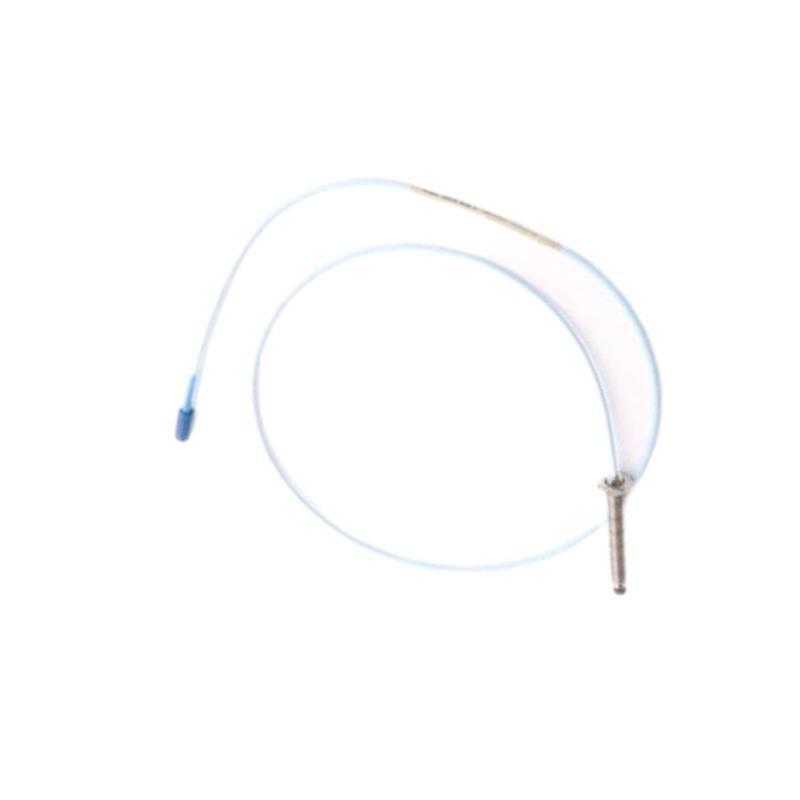

The Bently Nevada 330103-00-07-05-02-CN is a premium-quality 8 mm proximity probe from the 3300 XL series, specifically engineered for continuous monitoring / shaft vibration and position in rotating machinery. Designed for use in conjunction with the 3300 XL Proximitor Sensor and extension cable, it forms part / a highly reliable non-contact measurement system that complies with API 670 standards.
This probe is built with a rugged casing, precision-tuned sensing tip, and ClickLoc connector for quick and secure installation. The CN suffix designates a China-compliant version, ensuring compatibility with localized regulatory or component requirements while maintaining full performance and durability.
Key Features
-
Non-contact vibration and position monitoring
-
Works with 3300 XL Proximitor and extension cable
-
Accurate linear output over 2 mm range
-
Compliant with API 670 standards for machinery protection
-
Robust design for harsh environments
-
Includes factory-installed ClickLoc connector
-
China-localized variant (–CN suffix) for regional compatibility
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | 330103-00-07-05-02-CN |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Target Material | Ferromagnetic (e.g., steel shafts) |
| Body Style | Straight |
| Thread Type | 1/4-28 UNF-2A |
| Cable Length (Probe) | 7.0 meters |
| Connector Type | ClickLoc keyed connector |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Sensitivity | 7.87 mV/μm (200 mV/mil), nominal |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz |
| System Compatibility | 3300 XL Extension Cable and Proximitor Sensor |
| Dimensions | Total Length : 0.5 meter |
| 重量 | 0.161 kg |
Industry Applications
-
Gas and Steam Turbines
-
Electric Motors and Generators
-
Industrial Compressors and Pumps
-
Gearboxes and Speed Reducers
-
Petrochemical and Refining Equipment
-
Power Generation Systems
Product Advantages
-
Reliable Monitoring: Ensures early detection / shaft vibration and displacement.
-
High Durability: Performs consistently in extreme temperature and contamination.
-
Easy Connection: ClickLoc connector simplifies installation and prevents loosening.
-
Precision Output: Provides linear response over wide range for accurate diagnostics.
-
Standardized Compatibility: Fully integrates into Bently Nevada 3300 XL systems.
-
CN モデル Compliance: Meets requirements for use in Chinese industrial applications.
-
Field-Proven Technology: Based on decades / Bently Nevada’s reliability and design innovation.
よくある質問 (FAQ)
-
What is the sensing range / this probe?
The linear sensing range is 2 mm (80 mils). -
Is this probe suitable for high-temperature applications?
Yes, it operates up to +177°C (350°F). -
What does the “CN” in the model number indicate?
It signifies a China-compliant or region-specific version / the standard probe. -
What kind / thread does it use?
1/4-28 UNF-2A threaded body for standard installations. -
Which systems is this probe compatible with?
It works with the 3300 XL Proximitor Sensor and Extension Cable. -
What industries commonly use this probe?
Oil & gas, petrochemical, power generation, and heavy manufacturing. -
Can it be mounted in a harsh environment?
Yes, it’s designed for corrosive and high-vibration conditions. -
How long is the cable attached to the probe?
7.0 meters. -
Is the probe output linear?
Yes, with a nominal sensitivity / 200 mV/mil. -
Does it require calibration after installation?
Factory-calibrated, but verification during installation is recommended.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 330103-00-05-10-02-00 | 5 m probe, standard thread |
| 330103-00-06-10-02-05 | 6 m probe, ClickLoc connector |
| 330103-00-08-10-02-00 | 8 m probe, standard connector |
| 330104-00-05-10-12-05 | High-temp 3300 XL 8 mm Probe |
| 330102-00-07-10-02-05 | Alternative thread and length option |
Popular Bently Nevada 製品
| モデル Number | 説明 |
|---|---|
| 330130-080-00-00 | 3300 XL Extension Cable, 8 m |
| 330180-90-00 | 3300 XL Proximitor Sensor |
| 3500/42M-01-00 | Proximitor Monitor Module |
| 330104-00-12-10-02-05 | 12 m probe with straight connector |
| 330103-00-07-05-02-00 | Standard 7 m version without CN suffix |
