Product Overview

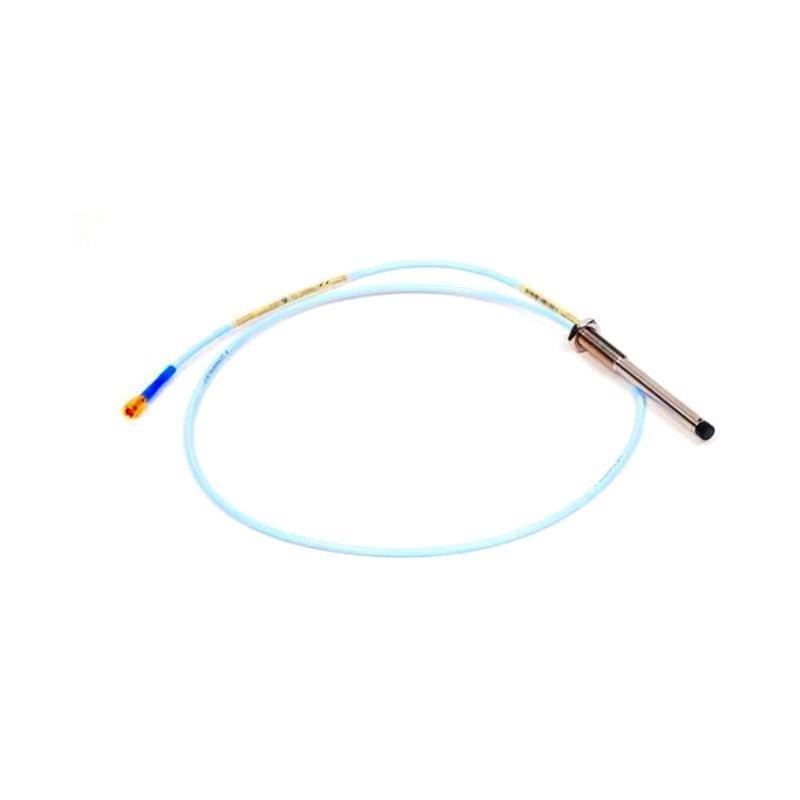

The Bently Nevada 330103-00-07-05-02-CN is a premium-quality 8 mm proximity probe from the 3300 XL series, specifically engineered for continuous monitoring von shaft vibration and position in rotating machinery. Designed for use in conjunction with the 3300 XL Proximitor Sensor and extension cable, it forms part von a highly reliable non-contact measurement system that complies with API 670 standards.
This probe is built with a rugged casing, precision-tuned sensing tip, and ClickLoc connector for quick and secure installation. The CN suffix designates a China-compliant version, ensuring compatibility with localized regulatory or component requirements while maintaining full performance and durability.
Key Features
-
Non-contact vibration and position monitoring
-
Works with 3300 XL Proximitor and extension cable
-
Accurate linear output over 2 mm range
-
Compliant with API 670 standards for machinery protection
-
Robust design for harsh environments
-
Includes factory-installed ClickLoc connector
-
China-localized variant (–CN suffix) for regional compatibility
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 330103-00-07-05-02-CN |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Target Material | Ferromagnetic (e.g., steel shafts) |
| Body Style | Straight |
| Thread Type | 1/4-28 UNF-2A |
| Cable Length (Probe) | 7.0 meters |
| Connector Type | ClickLoc keyed connector |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Sensitivity | 7.87 mV/μm (200 mV/mil), nominal |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz |
| System Compatibility | 3300 XL Extension Cable and Proximitor Sensor |
| Dimensions | Total Length : 0.5 meter |
| Gewicht | 0.161 kg |
Industry Applications
-
Gas and Steam Turbines
-
Electric Motors and Generators
-
Industrial Compressors and Pumps
-
Gearboxes and Speed Reducers
-
Petrochemical and Refining Equipment
-
Power Generation Systems
Product Advantages
-
Reliable Monitoring: Ensures early detection von shaft vibration and displacement.
-
High Durability: Performs consistently in extreme temperature and contamination.
-
Easy Connection: ClickLoc connector simplifies installation and prevents loosening.
-
Precision Output: Provides linear response over wide range for accurate diagnostics.
-
Standardized Compatibility: Fully integrates into Bently Nevada 3300 XL systems.
-
CN Modell Compliance: Meets requirements for use in Chinese industrial applications.
-
Field-Proven Technology: Based on decades von Bently Nevada’s reliability and design innovation.
Häufig gestellte Fragen (FAQ)
-
What is the sensing range von this probe?
The linear sensing range is 2 mm (80 mils). -
Is this probe suitable for high-temperature applications?
Yes, it operates up to +177°C (350°F). -
What does the “CN” in the model number indicate?
It signifies a China-compliant or region-specific version von the standard probe. -
What kind von thread does it use?
1/4-28 UNF-2A threaded body for standard installations. -
Which systems is this probe compatible with?
It works with the 3300 XL Proximitor Sensor and Extension Cable. -
What industries commonly use this probe?
Oil & gas, petrochemical, power generation, and heavy manufacturing. -
Can it be mounted in a harsh environment?
Yes, it’s designed for corrosive and high-vibration conditions. -
How long is the cable attached to the probe?
7.0 meters. -
Is the probe output linear?
Yes, with a nominal sensitivity von 200 mV/mil. -
Does it require calibration after installation?
Factory-calibrated, but verification during installation is recommended.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330103-00-05-10-02-00 | 5 m probe, standard thread |
| 330103-00-06-10-02-05 | 6 m probe, ClickLoc connector |
| 330103-00-08-10-02-00 | 8 m probe, standard connector |
| 330104-00-05-10-12-05 | High-temp 3300 XL 8 mm Probe |
| 330102-00-07-10-02-05 | Alternative thread and length option |
Popular Bently Nevada Produkte
| Modell Number | Beschreibung |
|---|---|
| 330130-080-00-00 | 3300 XL Extension Cable, 8 m |
| 330180-90-00 | 3300 XL Proximitor Sensor |
| 3500/42M-01-00 | Proximitor Monitor Module |
| 330104-00-12-10-02-05 | 12 m probe with straight connector |
| 330103-00-07-05-02-00 | Standard 7 m version without CN suffix |
