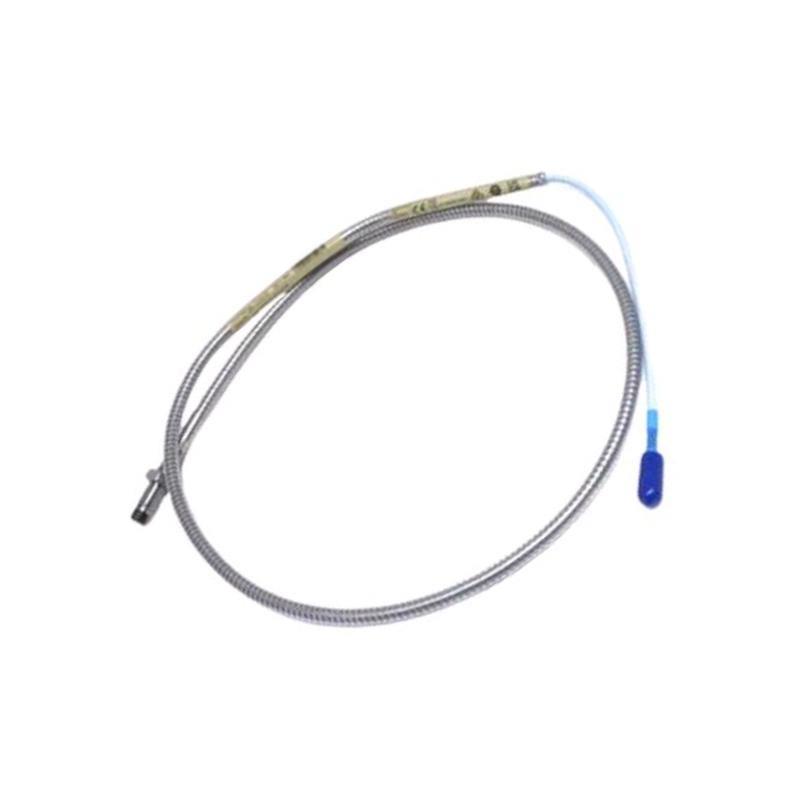

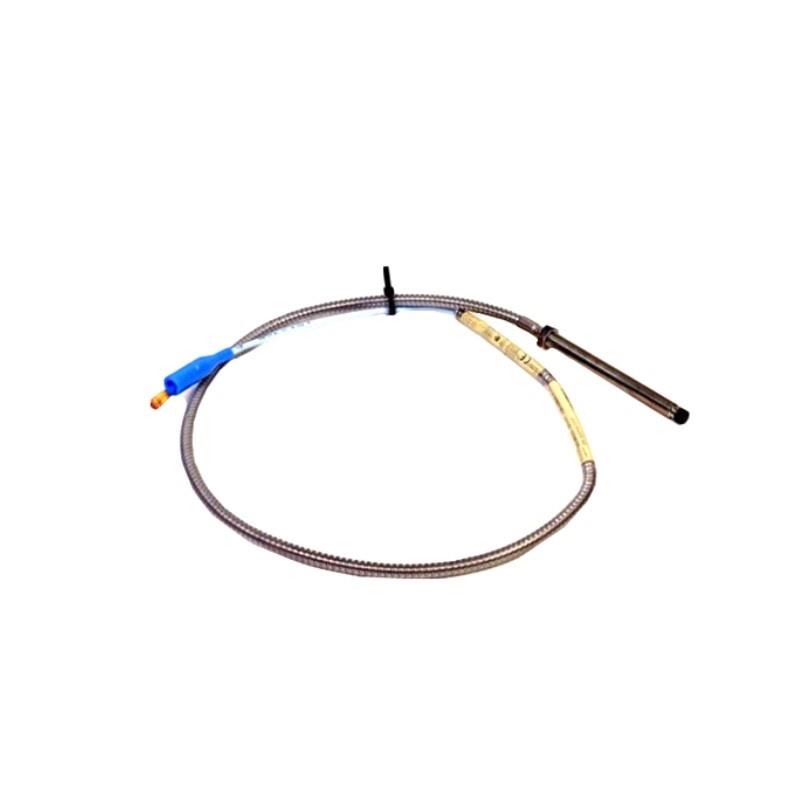

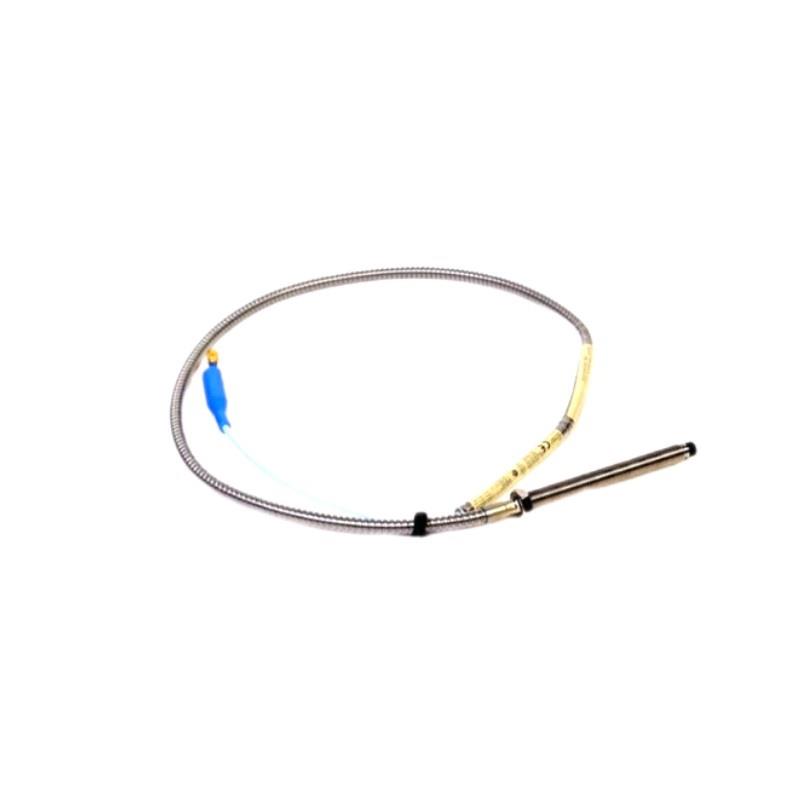

The Bently Nevada 330102-00-88-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision displacement monitoring sensor designed for industrial machinery and rotating equipment. It is part / the 3300 XL series, renowned for its reliability in critical asset monitoring and machinery protection. This probe is used to accurately detect shaft position and vibration, providing real-time data for condition monitoring and protection systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 330102-00-88-10-02-05 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current / Non-contact displacement sensing |
| Target Material Compatibility | Ferromagnetic |
| Gap Range | 0.25 mm – 2.54 mm |
| Vibration Resistance | 20 g, 10–2000 Hz |
| Housing Material | Stainless Steel |
| Connector Type | MS Connector |
| Electrical Protection | Short-circuit and overvoltage protection |
| Total Length | 1 m |
| 重量 | 0.323 kg |
| Response Frequency | Up to 10 kHz |
Applications
-
Monitoring / turbine shafts in power generation equipment
-
Protection / compressors, pumps, and motors
-
Vibration monitoring in high-speed rotating machinery
-
Integration with 3300 XL monitoring systems for predictive maintenance
-
状態 monitoring in petrochemical and oil & gas facilities
-
Critical asset protection in manufacturing plants
Product Advantages
-
High Accuracy: Provides precise displacement and vibration measurements.
-
Durable Construction: Stainless steel housing ensures resistance to harsh industrial environments.
-
Non-contact Measurement: Eliminates wear and tear, extending operational reliability.
-
Wide Operating Temperature Range: Suitable for extreme conditions.
-
Compatibility: Seamlessly integrates with 3300 XL monitoring systems.
-
Fast Response: High-frequency response ensures accurate dynamic monitoring.
-
Maintenance-Friendly: Easy to install and replace without affecting system uptime.
FAQ
Q1: What is the operating voltage range for this probe?
A1: The probe operates at 24 VDC, standard for 3300 XL systems.
Q2: Can this probe measure non-ferromagnetic materials?
A2: No, it is designed for ferromagnetic targets; non-ferromagnetic materials will not generate accurate readings.
Q3: What is the maximum cable length supported without signal degradation?
A3: The standard cable length is 1m; extensions up to 15 m are possible with proper shielding.
Q4: How does the probe respond to high vibration environments?
A4: It is designed to withstand 20 g vibration up to 2000 Hz without performance degradation.
Q5: Is it possible to replace the probe while the system is running?
A5: No, the system should be powered down before replacing the probe to avoid transient errors.
Q6: What is the maximum sensing gap for reliable measurement?
A6: The probe reliably measures within a 0.25–2.54 mm gap.
Q7: Does the probe provide analog or digital output?
A7: It provides an analog voltage output proportional to shaft displacement.
Q8: Can this probe be used in explosive atmospheres?
A8: It requires certification for hazardous areas; standard 3300 XL probes need intrinsically safe barriers for such environments.
Q9: How precise is the measurement accuracy?
A9: Typical accuracy is ±2 µm over the calibrated gap range.
Q10: What maintenance is required for long-term performance?
A10: Regular inspection / the probe tip and cable integrity is recommended; no calibration is generally needed under normal operation.
Related モデルs
| モデル Number | Probe Type | Cable Length | Gap Range |
|---|---|---|---|
| 330102-00-16-90-02-05 | 8 mm Proximity | 3 m | 0.25–2.54 mm |
| 330102-00-88-10-02-05 | 8 mm Proximity | 3 m | 0.25–2.54 mm |
| 330102-01-16-90-02-05 | 12 mm Proximity | 3 m | 0.25–3.05 mm |
| 330102-01-88-10-02-05 | 12 mm Proximity | 3 m | 0.25–3.05 mm |
| 330102-03-25-10-02-05 | 8 mm Proximity | 3 m | 0.25–2.54 mm |
| 330102-04-24-50-02-00 | 8 mm Proximity | 5 m | 0.25–2.54 mm |
Popular モデルs from Bently Nevada
| モデル Number | Probe Type | Cable Length | Gap Range |
|---|---|---|---|
| 330102-00-16-90-02-05 | 8 mm Proximity | 3 m | 0.25–2.54 mm |
| 330102-05-25-10-01-05 | 8 mm Proximity | 3 m | 0.25–2.54 mm |
| 330102-04-24-50-02-00 | 8 mm Proximity | 5 m | 0.25–2.54 mm |
| 330102-03-25-10-02-05 | 8 mm Proximity | 3 m | 0.25–2.54 mm |
| 330102-00-79-10-02-05 | 8 mm Proximity | 3 m | 0.25–2.54 mm |
| 330102-00-16-90-02-05 | 12 mm Proximity | 3 m | 0.25–3.05 mm |
