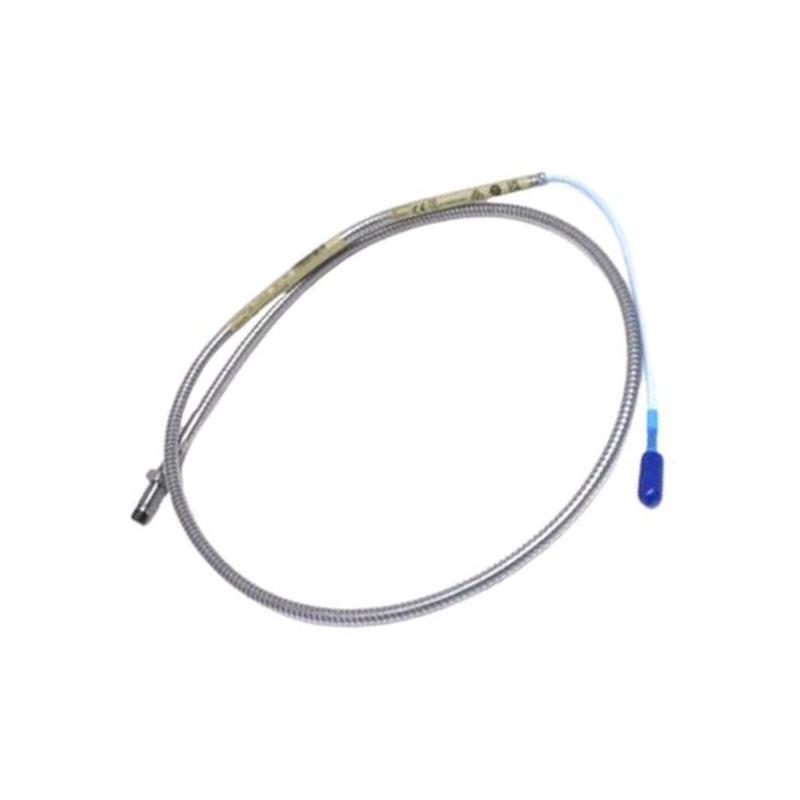

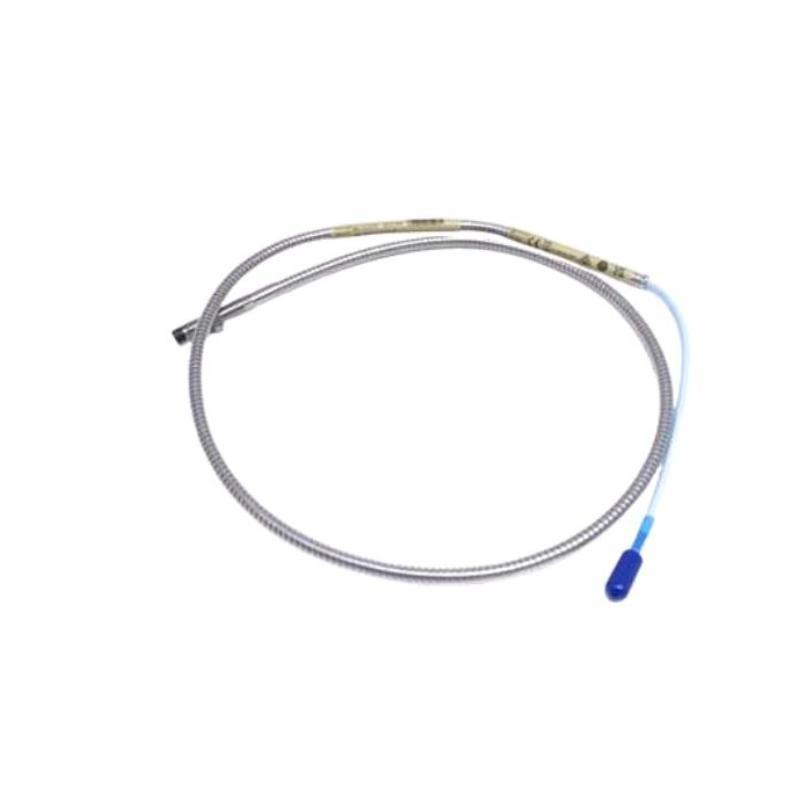

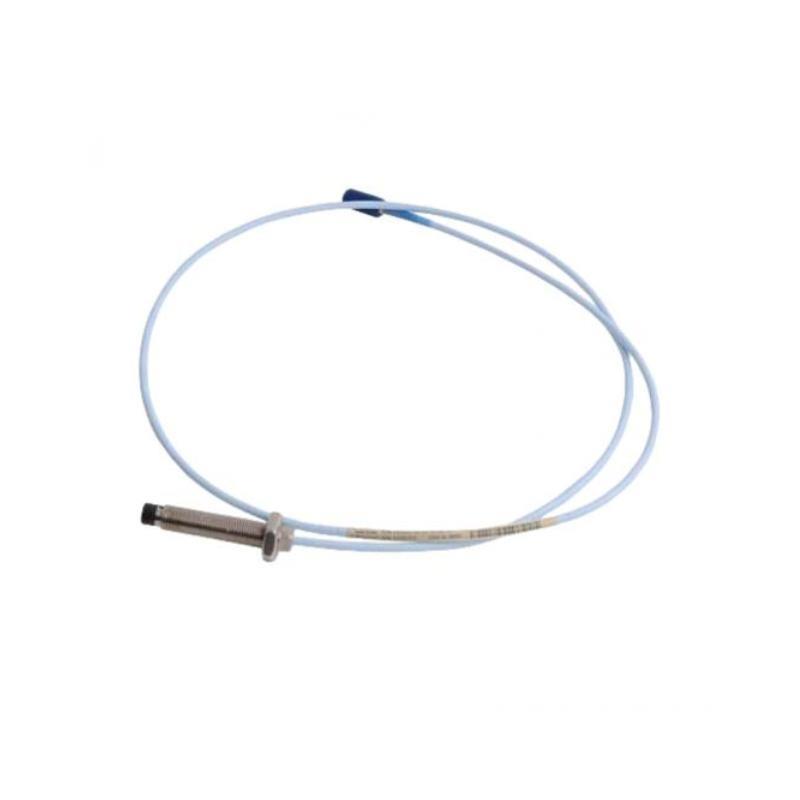

The Bently Nevada 330102-00-68-05-02-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact sensor designed for machinery protection and condition monitoring. It belongs to the 3300 XL series, which is widely recognized for its reliability, robustness, and compatibility with a variety / industrial machinery and rotating equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル Number | 330102-00-68-05-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Frequency | DC to 10 kHz |
| Cable Length | 5 m (configured with extension options) |
| Target Material | AISI 4140 steel (typical calibration material) |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -51 °C to +177 °C |
| Pressure Resistance | Up to 2000 psi (with protective housing) |
| EMI/RFI Imm台y | Compliant with IEC standards |
| Total Length | 0.5 m |
| 重量 | 0.162 kg |
Product Applications
The Bently Nevada 330102-00-68-05-02-05 proximity probe is specifically designed for monitoring the dynamic behavior / rotating machinery. Key application areas include:
-
Turbomachinery Monitoring: Shaft vibration and axial position measurements in steam and gas turbines.
-
Compressors: Monitoring radial vibration and detecting imbalance or misalignment.
-
Pumps and Motors: Identifying bearing wear, shaft displacement, and cavitation conditions.
-
Gearboxes: Detecting abnormal gear mesh patterns and early fault detection.
-
Industrial Critical Assets: Any rotating equipment where failure may lead to unplanned downtime or safety risks.
Product Advantages
-
High Measurement Accuracy: Provides precise shaft vibration and displacement data for reliable diagnostics.
-
Robust Construction: Resistant to mechanical stress, EMI/RFI noise, and harsh environmental conditions.
-
Wide Temperature Range: Operates in extreme industrial conditions without performance degradation.
-
Global Compatibility: Conforms to API 670 standards, widely accepted across industries.
-
Flexible Configuration: Compatible with multiple cable lengths and extension options.
-
Long-Term Stability: Proven reliability in continuous operation with minimal drift.
FAQ
Q1: What type / signal does the probe output?
A1: The probe outputs a voltage signal proportional to the distance between the probe tip and the target surface.
Q2: Can this probe be calibrated for materials other than AISI 4140 steel?
A2: Yes, it can be calibrated for other conductive materials, though a correction factor may be applied.
Q3: What is the maximum shaft vibration frequency that can be detected?
A3: The probe supports measurements up to 10 kHz, suitable for high-speed rotating machinery.
Q4: How does the probe handle electrical interference?
A4: It is designed with shielding and grounding features, making it compliant with international EMI/RFI standards.
Q5: Is the probe suitable for use in hazardous environments?
A5: Yes, certain configurations are certified for hazardous areas with CSA and ATEX approvals.
Q6: What monitoring systems is this probe compatible with?
A6: It is fully compatible with Bently Nevada 3300 and 3500 monitoring systems, as well as proximitor drivers.
Q7: How is linearity ensured across the measurement range?
A7: The probe is factory-calibrated and tested against API 670 standards to maintain strict linearity.
Q8: What is the typical noise level / the probe signal?
A8: Noise levels are kept extremely low, typically less than 25 μV RMS, ensuring accurate detection.
Q9: Can the probe be used in high-pressure environments?
A9: Yes, when installed with proper housing, it can withstand pressures up to 2000 psi.
Q10: Does cable length affect measurement accuracy?
A10: The probe and proximitor are factory-matched with specific cable lengths; deviations can affect accuracy.
Recommended モデルs
| モデル Number | 説明 |
|---|---|
| 330102-00-50-10-01-00 | Standard 8 mm proximity probe, 10 m cable |
| 330102-00-42-05-02-00 | 8 mm probe with 5 m cable, standard configuration |
| 330102-00-48-05-02-RU | Ruggedized 8 mm probe with 5 m cable |
| 330102-00-50-10-01-RU | 8 mm probe, RU version, extended cable |
| 330103-00-12-10-02-00 | 3300 XL 11 mm probe for larger targets |
| 330104-00-10-05-02-05 | 3300 XL 5 mm probe for smaller measurement range |
Recommended モデルs
| モデル Number | 説明 |
|---|---|
| 330103-00-07-10-02-00 | 11 mm probe for large shaft displacement monitoring |
| 330104-00-05-10-02-05 | 5 mm probe designed for compact machinery |
| 330130-045-00-05 | Extension cable compatible with 3300 XL proximity probes |
| 330180-90-00 | Proximitor Sensor for 3300 XL series probes |
| 330400-50-05 | High-temperature velocity sensor |
| 3500/22M | Transient Data Interface module for 3500 system |
| 3500/42M | Proximitor/Seismic monitoring module |
| 3500/60 | Temperature monitoring module for rotating machinery |
