Product Overview

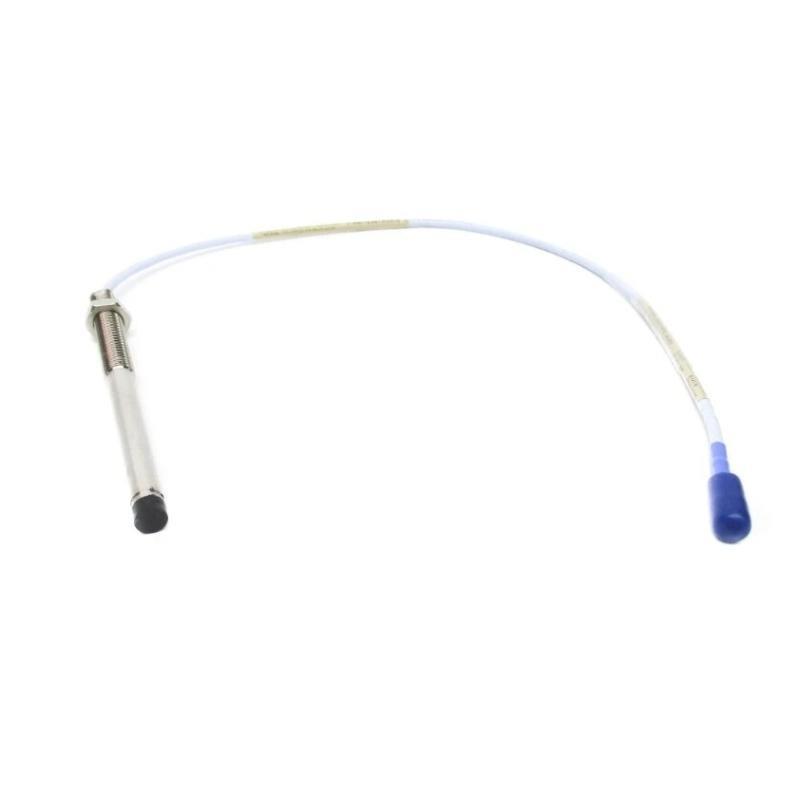

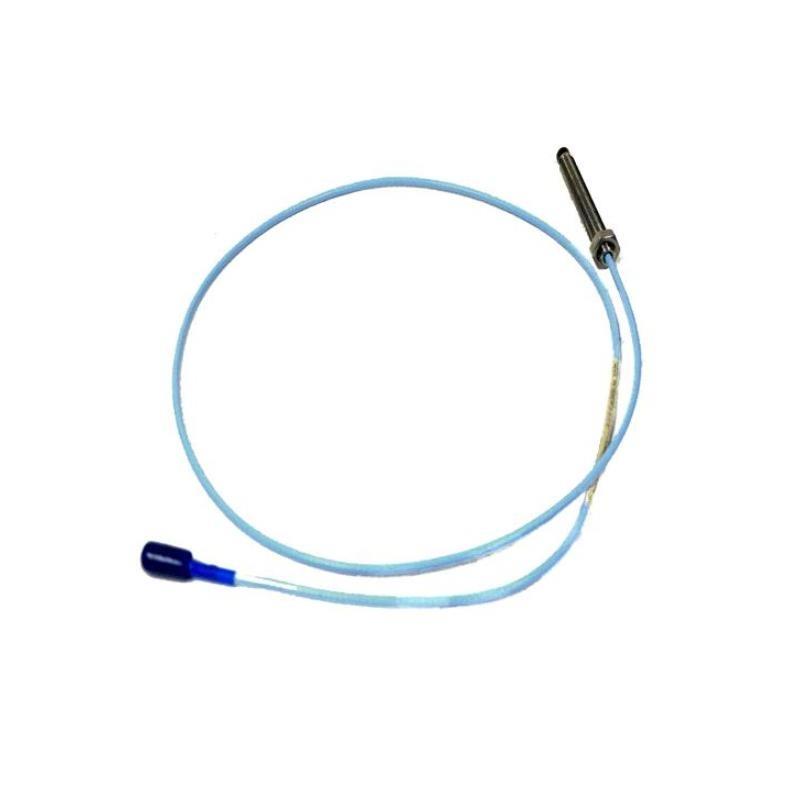

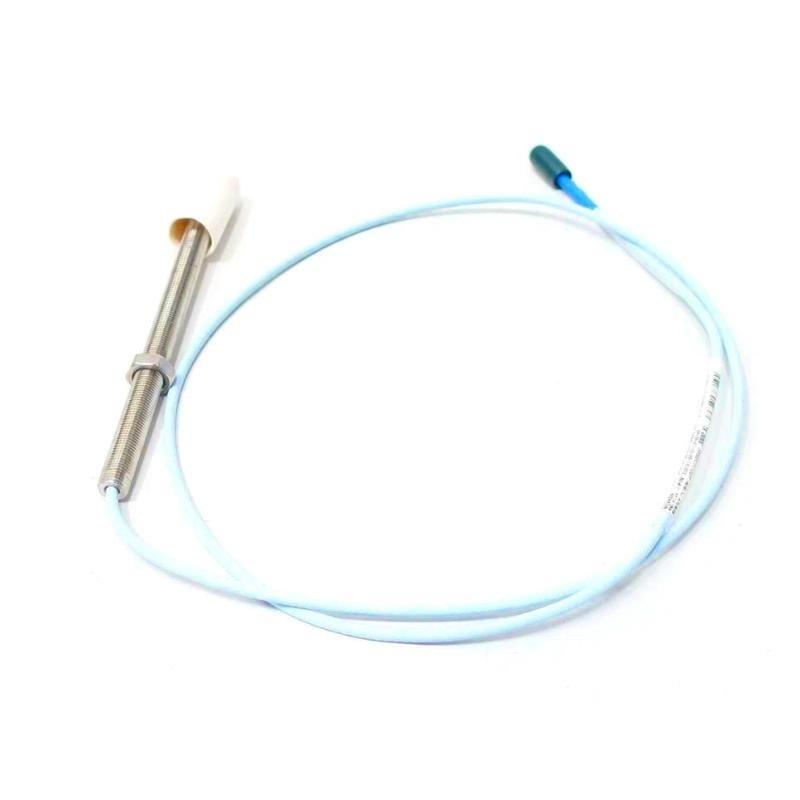

The Bently Nevada 330101-00-48-10-02-RU is a high-precision proximity probe from the 3300 XL 8 mm series, designed for dynamic vibration and static position measurements. It forms a part / a complete transducer system that includes the proximity probe, extension cable, and Proximitor sensor. This model is particularly suited for fluid-film bearing machines, ensuring reliable performance in harsh industrial environments.
Technical Specifications
| Parameter | 説明 |
|---|---|
| Product Series | 3300 XL 8 mm Proximity Probe |
| モデル Number | 330101-00-48-10-02-RU |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc connector |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Operating Temperature | –52°C to +177°C |
| Pressure Sealing | Viton® O-ring seal |
| Mounting Thread | 3/8-24 UNF |
| Recommended Gap | 1.27 mm (50 mils) |
| Linear Range | 0.25 mm to 2.3 mm |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Compliance | API 670 compliant, CE, ATEX, CSA, IECEx, RoHS |
Applications
-
Shaft vibration monitoring
-
Thrust position measurements
-
Keyphasor reference signals
-
Overspeed and speed measurements
-
状態 monitoring in turbines, compressors, and large rotating equipment
Advantages
-
Full compliance with API 670
-
Interchangeable probe, extension cable, and Proximitor sensor
-
High imm台y to EMI/RFI
-
Finger-tight, corrosion-resistant ClickLoc connectors
-
Robust mechanical construction with TipLoc and CableLoc design
-
Suitable for high-temperature environments (up to 177°C standard)
よくある質問 (FAQ)
Q1: What is the linear measurement range / this probe?
A1: It measures from 0.25 mm to 2.3 mm with high accuracy.
Q2: Can this probe be used in high-temperature environments?
A2: Yes, the standard version supports up to +177°C. ETR versions can go up to +218°C.
Q3: Is it compatible with older 3300 systems?
A3: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: What type / connector is used?
A4: It uses a ClickLoc miniature coaxial connector with optional protector.
Q5: Is field calibration required?
A5: No, factory calibration to AISI 4140 steel allows component interchange without field calibration.
Q6: What shaft sizes are recommended for use?
A6: Minimum shaft diameter is 50.8 mm; 76.2 mm is recommended to minimize cross-talk.
Q7: What material is the probe case made /?
A7: It is made / corrosion-resistant stainless steel (AISI 303/304).
Q8: What’s the output sensitivity?
A8: It provides 7.87 V/mm (200 mV/mil) ±5% for 1 m systems.
Q9: Is it suitable for hazardous areas?
A9: Yes, it meets CSA, ATEX, IECEx certifications for use in hazardous locations.
Q10: What is the bend radius / the cable?
A10: Minimum bend radius is 25.4 mm (1.0 inch).
Related モデルs in the Same Series
| モデル Number | Thread Type | Length | Armor | FluidLoc | 重量 |
|---|---|---|---|---|---|
| 330101-00-08-10-02-00 | 3/8-24 UNF | 1.0 m | No | No | 0.323 kg |
| 330101-00-20-10-02-00 | 3/8-24 UNF | 2.0 m | No | No | 0.340 kg |
| 330102-00-20-10-02-00 | 3/8-24 UNF | 2.0 m | Yes | No | 0.450 kg |
| 330103-00-10-10-02-00 | M10x1 | 1.0 m | No | No | 0.323 kg |
| 330104-00-10-10-02-00 | M10x1 | 1.0 m | Yes | No | 0.450 kg |
| 330105-02-12-10-02-00 | 3/8-24 UNF | 1.0 m | No | No | 0.323 kg |
Popular Bently Nevada モデルs
| モデル Number | Product Type | Application | Length | 重量 |
|---|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm Probe, M10x1 Thread | Radial/Thrust Positioning | 0.6 m | 0.320 kg |
| 330130-040-02-00 | Extension Cable | Signal Extension | 4.0 m | 0.140 kg |
| 330180-10-05 | Proximitor Sensor | Panel Mount, 1.0 m System | – | 0.246 kg |
| 3500/42M-01-00 | Vibration Monitor | Proximitor Seismic Monitoring | – | 0.540 kg |
| 3500/22M-01-01-00 | Transient Data Interface | System Configuration & Communication | – | 0.610 kg |
| 330500-02-00 | Velocity Transducer | Low-Frequency Vibration Monitoring | – | 0.500 kg |
