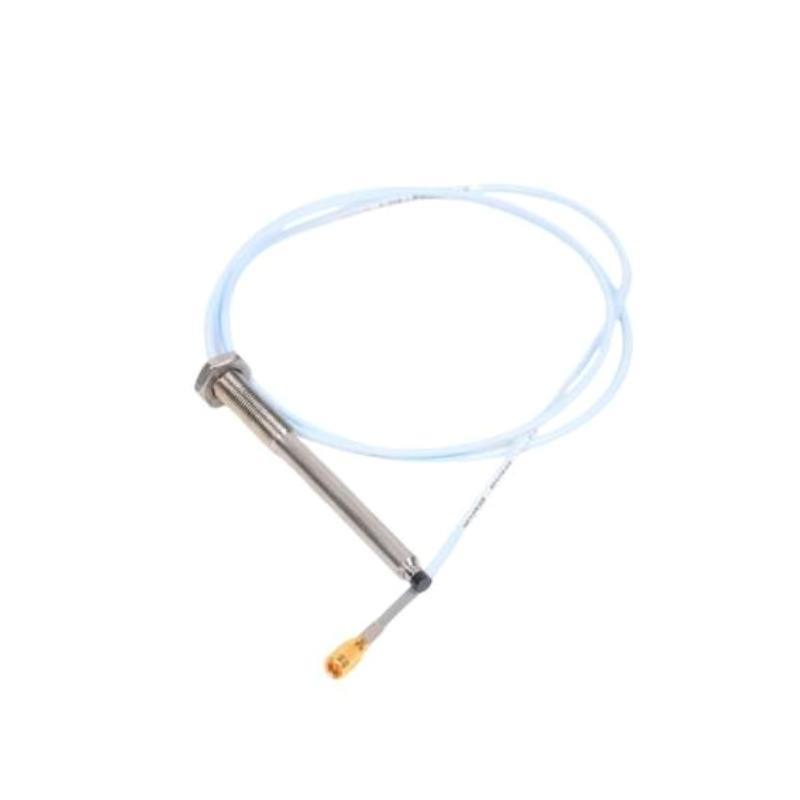

The Bently Nevada 330101-00-28-90-02-00 is a high-precision proximity probe from the 3300 XL 8 mm series, designed for non-contact measurement / shaft displacement and vibration in rotating machinery. Utilizing eddy current technology, it /fers accurate and reliable monitoring, essential for machinery protection and condition monitoring systems.
This probe is constructed with durable materials, including a stainless steel case and a polyphenylene sulfide (PPS) tip, ensuring longevity even in harsh industrial environments. It is compatible with Bently Nevada’s 3300 XL Proximitor sensors and extension cables, forming a complete transducer system compliant with API 670 standards.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 330101-00-28-90-02-00 |
| Series | 3300 XL 8 mm Proximity Probes |
| Probe Tip Diameter | 8 mm |
| Unthreaded Length Option | 0.0 in (0 mm) |
| Overall Case Length Option | 2.8 in (71.12 mm) |
| Total Length Option | 9.0 m (29.5 ft) |
| Connector Type | Miniature coaxial ClickLoc™ connector, standard cable |
| Agency Approval Option | 00 = Not required |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Operating Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Humidity | 100% relative humidity, non-condensing |
| 重量 | 2.907 kg |
| Compliance | Meets API 670 standard for machinery protection |
| Compatibility | Interchangeable with 3300 XL Proximitor sensors, extension cables, and probes |
Applications
The 330101-00-28-90-02-00 proximity probe is suitable for a wide range / industrial applications, including:
-
Turbines: Monitoring shaft vibration and position in steam and gas turbines.
-
Compressors: Detecting radial and axial shaft displacement in centrifugal and reciprocating compressors.
-
Pumps: Measuring shaft movement to prevent mechanical failures in various pump types.
-
Motors and Generators: Ensuring proper alignment and detecting imbalance or misalignment issues.
-
Gearboxes: Monitoring gear shaft position and vibration for predictive maintenance.
Product Advantages
-
High Accuracy: Provides precise measurements / shaft displacement and vibration, essential for machinery protection.
-
Robust Construction: Built with stainless steel and PPS materials, ensuring durability in harsh environments.
-
Wide Temperature Range: Operates effectively in extreme temperatures, suitable for various industrial settings.
-
Easy Integration: Compatible with Bently Nevada’s 3300 XL Proximitor sensors and extension cables.
-
Compliance with Standards: Meets API 670 requirements, ensuring reliability in critical applications.
よくある質問 (FAQ)
-
What is the primary function / the 330101-00-28-90-02-00 proximity probe?
-
It measures shaft displacement and vibration in rotating machinery using non-contact eddy current technology.
-
-
Is this probe compatible with other Bently Nevada systems?
-
Yes, it is designed to work seamlessly with 3300 XL Proximitor sensors and extension cables.
-
-
Can this probe operate in high-temperature environments?
-
Yes, it operates effectively in temperatures ranging from -35°C to +177°C.
-
-
What materials are used in the construction / the probe?
-
The probe features a stainless steel case and a PPS (polyphenylene sulfide) tip.
-
-
Does the probe comply with any industry standards?
-
Yes, it meets the API 670 standard for machinery protection.
-
-
What is the total length / the probe?
-
The probe has a total length / 9.0 meters (29.5 feet).
-
-
What type / connector does the probe use?
-
It uses a miniature coaxial ClickLoc™ connector with a standard cable.
-
-
Is the probe suitable for use in humid environments?
-
Yes, it can operate in 100% relative humidity, non-condensing conditions.
-
-
What is the weight / the probe?
-
The probe weighs 2.907 kg.
-
-
Can the probe be used in hazardous areas?
-
This specific model does not have agency approval for hazardous areas; however, other models with appropriate certifications are available.
-
Related モデルs from the Same Series or Function カテゴリー
| モデル Number | 説明 | Cable Length | Thread Size | Notes |
|---|---|---|---|---|
| 330101-00-12-10-02-00 | 3300 XL 8 mm Probe with 12 ft cable | 12 ft | 3/8-24 UNF | Standard proximity probe with longer cable |
| 330104-00-12-10-02-00 | 3300 XL 11 mm Probe with 12 ft cable | 12 ft | 3/8-24 UNF | For larger shaft diameters |
| 330106-05-30-10-02-00 | 3300 XL 8 mm Armored Probe, 5 m cable | 5 m | M10x1 | Ruggedized version for harsh environments |
| 330130-040-00-00 | 3300 XL Extension Cable, 40 ft | 40 ft | N/A | For long-distance probe connections |
| 330180-91-05 | 3300 XL Proximitor Sensor, DIN Mount, 5 m | N/A | N/A | Compact DIN-rail mount Proximitor |
| 330105-02-12-10-02-00 | Reverse Mount 8 mm Probe, 12 ft cable | 12 ft | M10x1 | Used in reverse-thread applications |
Popular Bently Nevada モデルs (High Demand)
| モデル Number | 説明 | Function | Key Feature |
|---|---|---|---|
| 3500/42M | Proximitor Monitor Module (4-Channel) | Shaft vibration and position | Real-time monitoring in 3500 rack systems |
| 3500/22M | Transient Data Interface (TDI) | Communication and data logging | Ethernet & serial connectivity |
| 3500/05 | Rack for 3500 Series Modules | System integration | Modular mounting system |
| 3500/32M | 4-Channel Relay Module | Alarm and control output | Used in trip, shutdown, and control systems |
| 1900/65A | Compact Vibration Monitor | Standalone machinery protection | Budget-friendly, reliable monitoring |
| 3300/14 | 2-Channel Vibration Monitor | Radial vibration measurement | Legacy series, widely installed globally |
