Product 説明

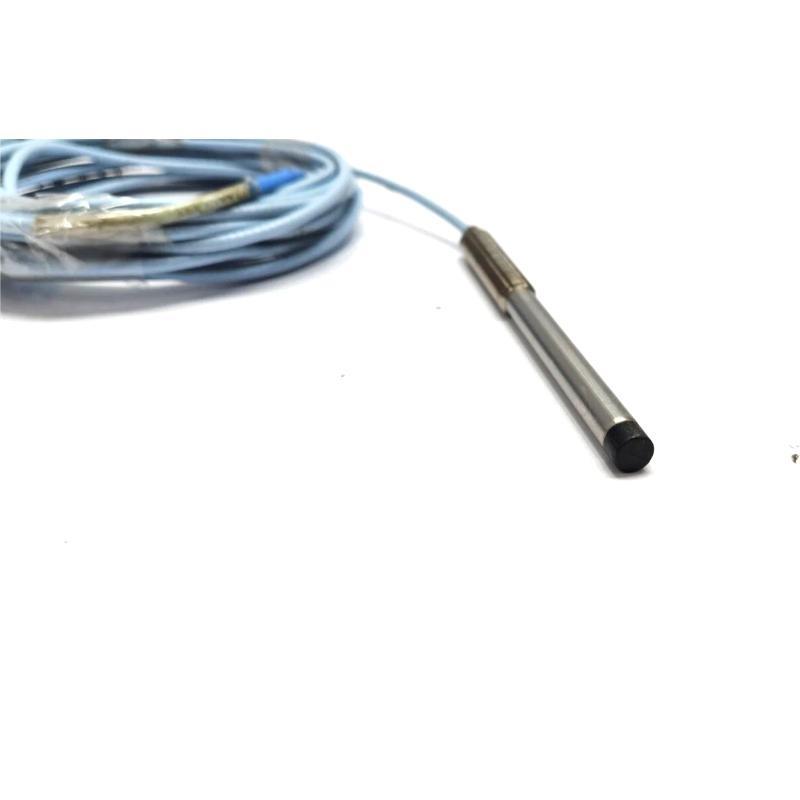

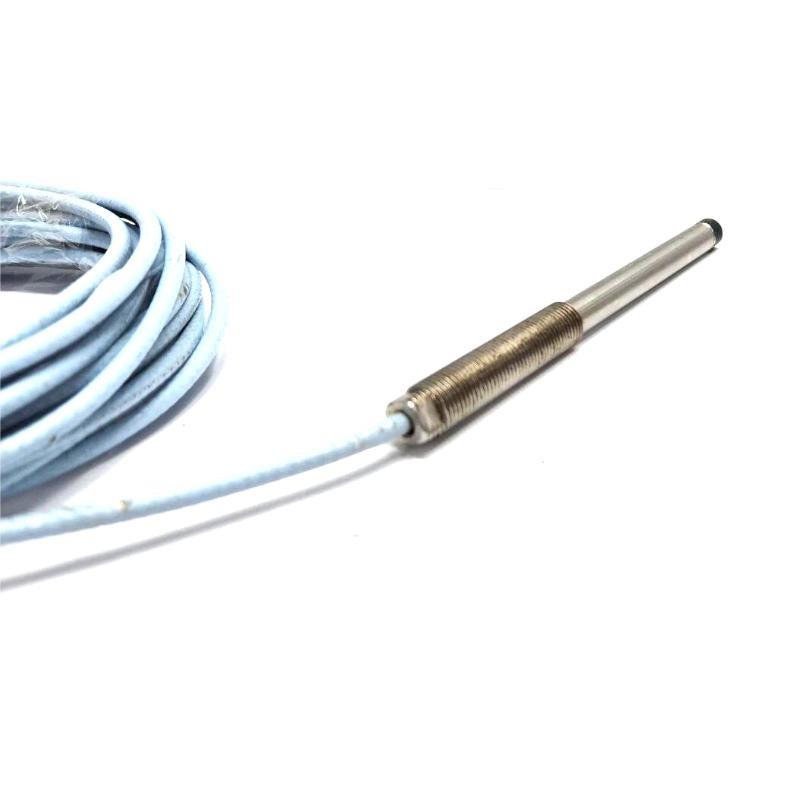

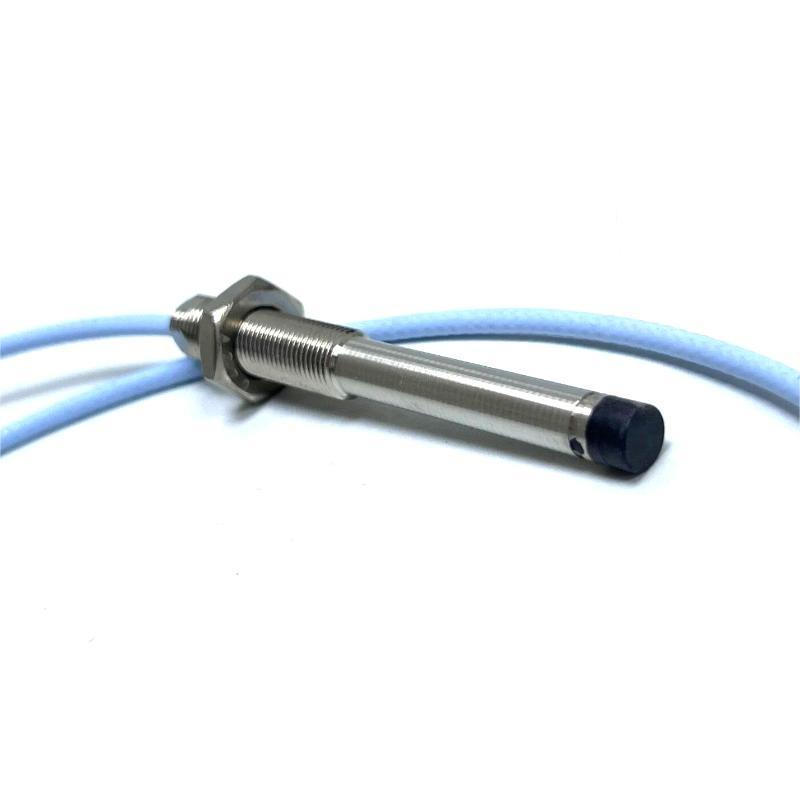

The Bently Nevada 330103-06-11-10-02-05 is part / the 3300 XL 8 mm Proximity Transducer System, designed to provide highly reliable and accurate measurements / shaft vibration and position in rotating machinery. This probe features an M10 × 1 thread, no armor, and incorporates advanced mechanical bonding technologies for long-term durability. It operates as part / a three-component system, including the probe, extension cable, and Proximitor® sensor.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル Number | 330103-06-11-10-02-05 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 |
| System Type | 3300 XL Proximity Transducer System |
| Standard Compliance | API 670 (4th edition) |
| Total Length | 1.0 m |
| 重量 | 0.323 kg |
| Connector Type | ClickLoc™ miniature coaxial connector |
| Mounting Method | Threaded installation |
| Operating Range | Up to 2 mm linear measurement range |
| Temperature Range | -35 °C to +180 °C (probe only) |
| Cable Type | Unarmored, high-strength bonding with CableLoc™ |
| Compatibility | Backward compatible with older 3300 series 5 mm and 8 mm systems |
Applications
-
Monitoring shaft vibration in turbines, compressors, and pumps
-
Measuring rotor-to-stator clearance in large rotating equipment
-
Detecting shaft position and axial displacement
-
Ensuring API 670 compliance in critical machinery protection systems
-
Long-term condition monitoring in petrochemical, power generation, and process industries
Advantages
-
ClickLoc™ connectors: Gold-plated, secure locking design that prevents accidental disconnection.
-
TipLoc™ bonding: Prevents probe tip loosening under thermal or mechanical stress.
-
CableLoc™ reinforcement: Provides up to 330 N pull strength for cable durability.
-
High EMI/RFI imm台y: Reliable performance in electrically noisy environments.
-
Backward compatibility: Works seamlessly with older 3300 5 mm and 8 mm components.
-
Global compliance: Meets API 670 and other international reliability standards.
FAQ
Q1: What does the model number 330103-06-11-10-02-05 specify?
A1: It defines the probe type, thread style, length, connector type, and specific configuration details required for the application.
Q2: Can this probe be used with older 3300 systems?
A2: Yes, it is backward compatible with 3300 series 5 mm and 8 mm components.
Q3: What is the primary function / the 330103 probe?
A3: To measure both static shaft position and dynamic vibration in rotating machinery.
Q4: What is the measurement range / the probe?
A4: It provides up to a 2 mm linear measurement range, suitable for shaft vibration monitoring.
Q5: How is the probe installed?
A5: It uses an M10 × 1 threaded mount for secure and precise positioning near the shaft surface.
Q6: What industries typically use this probe?
A6: Oil & gas, power generation, chemical processing, and heavy machinery sectors.
Q7: What makes the XL series more reliable than earlier designs?
A7: Features like ClickLoc™, TipLoc™, and CableLoc™ technologies improve durability and connection reliability.
Q8: Can the probe operate in high-temperature environments?
A8: Yes, it withstands probe tip temperatures up to +180 °C.
Q9: Is the probe designed for armored or unarmored cable use?
A9: This specific model uses an unarmored cable with reinforced CableLoc™ bonding.
Q10: What standard does the system comply with?
A10: It fully meets API 670 standards for machinery protection and monitoring.
