Product Overview

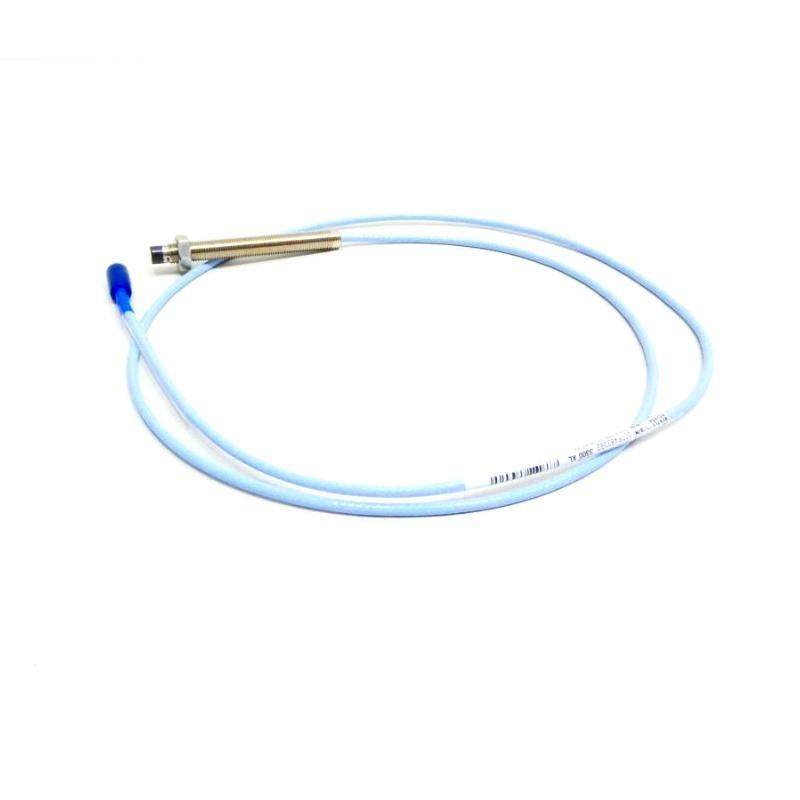

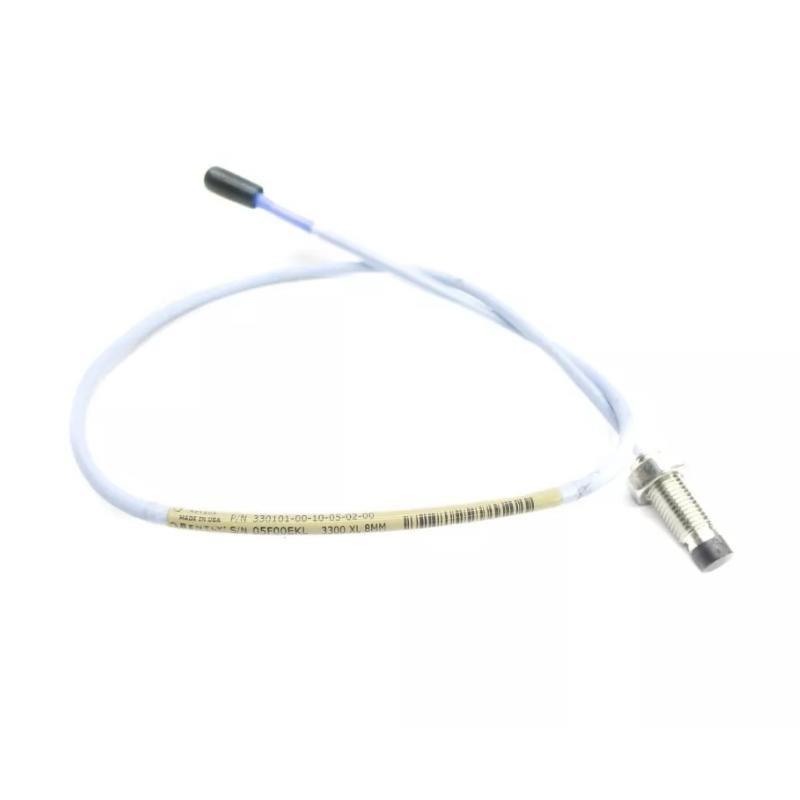

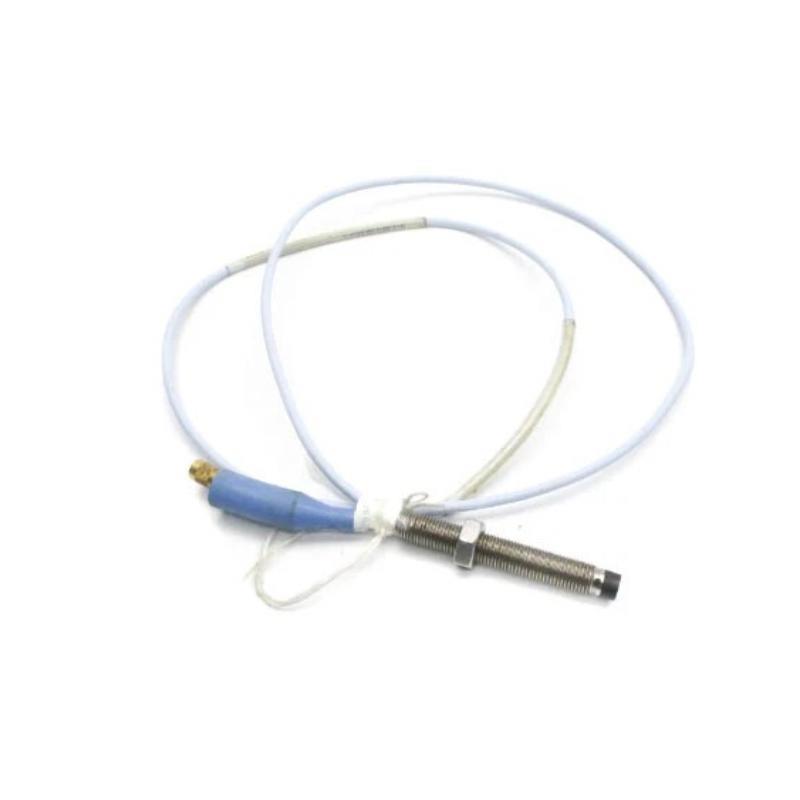

The Bently Nevada 330101-00-20-50-02-00 is an 8 mm 3300 XL Proximity Probe designed for high-precision measurement / shaft vibration and position in rotating machinery. It provides reliable, repeatable outputs, making it suitable for critical machinery monitoring in industrial applications. The probe ensures compatibility with the 3300 XL Proximitor System, enabling easy installation and system interchangeability without bench calibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Total Length | 5.0 meters |
| 重量 | 1.615 kg |
| Connector | Miniature Coaxial ClickLoc™ |
| DC Resistance | 8.73 ± 0.50 Ω (for 5m cable) |
| Cable Capacitance | 69.9 pF/m |
| Scale Factor | 7.87 V/mm ±5% |
| Linear Range | 2 mm |
| Operating Temperature | -52°C to +177°C (tip up to +218°C) |
| Humidity Resistance | <3% ASF change at 93% RH |
| Pressure Seal | Viton® O-ring |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
Applications
-
Vibration and position monitoring / high-speed rotating machinery
-
Turbines, compressors, and generators in industrial plants
-
API 670 compliant machinery protection systems
-
Predictive maintenance and condition monitoring programs
Advantages
-
High accuracy and stability over wide temperature and humidity ranges
-
Fully interchangeable with 3300 XL system components
-
Durable materials suitable for harsh industrial environments
-
Simple installation with standardized connectors
-
Reliable operation in both dynamic and static measurement applications
FAQ
1. What is the primary function / the 3300 XL 8mm Proximity Probe?
It measures shaft vibration and position with high precision and provides an analog voltage output proportional to displacement.
2. Can this probe operate at high temperatures?
Yes, the probe body operates up to +177°C and the tip up to +218°C.
3. Is the probe compatible with older 3300 series components?
Yes, it is fully interchangeable with other 3300 XL and non-XL 8 mm and 5 mm probes.
4. What type / environment is it suitable for?
It is suitable for industrial applications, including high humidity and extreme temperatures.
5. How is the probe installed?
The probe is installed using the 3/8-24 UNF thread, with a Viton® O-ring providing pressure sealing.
6. What is the linear measurement range?
The linear range / the probe is 2 mm.
7. What is the scale factor?
The scale factor is 7.87 V/mm ±5%.
8. How long is the cable supplied with the probe?
The standard total length is 5.0 meters.
9. What materials are used for the probe?
The tip is PPS, and the case is stainless steel (AISI 303/304).
10. Can the probe be used for predictive maintenance?
Yes, it is ideal for predictive maintenance and condition monitoring in critical machinery.
Recommended Related モデルs (Same Series)
| モデル | 説明 | Probe Diameter | Thread Type | Length | 重量 |
|---|---|---|---|---|---|
| 330101-00-20-10-02-00 | 3300 XL 8mm Standard Probe | 8 mm | 3/8-24 UNF | 5.0 m | 1.615 kg |
| 330101-00-20-50-01-00 | 3300 XL 8mm Proximity Probe | 8 mm | 3/8-24 UNF | 3.0 m | 1.1 kg |
| 330101-00-20-50-03-00 | 3300 XL 8mm Proximity Probe | 8 mm | 3/8-24 UNF | 10 m | 3.2 kg |
| 330101-00-20-10-03-00 | 3300 XL 8mm Probe with PPS Tip | 8 mm | 3/8-24 UNF | 5.0 m | 1.615 kg |
| 330101-00-20-60-02-00 | 3300 XL 8mm High Temp Probe | 8 mm | 3/8-24 UNF | 5.0 m | 1.615 kg |
| 330101-00-20-70-02-00 | 3300 XL 8mm Corrosion Resistant Probe | 8 mm | 3/8-24 UNF | 5.0 m | 1.615 kg |
Recommended Popular モデルs (Bently Nevada)
| モデル | 説明 | Probe Diameter | Thread Type | Length | 重量 |
|---|---|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8mm Proximity Probe | 8 mm | 3/8-24 UNF | 5 m | 1.615 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | N/A | N/A | N/A | 0.45 kg |
| 330101-00-10-50-02-00 | 3300 XL 5mm Probe | 5 mm | 3/8-24 UNF | 5 m | 1.5 kg |
| 330101-00-10-50-01-00 | 3300 XL 5mm Probe | 5 mm | 3/8-24 UNF | 3 m | 1.0 kg |
| 330104-00-06-50-01-00 | 3300 XL 8mm Proximity Probe | 8 mm | 3/8-24 UNF | 5 m | 1.615 kg |
| 3300-30-20-50 | 3300 XL Vibration Transducer | 8 mm | 3/8-24 UNF | 5 m | 1.615 kg |
