Introduction

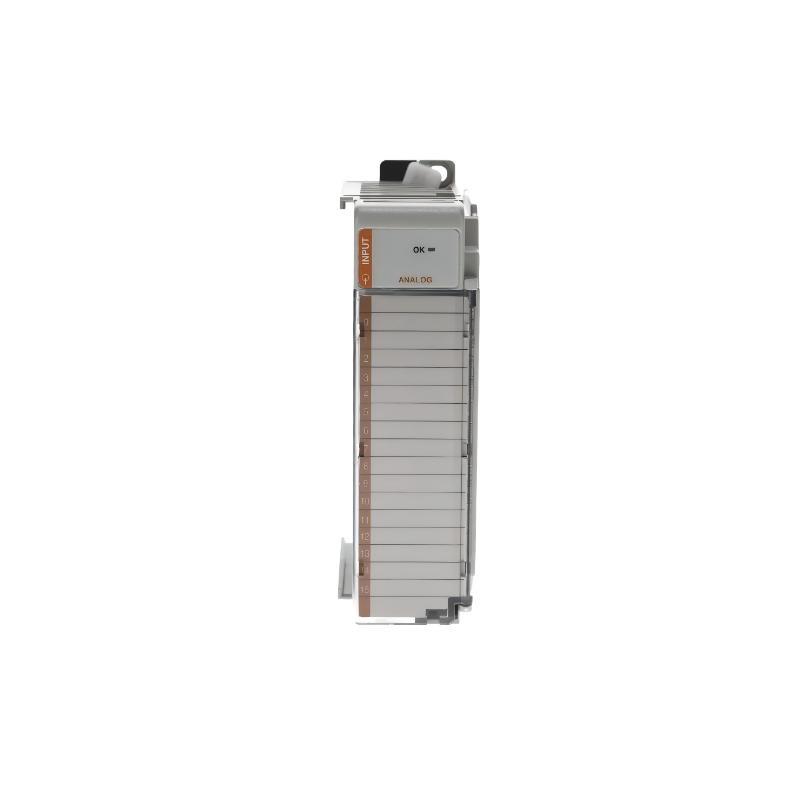

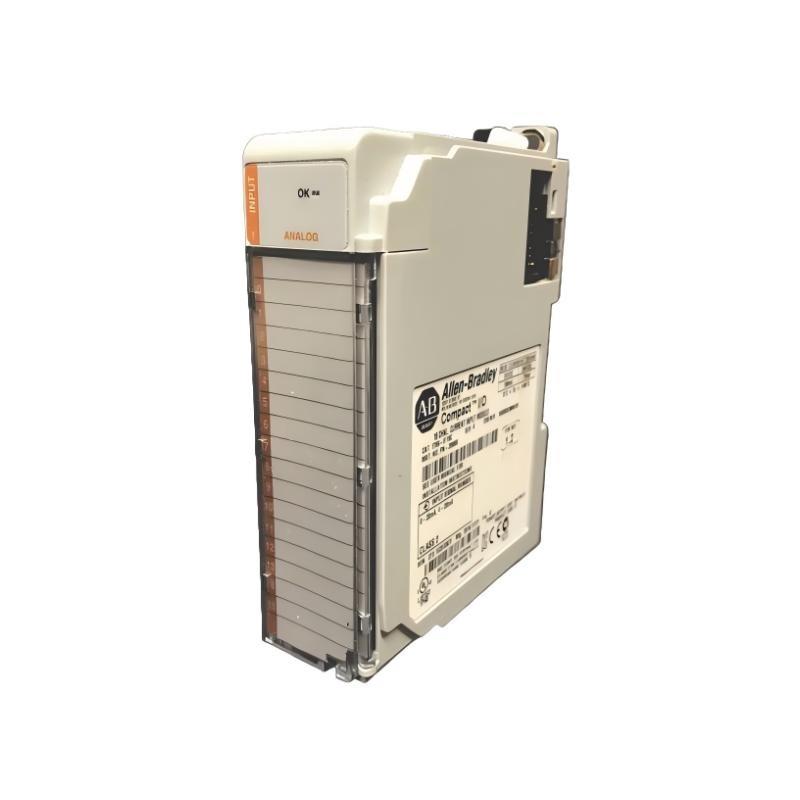

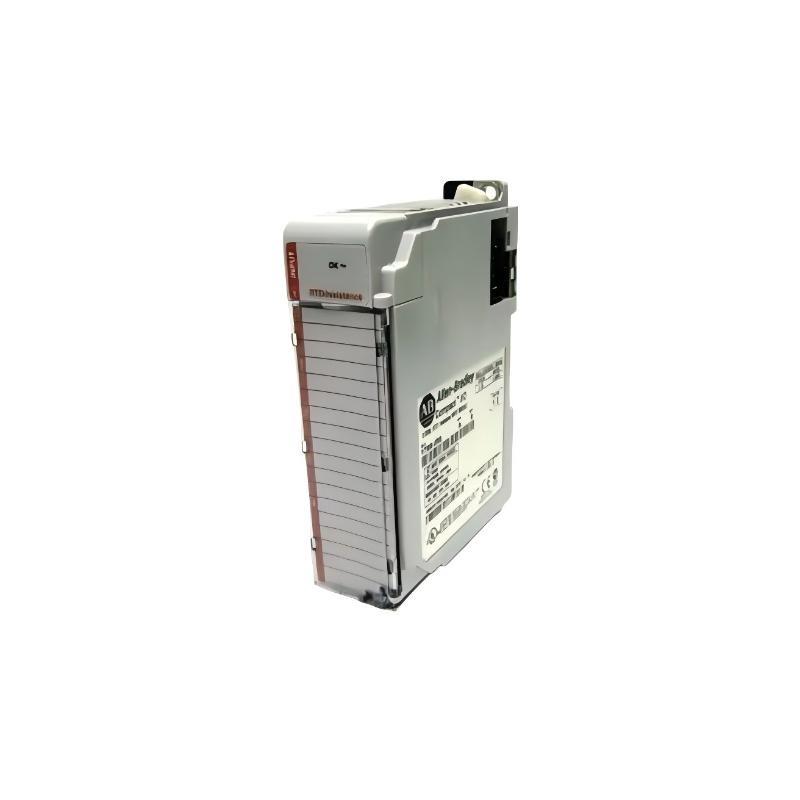

The Allen Bradley 1769-IF16C is a 16-channel analog current input module from the Compact I/O family, designed for precise measurement and monitoring / analog signals in industrial automation systems. It supports current input ranges / ±20 mA and 4–20 mA, providing high accuracy and flexibility for process control, monitoring, and data acquisition applications.
With its compact design, the 1769-IF16C integrates seamlessly with CompactLogix and MicroLogix 1500 controllers, making it an ideal solution for both standalone and distributed I/O systems. Its high signal resolution, built-in signal scaling, and advanced diagnostics make it a reliable choice for demanding industrial environments requiring accurate current signal measurement.
Technical Specifications
| Parameter | Specification | 説明 |
|---|---|---|
| Module Type | Compact I/O Analog Current Input Module | Measures current signals from sensors and transmitters |
| Number / Channels | 16 single-ended | Individual current input channels |
| Input Signal Range | ±20 mA, 4–20 mA | Compatible with most industrial sensors |
| Input Resolution | 15 bits + sign | High-precision measurement for process applications |
| Input Impedance | 250 ohms nominal | Optimized for accurate current measurement |
| Overall Accuracy | ±0.15% / full scale | Ensures precise signal conversion |
| Conversion Rate | 1.1 ms per channel | Fast signal processing for responsive control |
| Data Format | 2’s complement integer | Compatible with Logix family controllers |
| Backplane Current (5V) | 115 mA | Power draw from Compact I/O backplane |
| Backplane Current (24V) | 125 mA | For analog circuitry |
| Isolation Voltage | 750V DC (channel-to-system) | Protects controller from field noise |
| Power Dissipation | 3.5 W typical | Efficient low-heat operation |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) | Industrial environmental rating |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) | Safe non-operational limits |
| Relative Humidity | 5%–95% non-condensing | Suitable for harsh environments |
| Vibration Resistance | 10–500 Hz, 1 g | Meets IEC 60068-2-6 |
| Shock Resistance | 30 g operational | Industrial-grade durability |
| Dimensions (H × W × D) | 118 mm × 35 mm × 87 mm (4.6″ × 1.4″ × 3.4″) | Compact for dense I/O installations |
| 重量 | 0.34 kg (0.75 lbs) | Lightweight for easy mounting |
Applications
The 1769-IF16C is widely used in systems that require multiple current signal inputs with high accuracy and reliability:
-
Process Automation: Ideal for monitoring flow, pressure, and level transmitters.
-
Manufacturing Equipment: Used in machine control systems for analog feedback signals.
-
Water & Wastewater Plants: Monitors flow meters, pumps, and sensor data.
-
Energy Management: Integrates current loops from measurement instruments.
-
HVAC Systems: Collects analog control data for temperature and pressure regulation.
-
OEM Control Panels: Compact design allows integration in custom machinery.
Advantages
-
High Channel Density: 16 channels in a compact module saves panel space.
-
Flexible Input Ranges: サポートs ±20 mA and 4–20 mA for process and monitoring tasks.
-
High Accuracy and Resolution: Provides precise current measurements for critical control applications.
-
Fast Update Rate: Quick signal conversion for real-time control.
-
Robust Isolation: Electrical isolation enhances system safety and noise imm台y.
-
Compact and Modular: Fits seamlessly into 1769 Compact I/O chassis.
-
Low Power Consumption: Efficient design minimizes heat and energy usage.
-
Easy Integration: Compatible with CompactLogix and MicroLogix systems.
-
Reliable Diagnostics: Detects open-circuit and configuration errors.
-
Durable Construction: Built to withstand industrial shock and vibration.
