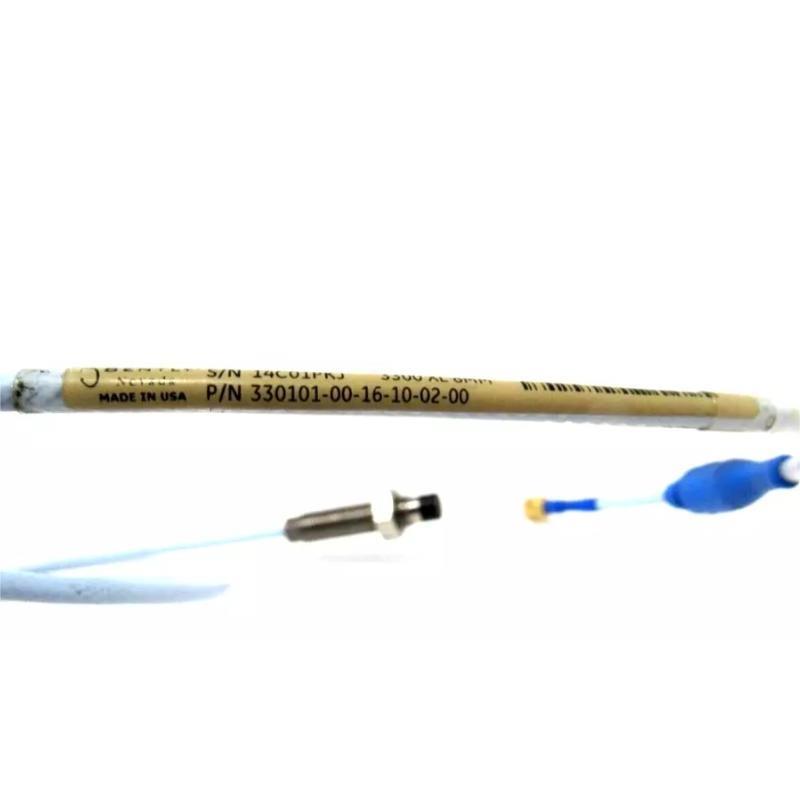

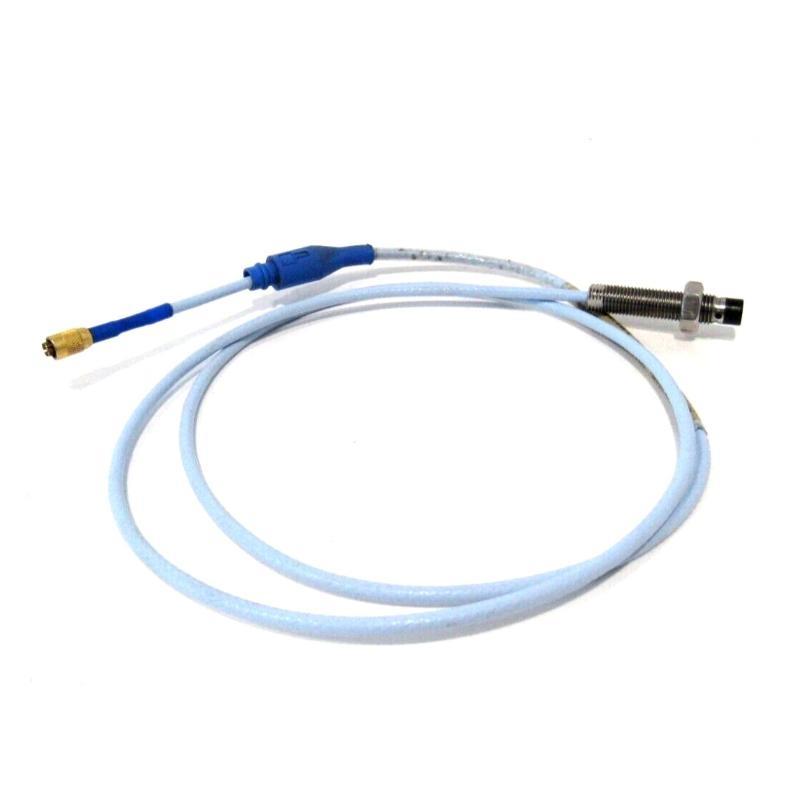

製品紹介: Bently Nevada 330101-00-16-10-02-00 3300 XL 8 mm Probe
The Bently Nevada 3300 XL 8 mm Probe is a key component in the 3300 XL Proximity Transducer System, designed for high-precision vibration and position measurement applications. This system is primarily used in fluid-film bearing machines and provides accurate, real-time data for vibration and position monitoring. The 3300 XL system includes the 8 mm probe, extension cables, and a Proximitor sensor, all / which are fully interchangeable and backward-compatible with non-XL 3300 components.
製品仕様
| Specification | Details |
|---|---|
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Electrical Input | Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm probe |
| Power Requirements | -17.5 Vdc to -26 Vdc with a maximum 12 mA consumption |
| Nominal Probe DC Resistance | 7.59 ± 0.50 Ω at 1 meter length |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | -9 Vdc (approximately 1.27 mm or 50 mils) |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Extension Cable Length | 対応可能 in lengths from 0.5 meters to 9 meters |
| Temperature Range (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Temperature Range (Cable) | -52°C to +177°C (-62°F to +350°F) |
| Environmental Humidity | Less than 3% change in average scale factor (ASF) at 93% humidity |
Product Applications
The 3300 XL 8 mm Probe is used in a variety / industrial settings where precise vibration and position monitoring is necessary. Key applications include:
-
Vibration Monitoring: For detecting the condition / machines operating with fluid-film bearings.
-
Position Monitoring: Accurate measurement / position for rotating equipment.
-
Keyphasor Reference & Speed Measurement: Used in overspeed protection and speed measurement systems.
-
API 670 Compliance: Meets API 670 standards for mechanical configuration, range, and accuracy.
Product Advantages
-
High Precision: Delivers accurate vibration and position measurements, improving machine reliability.
-
Robust Design: The 8 mm probe has a robust, rugged design that can withstand harsh industrial environments.
-
Interchangeability: Fully compatible with both 3300 XL and non-XL components.
-
Enhanced RFI/EMI Imm台y: The Proximitor sensor has improved imm台y to electromagnetic and radio frequency interference, ensuring reliability in diverse environments.
-
Flexibility in Installation: The components /fer flexibility in mounting configurations, including DIN-rail and panel mounts.
-
Low Maintenance: The ClickLoc connectors and enhanced design eliminate the need for frequent recalibration or component matching.
-
Extended Temperature Range: 対応可能 with an extended temperature range for use in high-heat environments (up to 425°F for probes).
FAQs
-
What is the maximum operating temperature / the Bently Nevada 3300 XL 8 mm Probe?
-
The standard probe can operate from -52°C to +177°C, and an extended range probe can operate up to +218°C for the probe tip and +260°C for the cable.
-
-
What is the recommended gap setting for this probe?
-
The recommended gap setting for radial vibration measurements is -9 Vdc, which is approximately 1.27 mm (50 mils).
-
-
What is the maximum shaft diameter for this system?
-
The recommended minimum shaft diameter is 50.8 mm (2 inches), with a preferred diameter / 76.2 mm (3 inches).
-
-
Can this system be used for overspeed protection?
-
Yes, it is suitable for overspeed protection applications when paired with the 3300 Proximitor sensor.
-
-
What is the cable type used with this probe?
-
The system uses a 75Ω triaxial cable, with options for armored or FluidLoc cable configurations.
-
-
How do I install the probe?
-
The probe features a standard 3/8-24 UNF thread or M10 x 1 thread, with recommended torque values provided for installation.
-
-
Is the system compatible with older 3300 series components?
-
Yes, the 3300 XL system is backward compatible with older non-XL 3300 series 5 mm and 8 mm probes and components.
-
-
Can I use the probe in hazardous areas?
-
Yes, it has certifications for use in hazardous areas, including ATEX, IECEx, and Class I, Zone 0 areas.
-
-
What is the weight / the entire system?
-
The total system weight is approximately 0.7 kg (1.5 lbs), with the probe alone weighing 323 g (11.4 oz).
-
-
What is the significance / the ClickLoc connectors?
-
The ClickLoc connectors provide a secure, tool-free connection, ensuring fast and reliable installations.
Related モデルs
| モデル | 説明 | Length Options | Thread Type |
|---|---|---|---|
| 330102 | 3300 XL 8 mm Probe with Armor | 0.5m, 1m, 3m, 5m | 3/8-24 UNF |
| 330101 | 3300 XL 8 mm Probe without Armor | 0.5m, 1m, 3m, 5m | 3/8-24 UNF |
| 330103 | 3300 XL 8 mm Probe, Metric, No Armor | 0.5m, 1m, 3m | M10 x 1 |
| 330104 | 3300 XL 8 mm Probe, Metric, With Armor | 0.5m, 1m, 3m | M10 x 1 |
| 330180 | 3300 XL Proximitor Sensor, Panel Mount | 1m, 5m, 9m | – |
| 330190 | 3300 XL ETR Extension Cable | 3m to 8.5m | – |
| 330106 | 3300 XL Reverse Mount Probe | 1m, 3m, 5m, 9m | 3/8-24 UNF |
| 330191 | 3300 XL Extended Temperature Range Probe | 0.5m, 1m, 3m | 3/8-24 UNF |
Popular Bently Nevada モデルs
| モデル | 説明 | Key Feature |
|---|---|---|
| 330101 | 3300 XL 8 mm Probe, Standard Mount | Rugged, reliable vibration probe |
| 330102 | 3300 XL 8 mm Probe with Armor | Added protection for extreme conditions |
| 3300/10K | Vibration Transducer for 状態 Monitoring | Comprehensive machinery monitoring |
| 3500/42 | Machinery Monitoring System | Integrates vibration, position data |
| 330180 | 3300 XL Proximitor Sensor | Provides high accuracy in vibration measurement |
| 3500/22 | Vibration Monitor | Advanced vibration monitoring |
| 3500/53 | Dynamic Pressure Transducer | Measures dynamic pressures for turbine monitoring |
| 3500/32 | Dynamic Process Control Monitor | Used for measuring dynamic processes |
