製品紹介

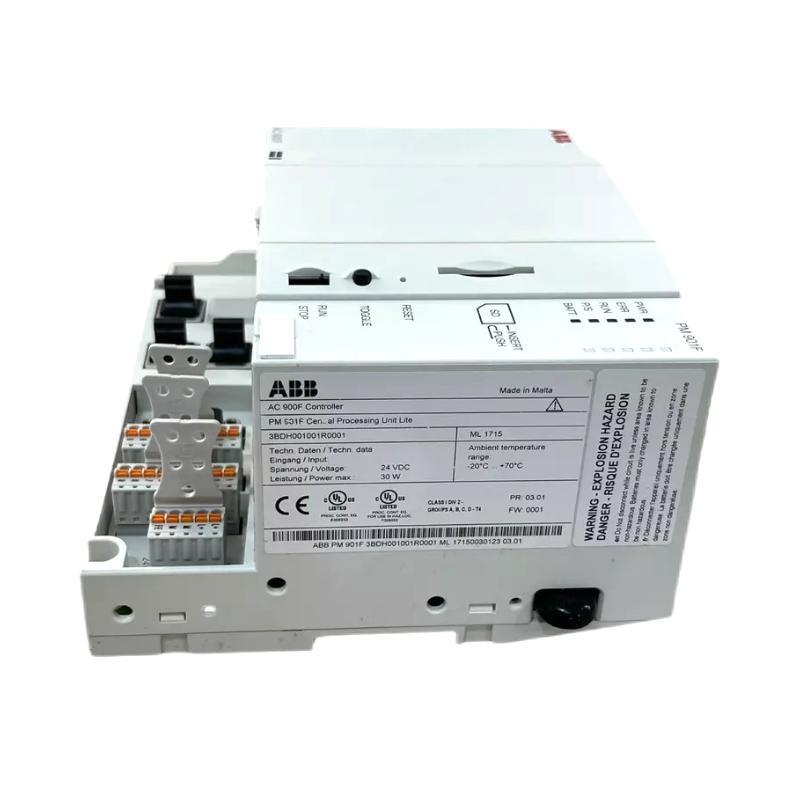

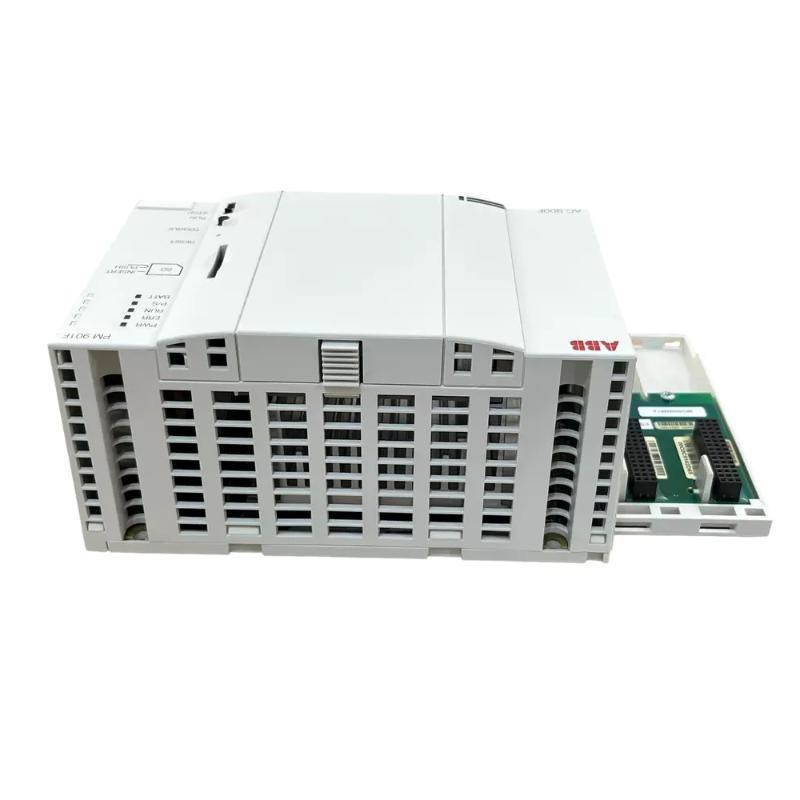

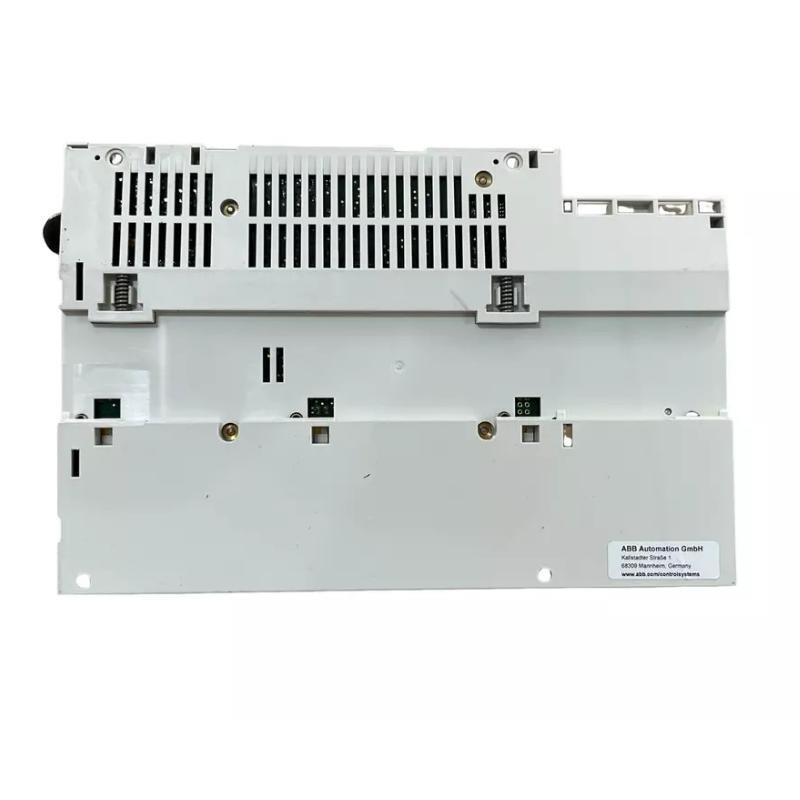

The ABB PM901F 3BDH001001R0001 is a high-performance communication interface module designed for integration into ABB’s AC 900F controller system. As part / the Freelance DCS (Distributed Control System), this module functions as a key link between field-level devices and higher-level automation systems. It ensures fast and reliable data transfer, /fering enhanced communication flexibility through support for various protocols. Engineered for robust operation in industrial environments, the PM901F is ideal for mission-critical automation applications across industries such as power, chemical, oil & gas, and manufacturing.
Product Features and Advantages
-
Advanced Communication サポート: サポートs multiple fieldbus communication standards, enabling versatile field device integration.
-
Robust and Compact Design: Engineered to withstand harsh industrial conditions while maintaining a space-saving form factor.
-
Seamless Integration: Easily integrates with ABB’s Freelance control system, streamlining system expansion and upgrades.
-
High Reliability: Delivers dependable operation in mission-critical applications with a low failure rate.
-
Scalable Architecture: サポートs modular and scalable plant automation system designs.
-
Diagnostic Capabilities: Integrated diagnostics simplify system monitoring and troubleshooting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB PM901F |
| 型番 | 3BDH001001R0001 |
| Product Type | Communication Interface Module |
| System Compatibility | AC 900F, Freelance DCS |
| サポートed Protocols | PROFIBUS, MODBUS, Ethernet |
| Power Supply | 24 V DC |
| Power Consumption | < 5 W |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | DIN rail |
| Housing Material | Industrial-grade plastic |
| Dimensions | 227 ×152 ×95 mm |
| 重量 | 1.07 kg |
| Certifications | CE, RoHS, UL |
Product Applications
-
Power Generation Plants: Communication gateway between field instruments and DCS.
-
Oil & Gas Facilities: Integration / remote I/O modules in hazardous environments.
-
Chemical Processing ユニットs: Real-time monitoring and control / critical process loops.
-
Manufacturing Plants: Centralized control and monitoring / assembly and production lines.
-
Water & Wastewater Management: Supervisory communication across remote pumping stations.
-
Renewable Energy Systems: Scalable control and monitoring / wind, solar, and hybrid systems.
Product Advantages
-
Reduces integration complexity by supporting multiple communication standards.
-
Ensures system uptime with industrial-grade reliability and robustness.
-
Offers long product lifecycle, minimizing system retr/it and upgrade costs.
-
Provides built-in diagnostics, saving time during maintenance and fault analysis.
-
Scalable to future automation needs, ideal for evolving industrial environments.
よくある質問 (FAQs)
Q1: What is the main function / the ABB PM901F module?
A1: It serves as a communication interface between field devices and the Freelance DCS system.
Q2: Is the PM901F compatible with older versions / ABB Freelance controllers?
A2: Yes, it is backward compatible with earlier Freelance system versions.
Q3: Can the PM901F support Ethernet/IP communication?
A3: It supports Ethernet-based communication, depending on system configuration.
Q4: What is the typical power consumption / this module?
A4: It consumes less than 5 watts / power.
Q5: Can I mount the PM901F horizontally and vertically?
A5: Yes, the module supports DIN rail mounting in both orientations.
Q6: Is hot-swapping supported for this module?
A6: No, power should be disconnected before module replacement to ensure safety.
Q7: Does the PM901F require additional drivers?
A7: No additional drivers are required if used within the ABB Freelance system.
Q8: What is the operating temperature range?
A8: It operates between -25°C and +70°C.
Q9: How do I troubleshoot communication errors with this module?
A9: Use the system diagnostic tools within Freelance to identify and resolve errors.
Q10: What certifications does this module have?
A10: It is certified for CE, RoHS, and UL compliance.
Recommended モデルs – Same Series or Related
| モデル Number | 説明 | Communication サポート | Dimensions (mm) |
|---|---|---|---|
| ABB PM902F 3BDH001002R0001 | Redundant PM module for Freelance | Ethernet, MODBUS | 45 × 130 × 125 |
| ABB PM903F | High-speed PM with enhanced diagnostics | PROFIBUS, Ethernet | 45 × 130 × 125 |
| ABB AC900F | Complete controller for Freelance | All major industrial buses | Varies by configuration |
| ABB CI930F | Communication Interface module | MODBUS, Foundation Fieldbus | 45 × 130 × 125 |
| ABB TU830V1 | Terminal 台 for I/O modules | — | 150 × 130 × 60 |
| ABB DI810F | Digital input module | — | 45 × 130 × 125 |
Popular ABB Modules (Same ブランド, Different Families)
| モデル Number | 説明 | Application Type | Dimensions (mm) |
|---|---|---|---|
| ABB CI854AK01 | PROFIBUS DP communication module | 800xA System Communication | 45 × 130 × 125 |
| ABB AI810 | Analog input module (8 channels) | Process control | 45 × 130 × 125 |
| ABB AO810 | Analog output module | Signal output to actuators | 45 × 130 × 125 |
| ABB DI820 | Digital input module (16 channels) | Industrial I/O processing | 45 × 130 × 125 |
| ABB DO810 | Digital output module (16 channels) | Device control | 45 × 130 × 125 |
| ABB CI860 | Communication interface, PROFINET | Industrial networks | 45 × 130 × 125 |
