製品紹介

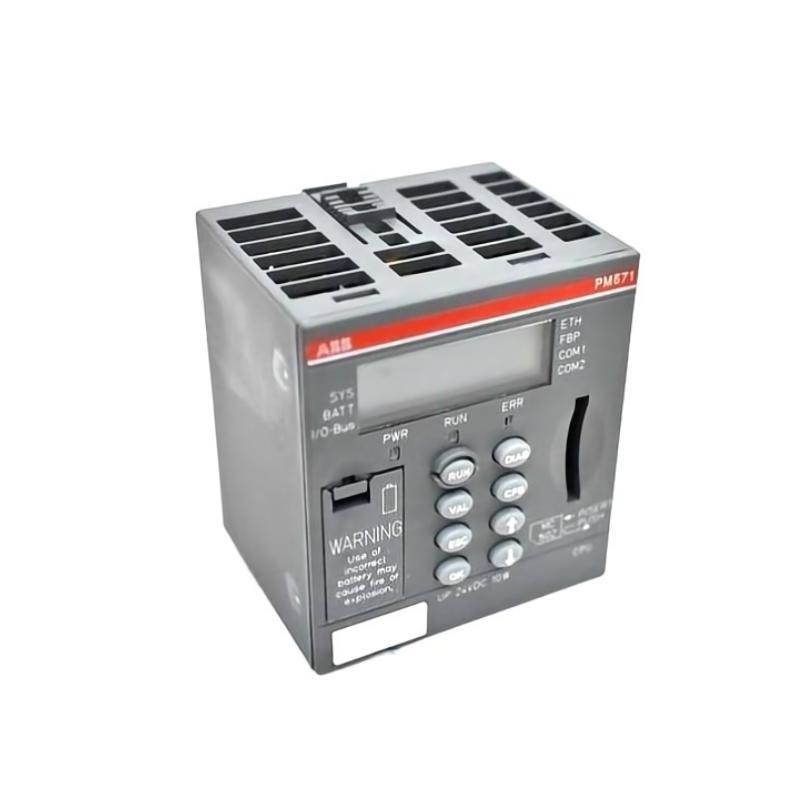

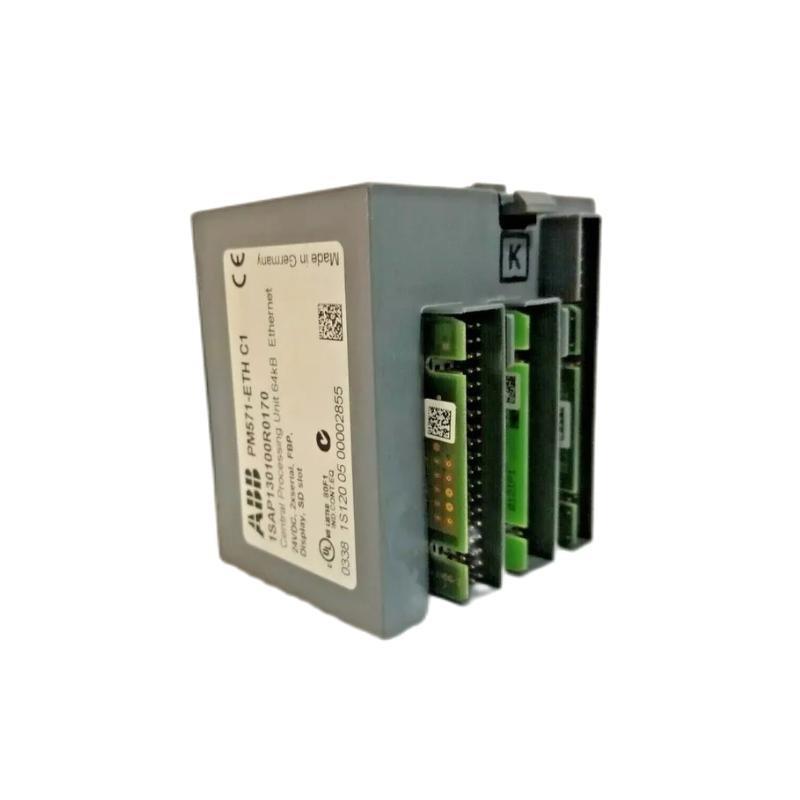

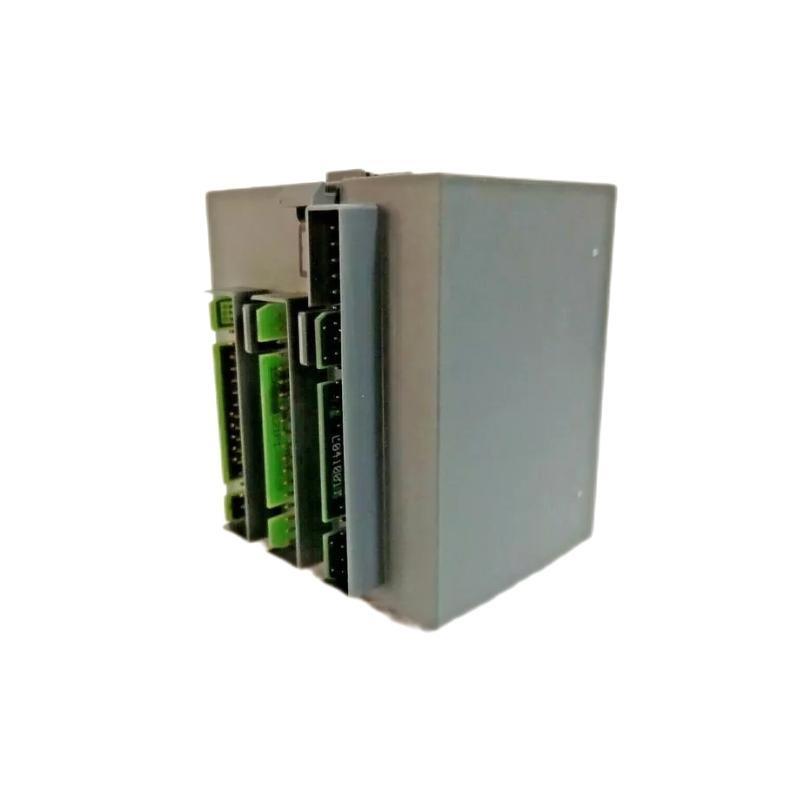

The ABB PM571 1SAY130110R0100 CPU Module is a powerful and flexible controller designed as part / the ABB AC500 PLC platform. The PM571 module is tailored to meet the needs / industrial automation systems requiring compact, scalable, and high-performance control. It provides seamless integration into ABB’s modular AC500 architecture, allowing users to create both small stand-alone control systems and complex distributed automation networks.
This CPU module features built-in digital and analog I/O, multiple communication ports, and support for several fieldbus standards. The PM571 supports all IEC 61131-3 programming languages via ABB Automation Builder s/tware, giving engineers the flexibility to build highly customized automation applications.
Engineered for performance and reliability, the PM571 1SAY130110R0100 is well-suited for use across a broad range / industries including machine automation, process industries, utilities, infrastructure, energy, and building automation. Its robust build, diagnostic features, and flexible connectivity make it an ideal controller for demanding environments where space, performance, and versatility are equally important.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | PM571 1SAY130110R0100 |
| Product Type | CPU Module |
| System Platform | ABB AC500 PLC |
| Processor | 32-bit RISC CPU |
| Program Memory | 1 MB |
| Data Memory | 512 KB |
| Retentive Memory | 256 KB |
| Onboard Digital Inputs | 10 channels |
| Onboard Digital Outputs | 6 channels |
| Onboard Analog Inputs | 2 channels |
| Onboard Analog Outputs | 2 channels |
| Real-Time Clock | Yes, with battery backup |
| Communication Ports | 1 x RS-232 (serial), 1 x USB, CANopen (optional), 1 x Ethernet (optional) |
| サポートed Fieldbus Protocols | Modbus RTU, Modbus TCP, CANopen (with module) |
| Programming 言語s | IEC 61131-3 (LD, FBD, ST, IL, SFC) |
| I/O Expansion サポート | Up to 10 S500 I/O modules |
| Typical Scan Cycle | ~1 ms |
| Task Management | Multitasking with priority levels |
| Diagnostics | Integrated system diagnostics |
| Firmware Upgrade | Yes, via USB or Ethernet |
| Power Supply Voltage | 24 VDC ±20% |
| Power Consumption | 5 W |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -25°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Module Dimensions (H x W x D) | 62 × 76 × 67.5 mm |
| 重量 | 0.135 kg |
| Mounting Method | DIN rail mounting |
| Certifications | CE, cULus, RoHS, ATEX Zone 2 certified |
Applications
-
Machine Automation: Small and mid-size machinery control, packaging systems, CNC control
-
Water & Wastewater: Local control / pump stations, filtration, and treatment plants
-
HVAC and Building Management: Smart control / lighting, ventilation, and security
-
Renewable Energy: Control / wind turbines, solar power plants, battery management systems
-
Power Generation & Distribution: Substation automation, switchgear control
-
Transportation Infrastructure: Tunnel systems, airports, rail networks
-
Food & Beverage: Processing lines, bottling, packaging, batch control
-
OEM Equipment: Compact control for specialized industrial equipment
-
Mining & Metals: Field control / mining machines and conveyor systems
-
Utilities & Public Services: Monitoring and control / distributed systems
Product Advantages
-
Compact Size: Small footprint fits space-constrained control cabinets
-
Integrated I/O: Built-in digital and analog channels reduce wiring complexity
-
High Performance: Fast processing for real-time machine control
-
Flexible Connectivity: サポートs Modbus RTU, Modbus TCP, CANopen (with module)
-
Modular Expansion: Compatible with ABB S500 I/O modules for scalability
-
Industrial Reliability: Designed for 24/7 operation in harsh environments
-
Comprehensive Diagnostics: Built-in status LEDs and extensive s/tware diagnostics
-
Standard Programming: サポートs IEC 61131-3 languages, simplifying programming
-
Global Certifications: Complies with CE, UL, ATEX Zone 2 industrial standards
-
Cost-Effective: Ideal balance / performance and price for OEM and small automation systems
よくある質問 (FAQ)
-
How much program memory is available on the PM571 1SAY130110R0100?
The CPU /fers 1 MB / program memory. -
What types / onboard I/O are included?
It has 10 digital inputs, 6 digital outputs, 2 analog inputs, and 2 analog outputs. -
Does the CPU support Ethernet communication?
Yes, Ethernet can be added via an expansion module. -
What programming s/tware is used?
ABB Automation Builder s/tware supports this CPU. -
Can the PM571 be used in redundant CPU systems?
No, redundancy is not supported; consider higher-end CPUs for redundancy. -
Is this CPU suitable for harsh industrial environments?
Yes, it supports -25°C to +70°C storage and 0°C to +60°C operating temperature ranges. -
How many I/O modules can I connect to this CPU?
Up to 10 S500 I/O modules can be added. -
Can I upgrade firmware on the CPU?
Yes, firmware can be upgraded through USB or Ethernet. -
Does the CPU have a built-in real-time clock?
Yes, with a battery backup to maintain time during power loss. -
Which communication protocols does it support?
Modbus RTU, Modbus TCP, and CANopen (with expansion).
Recommended Related モデルs (Same Series or Similar)
| モデル Number | 説明 | Notes |
|---|---|---|
| PM554-ETH | Compact AC500 CPU with built-in Ethernet | Entry-level with Ethernet |
| PM556-TP | Mid-level CPU with TP port | Enhanced I/O and performance |
| PM572 | PM571 variant with more memory | For more complex applications |
| PM583-ETH | High-performance CPU with Ethernet | For fast and demanding control |
| PM585 | Large memory AC500 CPU | For large and scalable systems |
| PM595 | Top-end AC500 CPU with advanced processing | Advanced process automation |
Popular ABB Automation モデルs (Same ブランド)
| モデル Number | 説明 | Application |
|---|---|---|
| AC500 PM595 | Advanced process control CPU | High-end process automation |
| AC500 PM583-ETH | High-performance mid-range CPU | Factory automation |
| CI581-DP | Pr/ibus DP communication module | Pr/ibus network integration |
| DO561 1TNE968902R2201 | Digital Output Module, 16 outputs | General-purpose output control |
| AI581 1SAP180200R0001 | Analog Input Module | Process variable acquisition |
| TB511-ETH | Ethernet Remote I/O Terminal Base | I/O expansion for AC500 series |
