製品紹介:

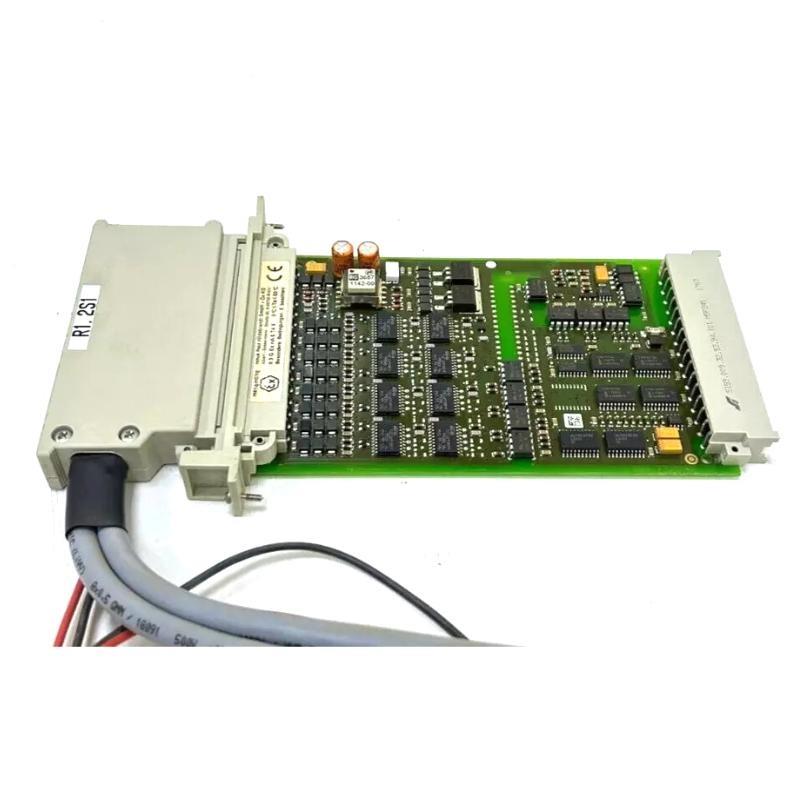

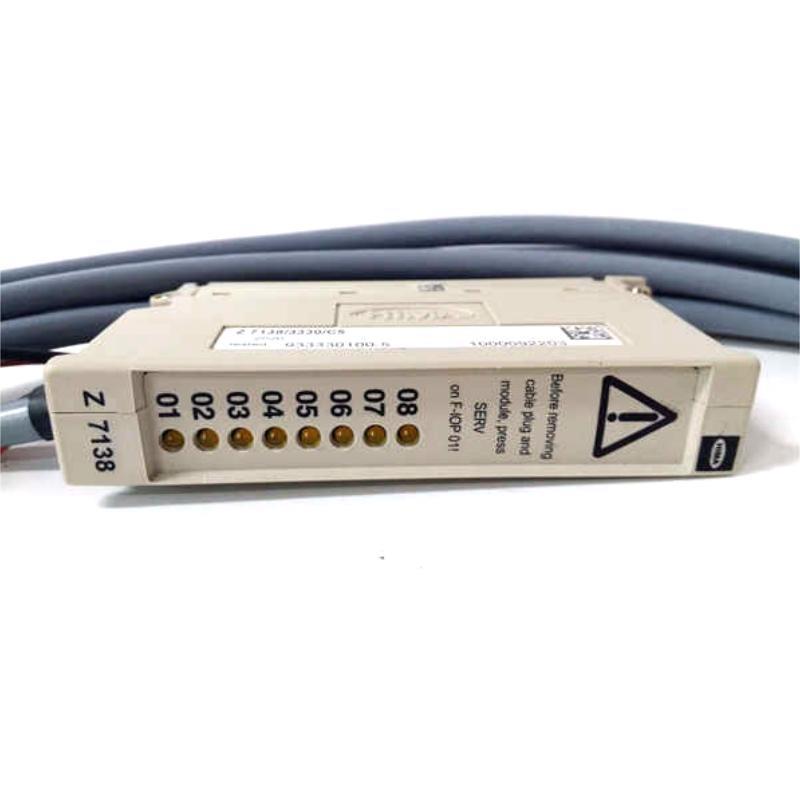

The HIMA Z7138/3330/C15/S2088 Cable Plug is a high-reliability industrial connector developed by HIMA, a globally renowned manufacturer specializing in safety-related automation solutions. This cable plug is engineered to interface securely with HIMA’s programmable safety systems and field devices, ensuring uninterrupted communication and power transmission even in critical environments.
Constructed with rugged materials and precision contacts, the Z7138/3330/C15/S2088 is built for demanding industrial sectors such as petrochemical plants, power generation facilities, and safety-instrumented systems (SIS). It provides secure electrical connectivity, electromagnetic compatibility (EMC), and excellent mechanical durability. Its modular design allows for flexibility in wiring and easy field termination, making it a preferred choice for OEMs and maintenance engineers alike.
製品仕様:
| Parameter | Details |
|---|---|
| Product Name | Z7138/3330/C15/S2088 |
| メーカー | HIMA |
| Product Type | Industrial Cable Plug |
| Connector Type | Multipole Plug |
| Number / Poles | 15-pole |
| お問い合わせ Type | Crimp お問い合わせs / Screw Terminals |
| Rated Voltage | 250 V AC/DC |
| Rated Current | Up to 10 A (per contact) |
| Insulation Resistance | > 10⁹ Ohms |
| Dielectric Strength | 2.5 kV AC (1 min) |
| Mechanical Durability | > 500 mating cycles |
| EMC Shielding | Yes (360° shielding) |
| Material (Housing) | Zinc Alloy, nickel-plated |
| Material (Insulation) | Thermoplastic (UL94-V0) |
| Cable Entry | PG11 / PG13.5 |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -55°C to +90°C |
| Degree / Protection | IP65 (mated condition) |
| Cable Length | 15 meters |
| 重量 | 0.25 kg |
| Certifications | CE, RoHS, IEC 61984, UL-compliant |
Product Applications:
-
Process Automation: Used to connect field devices to safety controllers in chemical and oil refining plants.
-
Power Generation: Facilitates communication between turbines, monitoring devices, and relay protection systems.
-
Factory Safety Systems: Integrated into emergency shutdown systems and fire/gas detection interfaces.
-
Railway and Transportation: Applied in onboard and station-level signal communication systems.
-
Marine and Offshore: Withstands vibration and corrosive environments for shipboard automation.
-
Pharmaceutical Manufacturing: サポートs cleanroom-grade equipment interconnection with compliance-grade materials.
Product Advantages:
-
Secure Signal Transmission: Ensures high-integrity data and power transfer under harsh conditions.
-
Durable Construction: Withstands environmental stress, mechanical wear, and chemical exposure.
-
High お問い合わせ Reliability: Gold-plated contacts prevent signal loss and improve long-term performance.
-
Compact Form Factor: Fits into control cabinets and field junction boxes without spatial constraints.
-
Ease / Maintenance: Detachable and serviceable on-site with standard tools.
-
EMC Compliant: Prevents interference in sensitive environments with high electromagnetic fields.
-
Flexible Cable Entry: サポートs multiple cable diameters and field termination methods.
-
Safety-Certified: Meets stringent industrial standards for reliability and fail-safe operation.
-
Modular Compatibility: Interconnects seamlessly with HIMA’s Z and HIMax series modules.
-
Cost-Efficient: Reduces downtime and replacement costs with long service life and minimal failure rate.
よくある質問 (FAQ):
-
What systems is the Z7138/3330/C15/S2088 compatible with?
It is designed for use with HIMA’s HIMatrix and HIMax safety systems and interfaces seamlessly with field-level I/O modules. -
What is the IP protection rating / this cable plug?
The plug is rated IP65 when mated, /fering excellent protection against dust and water jets. -
Can the plug be used in outdoor installations?
Yes, provided it is housed in a weatherpro/ junction box or mounted in a protected area. -
Is this plug resistant to electromagnetic interference?
Yes, it features 360° EMC shielding for high-level noise imm台y. -
How many times can the plug be reconnected before it wears out?
The plug supports over 500 reliable mating cycles under normal operating conditions. -
What cable sizes are supported?
It supports a range / cable diameters typically from 6 mm to 13 mm via PG11/PG13.5 cable glands. -
What tools are required for installation?
Standard industrial crimping tools and screwdrivers are sufficient for terminal setup and assembly. -
Can this plug handle high vibration environments?
Yes, its mechanically robust design is vibration-tested and suitable for rail, marine, and machinery environments. -
Is the plug suitable for hazardous areas (ATEX/IECEx)?
While the plug itself is industrial-grade, confirm compatibility with specific certified enclosures for hazardous area use. -
Is this product available in custom pin configurations?
Yes.
Related モデルs (Same Series or Similar Function):
| モデル | 説明 | Poles | Protection Rating | Application |
|---|---|---|---|---|
| Z7138/3330/C15/S2076 | Cable plug with variant shell type | 15 | IP65 | SIS/PLC system interface |
| Z7138/3330/C15/S2092 | Plug for HIMax base with shielded connector | 15 | IP65 | HIMax distributed installations |
| Z7138/3330/C09 | 9-pole plug variant | 9 | IP65 | Signal-level integration |
| Z7138/3330/C24 | 24-pole plug, high-density version | 24 | IP65 | Multi-signal field connection |
| Z7139/3340/C15 | Angled version / cable plug | 15 | IP67 | Tight-space cabinet applications |
| Z7138/3330/C15/S2100 | Enhanced EMC version / standard model | 15 | IP65 | Critical noise-sensitive systems |
Popular HIMA モデルs (Across 製品カテゴリー):
| モデル | 説明 | Type | Key Feature | Application |
|---|---|---|---|---|
| F8650X | Safety-related programmable logic controller | Safety PLC | TÜV-certified SIL 3 system | Emergency shutdown (ESD) |
| F6208 | Digital output module | I/O Module | 8-channel, fail-safe outputs | Binary control systems |
| F3236 | Analog input module | I/O Module | Redundant analog signal processing | Process monitoring |
| HIMatrix F35 | Compact fail-safe controller | Safety PLC | Scalable, high-speed safety system | Machine safety, compact systems |
| Z7116 | System cable for HIMax | Cabling Component | Pre-wired connector with shielded pins | System interconnection |
| F7553 | Redundant power supply module | Power Supply Module | Dual power feed, diagnostics | Redundant controller architectures |
