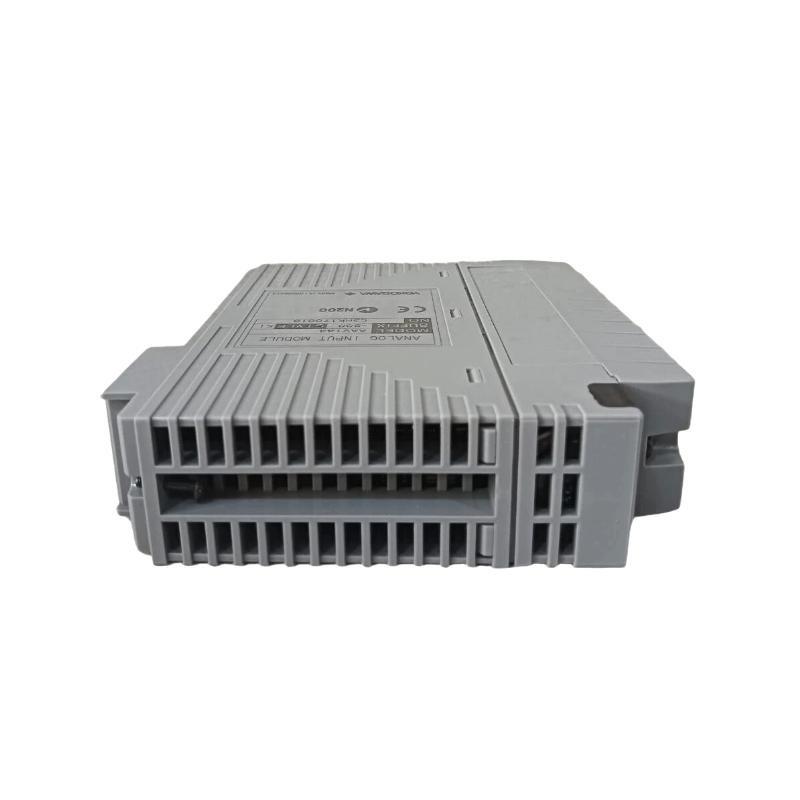

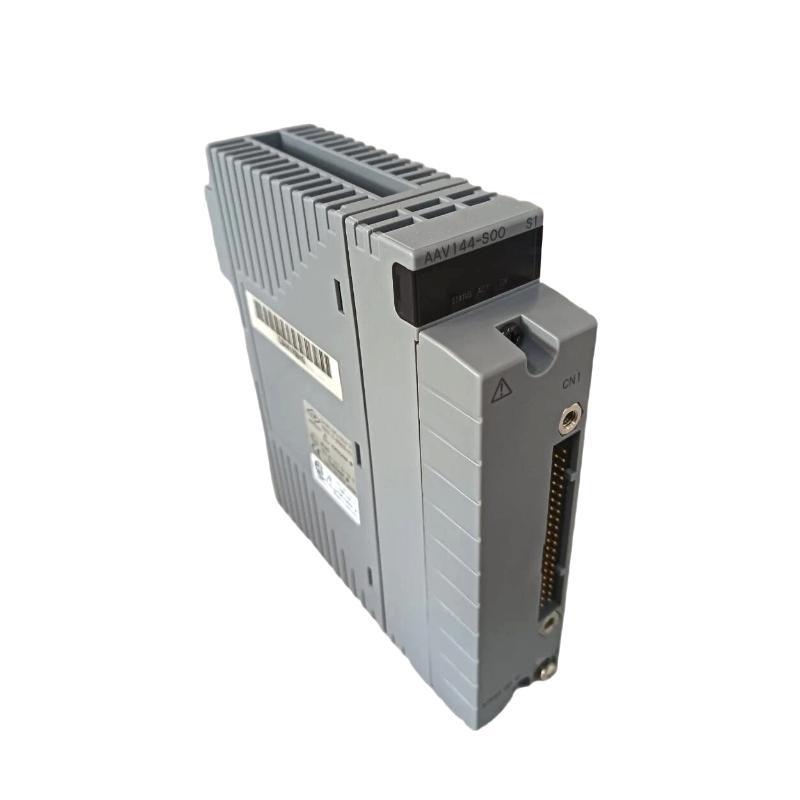

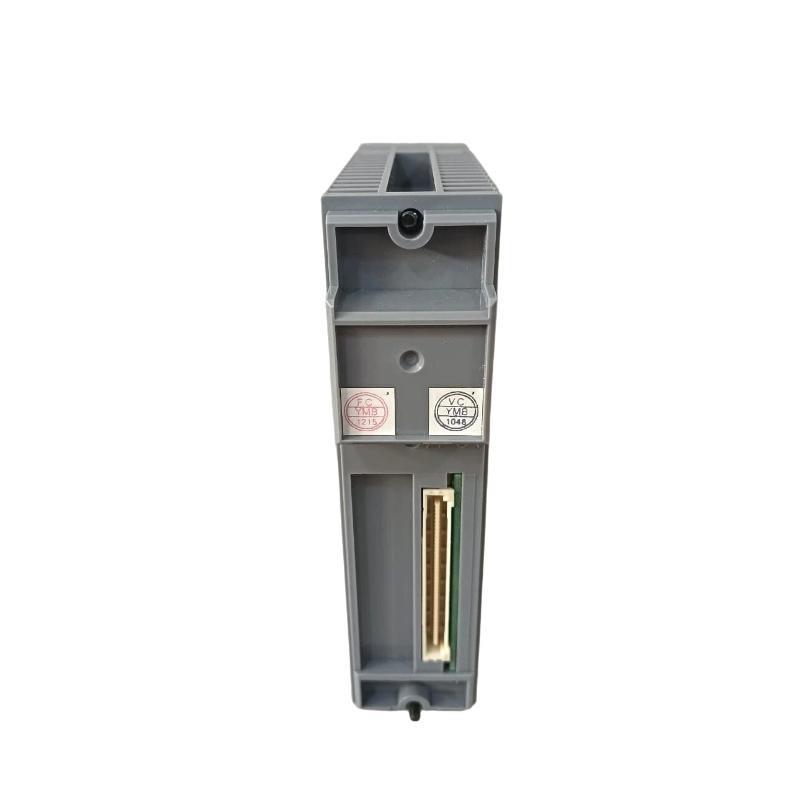

The Yokogawa AAV144-S00/A4S00 Voltage Input Module is a high-density analog input module designed for industrial-grade monitoring and control within Yokogawa’s CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). It supports accurate acquisition / DC voltage signals from field instruments, /fering isolated multi-channel analog signal input functionality. This model is particularly suited for large-scale process plants requiring robust performance, system reliability, and long-term signal stability.
Engineered for precision and durability, the AAV144-S00/A4S00 module /fers 16 fully isolated channels, each capable / independently processing voltage inputs with high resolution. Its seamless integration into Yokogawa control platforms makes it an indispensable part / control system architecture in sectors such as oil & gas, power generation, petrochemicals, chemicals, water treatment, and pharmaceuticals.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | AAV144-S00/A4S00 |
| Product Type | Voltage Input Module |
| メーカー | 横河電機 Corporation |
| Number / Channels | 16 isolated channels |
| Input Signal Range | ±10 V DC |
| Input Impedance | ≥10 MΩ |
| A/D Conversion | 16-bit resolution |
| Signal Type | DC Voltage |
| Conversion Time | 50 ms per channel |
| Accuracy | ±0.1% / full scale |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Input Overvoltage Protection | Built-in surge protection |
| Power Supply | Supplied via I/O base 台 |
| Diagnostic Features | Signal abnormality, open wire detection |
| System Compatibility | CENTUM VP, CENTUM CS 3000 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Mounting Method | Installed in system I/O base frame |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| 重量 | 0.2 kg |
| Certifications | CE, UL, CSA, and other regional standards |
Product Applications
The AAV144-S00/A4S00 module is specifically engineered for critical voltage signal acquisition in complex automation environments. Typical use cases include:
-
Oil & Gas Refining: Monitoring / control signals and field sensor voltages in harsh environments.
-
Thermal and Nuclear Power Plants: Integration with turbine control systems and electrical subsystems.
-
Chemical Production: Continuous voltage monitoring from process analyzers and transmitters.
-
Water Treatment Facilities: Signal reception from flow, pressure, and chemical dosage instruments.
-
Pharmaceutical Manufacturing: High-accuracy voltage signal tracking for compliance and quality control.
-
Pulp & Paper Mills: Analog input interfacing with machinery sensors and environmental monitors.
Product Advantages
-
High-Channel Density: Accommodates 16 isolated inputs in a compact form factor, ideal for high-density cabinet installations.
-
Full Channel Isolation: Each channel is electrically isolated, reducing risk / signal interference or system fault propagation.
-
Accurate Signal Processing: 16-bit A/D conversion ensures precise measurement / analog voltage inputs.
-
Advanced Diagnostics: Built-in detection / signal failure and wire disconnection to minimize downtime.
-
Robust Integration: Seamlessly compatible with Yokogawa’s CENTUM VP and CS 3000 platforms.
-
Strong EMI Imm台y: Designed to perform in electrically noisy industrial environments.
-
Compliance with Global Standards: Meets CE, UL, CSA certifications for international usage.
-
System Redundancy サポート: Can be configured in redundant systems for high-availability architectures.
-
Modular Installation: Easily inserted and replaced in field control stations without special tools.
-
Lifecycle サポート: Covered by Yokogawa’s long-term product support and system migration services.
FAQ
-
Can the input range / the AAV144-S00/A4S00 be configured for ranges other than ±10V?
No, this module is specifically designed for ±10V DC input; for other ranges, different modules must be used. -
Is each channel individually isolated from others and from the system bus?
Yes, each input channel is galvanically isolated to prevent signal crosstalk and ensure safety. -
What is the resolution / the analog-to-digital converter?
The module uses a 16-bit A/D converter, providing high-resolution voltage measurements. -
Does the module support signal diagnostic features such as wire break detection?
Yes, it includes open wire detection and abnormal signal diagnostics. -
Can the AAV144-S00/A4S00 module operate in redundant configurations?
Yes, it supports redundancy in compatible Yokogawa control systems. -
What is the default channel sampling time?
The conversion time is approximately 50 milliseconds per channel. -
Does this module support remote calibration?
Yes, calibration and configuration can be performed through Yokogawa’s engineering tools. -
What is the typical input impedance for each channel?
Each channel has a high input impedance / ≥10 MΩ, suitable for precision measurements. -
How does the module protect against voltage surges?
It includes internal overvoltage protection circuitry for transient voltage events. -
Is this module suitable for safety instrumented systems (SIS)?
While it is reliable, SIS use requires modules specifically certified for safety applications (e.g., SIL-rated models).
Related or Same Series モデルs
| モデル | 説明 | Signal Type | Channels | System |
|---|---|---|---|---|
| AAV141-S50 | Analog Input Module (Voltage) | Voltage | 16 | CENTUM VP, CS 3000 |
| AAV142-S00 | Voltage Input Module with Isolation | Voltage | 16 | CENTUM VP |
| AAV143-S03 | High-Speed Voltage Input Module | Voltage | 8 | CENTUM VP |
| AAI141-H50 | High Voltage Input Module | Voltage | 16 | CENTUM VP |
| AAP135-S00 | Analog Output Module | Voltage/Current | 8 | CENTUM CS 3000 |
| ADV151-P03 | Digital Input Module | Digital | 32 | CENTUM VP, CS 3000 |
Popular Yokogawa Modules
| モデル | 説明 | Function | System Compatibility | Channels |
|---|---|---|---|---|
| AAI141-S50 | Analog Input Module | Analog Input | CENTUM VP, CS 3000 | 16 |
| AAI543-S00 | Analog Output Module | Analog Output | CENTUM VP, CS 3000 | 8 |
| ADV561-P00 | Digital Output Module | Digital Output | CENTUM VP, CS 3000 | 32 |
| AAR181-S00 | RTD Input Module | Temperature | CENTUM VP | 8 |
| AAI835-H00 | Remote I/O Module for FOUNDATION Fieldbus | Fieldbus I/O | CENTUM VP | — |
| AAM50 | Power Supply Module | Power Supply | FCS Cabinet | — |
