Product Overview

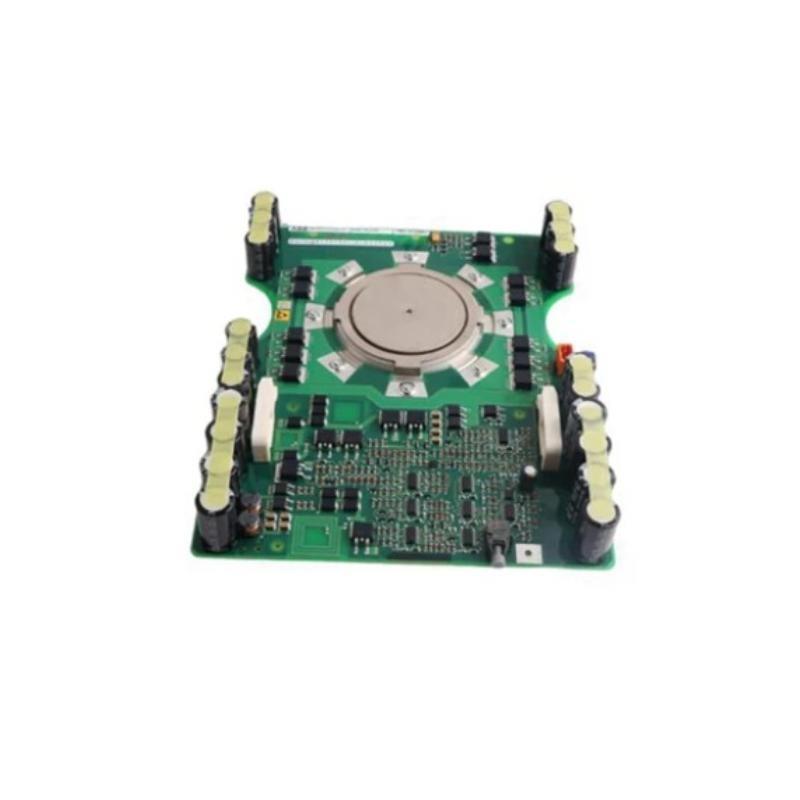

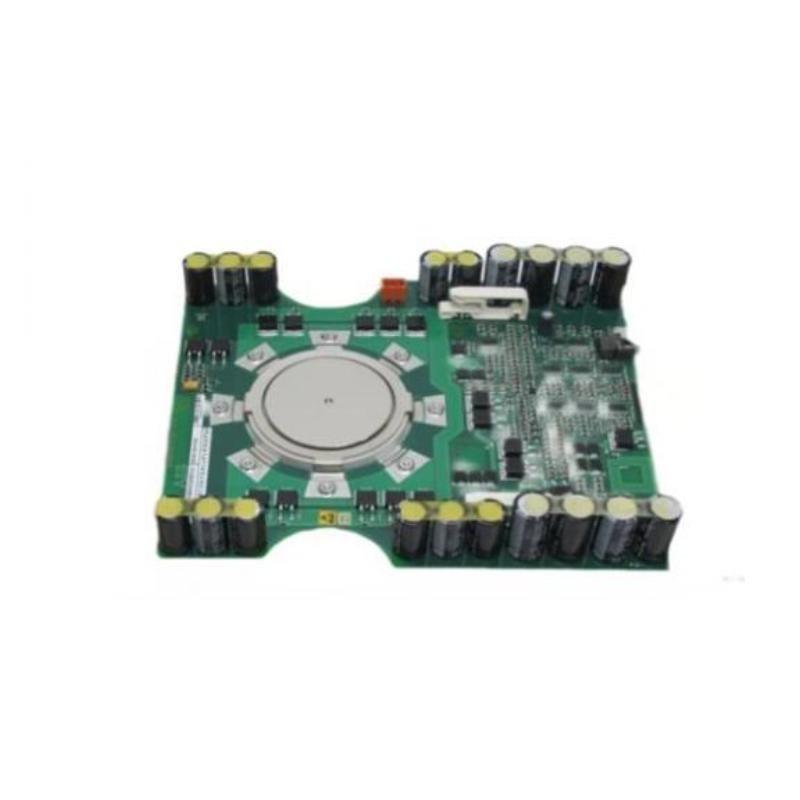

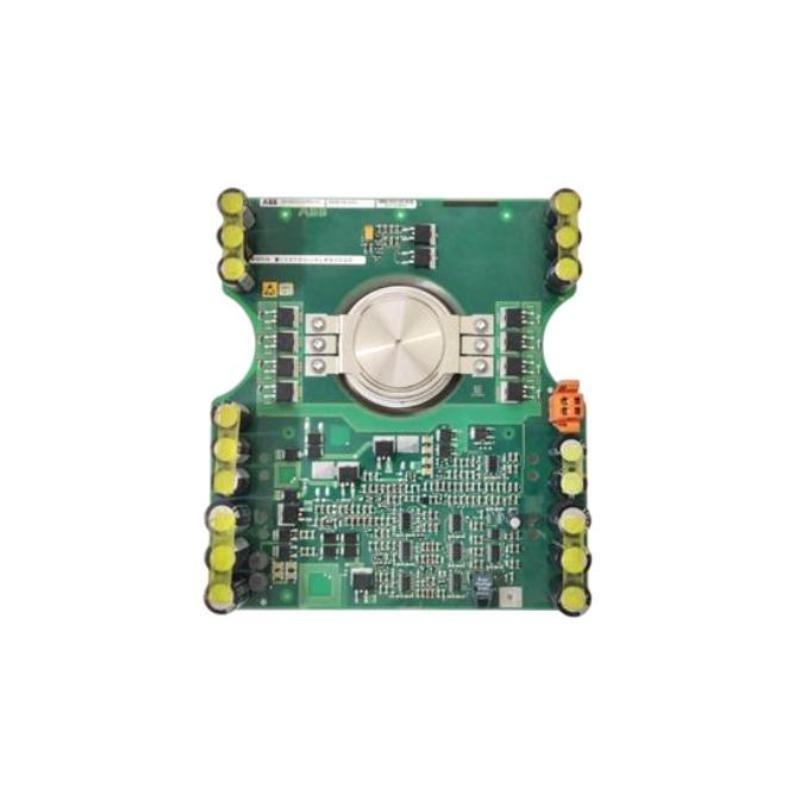

The ABB GV C704 AE01 3BHB003230R0101 is an industrial-grade green circuit board designed as a functional component in ABB drive systems, automation platforms, or Distributed Control Systems (DCS). It plays a crucial role in signal routing, power distribution, system interconnection, and control logic support. Developed to meet ABB’s high-performance and reliability standards, this board is widely used in heavy-duty industrial applications, including motor control, converter systems, and high-integrity control environments.
This green board features multi-layer PCB architecture, ensuring efficient electrical performance, robust mechanical integrity, and excellent thermal properties. It integrates seamlessly within ABB’s modular system configurations, supporting both legacy and current-generation platforms.
Key Features
-
High-quality multilayer PCB structure for signal integrity
-
Designed for ABB drive systems and automation architectures
-
Facilitates digital and analog signal routing
-
Offers power management and distribution capabilities
-
Built for 24/7 operation in demanding industrial environments
-
RoHS-compliant and EMI-shielded for operational safety
-
Compatible with rack-mounted or cabinet-based ABB systems
-
Incorporates precise soldering, insulation, and diagnostic points
-
Suitable for both new installations and system retr/its
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Green Circuit Board Module |
| モデル Number | GV C704 AE01 |
| 型番 | 3BHB003230R0101 |
| Function | Signal interface and control logic for ABB drives/control systems |
| System Compatibility | ABB drive systems, industrial automation platforms |
| Voltage Compatibility | Low-voltage DC signal levels (typically 5V, 12V, 24V DC) |
| Input/Output Signals | Digital and analog I/O (application-dependent) |
| Diagnostic Features | Test points, connector pins, or integrated LED indicators |
| PCB Type | Multi-layer, high-density FR4 substrate |
| Insulation Resistance | >100 MΩ @ 500 VDC |
| Isolation | Electrical isolation between input/output sections (design-specific) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions | 200 x 150 x 100mm |
| 重量 | 2.5 kg |
| Mounting Method | Rack-insert or screw-mount (depends on enclosure system) |
| Cooling Method | Passive (convection) |
| Compliance | CE, RoHS, UL (design dependent) |
Industry Applications
The ABB GV C704 AE01 Green Board is used in a wide array / automation and control sectors where reliability and performance are critical:
-
Metals & Mining – Control / crushers, conveyor systems, and motor drives
-
Pulp & Paper – Process drive control and paper line automation
-
Oil & Gas – Compressor control, drilling platform automation systems
-
Power Generation – Excitation control and turbine regulation interfaces
-
Water & Wastewater Treatment – Pump and motor automation
-
Chemical & Petrochemical – DCS signal routing and equipment feedback processing
Product Advantages
-
Reliable ABB manufacturing quality ensures durability in mission-critical systems
-
Long lifecycle design, ideal for legacy system maintenance and modernization
-
Ensures stable signal processing under electrical noise and thermal stress
-
Compact footprint supports high-density cabinet and rack layouts
-
Minimizes downtime with plug-in or quick-connect system compatibility
-
Fully integrated into ABB’s automation ecosystem
-
Electrically isolated for safe system-wide interaction
-
Designed to work in redundant and fail-safe system configurations
よくある質問 (FAQ)
1. What does the GV C704 AE01 board do?
It provides signal processing, control logic routing, and power interfacing within ABB control or drive systems.
2. Is it part / a CPU or standalone?
It’s a supporting module, not a CPU. It works under the command / an ABB processor or controller.
3. Can this board be replaced on-site?
Yes, but only by trained personnel using ESD-safe procedures. Always power down the system first.
4. Is it hot-swappable?
番号 Power must be disconnected before removal or installation.
5. What systems use this module?
It is typically used in ABB converter systems, DCS, or drive control platforms.
6. How can I test if the board is working?
Functionality is typically monitored via system diagnostics or controller interfaces.
7. Does it handle analog signals?
Yes, it may handle analog and digital signals depending on the configuration.
8. Is the board RoHS compliant?
Yes, the module meets RoHS environmental standards.
9. Can this board be reused in upgraded systems?
It may be compatible with modernized ABB platforms, depending on system architecture.
10. Where can I find technical drawings or manuals?
From ABB’s documentation portal or through authorized ABB support partners.
