Product Overview

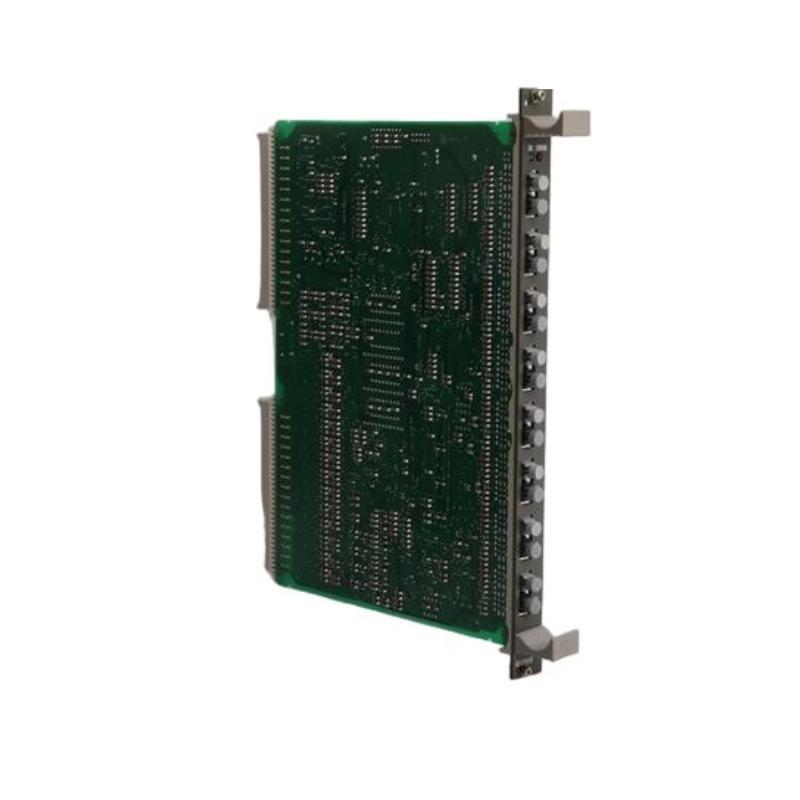

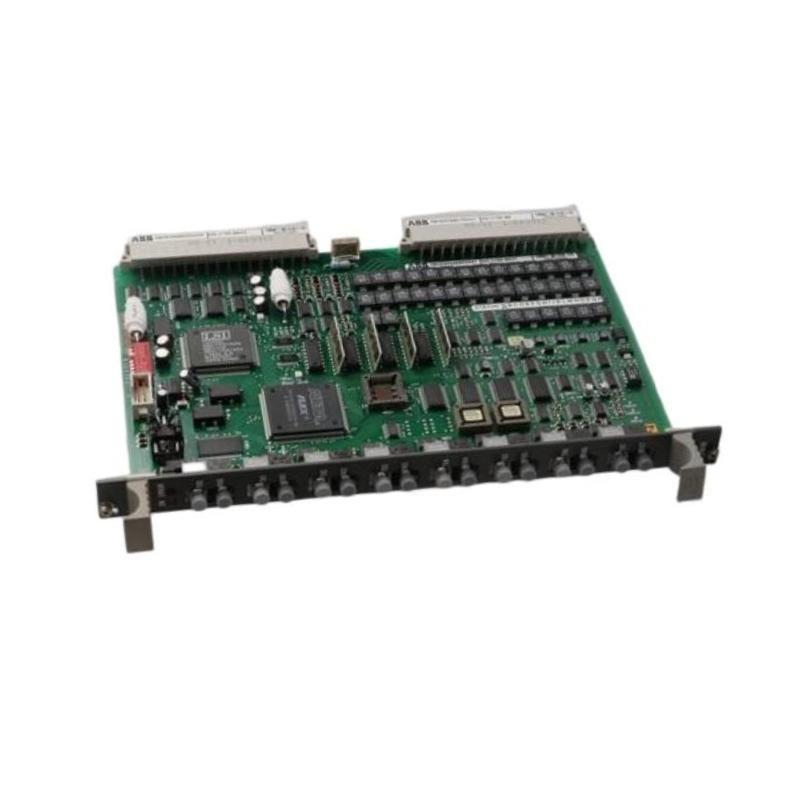

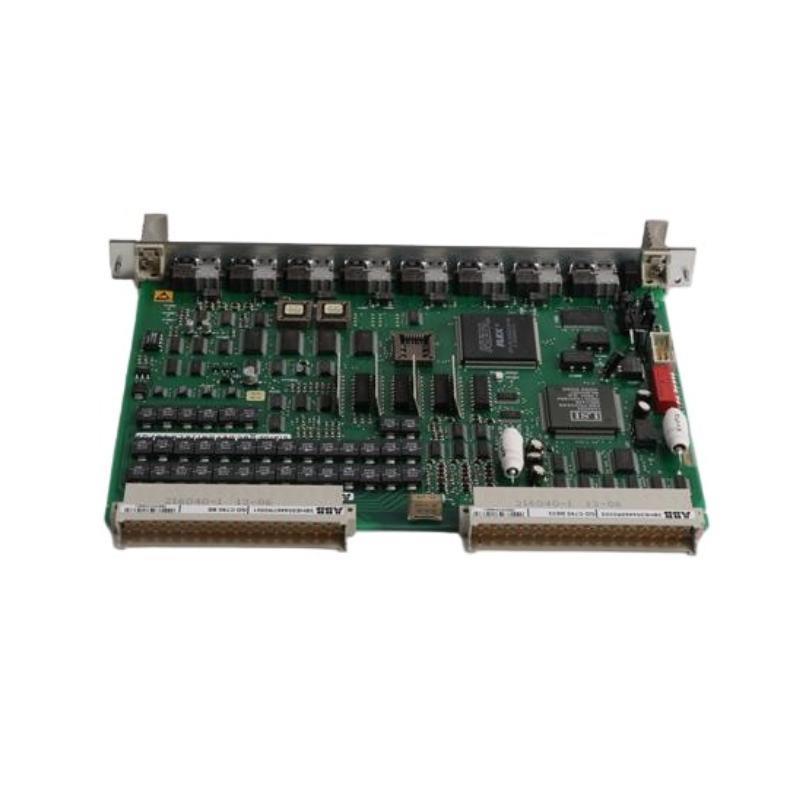

The ABB GDC780BE21 3BHE004468R0021 Green Board is a high-performance printed circuit board (PCB) module used in ABB’s industrial control and drive systems. Engineered for demanding applications, this green board performs critical functions such as signal processing, communication interfacing, and control logic execution. Its robust design ensures high reliability and seamless integration into ABB automation infrastructure.
Designed as part / ABB’s extensive range / system boards, the GDC780BE21 is well-suited for applications in harsh industrial environments where durability and precision are essential.
Key Features
-
Compatible with ABB drive and control systems
-
High-density green PCB for efficient signal handling
-
サポートs communication, I/O, or logic processing functions
-
Durable multilayer design for industrial environments
-
Direct-fit plug-in configuration for fast integration
-
ABB part number: 3BHE004468R0021
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | GDC780BE21 |
| 型番 | 3BHE004468R0021 |
| Module Type | Green PCB Module |
| Function | Communication interface / control / signal processing |
| System Compatibility | ABB Drives and Control Systems |
| Board Type | Multilayer FR4 with green solder mask |
| Voltage Requirements | Defined by host system specifications |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Dimensions | 20 x 196 x 261mm |
| 重量 | 0.34 kg |
Industry Applications
-
Industrial drive control systems
-
Robotics and factory automation
-
Metal processing and rolling mills
-
Oil and gas installations
-
Chemical and power generation facilities
Product Advantages
-
Optimized Design: Efficient layout and form factor for rack or cabinet integration
-
High Reliability: Engineered to withstand temperature, vibration, and noise typical / industrial settings
-
Fast Replacement: Plug-in format minimizes system downtime during maintenance
-
ABB Assurance: Manufactured and tested under ABB’s rigorous quality standards
-
Modular Flexibility: Integrates into various ABB systems for control, I/O, or communication roles
よくある質問 (FAQ)
-
What is the function / the GDC780BE21 board?
It functions as a communication, signal processing, or control interface in ABB drive/control systems. -
Which ABB systems use this module?
It is typically used in industrial drives and automation systems—confirm compatibility with system documentation. -
Is this module still in production?
It may be classified as a legacy product; availability depends on stock from ABB or certified vendors. -
What are the dimensions / this board?
Approximately 20mm x 196mm x 261mm. -
What is the module’s weight?
Around 0.34 kg. -
Can the board be hot-swapped?
Depends on system configuration—refer to ABB documentation for safe procedures. -
Does it require configuration after installation?
Yes, most boards require system-level configuration or firmware updates. -
How should the board be stored when not in use?
Store in anti-static packaging at –40°C to +85°C in dry conditions. -
What are the environmental ratings?
Operates in 0°C to +60°C with industrial-grade resistance to dust and vibration. -
What is the ABB product code?
3BHE004468R0021.
Related Boards
| モデル | 説明 |
|---|---|
| GDB021BE05 HIEE300766R0005 | Green Board for Signal Interfacing |
| GD9924BE HIEE401091R0002 | General-Purpose PCB Module |
| GDP145BE HIEE300943R0001 | Processor Interface Green Board |
| GDC780BE11 3BHE004468R0011 | Alternate model / same board family |
| IMMPI01 HIEE300888R0001 | Multiprocessor Interface Module |
Popular ABB Boards
| モデル | Function |
|---|---|
| INICT13A | Computer Interface Transfer Module |
| INNIS21 | Network Interface Slave |
| IMFCS01 | Function Code Sequencer Module |
| IMDSI14 | Digital Input Module |
| INNPM12 | Network Processing Module |
