Product Overview

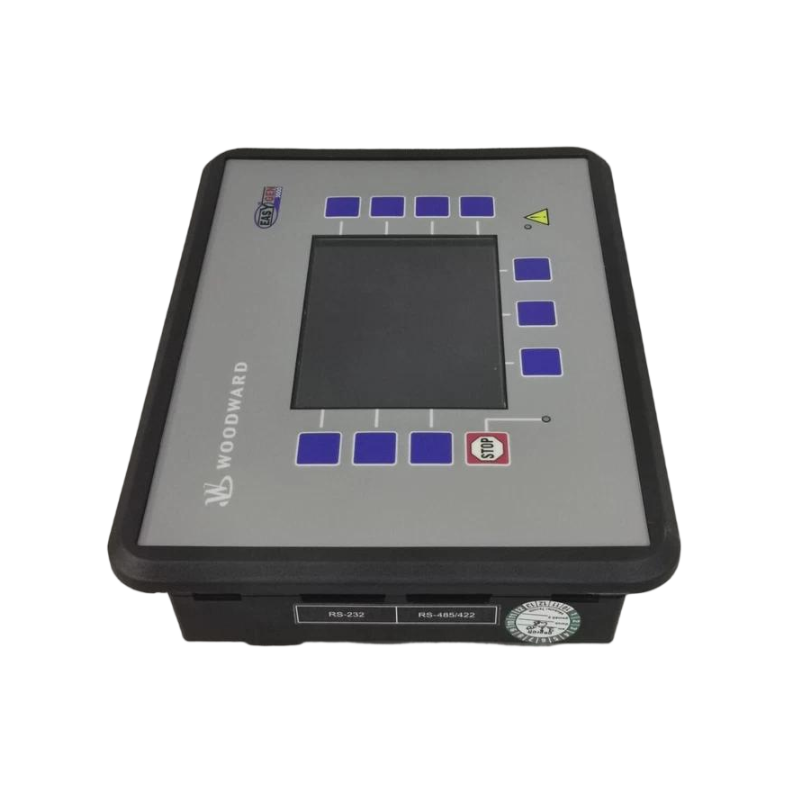

The Woodward EASYGEN-3200-5 is an advanced generator controller designed for complex power management applications. It provides comprehensive control, protection, and monitoring functions for single or multiple gensets operating in island, standby, or parallel-to-mains configurations.
Key Features
-
Complete genset control, monitoring, and protection
-
サポートs single or multiple genset applications
-
Automatic synchronization and load sharing
-
Multiple operating modes: island, standby, or parallel-to-mains
-
Integrated PLC logic for application customization
-
Wide range / communication protocols (CAN, Modbus, Ethernet, etc.)
-
Graphical display with intuitive menu navigation
-
Event logging and data trending for diagnostics
-
Compact, rugged design for industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | EASYGEN-3200-5 |
| Type | Generator Controller |
| Application | Single or multiple genset power management |
| Operating Modes | Island, Standby, Parallel-to-Mains |
| Synchronization | Automatic voltage, frequency, and phase synchronization |
| Load Sharing | Real and reactive load sharing across gensets |
| Communication | CAN bus, Modbus RTU/TCP, Ethernet, Pr/ibus (optional) |
| User Interface | Graphical LCD with intuitive navigation |
| Event/Alarm Logging | Comprehensive event recorder with timestamp |
| Programmability | Built-in PLC logic for customization |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Dimensions | 217 x 282 x 99 mm |
| 重量 | 1.85 kg |
| Compliance | CE, UL, CSA, RoHS |
Industry Applications
-
Power Generation Plants – multi-generator synchronization and load control
-
Oil & Gas – genset control for remote and /fshore installations
-
Marine – reliable shipboard power management
-
Data Centers – standby and emergency genset synchronization
-
Industrial Facilities – seamless backup power and load control
Advantages
-
Versatile controller for complex genset applications
-
サポートs multiple communication protocols for easy system integration
-
Automatic synchronization and load sharing improve reliability
-
Built-in PLC logic provides flexibility for custom applications
-
Compact design with rugged construction for harsh environments
-
Extensive event logging and diagnostics improve maintenance efficiency
よくある質問 (FAQ)
Q1: What is the main function / the EASYGEN-3200-5?
It provides control, monitoring, and protection for single or multiple generators.
Q2: Can it handle parallel genset applications?
Yes, it supports synchronization and load sharing for multiple gensets.
Q3: Which communication protocols are supported?
CAN, Modbus, Ethernet, and optional Pr/ibus.
Q4: Does it include built-in logic programming?
Yes, it features integrated PLC logic for custom control strategies.
Q5: What display type does it use?
A graphical LCD with intuitive menu navigation.
Q6: What are the operating modes?
Island, standby, and parallel-to-mains operation.
Q7: What protection functions are available?
Voltage, frequency, load, and fault protections are integrated.
Q8: What is the operating temperature range?
-20 °C to +70 °C.
Q9: What are the dimensions?
217 mm x 282 mm x 99 mm.
Q10: How much does it weigh?
1.85 kg.
