Product 説明

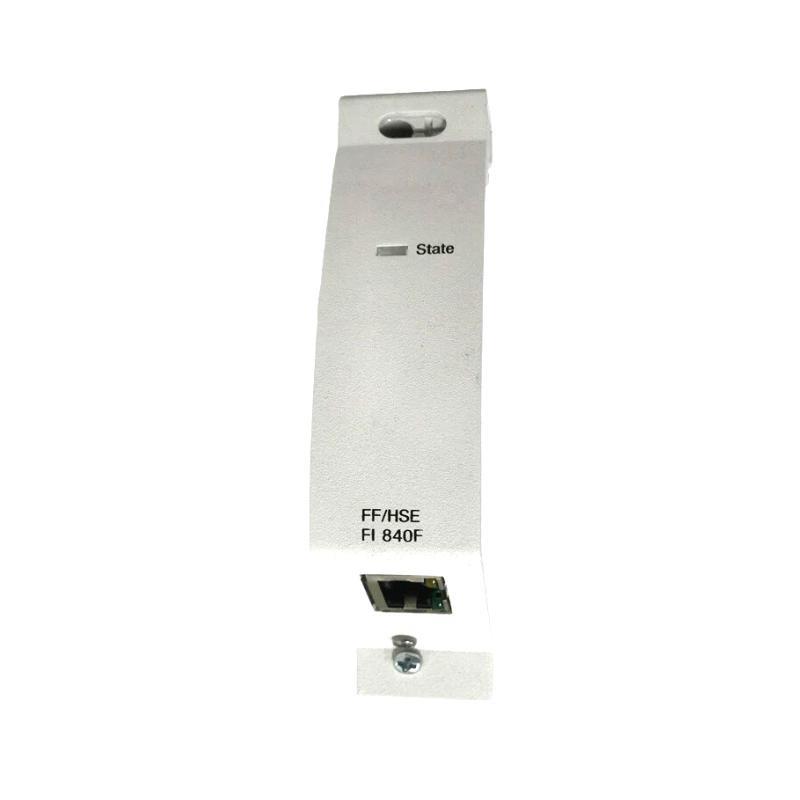

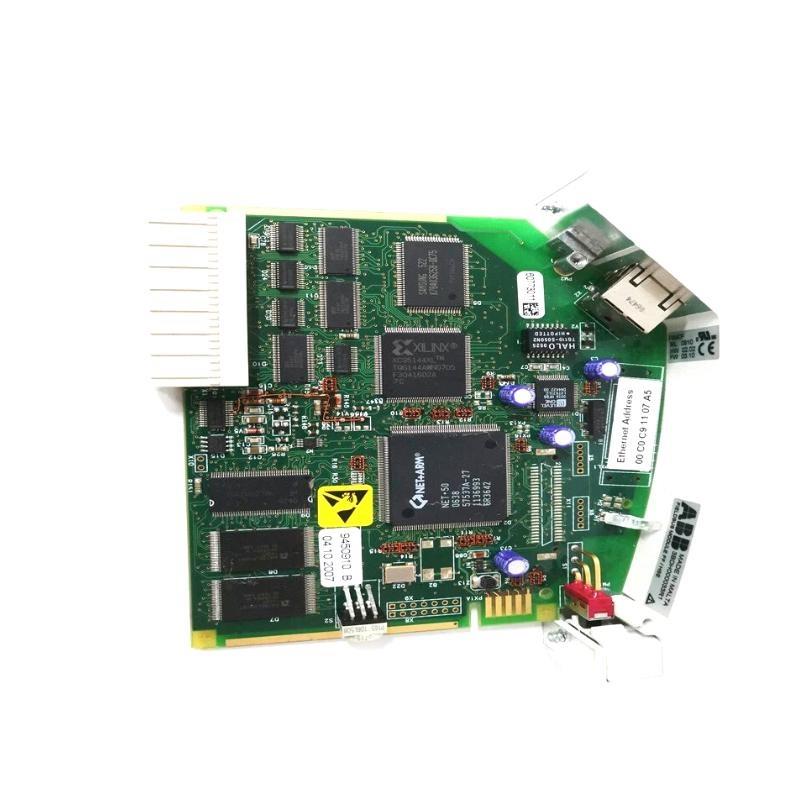

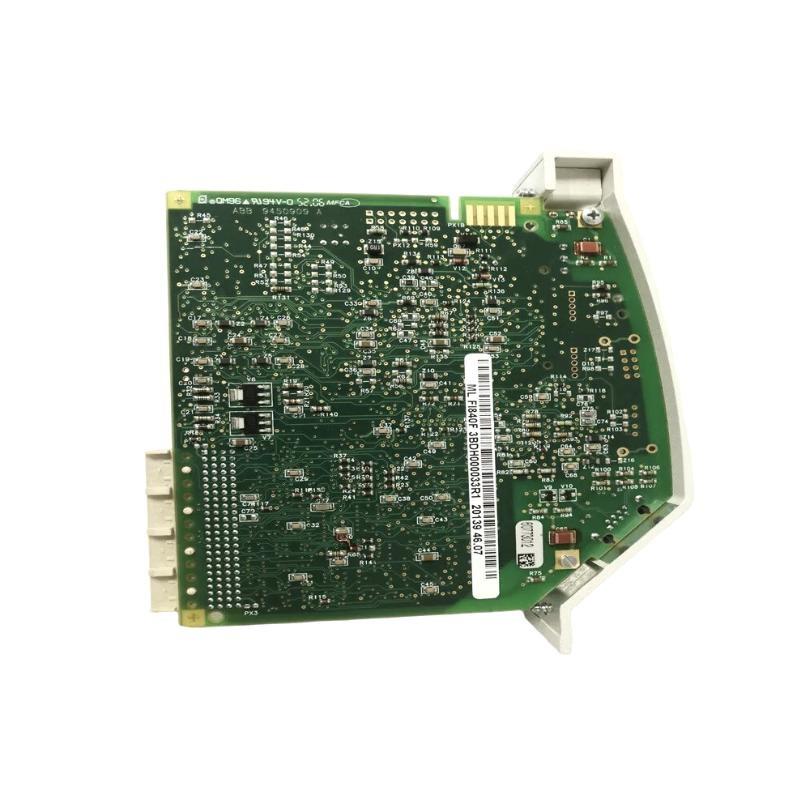

The ABB FI840F 3BDH000033R1 is a Foundation Fieldbus communication module designed for integration within ABB’s control systems. It enables reliable, high-speed communication between the field devices and the control system, supporting the Foundation Fieldbus H1 protocol. This module is compact, lightweight, and easy to install.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | FI840F |
| 型番 | 3BDH000033R1 |
| Communication Protocol | Foundation Fieldbus H1 |
| Dimensions | 125 × 155 × 28 mm |
| 重量 | 0.15 kg |
| Mounting | DIN-rail |
| Power Supply | Provided by base 台 |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Certifications | CE, ATEX compliant |
Applications
-
Process automation in chemical and petrochemical industries
-
Power generation plants
-
Oil & gas field device communication
-
Pharmaceutical manufacturing
-
Pulp and paper mills
Advantages
-
サポートs industry-standard Foundation Fieldbus H1 communication
-
Compact size for space-constrained installations
-
High reliability and proven performance in harsh environments
-
Easy integration into ABB control systems
-
Reduces wiring and improves diagnostics
FAQ
Q1: What is the primary function / the FI840F?
A1: It acts as an interface between the control system and field devices using the Foundation Fieldbus H1 protocol.
Q2: Is the FI840F hot-swappable?
A2: Yes, it supports hot swapping without system shutdown.
Q3: What systems is it compatible with?
A3: It is designed for ABB’s 800xA and Symphony Plus systems.
Q4: What certifications does it carry?
A4: The module is CE and ATEX certified.
Q5: Does it require an external power supply?
A5: No, power is supplied through the base 台.
Q6: Can it be used in hazardous environments?
A6: Yes, with proper installation and compliance with ATEX standards.
Q7: How many devices can it connect?
A7: Up to 32 field devices can be connected per segment, depending on power and topology.
Q8: What is the operating temperature range?
A8: From -20°C to +70°C.
Q9: Does it support redundancy?
A9: Yes, redundancy is supported when installed in a redundant configuration.
Q10: Is it easy to install and configure?
A10: Yes, the module is designed for plug-and-play installation with simple configuration through system s/tware.
Related ABB モデルs
| モデル | 説明 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| FI830F 3BDH000031R1 | Foundation Fieldbus Module | 125 × 155 × 28 | 0.15 |
| FI810F 3BDH000030R1 | Foundation Fieldbus Module | 125 × 155 × 28 | 0.15 |
| CI840A 3BSE041882R1 | Communication Interface Module | 125 × 155 × 28 | 0.15 |
| CI830F 3BDH000032R1 | Communication Interface Module | 125 × 155 × 28 | 0.15 |
| CI810F 3BDH000029R1 | Communication Interface Module | 125 × 155 × 28 | 0.15 |
| TB840A 3BSE037760R1 | Module Bus Terminator | 125 × 155 × 28 | 0.15 |
Popular ABB モデルs
| モデル | 説明 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| PM861AK01 3BSE018157R1 | Processor ユニット | 125 × 155 × 28 | 0.15 |
| AC800M 3BSE018168R1 | Controller | 125 × 155 × 28 | 0.15 |
| CI854A 3BSE030220R1 | Pr/ibus DP Communication Module | 125 × 155 × 28 | 0.15 |
| DO810 3BSE008510R1 | Digital Output Module | 125 × 155 × 28 | 0.15 |
| AI810 3BSE008516R1 | Analog Input Module | 125 × 155 × 28 | 0.15 |
| AO810 3BSE008522R1 | Analog Output Module | 125 × 155 × 28 | 0.15 |
