製品紹介

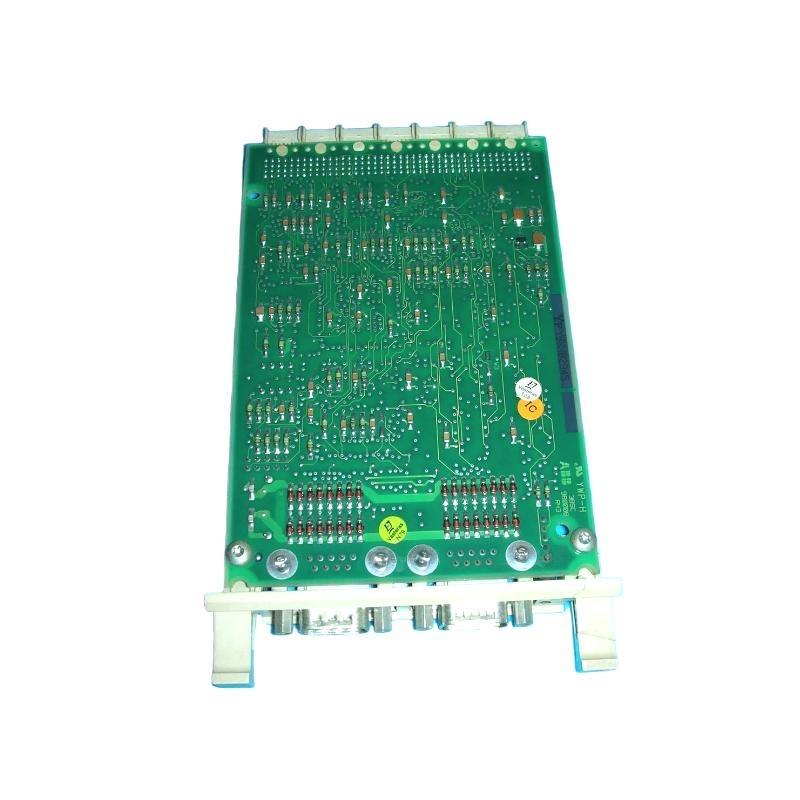

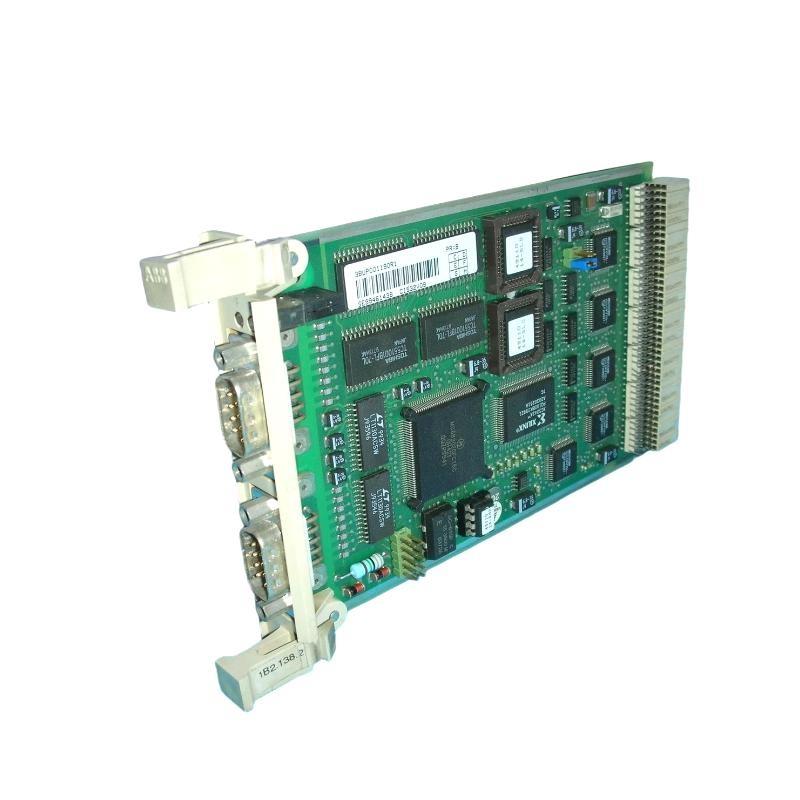

The ABB CI532V09 3BUP001190R1 is a high-performance submodule designed as part / the AccuRay automation and control systems, specifically tailored for process industries requiring reliable data acquisition and field connectivity. Engineered to operate within ABB’s extensive control ecosystem, this submodule ensures efficient data transmission, modular scalability, and seamless integration with distributed control systems (DCS).
As part / ABB’s renowned AccuRay product line, the CI532V09 excels in tasks related to sensor input, digital communication, and signal interfacing—enabling industrial operators to achieve high system accuracy, operational safety, and continuous process reliability. It is widely implemented in applications such as pulp & paper, power generation, and advanced manufacturing systems.
Built with industrial-grade materials, the module is intended for panel installation and can withstand harsh operating conditions including electrical noise, temperature variation, and mechanical vibrations.
製品仕様
| Parameter | Details |
|---|---|
| Product Name | CI532V09 Submodule |

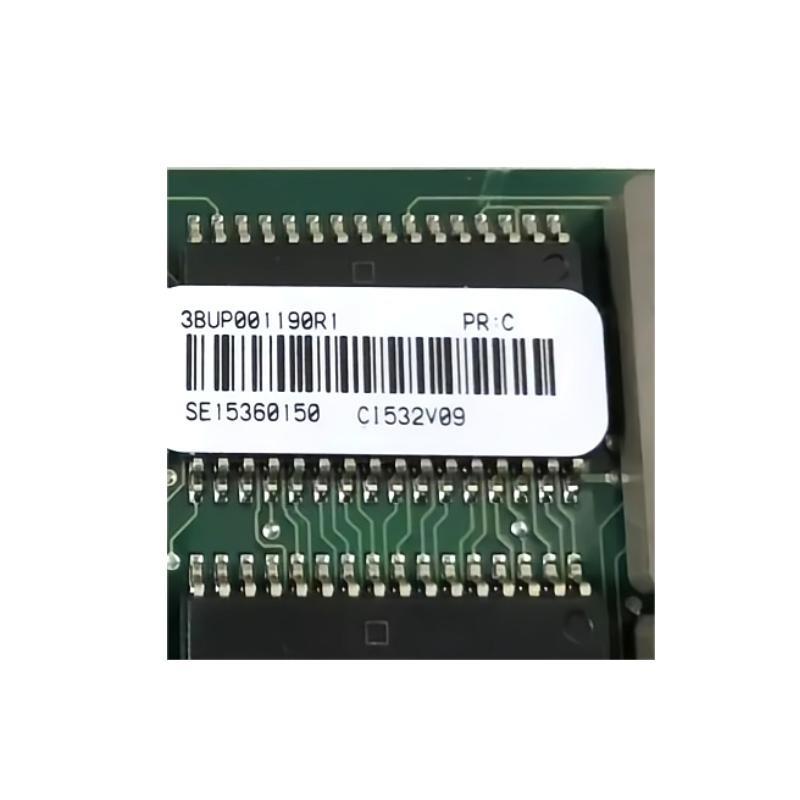

| ABB Order Code | 3BUP001190R1 |
| Product Series | AccuRay / Symphony Plus |
| Function | Communication and I/O submodule |
| Mounting Type | DIN rail or panel mounting |
| Input/Output | Digital / Analog Signal Interface |
| Communication Protocol | Proprietary ABB Bus, possible integration via Modbus |
| Operating Voltage | 24 VDC (typical) |
| Power Consumption | Approx. 2–3 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% – 95%, non-condensing |
| Material | Industrial-grade thermoplastic housing |
| Dimensions (W x H x D) | 229.5 x 22.5 x 121.5 mm |
| 重量 | 0.15 kg |
| Certifications | CE, RoHS, UL, cUL |
Applications
The ABB CI532V09 submodule is well-suited for a wide range / industrial and process automation environments, including:
-
Pulp & Paper Industry: Used in fiberline controls, digester monitoring, and paper machine automation within AccuRay systems.
-
Power Generation: サポートs data acquisition and system control in thermal and renewable power plants.
-
Water Treatment Facilities: Interfaces with instrumentation for filtration and chemical treatment controls.
-
Process Manufacturing: Ideal for signal input from distributed sensors in chemicals, food & beverage, or metallurgy.
-
Smart Grid Integration: Functions in grid automation systems when interfaced through ABB’s Symphony Plus.
-
SCADA and PLC Systems: Compatible with ABB’s integrated architecture for real-time supervisory control.
Product Advantages
-
Modular Architecture: Can be flexibly deployed or expanded as system requirements evolve.
-
Reliable Performance: Stable operation in challenging industrial conditions, ensuring data accuracy.
-
ABB Ecosystem Integration: Seamlessly connects to ABB’s Symphony Plus and AccuRay platforms.
-
Space-Efficient Design: Compact size allows for dense cabinet installations without thermal issues.
-
Proven Compatibility: Designed to work with a wide variety / ABB control processors and I/O systems.
-
Low Power Consumption: Energy-efficient operation reduces overhead in long-term deployments.
-
Ease / Maintenance: Clear labeling, LED indicators, and standardized connectors improve serviceability.
よくある質問 (FAQ)
-
What is the CI532V09 submodule used for?
It is primarily used for communication and signal interfacing within ABB’s AccuRay and Symphony Plus control systems. -
Can this submodule operate in high-humidity environments?
Yes, it supports up to 95% non-condensing humidity. -
What is the operating voltage for this device?
The typical operating voltage is 24 VDC. -
Is the CI532V09 compatible with Modbus networks?
While it uses ABB’s proprietary protocols, integration with Modbus is possible through gateway modules. -
How is the CI532V09 mounted in control panels?
It supports DIN rail and panel mounting configurations. -
Does this module support both analog and digital signals?
Yes, it handles a mix / analog and digital I/O depending on system configuration. -
What kind / environmental protection does it have?
It complies with CE, RoHS, and UL standards and features robust housing to resist industrial environments. -
How heavy is the CI532V09 module?
It weighs 0.15 kg. -
What is the recommended operating temperature range?
Between 0°C and +60°C for continuous operation. -
Is this module hot-swappable?
Hot swapping is not supported.
Related モデルs from the Same Series or Application
| モデル | 説明 | Compatibility | Function |
|---|---|---|---|
| CI532V10 | Submodule for enhanced data acquisition | AccuRay/Symphony Plus | Advanced signal processing |
| CI532V07 | Legacy submodule variant | AccuRay Systems | Standard signal interface |
| CI532V06 | Compact module for digital input only | ABB Symphony Plus | Digital I/O interface |
| CI532V04 | High-isolation input submodule | AccuRay DCS | Analog signal interface |
| CI532V03 | Older version with limited bandwidth | ABB control panels | Basic communication module |
| CI532V08 | Extended temperature version | Outdoor/remote sites | Harsh environment deployment |
Popular ABB モデルs Across Control & Automation
| モデル | 説明 | Application | Key Features |
|---|---|---|---|
| PM861AK01 | AC 800M controller | Process automation | Ethernet, redundancy, high speed |
| AC800M | Modular process controller | Large-scale automation | High scalability and flexibility |
| CI854AK01 | Pr/ibus DP communication interface | Fieldbus integration | Dual-channel, diagnostics |
| AI810 | Analog input module (8 channels) | I/O expansion | High resolution, accuracy |
| DO820 | Digital output module | Actuator control | 16 channels, robust signal output |
| CP600 HMI | Human-machine interface panel | Operator control | Touchscreen, multi-protocol support |
