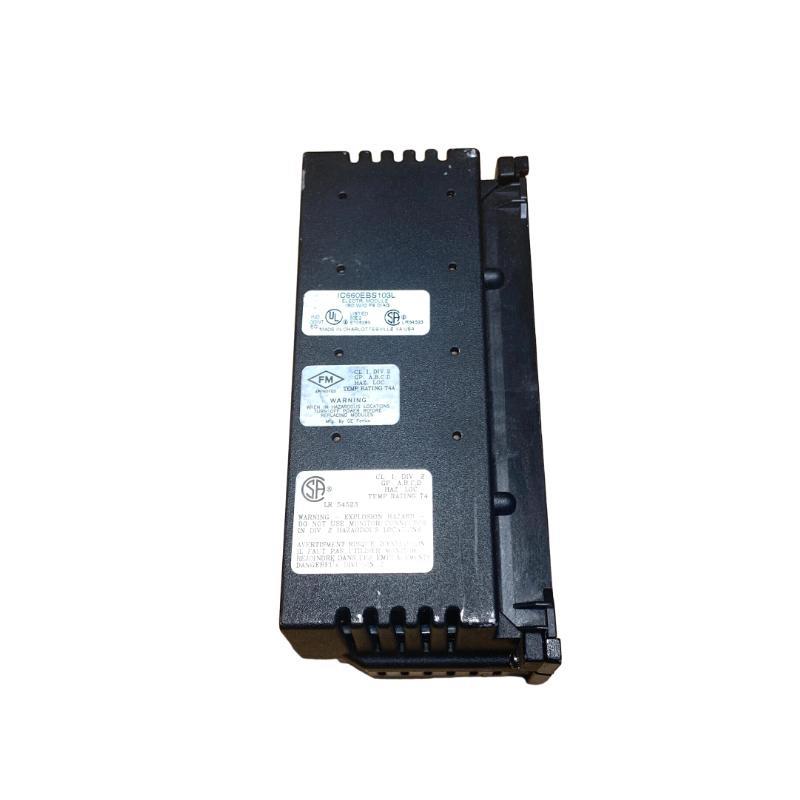

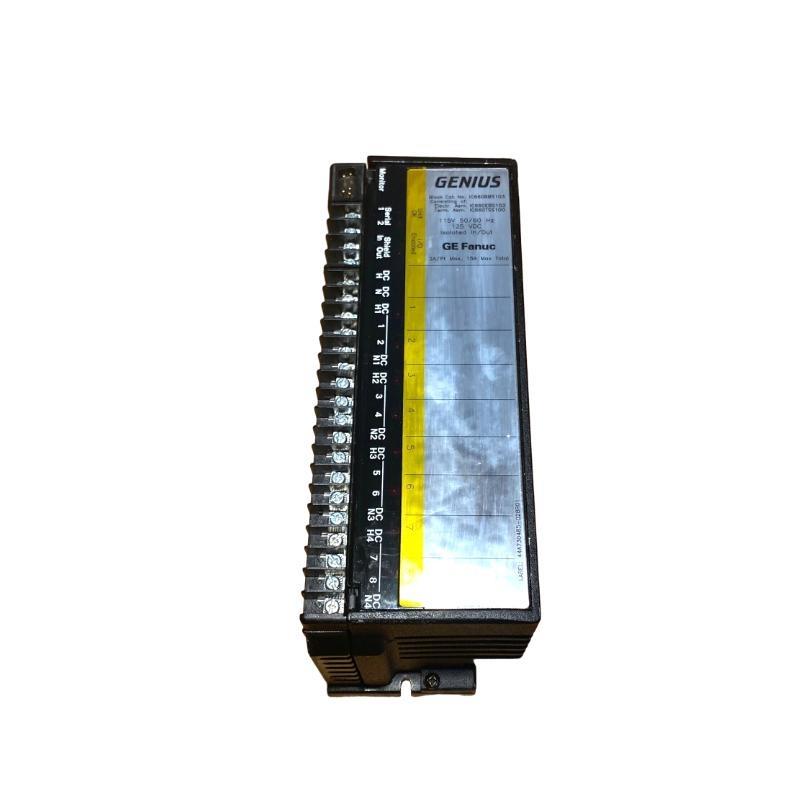

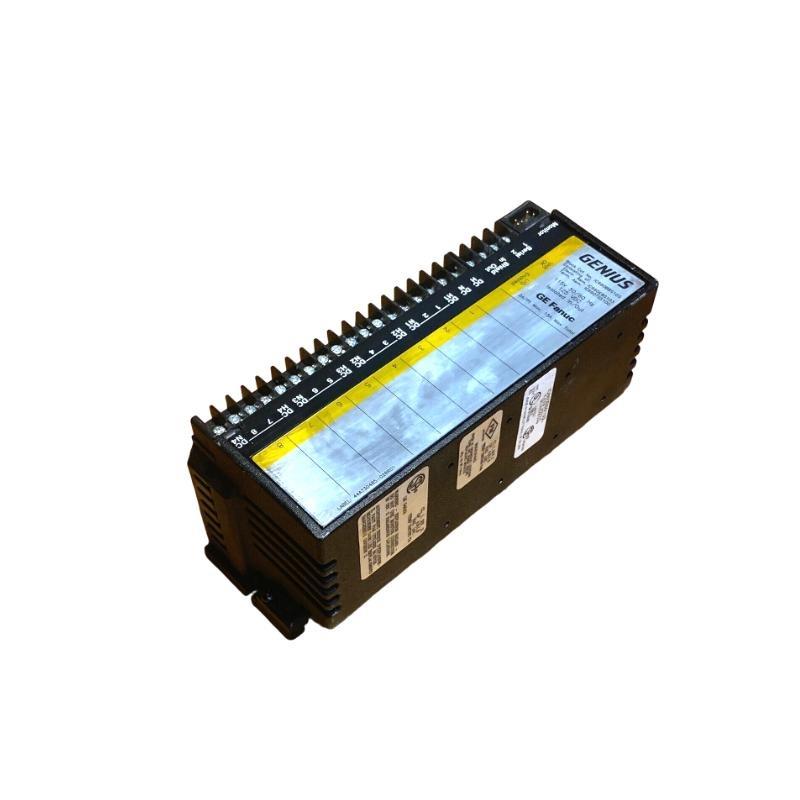

The GE IC660BBS103 is an Isolated I/O Module designed for industrial control systems within the GE Fanuc Genius I/O family. This 台 functions as a Block I/O Module that provides isolated inputs and outputs for use in harsh or high-noise environments. Engineered for robustness and reliable signal interfacing, the IC660BBS103 serves as a versatile component within distributed control architectures, particularly in discrete automation systems.
This model features 16 configurable I/O circuits, each capable / functioning as an input or output. Its design emphasizes noise imm台y and electrical isolation, ensuring protection for connected devices and control logic. The module communicates through the Genius Bus and is compatible with a wide range / GE Fanuc programmable automation controllers (PACs).
製品仕様
| Parameter | Specification |
|---|---|
| Product Type | Isolated I/O Module (Configurable I/O Block) |
| I/O Channels | 16 configurable as inputs or outputs |
| Voltage Range (Input/Output) | 0 – 30 VDC (nominal 24 VDC) |
| Output Current per Point | 0.5 A max |
| Isolation | Optical and transformer isolation per channel |
| Power Requirements | 115 VAC or 125 VDC nominal |
| Power Consumption | Approx. 8 Watts |
| Communication Interface | Genius Bus |
| Diagnostics | Built-in LED and diagnostics monitoring |
| Environmental Rating | IP54 (when installed in enclosure) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Mounting | Panel-mounted or DIN rail (with adapter) |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| 重量 | 1.48 kg |
Applications
The IC660BBS103 is widely used in various industrial automation settings, particularly in the following sectors:
-
Manufacturing Plants: For input/output interfacing with PLC systems controlling conveyors, motors, sensors, and actuators.
-
Utilities and Energy: Used for isolated signal communication in substations and generation 台s.
-
Process Automation: Ensures reliable I/O processing in chemical, pharmaceutical, and food processing environments.
-
Water Treatment Plants: Interfaces sensors and valve actuators within distributed SCADA systems.
-
Material Handling Systems: サポートs high-speed, noise-prone environments with isolated channels for safety and reliability.
Advantages
-
True Isolation: Each I/O point is electrically isolated to prevent cross-channel interference and to protect sensitive control logic from field faults.
-
Configurable Channels: Reduces inventory complexity by allowing flexible configuration / channels as inputs or outputs.
-
Reliable Communication: Native Genius Bus protocol ensures robust, fast, and deterministic data exchange with GE controllers.
-
Built-In Diagnostics: Enhanced LED indicators and internal diagnostics help reduce downtime and speed up troubleshooting.
-
Industrial Ruggedness: Withstands vibration, electrical noise, and temperature variations typical in harsh industrial environments.
-
Long-Term Availability: A well-supported legacy product with abundant spares and documentation, ensuring lifecycle continuity.
よくある質問 (FAQ)
-
Q: Can I configure the channels individually as inputs or outputs?
A: Yes, each / the 16 I/O points on the IC660BBS103 can be configured independently as either an input or output. -
Q: What type / power supply does this module require?
A: It operates on a 115 VAC or 125 VDC power supply. -
Q: Does the module /fer protection against voltage spikes?
A: Yes, it features internal suppression circuits and isolation to handle transients and protect connected devices. -
Q: Is the IC660BBS103 compatible with newer GE PACSystems controllers?
A: It communicates via the Genius Bus and can be integrated with compatible GE controllers using Genius Bus interface modules. -
Q: What kind / mounting is required?
A: The module can be mounted on a panel or on a DIN rail using an adapter. -
Q: How can I monitor the I/O status?
A: Each channel has an LED indicator, and built-in diagnostics provide additional feedback. -
Q: What happens if a channel is overloaded?
A: The module detects overloads and reports them through diagnostics to prevent damage. -
Q: Is the IC660BBS103 suitable for outdoor installation?
A: It must be housed in a suitable enclosure rated for outdoor use, as its inherent rating is IP54. -
Q: How does this module handle signal noise?
A: Optical isolation and transformer coupling provide excellent noise imm台y. -
Q: What tools are needed for configuration?
A: Configuration can be done via handheld monitors or s/tware tools compatible with Genius I/O systems.
Recommended Related モデルs (Same Series)
| モデル Number | 説明 | I/O Type | Voltage |
|---|---|---|---|
| IC660BBD100 | Genius I/O Block, 32 Circuit Sink I/O | 32 I/O (Sink) | 24 VDC |
| IC660BBD120 | Genius I/O Block, 16 Circuit Source I/O | 16 I/O (Source) | 24 VDC |
| IC660BBD024 | Genius I/O Block, Analog Voltage I/O | 4 Inputs / 2 Outputs | 0–10V |
| IC660BBA026 | Genius Block, Analog Input | 6 Channels | 4–20 mA |
| IC660BBD110 | Genius I/O, 16 Discrete I/O, Source/Sink | 16 Channels | 24 VDC |
| IC660BBD101 | Genius I/O Block, 32 Circuit Discrete | 32 Channels | 24 VDC |
Popular GE モデルs (Same ブランド)
| モデル Number | 説明 | カテゴリー | Protocol |
|---|---|---|---|
| IC695CPU320 | RX3i CPU, 1GHz, 64MB | CPU Module | Ethernet |
| IC200MDL740 | VersaMax, 16-pt Isolated Input Module | Discrete Input | VersaMax I/O |
| IC695CHS012 | RX3i 12-slot Universal Backplane | Backplane | Universal Bus |
| IC693ALG391 | 2-Channel Analog Output Module | Analog Output | Series 90-30 |
| IC693CPU374 | CPU with Ethernet, 240KB Logic Memory | PLC CPU Module | Ethernet |
| IC697CPX935 | Series 90-70, CPU with FIP Interface | High-end CPU Module | FIP |
