Product Overview

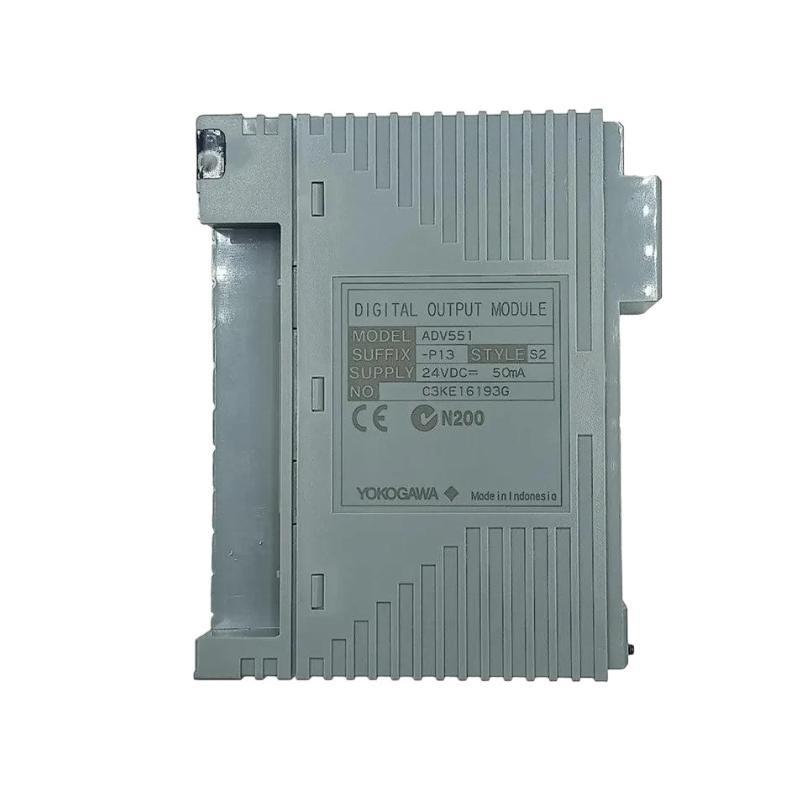

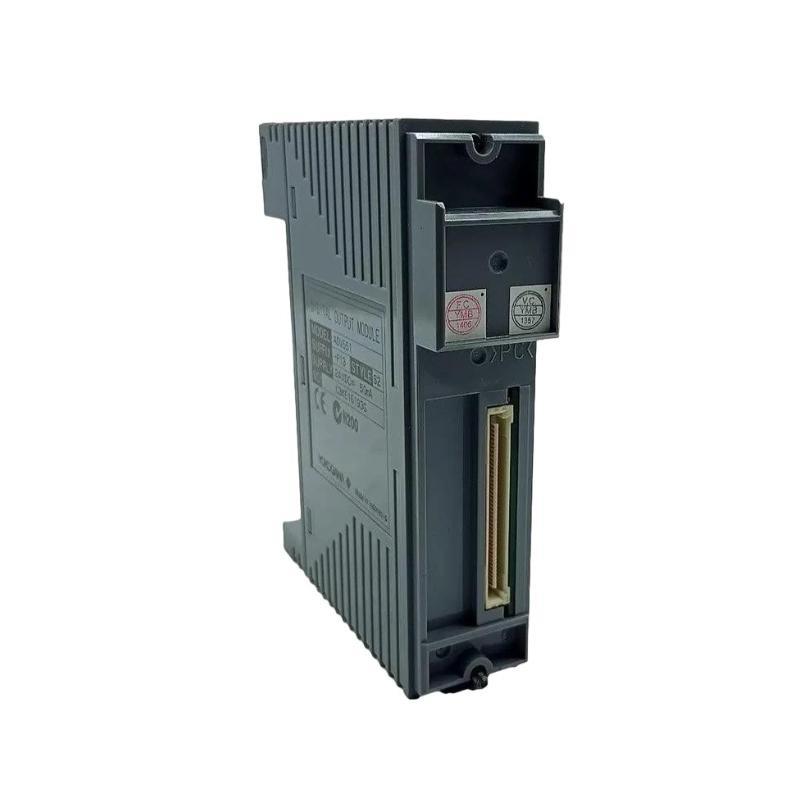

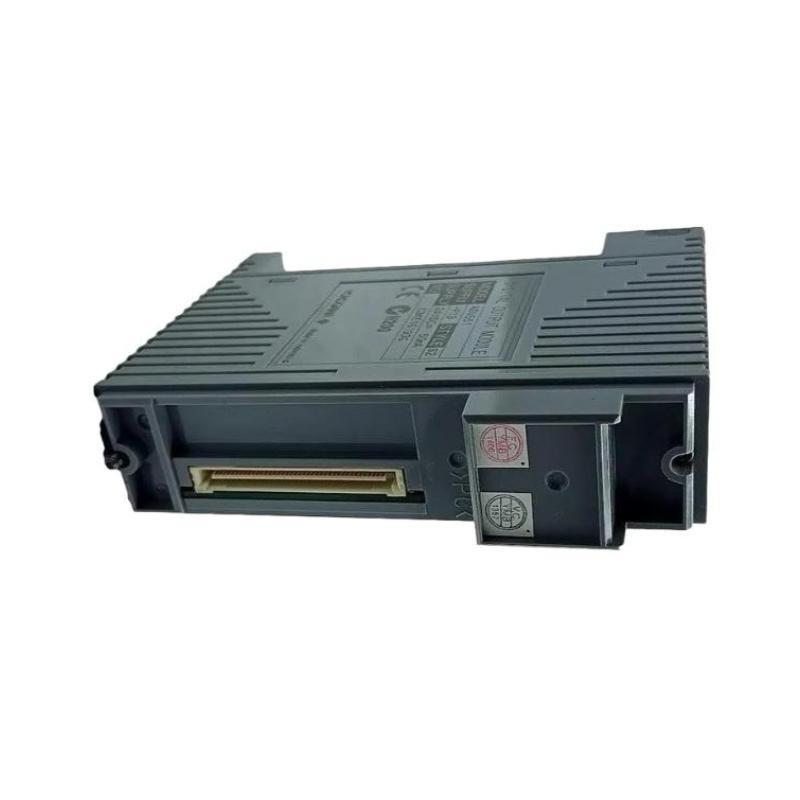

The Yokogawa ADV551-P13 S2 Digital Output Module is a high-performance module engineered for the CENTUM VP and ProSafe-RS platforms. Designed for critical industrial applications, this module facilitates the reliable transmission sur digital control signals from the controller to the field actuators. It provides robust output performance with rapid response time, making it ideal for process industries requiring high-speed, precise control functions.
Key Features
-
16-channel digital output for comprehensive control coverage
-
Supports ON/OFF output for field devices
-
Redundancy support for increased reliability
-
High-speed signal response
-
Isolated output channels for protection and durability
-
Designed for integration with Yokogawa’s control systems
-
Equipped with status and diagnostic indicators
-
Complies with international industrial standards for safety and EMC
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | ADV551-P13 S2 |
| Function | Digital Output (DO), 16 channels |
| Output Type | Open Collector / Relay Output |
| Rated Output Voltage | 24 V DC nominal |
| Output Current | 0.5 A max per channel |
| Response Time | ≤ 1 ms |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostics | Output status, fault detection |
| Communication Interface | Integrated with I/O network bus |
| Power Supply Voltage | 24 V DC (supplied via base module) |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Poids | 0.2 kg |
| Mounting | DIN rail or baseplate |
| Certification | CE, KC, CSA, and others |
Industry Applications
-
Oil and Gas
-
Power Generation
-
Chemical Processing
-
Water and Wastewater Treatment
-
Pharmaceutical Manufacturing
-
Food and Beverage Industry
-
Pulp and Paper
-
Mining and Metals
Advantages
-
Ensures accurate and reliable switching sur field devices
-
Enhances safety with isolated output channels
-
Simplifies installation with compact modular design
-
Reduces downtime with built-in diagnostics
-
Compatible with advanced Yokogawa control platforms
-
Long service life and durable construction
-
Supports high-density I/O requirements in limited spaces
-
Easily scalable for plant-wide automation systems
-
Supports SIL-rated safety systems (if part sur ProSafe-RS)
-
Lower total cost sur ownership due to reliability and integration
Questions fréquentes (FAQ)
-
What type sur outputs does the ADV551-P13 S2 support?
It supports digital ON/OFF output with open-collector or relay output types. -
How many channels are available in the module?
The module surfers 16 independent digital output channels. -
Is the ADV551-P13 S2 suitable for redundant systems?
Yes, it supports redundancy when paired with appropriate Yokogawa systems. -
Can this module be used in safety-critical applications?
Yes, particularly when integrated into Yokogawa’s ProSafe-RS system. -
What is the maximum output current per channel?
Each output channel can handle up to 0.5 A. -
Does the module surfer output diagnostics?
Yes, it provides channel diagnostics for fault detection and status monitoring. -
What is the response time sur this module?
The module delivers a fast response time sur ≤ 1 ms. -
Is the module certified for international use?
Yes, it meets CE, KC, and CSA standards, among others. -
Can the module be hot-swapped during operation?
It depends on the base system setup. Consult Yokogawa’s documentation for your platform. -
What is the installation method?
It can be mounted using a DIN rail or directly to a system baseplate.
