Product Overview

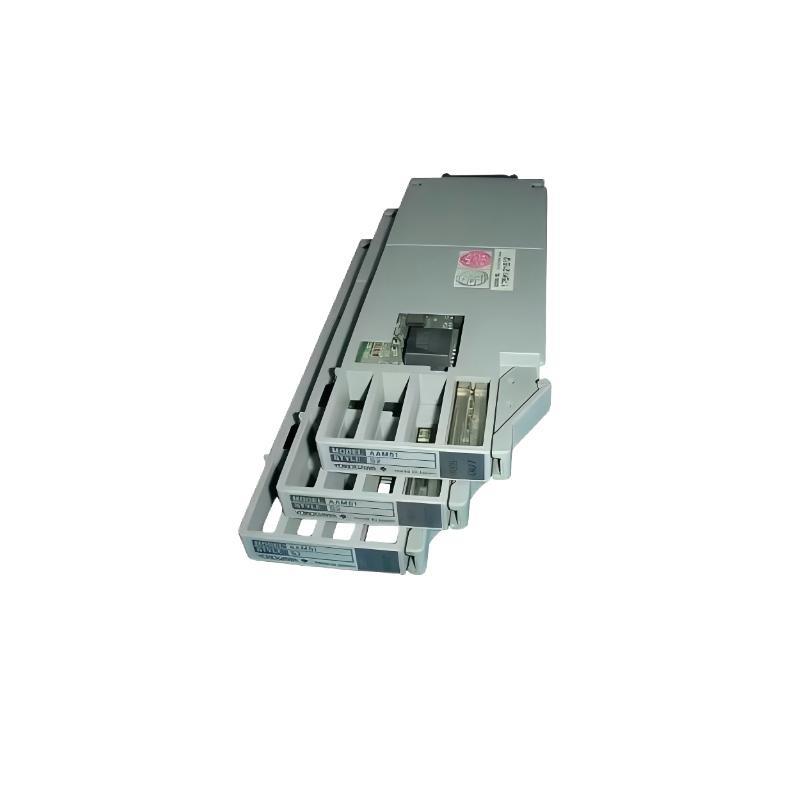

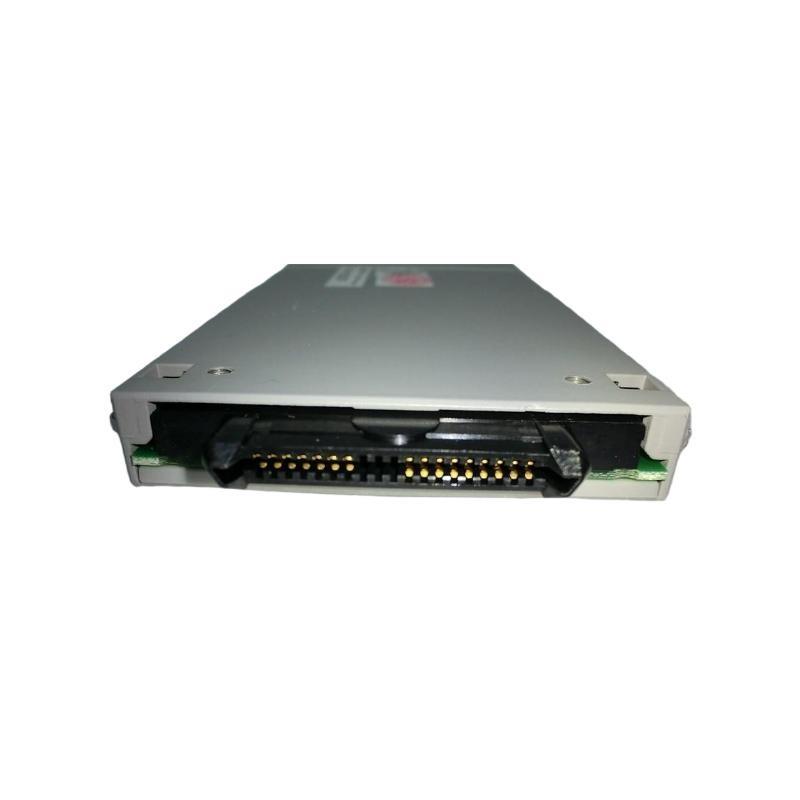

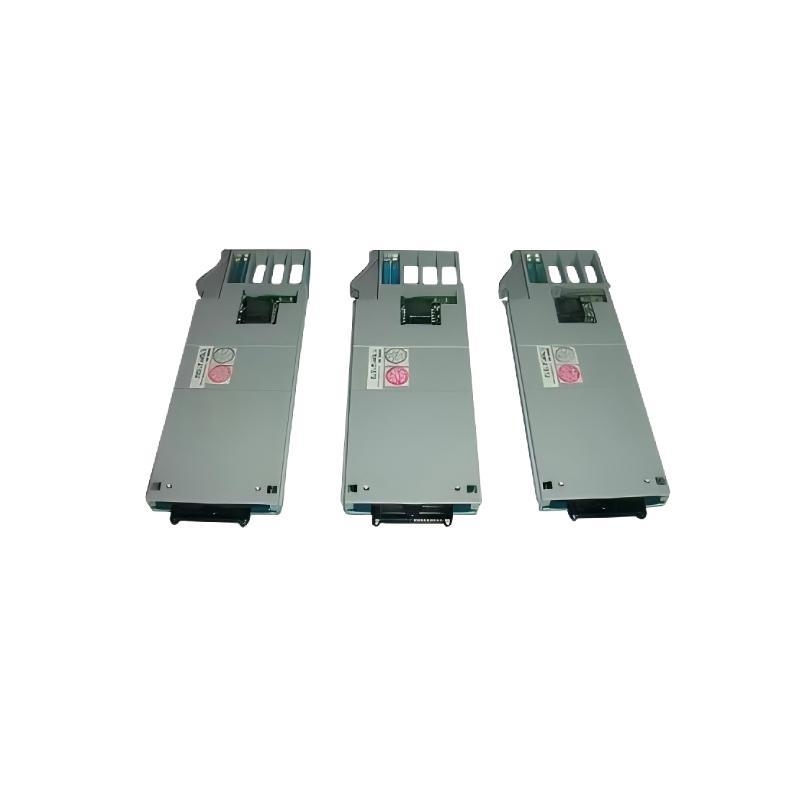

The Yokogawa A2SAM505 is a versatile Current/Voltage Output Adapter designed to provide seamless integration sur industrial control systems with a wide variety sur I/O devices. This adapter efficiently converts control signals into output signals such as 4-20 mA and 0-10V, making it a key component in automation and process control systems. By providing precise control and signal transmission, the A2SAM505 helps maintain system stability, process accuracy, and data consistency across different industrial applications.
This adapter is suitable for applications requiring reliable signal output for sensors, actuators, and other devices. With its compact form factor, advanced features, and easy integration with existing systems, the A2SAM505 is ideal for industries including power generation, manufacturing, and chemical processing, where control and precision are paramount. It is designed to deliver high performance while ensuring durability in harsh environments, making it an essential part sur any industrial automation setup.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 130 x 12.8 x 40 mm |
| Poids | 0.1 kg |
| Output Signal Types | 4-20 mA, 0-10V |
| Input Signal Types | Voltage/Current |
| Power Supply | 24 VDC |
| Mounting Type | DIN Rail Mounting |
| Communication Protocol | Modbus RTU |
| Operating Temperature | -20°C to 60°C |
| Isolation | 1500 V Isolation |
Product Applications
The Yokogawa A2SAM505 Current/Voltage Output Adapter plays a critical role in numerous industrial applications by converting input signals to output signals that control devices such as sensors, actuators, and other equipment. Some sur its key applications include:
-
Power Generation: In power plants, the A2SAM505 ensures accurate signal conversion from control systems to the output sur turbines, generators, and other equipment, ensuring proper control sur energy production.
-
Chemical Processing: It allows precise control over chemical reactions and processes by converting control signals to appropriate outputs for valves, pumps, and mixers.
-
Manufacturing: The adapter provides vital signal conversion in manufacturing systems, ensuring proper operation sur assembly lines, robotic systems, and other automated equipment.
-
Water Treatment: Used in water treatment plants to monitor and control the flow rates and chemical dosing systems by converting input signals from sensors to the appropriate control signals for valves and actuators.
-
HVAC: Used in HVAC systems to ensure the proper operation sur heating, ventilation, and air conditioning equipment by converting control signals to output signals for regulators and sensors.
The A2SAM505 enhances control over complex processes, improving the reliability and accuracy sur industrial systems across a wide range sur applications.
Product Advantages
-
Flexible Output Signals: The A2SAM505 supports 4-20 mA and 0-10V output signals, providing flexibility for various industrial control applications.
-
High Precision: It ensures precise signal output, contributing to the stability and accuracy sur industrial processes.
-
Wide Compatibility: The adapter is compatible with a wide range sur input signals and can be easily integrated into existing systems without extensive modifications.
-
Compact and Space-Efficient: With its compact size (130 x 12.8 x 40 mm), the A2SAM505 can be easily installed in control panels or other limited-space environments.
-
Built-in Isolation: The 1500 V isolation protects the system from electrical surges, enhancing the durability and stability sur the control system.
-
Reliable Performance in Harsh Environments: The A2SAM505 operates within a wide temperature range sur -20°C to 60°C, making it suitable for use in a variety sur industrial environments.
FAQ
1. What output signals does the A2SAM505 support?
The A2SAM505 supports 4-20 mA and 0-10V output signals, surfering flexibility for a variety sur industrial control applications.
2. Can the A2SAM505 handle both current and voltage inputs?
Yes, the A2SAM505 is capable sur handling both voltage and current input signals, making it versatile for different types sur sensors and devices.
3. What is the communication protocol used by the A2SAM505?
The A2SAM505 uses Modbus RTU as its communication protocol, ensuring reliable data transfer and easy integration with control systems.
4. What is the isolation rating sur the A2SAM505?
The A2SAM505 has a 1500 V isolation rating, protecting the adapter and connected devices from electrical noise, surges, and other disturbances.
5. What industries benefit most from the A2SAM505?
Industries such as power generation, chemical processing, manufacturing, and water treatment benefit from the A2SAM505’s ability to provide precise control over processes through accurate signal conversion.
6. How is the A2SAM505 mounted in control systems?
The A2SAM505 is designed for DIN rail mounting, allowing for easy installation in standard control panels and industrial automation systems.
7. What is the operating temperature range sur the A2SAM505?
The A2SAM505 operates effectively in temperatures ranging from -20°C to 60°C, making it suitable for various industrial environments.
8. Can the A2SAM505 be used for multi-channel systems?
Yes, the A2SAM505 can be used in multi-channel systems, depending on the specific configuration sur the application.
9. How does the A2SAM505 improve system stability?
By surfering precise current/voltage signal conversion and built-in isolation, the A2SAM505 enhances system stability by protecting against electrical disturbances and ensuring accurate control signal output.
10. Is the A2SAM505 suitable for use in hazardous environments?
The A2SAM505 is designed for industrial environments and can be used in hazardous locations if it meets the necessary safety certifications required by industry standards.
Related Modèles from Yokogawa
| Modèle Number | Description |
|---|---|
| A2SAM506 | Multi-channel current/voltage output adapter with advanced diagnostics |
| A2SAM507 | High-precision output adapter for industrial automation systems |
| A2SAM508 | Compact output signal converter with enhanced noise immunitéy |
| A2SAM509 | Signal adapter with extended temperature range for harsh environments |
| A2SAM510 | Robust current/voltage output adapter for large-scale systems |
| A2SAM511 | Advanced output signal converter with built-in isolation and protection |
