Product Description

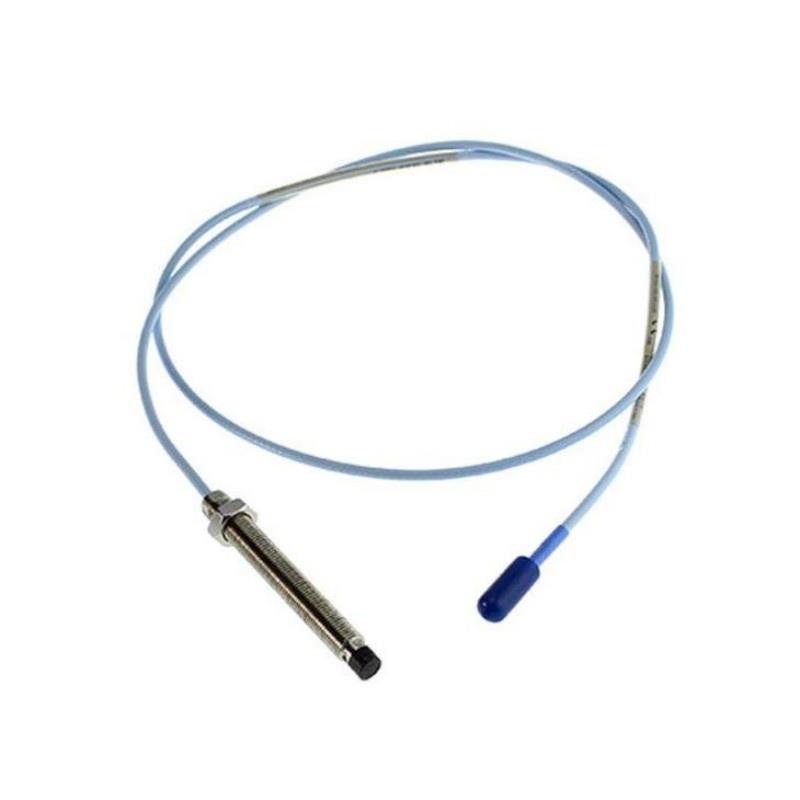

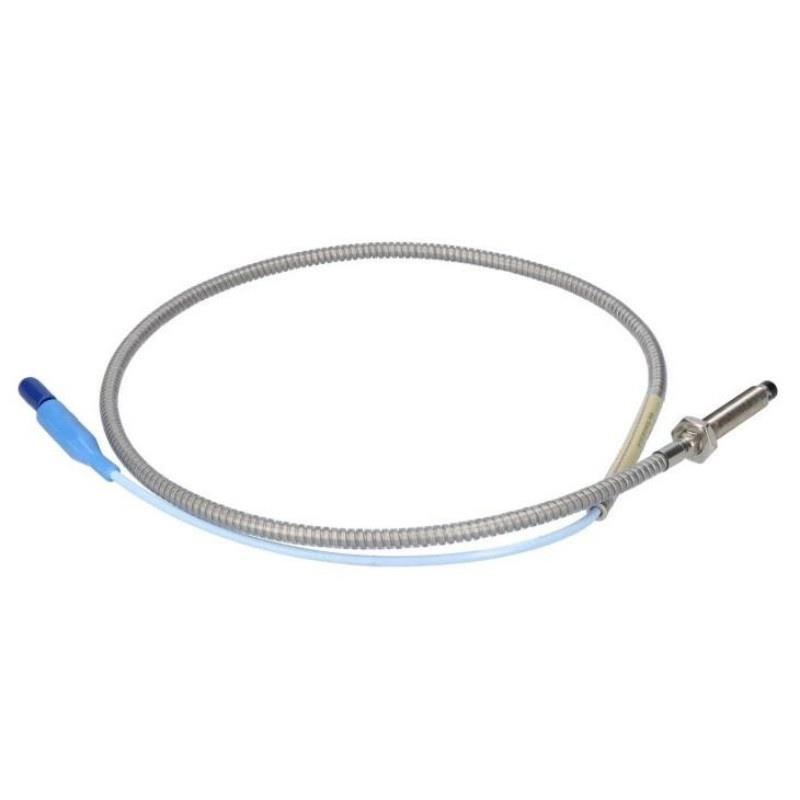

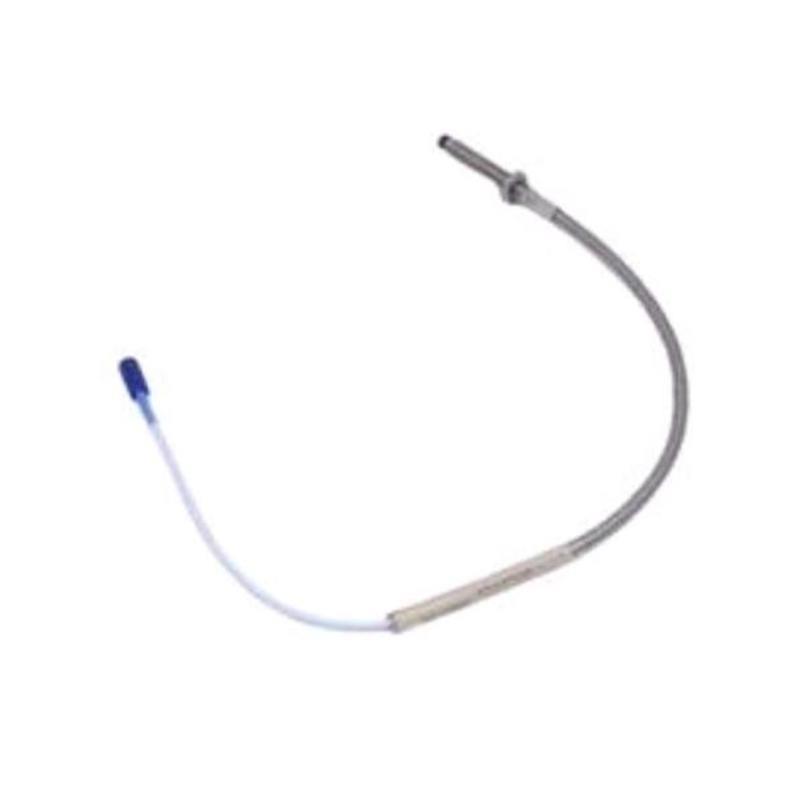

The Bently Nevada 330104-00-15-10-02-00 is a high-precision 8 mm proximity probe, part sur the 3300 XL Proximity Transducer System. It is designed for use in critical rotating machinery, providing reliable non-contact measurements sur shaft vibration and position. This specific model features M10 x 1 threads, armored construction, and a total length sur 1.0 meter, ideal for installations requiring enhanced mechanical protection.
Applications
-
Steam, gas, and hydro turbine monitoring
-
Centrifugal compressor vibration and thrust position
-
Electric motor bearing and shaft observation
-
Gearbox health monitoring
-
General machinery condition monitoring in refineries and power plants
Advantages
-
API 670 compliance for mechanical configuration and linear performance
-
Interchangeable components—no matching required between probe, cable, and sensor
-
Armor-protected for harsh environments
-
ClickLoc connectors ensure secure, tool-free connections
-
Extended temperature options available for high-heat applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 330104-00-15-10-02-00 |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Size | M10 x 1 (metric) |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Cable Type | Armored, standard FEP-insulated 75Ω triaxial |
| Connector | Miniature coaxial ClickLoc, gold-plated |
| Operating Temperature | -52°C to +177°C (probe), -52°C to +100°C (sensor) |
| Pressure Sealing | Viton O-ring, probe pressure-sealed |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils), -9 Vdc |
| ISF (Scale Factor) | 7.87 V/mm ±5% |
| Output Signal | -1 to -17 Vdc |
| Compliance | FCC, CE, RoHS, SIL 2/3, ATEX/IECEx, cNRTLus |
FAQs
Q1: What material is the probe casing made sur?
A1: The probe case is made sur stainless steel (AISI 303 or 304).
Q2: Is the 330104-00-15-10-02-00 compatible with non-XL 3300 systems?
A2: Yes, it is electrically and physically compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: What is the maximum operating temperature?
A3: +177°C for the probe tip; up to +260°C with extended temperature range (ETR) cables.
Q4: Is the connector field-replaceable?
A4: No, it uses factory-molded ClickLoc connectors for enhanced reliability.
Q5: What is the probe’s sealing method?
A5: It uses a Viton O-ring for pressure sealing between the probe tip and casing.
Q6: Can the probe operate in high EMI environments?
A6: Yes, the Proximitor sensor has strong EMI/RFI immunitéy and CE certification.
Q7: Does this probe support overspeed protection applications?
A7: Yes, when configured correctly with a compatible Proximitor sensor.
Q8: Is there an armored option for harsh conditions?
A8: Yes, this specific model is armored for mechanical protection.
Q9: How is the connection secured?
A9: ClickLoc connectors provide a finger-tight locking mechanism with a tactile “click”.
Q10: What’s the minimum recommended shaft diameter for accurate measurements?
A10: 50.8 mm (2 inches); 76.2 mm (3 inches) is recommended to minimize cross-talk.
Related Modèles in Same Series
| Modèle Number | Thread Type | Length (m) | Armor | Poids (kg) |
|---|---|---|---|---|
| 330104-00-15-10-02-00 | M10 x 1 | 1.0 | Yes | 0.323 |
| 330104-00-15-50-02-00 | M10 x 1 | 5.0 | Yes | 0.700 |
| 330101-00-08-10-02-00 | 3/8-24 UNF | 1.0 | Yes | 0.323 |
| 330101-00-16-10-02-00 | 3/8-24 UNF | 1.6 | Yes | 0.380 |
| 330102-00-20-10-02-00 | 3/8-24 UNF | 2.0 | Yes | 0.420 |
| 330103-00-04-10-02-00 | M10 x 1 | 1.0 | No | 0.280 |
Popular Bently Nevada Modèles
| Modèle Number | Description | Application | Poids (kg) |
|---|---|---|---|
| 330180-91-00 | 3300 XL Proximitor Sensor (9 m DIN mount) | Probe signal processing | 0.246 |
| 330130-080-02-00 | 3300 XL Extension Cable (8 m, armored) | Cable connection | 0.680 |
| 330105-02-12-10-02-00 | 8 mm Reverse Mount Probe (3/8-24) | Limited space installations | 0.310 |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration and position input | 0.620 |
| 3500/22M-01-01-00 | Transient Data Interface | Machinery data capture | 0.780 |
| 330103-00-05-10-02-00 | 8 mm Probe (M10 x 1, non-armored) | General monitoring | 0.295 |
