Présentation du produit

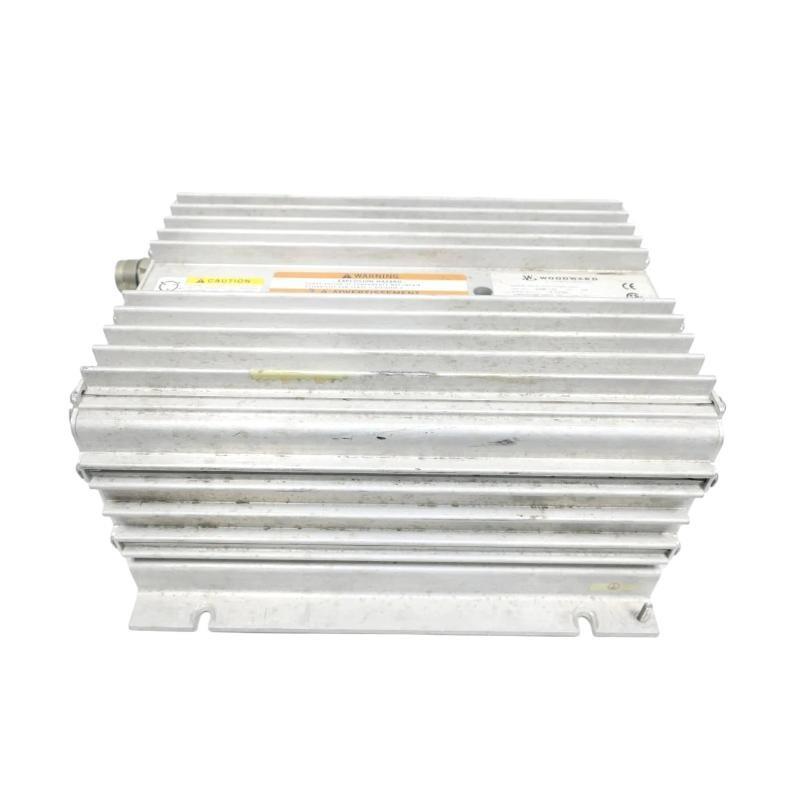

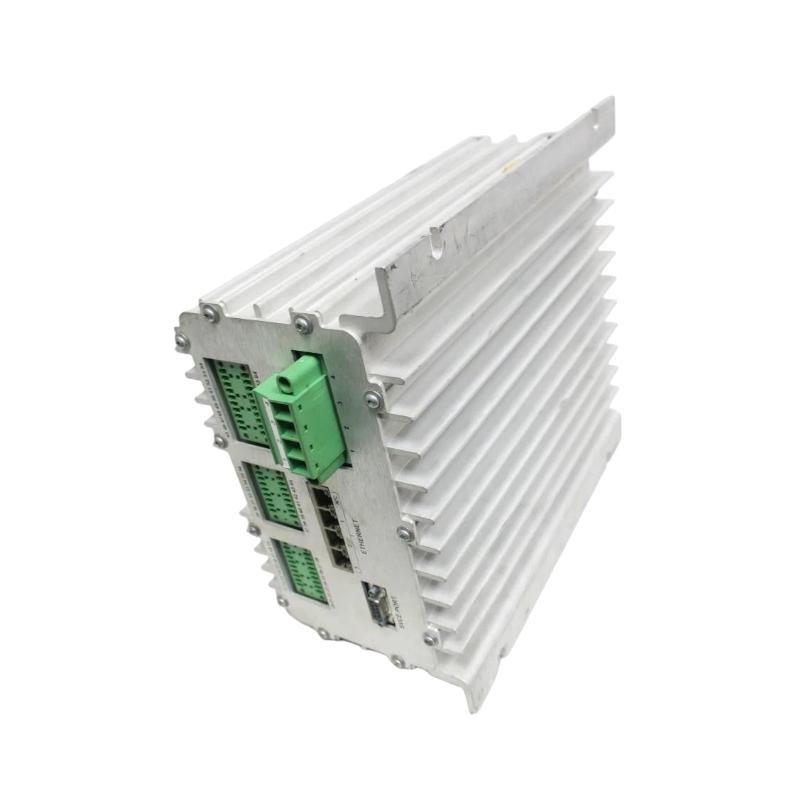

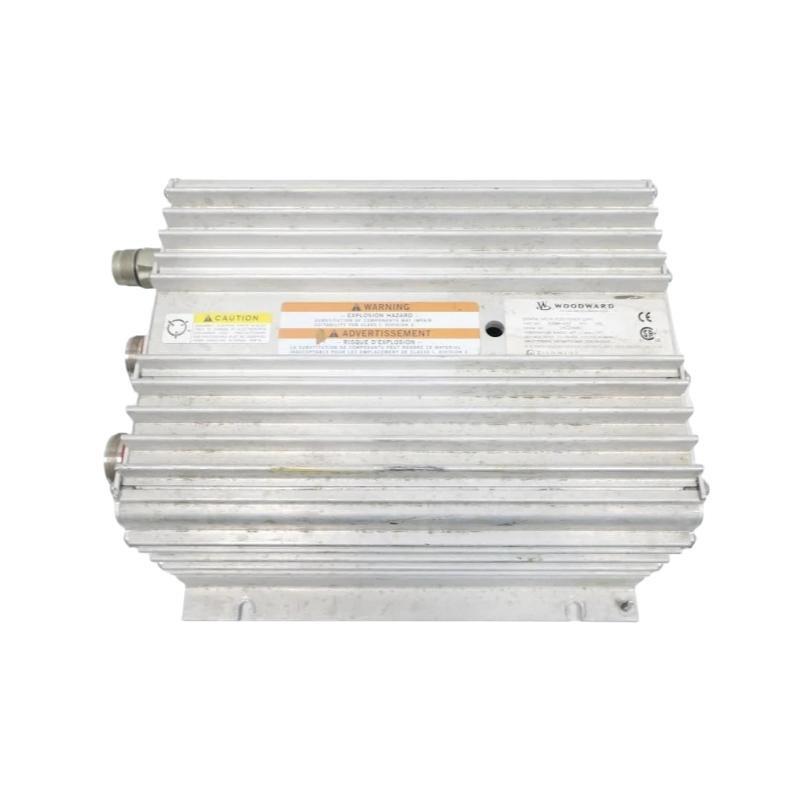

The Woodward 8200-182 Turbine Driver is a precision-engineered analog control module designed to provide stable and responsive positioning control for turbine valves in industrial power generation and mechanical drive applications. Serving as a fundamental component in Woodward’s turbine control systems, the 8200-182 delivers reliable hydraulic or electro-hydraulic actuator management for steam, gas, and hydro turbines.
This driver module converts control signals into precise valve positioning, ensuring optimal turbine performance, efficiency, and safety. It is engineered to meet the demands sur harsh industrial environments, surfering robust construction and consistent control characteristics across varying operating conditions.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | 8200-182 |
| Type | Analog Turbine Driver Module |
| Control Method | Position control for valve actuation |
| Input Signal | 4-20 mA current input |
| Output Type | Hydraulic or electro-hydraulic actuator driver output |
| Operating Voltage | 24 VDC nominal, 18-32 VDC range |
| Control Range | Full stroke positioning with proportional control |
| Response Time | Typically less than 50 milliseconds |
| Operating Temperature | -20°C to +70°C |
| Mounting | Panel or chassis mounting |
| Dimensions (W x H x D) | 200 x 150 x 75 mm |
| Poids | 0.8 kg |
| Environmental Protection | IP20 (standard, with optional enclosure available) |
| Diagnostic Features | Position feedback monitoring, fault detection |
| Compliance Certifications | CE, UL, and other industrial standards |
Product Applications
-
Steam Turbine Control Systems
-
Gas Turbine Valve Actuation
-
Hydraulic Control sur Mechanical Drives
-
Power Generation Plants
-
Oil and Gas Compressor Turbines
-
Industrial Process Turbine Controls
-
Cogeneration and Combined Cycle Systems
Product Advantages
-
Precise Position Control
Provides accurate valve positioning to optimize turbine efficiency and responsiveness. -
Robust Industrial Design
Built for demanding environments with wide temperature tolerance and vibration resistance. -
Fast Response Time
Ensures swift actuator movement for responsive turbine operation. -
Compatibility
Works seamlessly with Woodward’s range sur hydraulic and electro-hydraulic actuators. -
Easy Installation and Integration
Compact design and standard mounting options simplify system integration. -
Diagnostic Capabilities
Built-in position feedback and fault detection enable proactive maintenance. -
Reliable Analog Control
Proven analog technology for consistent, repeatable control in critical applications.
FAQ
-
What input signals does the 8200-182 accept for position control?
It accepts a 4-20 mA current input signal representing the desired valve position. -
Can the 8200-182 drive both hydraulic and electro-hydraulic actuators?
Yes, it is designed to interface with both actuator types for valve positioning. -
What is the typical response time sur this turbine driver?
The module responds within approximately 50 milliseconds. -
Is the module suitable for use in harsh industrial environments?
Yes, it operates reliably across a temperature range sur -20°C to +70°C and withstands vibration. -
What are the mounting options for this driver module?
It supports panel and chassis mounting for flexible installation. -
Does the 8200-182 provide position feedback for diagnostics?
Yes, it includes position feedback monitoring to aid in system diagnostics. -
What is the power supply requirement for this module?
It requires a nominal 24 VDC supply within an 18-32 VDC operating range. -
Does this driver support proportional valve control?
Yes, it provides proportional control sur valve position across the full stroke. -
Are there any certifications supporting the industrial use sur this module?
The 8200-182 complies with CE, UL, and other relevant industrial certifications. -
Can this module be integrated into existing Woodward turbine control systems?
Yes, it is designed to work seamlessly within Woodward’s turbine control architectures.
