Présentation du produit

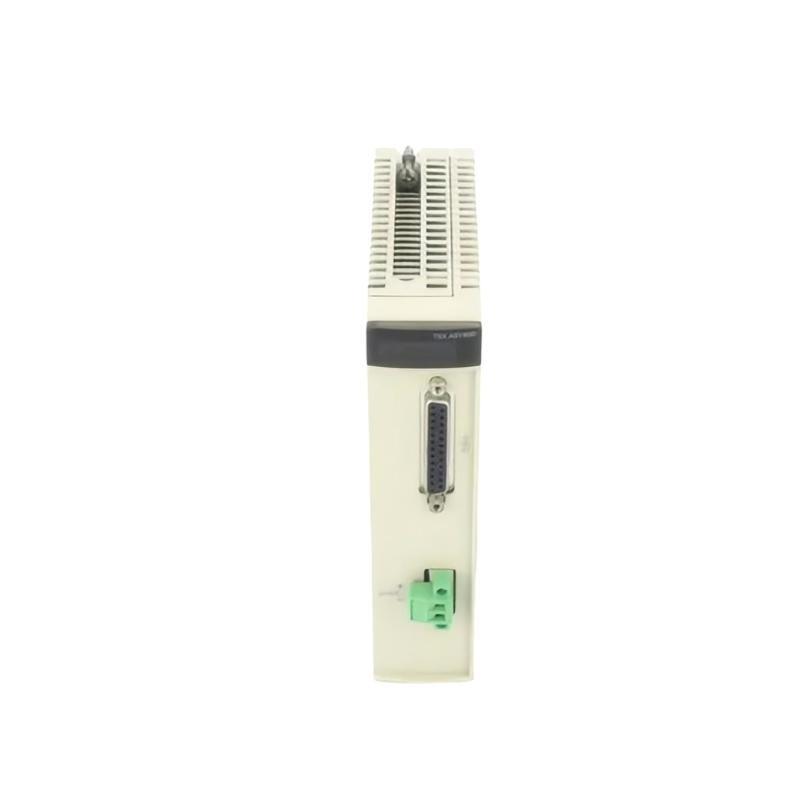

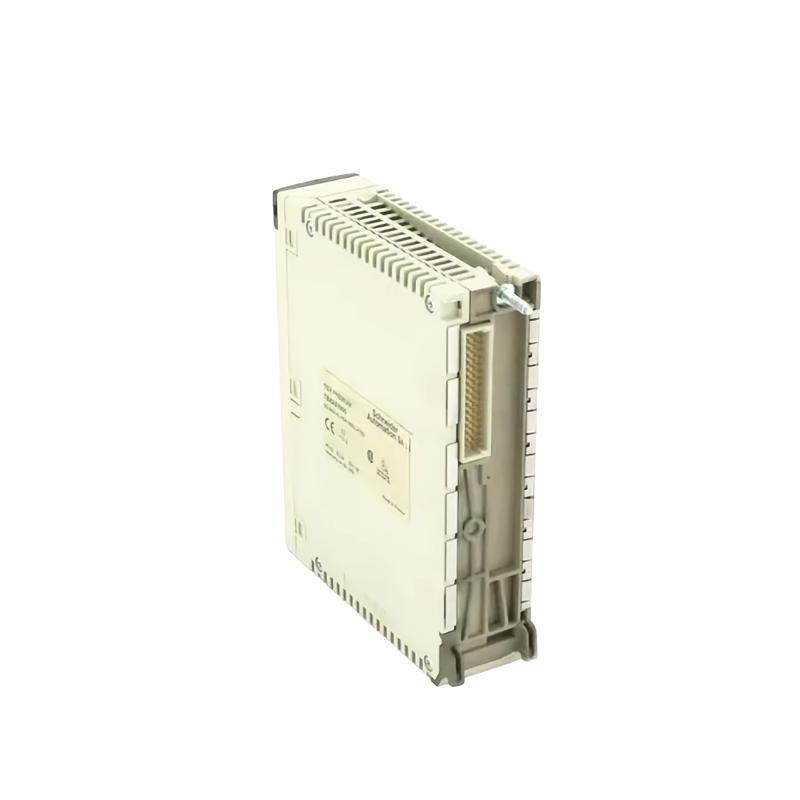

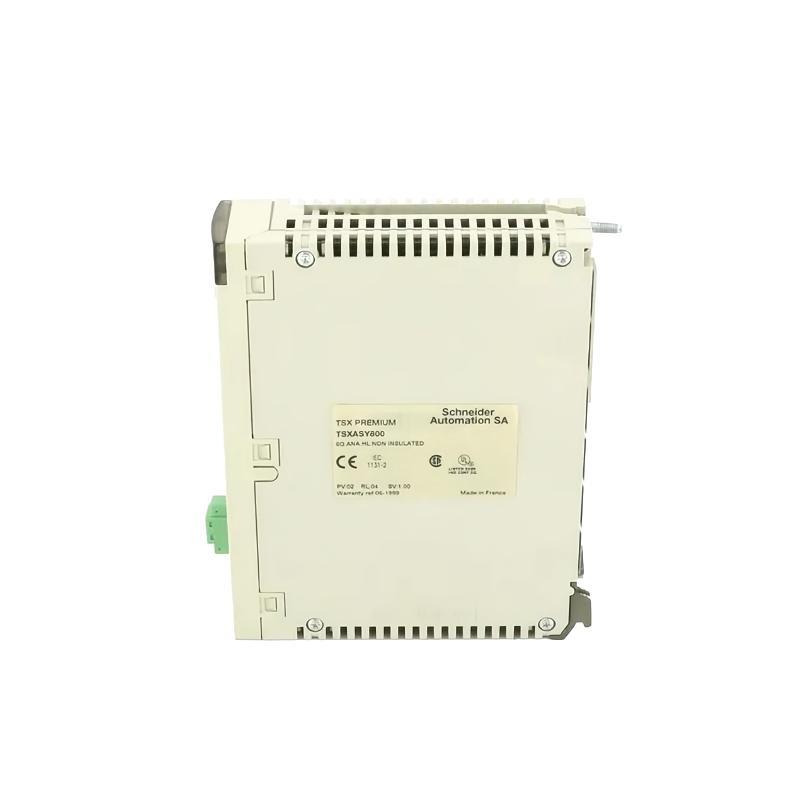

The Schneider TSXASY800 is a robust and precise analog output module designed for the Modicon Premium programmable logic controller (PLC) system. This module provides reliable and stable analog voltage or current outputs to control field devices such as actuators, valves, and other process equipment. Engineered to meet stringent industrial requirements, the TSXASY800 surfers 8 isolated analog outputs with high accuracy and excellent signal integrity.
This module is essential for automation systems requiring fine control over analog signals, especially in process industries such as chemical, oil and gas, and manufacturing. With channel-to-channel isolation and compatibility with Schneider’s EcoStruxure Control Expert (formerly Unitéy Pro), it allows seamless integration into complex control schemes, enabling precise and safe control over output devices.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Modèle | TSXASY800 |
| Fabricant | Schneider Electric |
| Product Type | Analog Output Module |
| Number sur Channels | 8 Analog Outputs |
| Output Signal Type | Voltage and Current (switchable) |
| Output Range | 0-10 V, 0-20 mA, 4-20 mA (configurable) |
| Resolution | 12-bit |
| Output Impedance | Voltage mode: ~100 Ohms; Current mode: ~500 Ohms |
| Accuracy | ±0.5% full scale |
| Conversion Time | Approx. 2.5 ms per channel |
| Isolation Voltage | 500 V channel-to-channel and channel-to-bus |
| Power Supply | Via backplane bus (no external supply required) |
| Mounting Type | DIN rail or rack-mounted |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -25°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Configuration Ssurtware | Unitéy Pro / EcoStruxure Control Expert |
| Dimensions (W x H x D) | 55 x 180 x 260 mm |
| Poids | 0.46 kg |
| Series | Modicon Premium |
| Compatible PLCs | TSX Premium CPU modules (e.g., TSXP574634M) |
Applications
The TSXASY800 analog output module is broadly applied in diverse industrial environments requiring accurate control sur analog actuators and devices. Common applications include:
-
Process Control: Control sur valves, pumps, and dampers through precise voltage or current outputs.
-
Manufacturing Automation: Output signal control for machine tools, conveyors, and robotic systems.
-
HVAC Systems: Modulating analog signals to manage fans, valves, and climate control components.
-
Water Treatment Plants: Controlling chemical dosing pumps and other analog-actuated equipment.
-
Energy and Utilities: Sending control signals for power generation and distribution equipment.
-
OEM Equipment: Integration into custom machinery requiring stable and configurable analog outputs.
Product Advantages
-
Channel-to-Channel Isolation: Prevents interference and ground loops by isolating each output.
-
Versatile Output Types: Supports both current and voltage output modes selectable by user.
-
High Accuracy and Stability: Ideal for applications demanding precise analog control.
-
Fast Response Time: Rapid conversion per channel ensures timely response to control commands.
-
Robust Industrial Design: Meets rigorous EMI, vibration, and temperature requirements for factory environments.
-
Easy Integration and Configuration: Fully compatible with Schneider’s EcoStruxure Control Expert for quick setup.
-
Compact Size: Slim prsurile saves valuable panel space and allows modular expansion.
-
Comprehensive Diagnostics: Enables monitoring sur output status and faults to improve system reliability.
Questions fréquentes (FAQ)
-
What types sur output signals does the TSXASY800 support?
It supports configurable voltage (0-10 V) and current outputs (0-20 mA or 4-20 mA). -
How many analog output channels does the module provide?
The module provides 8 isolated analog output channels. -
Is each channel electrically isolated?
Yes, each channel is galvanically isolated from the others and the system bus. -
What PLC series is the TSXASY800 compatible with?
It is designed for use with Schneider Modicon Premium PLC systems. -
Can the output mode be changed during operation?
The output mode is configured via ssurtware and should not be changed during normal operation. -
What is the module’s response time for output changes?
The typical conversion time per channel is approximately 2.5 milliseconds. -
Does the module provide diagnostics for output failures?
Yes, it supports diagnostics such as output range monitoring and fault detection. -
Can I hot-swap the TSXASY800 module?
No, the module should only be inserted or removed when the PLC is powered down. -
What are the module’s dimensions and weight?
The module measures 55 x 180 x 260 mm and weighs 0.46 kg. -
Is this module suitable for hazardous environments?
It is designed for standard industrial environments; for hazardous areas, additional certifications and protections may be needed.
Related Modèles (Same Series / Functionality)
| Modèle | Description | Channels | Output Type | Notes |
|---|---|---|---|---|
| TSXASY810 | 8-Ch Analog Output Module | 8 | Voltage/Current | Similar functionality |
| TSXASY1600 | 16-Ch Analog Output Module | 16 | Voltage/Current | Higher density output module |
| TSXAEY800 | 8-Ch Analog Input Module | 8 | Current Input | Complementary analog input |
| TSXDEY64D2K | 64-Ch Digital Input Module | 64 | Digital Input | High density digital input |
| TSXDSY32T2K | 32-Ch Digital Output Module | 32 | Digital Output | Digital counterpart |
| TSXP574634M | Premium PLC CPU Module | – | CPU | Compatible CPU |
