Présentation du produit

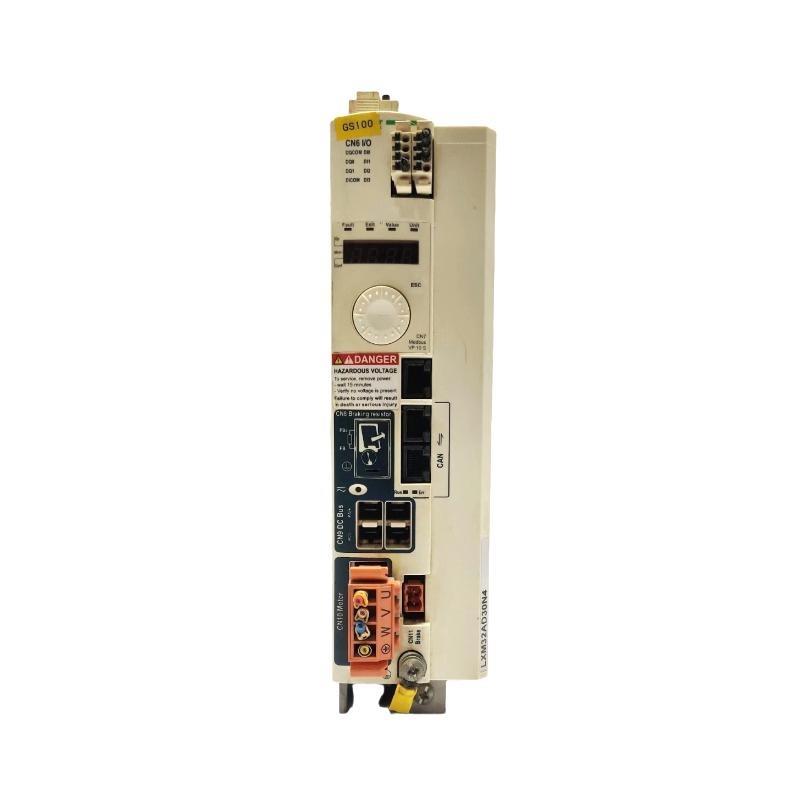

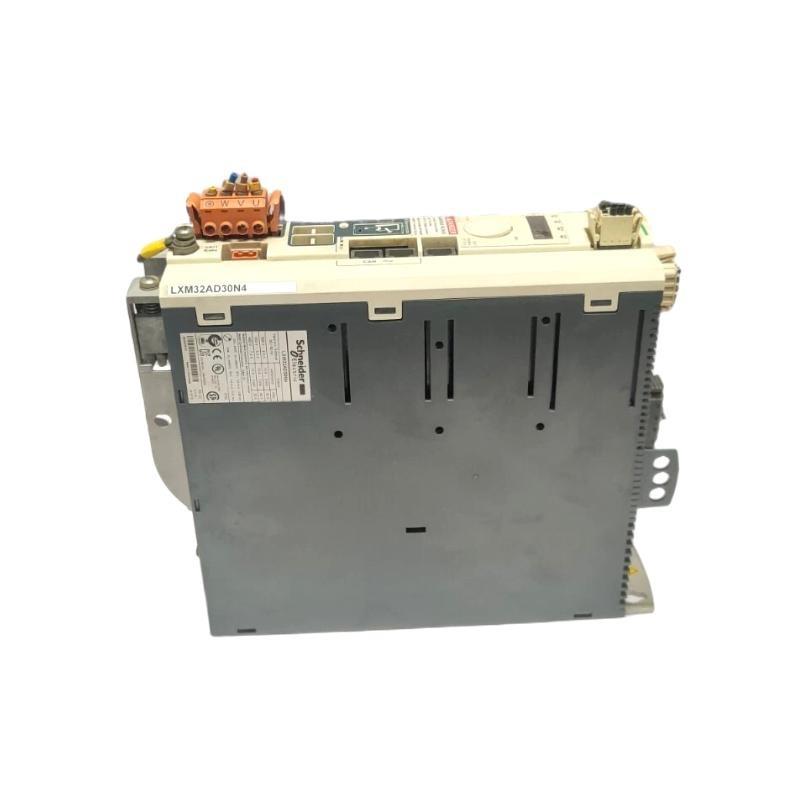

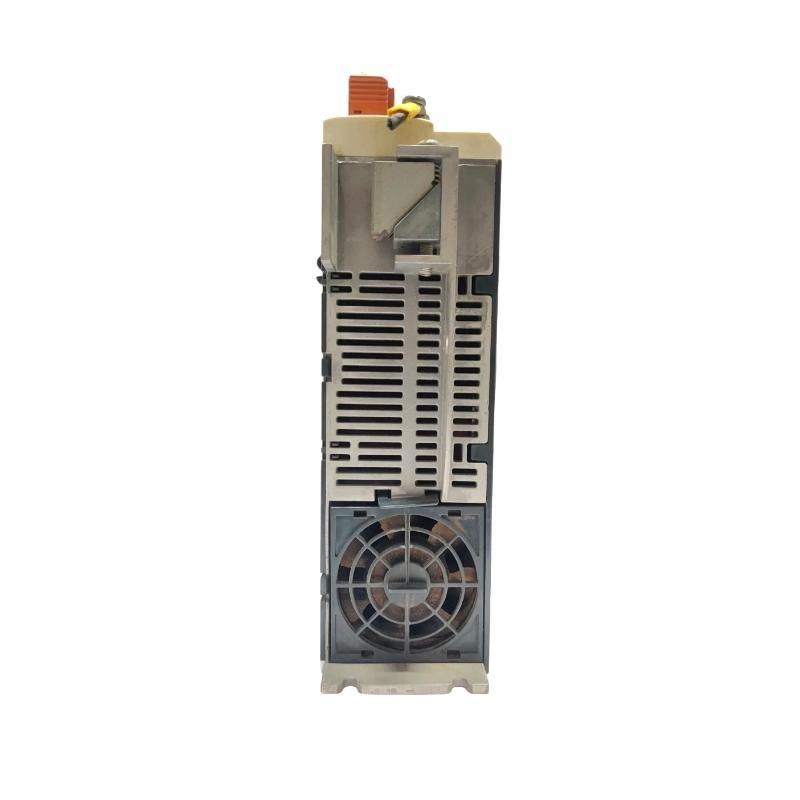

The Schneider LXM32AD30N4 Motion Servo Drive is a high-performance industrial servo drive designed to control and optimize motion in precision automation systems. This drive provides advanced motion control for servo motors, combining high accuracy, dynamic response, and robust reliability. It supports multi-axis coordination and complex motion prsuriles, making it ideal for applications in robotics, packaging machinery, CNC machines, and material handling systems.
Engineered with Schneider Electric’s expertise in automation, the LXM32AD30N4 features intuitive configuration, integrated safety options, and enhanced control algorithms to ensure smooth, precise, and efficient operation. Its modular design allows easy integration into existing automation systems while maintaining high flexibility for various industrial environments.
Product Parameters
| Parameter | Description |
|---|---|
| Product Modèle | LXM32AD30N4 |
| Product Type | Motion Servo Drive |
| Rated Current | 3.0 A |
| Supply Voltage | 200 – 240 V AC |
| Control Type | Digital Servo Control |
| Communication Interfaces | Modbus, CANopen, Ethernet/IP (optional modules) |
| Feedback Type | Encoder (incremental or absolute) |
| Protection Features | Overcurrent, Overvoltage, Thermal protection |
| Control Modes | Position, Velocity, Torque |
| Ambient Temperature | 0°C – 50°C |
| Dimensions | 68 x 270 x 237 mm |
| Poids | 2.6 kg |
Product Applications
-
Industrial Robotics: Precise control sur multi-axis robotic arms for assembly, welding, and pick-and-place operations.
-
CNC Machines: Motion control for milling, turning, and grinding machines requiring high accuracy and repeatability.
-
Packaging Machinery: Servo control for packaging lines with fast, synchronized movement sur motors.
-
Material Handling Systems: Drives for conveyors, automated guided vehicles (AGVs), and palletizing systems.
-
Printing Industry: High-speed motion control for printing presses and labeling machines.
-
Automated Assembly Lines: Integration with sensors and other drives for coordinated motion across multiple axes.
Product Advantages
-
High Precision Control: Advanced algorithms ensure smooth, accurate, and repeatable motor positioning.
-
Dynamic Performance: Rapid response to changing commands allows fast acceleration and deceleration.
-
Modular Integration: Easily integrates into multi-axis systems with digital or analog feedback.
-
Communication Flexibility: Supports multiple industrial network protocols for system connectivity.
-
Enhanced Safety Features: Built-in protection for overcurrent, overvoltage, and motor stall conditions.
-
Energy Efficiency: Optimized for low power consumption and reduced heat generation in continuous operation.
-
User-Friendly Configuration: Ssurtware tools provide simplified setup, monitoring, and diagnostics.
FAQ
-
What types sur motors are compatible with the LXM32AD30N4?
The drive supports standard servo motors with encoder feedback, both incremental and absolute, ensuring precise motion control. -
Which communication protocols are supported?
It supports Modbus and CANopen natively, with optional modules for Ethernet/IP and other industrial networks. -
Can this drive control multiple axes simultaneously?
Yes, it can be integrated into multi-axis systems for synchronized motion when coordinated by a master controller. -
What control modes does the LXM32AD30N4 surfer?
The drive supports position, velocity, and torque control, allowing flexible operation for various applications. -
How does the drive handle overcurrent or voltage spikes?
It has integrated protection circuits that detect and react to overcurrent, overvoltage, and thermal conditions to prevent damage. -
Is this drive suitable for high-speed operations?
Yes, the LXM32AD30N4 is designed for dynamic applications requiring rapid acceleration and deceleration with precise control. -
Can the drive be configured via ssurtware?
Yes, Schneider Electric provides configuration and monitoring ssurtware for setup, diagnostics, and optimization sur motion parameters. -
Does it support regenerative braking?
Yes, the drive can manage energy regeneration and feed it back to the supply line, improving energy efficiency. -
What feedback resolution is supported?
It supports high-resolution incremental and absolute encoders, providing precise positioning down to micrometer-level accuracy. -
Can this drive be used in harsh industrial environments?
Yes, it is built for reliable operation in typical industrial conditions with ambient temperatures up to 50°C and protections against electrical faults.
Recommended Related Modèles (Same Series or Related)
| Modèle Number | Description | Poids |
|---|---|---|
| LXM32AD10N4 | Lower current version sur the LXM32 series servo drive | 2.1 kg |
| LXM32AD15N4 | Medium current variant with similar features | 2.15 kg |
| LXM32AD20N4 | 2.0 A rated servo drive for smaller motors | 2.18 kg |
| LXM32AD25N4 | 2.5 A version for mid-range servo applications | 2.2 kg |
| LXM32AD40N4 | High current drive variant for larger motors | 2.5 kg |
| LXM32AD50N4 | Maximum rated drive sur the LXM32 series | 2.7 kg |
Popular Schneider Modèles (Same Marque, Different Applications)
| Modèle Number | Description | Poids |
|---|---|---|
| LXM32AD20N4 | Motion Servo Drive | 2.18 kg |
| LXM32AD30N4 | Motion Servo Drive | 2.2 kg |
| LXM32AD40N4 | Motion Servo Drive | 2.5 kg |
| ATV320U15N4 | Altivar 320 Variable Speed Drive | 3.0 kg |
| Altivar 71 | High-performance servo inverter drive | 3.2 kg |
| Lexium 32 Integrated Motor | Integrated servo motor with drive | 4.0 kg |
