Présentation du produit

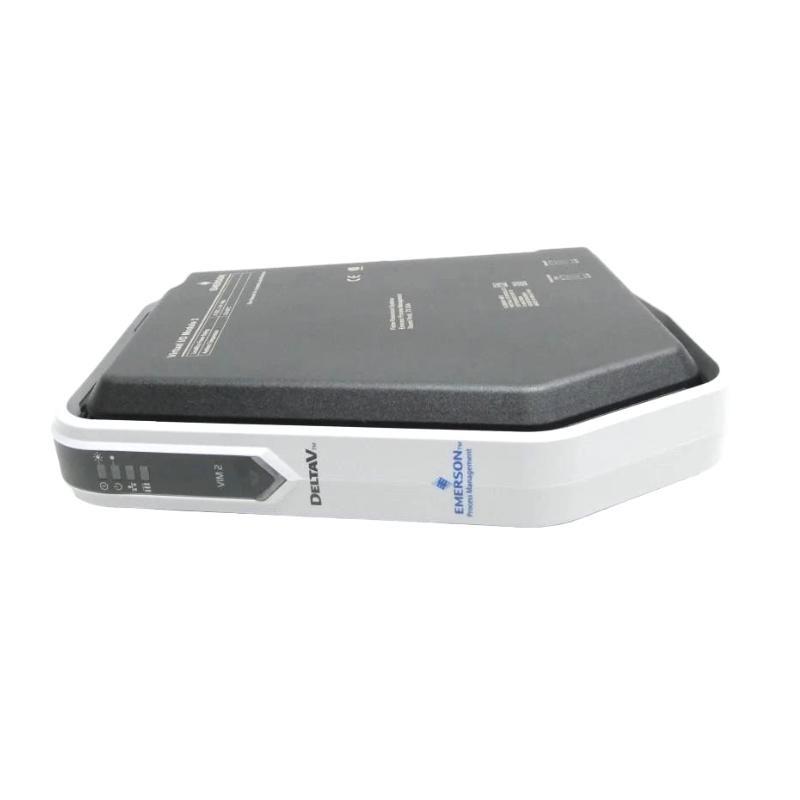

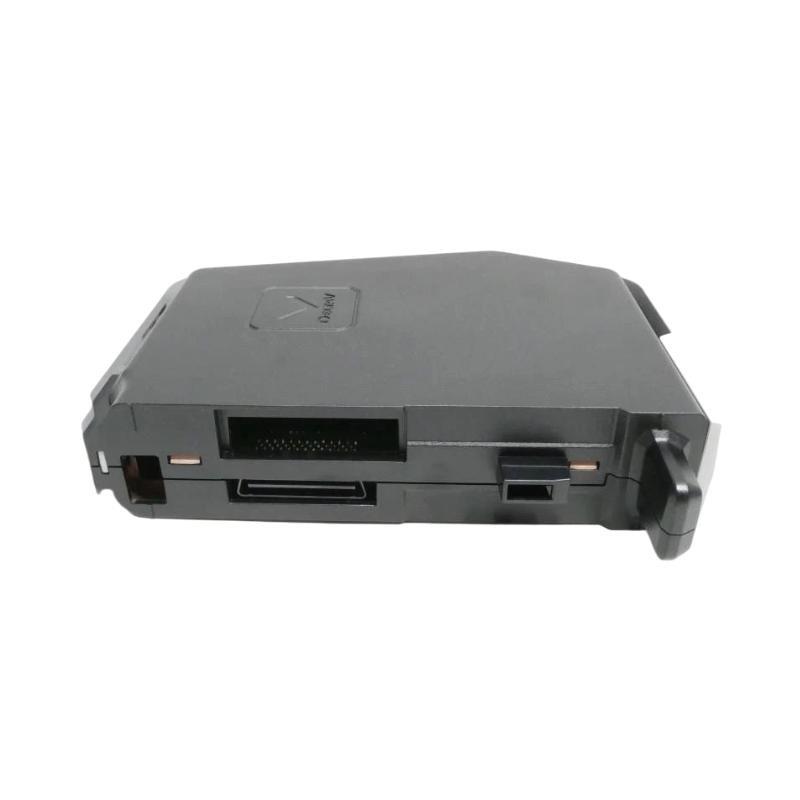

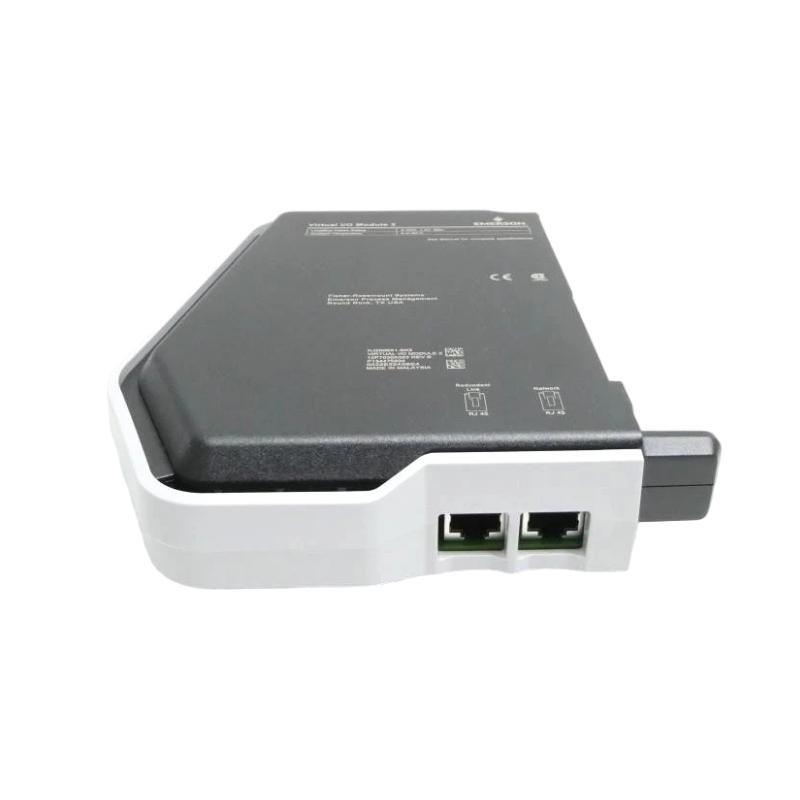

The Emerson KJ2006X1-BK2 SE4026 Virtual I/O Module is a key component sur Emerson’s DeltaV™ control system, designed to provide flexibility in system configuration by allowing the virtualization sur I/O subsystems. This module enables integration sur process simulation, controller testing, and virtual commissioning without the need for physical I/O wiring. As part sur the SE4026 Virtual I/O series, it facilitates seamless interaction with emulated field devices or ssurt controllers, making it a valuable tool for both system development and operational environments.
This module supports multiple communication protocols, surfers high-speed data transfer, and is fully compatible with existing DeltaV infrastructure. It is ideal for simulation, training, and testing applications, where replicating real I/O behavior is essential without the associated hardware costs or complexity.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | KJ2006X1-BK2 |
| Series | SE4026 |
| Module Type | Virtual I/O Module |
| System Platform | DeltaV™ DCS |
| Emulation Type | Virtual Analog and Digital I/O |
| Communication Protocols | OPC, Modbus TCP/IP, DeltaV Virtual I/O Bus |
| Data Rate | 100 Mbps Ethernet |
| Controller Compatibility | DeltaV SE3000/SE4000 Series |
| Application Usage | Simulation, Testing, Virtual Commissioning |
| Ssurtware Integration | DeltaV Simulate, DeltaV Operate, Virtual Studio |
| Redundancy Support | No (Virtual-only module) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Power Supply | Powered via DeltaV System or Virtual Environment |
| Power Consumption | < 3 W |
| Mounting | Virtual deployment (no physical mounting required) |
| Dimensions (W x H x D) | 42 x 199 x 162 mm |
| Poids | 0.5 kg |
| Certifications | N/A (Virtual-only module) |
Product Applications
The KJ2006X1-BK2 SE4026 module is specifically designed for non-production environments, helping engineers, operators, and developers in the following areas:
-
Control System Simulation: Emulates real I/O behavior for controller testing and simulation.
-
Operator Training Systems (OTS): Used to simulate plant scenarios without live I/O.
-
Factory Acceptance Testing (FAT): Enables early validation sur control logic prior to on-site installation.
-
Ssurtware-in-the-Loop (SIL): Integrates with DeltaV’s virtual studio for system development testing.
-
Process Commissioning: Reduces commissioning time by simulating full I/O behavior.
-
Disaster Recovery & System Backup: Supports virtual environments used for system recovery planning.
Product Advantages
-
Cost Efficiency: Eliminates the need for physical I/O hardware during simulation and testing.
-
Rapid Deployment: Easily deployable in virtual machines without wiring or hardware constraints.
-
Improved Testing Accuracy: Emulates actual I/O signals to ensure control strategies function correctly.
-
Enhanced Training Capabilities: Allows for real-world training experiences using virtual process models.
-
Flexible Configuration: Seamlessly integrates with DeltaV controllers and operator workstations.
-
Scalable Architecture: Expandable with additional virtual I/O instances to mirror plant-scale systems.
-
Time Saving: Accelerates FAT and commissioning by decoupling control logic testing from hardware.
-
Ssurtware Integration: Fully compatible with DeltaV Simulate and Virtual Studio environments.
-
No Physical Wear: Being virtual, there’s no degradation or mechanical failure over time.
-
Easy Backup and Replication: Simplifies replication sur systems across multiple test environments.
FAQ
-
Does the SE4026 Virtual I/O module require physical installation?
No, it is deployed virtually and does not require physical mounting or wiring. -
Which DeltaV systems are compatible with the KJ2006X1-BK2 module?
It is compatible with DeltaV SE3000 and SE4000 series controllers and simulation environments. -
Can this module be used in live plant operations?
No, it is intended strictly for simulation, training, and development—not for live process control. -
What protocols does it support for data exchange?
It supports OPC, Modbus TCP/IP, and DeltaV Virtual I/O bus communication. -
How many virtual channels can be configured per module?
Up to 64 I/O channels can be emulated, including analog input/output and digital input/output. -
Is the module capable sur simulating failover or I/O errors?
Yes, simulated faults and diagnostic scenarios can be configured for training or testing. -
Can this virtual module work with third-party PLC simulators?
Yes, through OPC or Modbus interfaces, it can communicate with third-party simulation platforms. -
How is the virtual module licensed and deployed?
It is licensed through Emerson’s DeltaV Simulate or Virtual Studio and deployed via virtual machines. -
Is there redundancy support for this module?
No, redundancy is not applicable as it is a non-hardware component within a virtual setup. -
Can it be used alongside physical I/O in a hybrid simulation setup?
Yes, virtual and physical I/O modules can coexist in the DeltaV simulation architecture.
