Présentation du produit

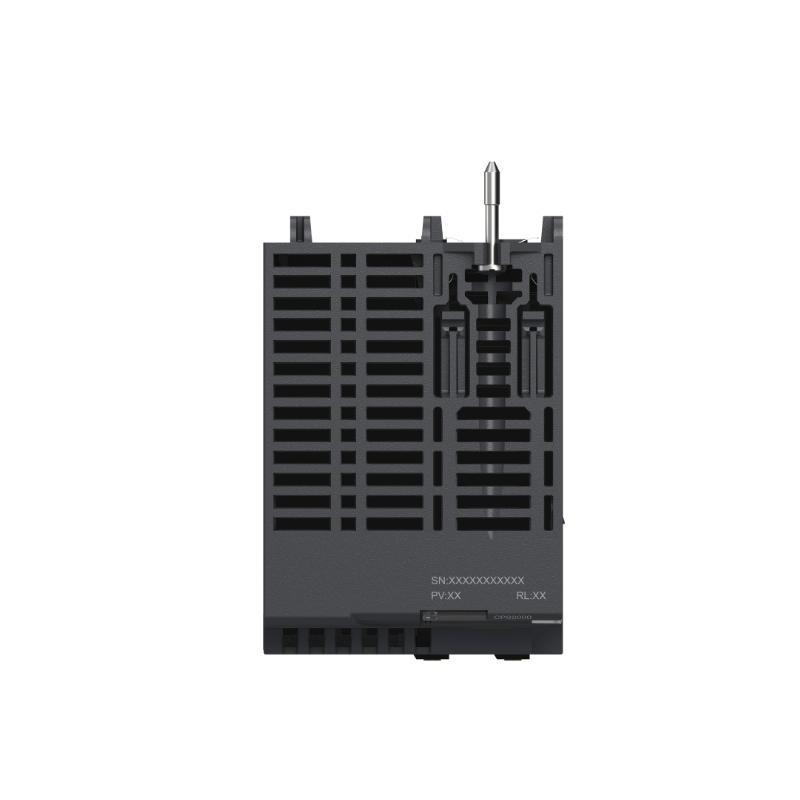

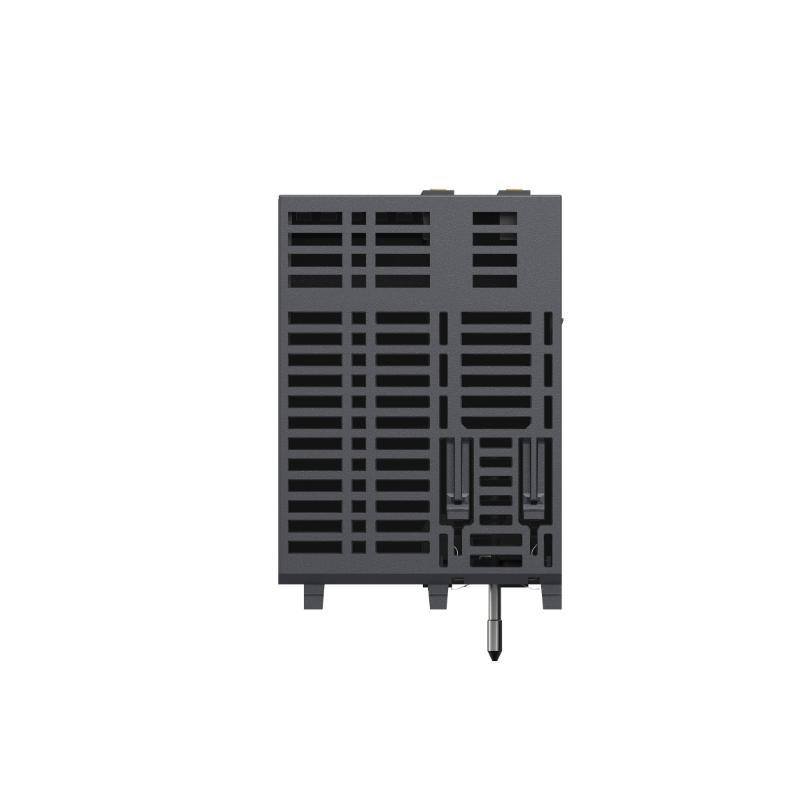

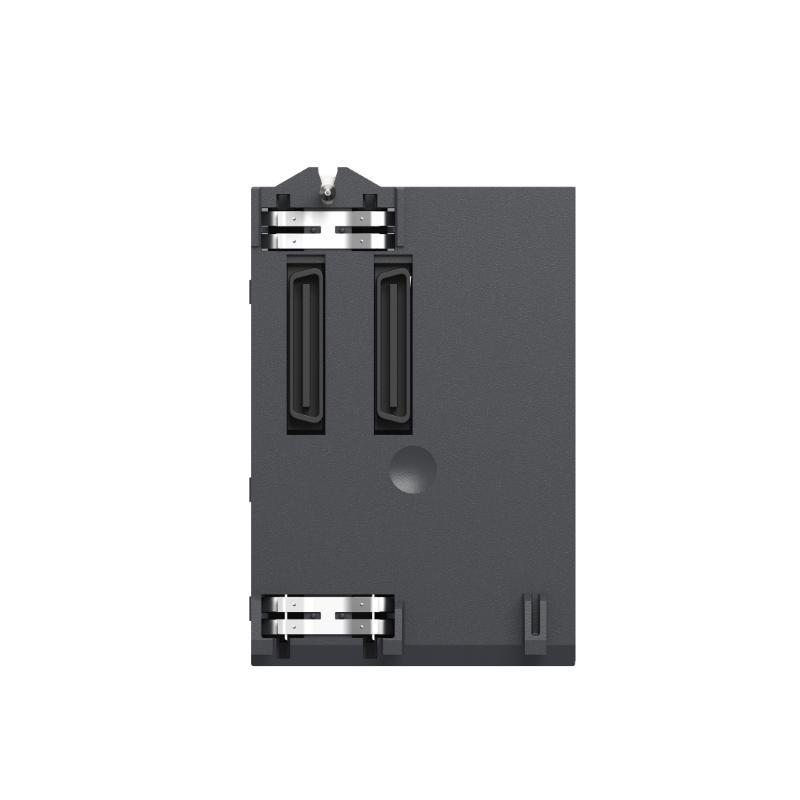

The Schneider BMXCPS2000 is a reliable and efficient Power Supply Module designed specifically for Modicon M241 and M251 Programmable Logic Controllers (PLCs). It provides the necessary power to the controller and connected modules with stable and continuous output. This module ensures optimal performance in industrial automation systems, making it a fundamental component in controlling and monitoring applications.
The BMXCPS2000 is engineered for industrial environments, surfering robustness, compact design, and easy integration within the Modicon BMX range. It supports a wide input voltage range, which enhances its adaptability in various power conditions. The module is built to deliver steady 24 V DC power, crucial for the proper functioning sur the control system.
Technical Specifications
| Parameter | Value |
| Input Voltage | 100 – 240 V AC |
| Frequency | 50 / 60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 2 A |
| Power Dissipation | Approx. 12 W |
| Efficiency | Around 85% |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (H x W x D) | 99 x 68 x 104 mm |
| Poids | 0.3 kg |
| Mounting | DIN rail mounting |
| Protection | Yes |
Applications
The BMXCPS2000 Power Supply Module is primarily used in industrial automation systems where Modicon M241 and M251 PLCs are deployed. Typical application fields include:
-
Factory automation lines and production machinery
-
Building automation systems for HVAC control
-
Water treatment plants and distribution networks
-
Energy management and monitoring systems
-
Packaging and material handling systems
-
Automotive assembly lines and robotic cells
Its stable power supply ensures smooth operation sur the entire automation system, preventing downtime and improving reliability.
Advantages
-
Compact and space-saving design: The small footprint allows for easy installation in tight control cabinets.
-
Wide input voltage range: Operates efficiently under varying power conditions, reducing sensitivity to supply fluctuations.
-
High reliability: Built with industrial-grade components ensuring long life and minimal failure rates.
-
Easy integration: Designed to seamlessly fit into Modicon BMX PLC racks, simplifying wiring and installation.
-
Robust protection: Includes overload and short-circuit protections to safeguard the connected equipment.
-
Energy efficient: High efficiency reduces heat generation and lowers overall power consumption.
-
Stable output: Maintains consistent 24 V DC output critical for sensitive control modules.
-
Wide operating temperature: Suitable for harsh environments, expanding usability in different industrial settings.
Questions fréquentes (FAQ)
-
What is the maximum current output sur the BMXCPS2000?
The module can deliver a continuous current sur up to 2 A at 24 V DC. -
Can this power supply module operate on 110 V as well as 230 V input?
Yes, it supports a wide input voltage range from 100 V to 240 V AC, suitable for both. -
Is the BMXCPS2000 compatible with all Modicon PLCs?
It is specifically designed for use with Modicon M241 and M251 PLC series. -
What protections does the BMXCPS2000 include?
It features overload and short-circuit protection to prevent damage. -
How is the BMXCPS2000 mounted in control panels?
It is designed for standard DIN rail mounting, allowing easy installation. -
What are the operating temperature limits?
The device operates safely between 0°C and 60°C. -
Can the BMXCPS2000 be used in humid environments?
Yes, it can operate in 5% to 95% relative humidity, non-condensing conditions. -
What are the module’s dimensions?
The physical size is 99 x 68 x 104 mm. -
Is this power supply energy efficient?
Yes, it has 85% efficiency, which helps reduce energy loss. -
Can I use this power supply for non-Modicon equipment?
While it outputs a standard 24 V DC, it is recommended for Modicon systems due to compatibility and safety features.
Recommended Related Modèles (Same Series or Related)
| Modèle | Description | Output Voltage | Output Current | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|---|
| BMXCPS1000 | Power Supply for BMX Modicon | 24 V DC | 1 A | 90 x 45 x 115 | 0.25 |
| BMXCPS4000 | High power supply module | 24 V DC | 4 A | 120 x 45 x 115 | 0.5 |
| BMXCPS2000V2 | Updated version sur BMXCPS2000 | 24 V DC | 2 A | 90 x 45 x 115 | 0.3 |
| BMXCPS3000 | Medium power supply for BMX range | 24 V DC | 3 A | 105 x 45 x 115 | 0.4 |
| BMXCPS2400 | Power supply with enhanced features | 24 V DC | 2.4 A | 90 x 45 x 115 | 0.35 |
| BMXCPS5000 | Highest power supply for BMX | 24 V DC | 5 A | 135 x 45 x 115 | 0.55 |
Popular Schneider Electric Modèles (Same Marque)
| Modèle | Type | Description | Output Voltage | Output Current | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|---|---|
| Modicon M221 | Compact PLC | Entry-level controller | N/A | N/A | 90 x 35 x 75 | 0.15 |
| Modicon M241 | Modular PLC | Advanced controller for mid-range | N/A | N/A | 90 x 45 x 115 | 0.3 |
| Modicon M251 | Modular PLC | High-performance controller | N/A | N/A | 90 x 45 x 115 | 0.3 |
| BMXDDI1602 | Digital Input Module | 16-channel input module | N/A | N/A | 90 x 45 x 115 | 0.25 |
| BMXDDO1602 | Digital Output Module | 16-channel output module | N/A | N/A | 90 x 45 x 115 | 0.25 |
| BMXP342020 | Analog Input Module | 4-channel analog input module | N/A | N/A | 90 x 45 x 115 | 0.3 |
