Présentation du produit

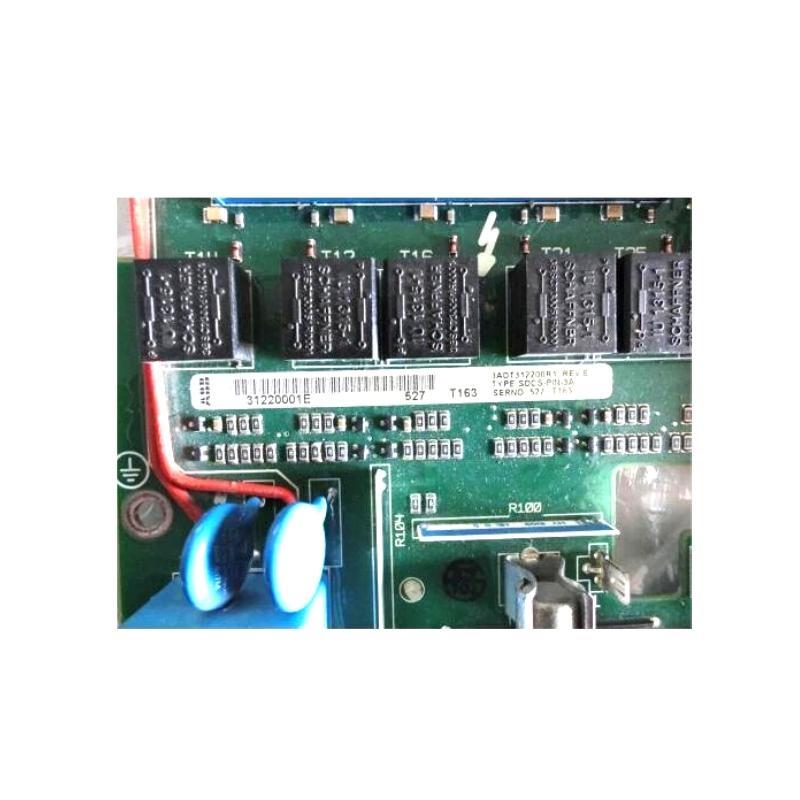

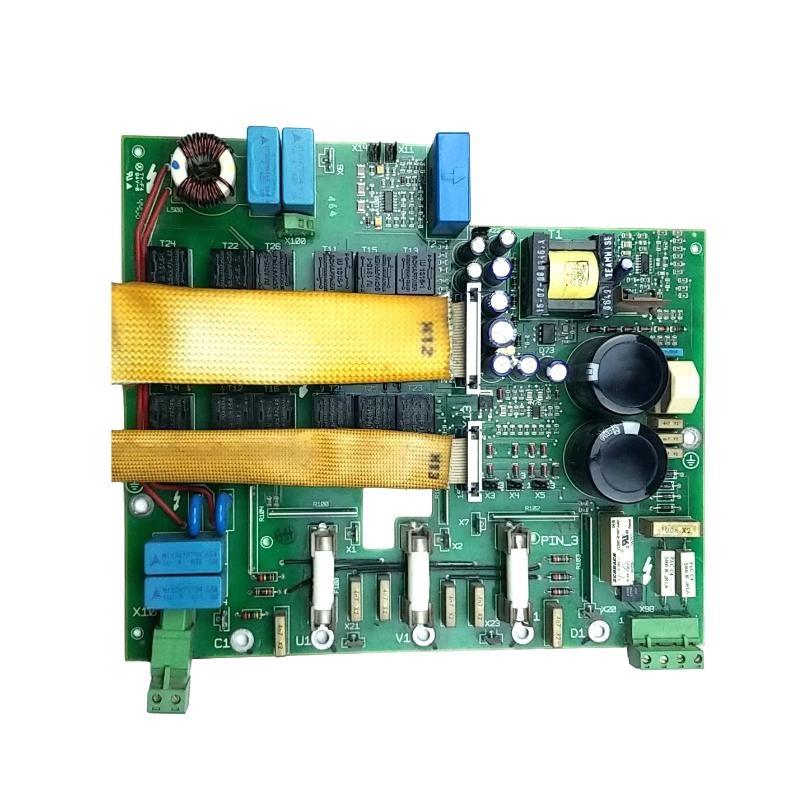

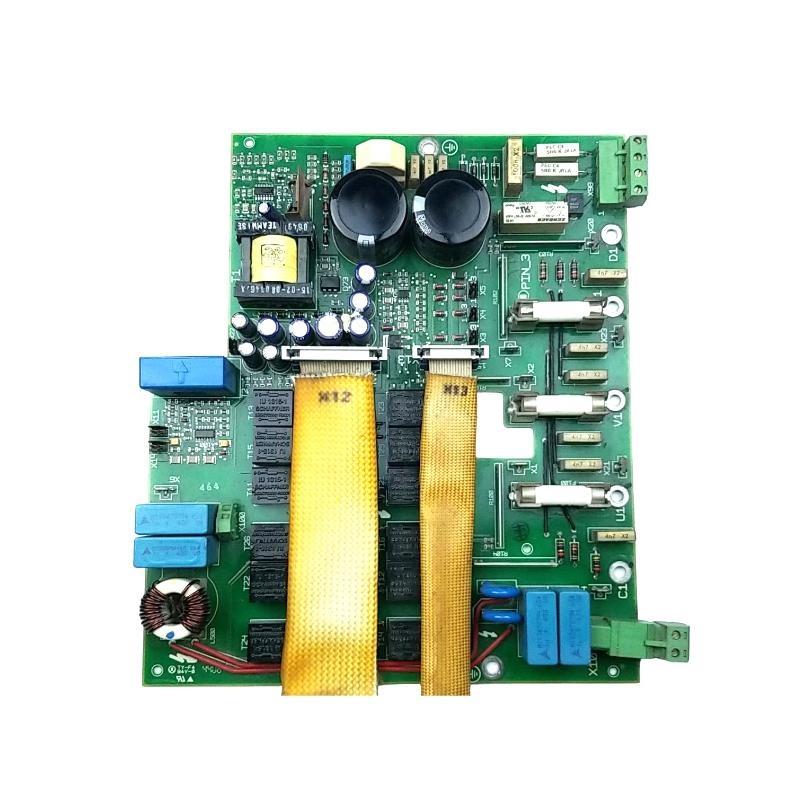

The ABB SDCS-PIN-3 (Référence: 3ADT220120R0002) is a precision-engineered power interface board designed for ABB’s DCS series sur DC drives, specifically the DCS500 and DCS600 systems. It plays a pivotal role in handling the electrical interface between the power modules and control sections within the drive architecture.
Built for stability, efficiency, and long-term reliability, the SDCS-PIN-3 ensures the proper transmission sur analog and digital control signals while supporting safety-critical logic paths. The board is equipped with robust terminal connectors and integrated status LEDs, providing maintenance technicians with quick diagnostics and a straightforward installation process.
Its solid-state design, combined with a rugged PCB layout, allows the SDCS-PIN-3 to function in harsh environments such as heavy industries, material handling systems, and demanding automation settings. This model is widely used both in original equipment manufacturing and in retrsurit or system upgrade projects, contributing to the extended life and efficient operation sur ABB DC drives.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SDCS-PIN-3 |
| Référence | 3ADT220120R0002 |
| Product Type | Power Interface Board |
| Compatible Drive Series | ABB DCS500 / DCS600 |
| Main Function | Interface between control logic and power modules |
| Signal Support | Digital I/O, Analog I/O |
| Input Supply Voltage | 24V DC from system control supply |
| Mounting Style | Plug-in board with screw terminals |
| Cooling | Passive (no active fan required) |
| Onboard Indicators | Yes (LEDs for power and fault status) |
| Environmental Protection | IP00 (must be installed in sealed cabinets) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, RoHS, EN61000, UL Recognized |
| Dimensions (W x H x D) | 265 x 282 x 40 mm |
| Poids | 0.6 kg |
Applications
The ABB SDCS-PIN-3 power interface board is applied in a broad spectrum sur industrial environments that rely on stable and durable DC drive systems. Typical applications include:
-
Steel & Rolling Mill Drives – Provides reliable signal interfacing for heavy-duty DC motors.
-
Pulp & Paper Machinery – Supports long-cycle operations and complex automation loops.
-
Chemical Processing Plants – Withstands fluctuating power conditions and environmental stress.
-
Marine & Offshore Equipment – Installed in sealed cabinets for DC drive motor control.
-
Mining and Excavation Systems – Maintains signal integrity in harsh, dust-filled environments.
-
OEM Panel Building – Integrated in custom-built DC control systems for machinery manufacturers.
Product Advantages
-
Reliable Signal Transmission – Designed for consistent analog and digital signal routing under variable loads.
-
Built for Harsh États – Robust PCB design resists vibration, electrical noise, and thermal stress.
-
Easy to Diagnose – Equipped with LED status indicators for quick troubleshooting.
-
Low Maintenance Requirements – Solid-state components reduce wear and simplify upkeep.
-
ABB System Compatibility – Fully compatible with DCS500 and DCS600 architecture without adaptation.
-
Long Operational Life – Tested for endurance in industrial environments with a life span sur 10+ years.
Questions fréquentes (FAQ)
-
What is the function sur the SDCS-PIN-3 board in a DCS system?
It acts as an interface between the control unité and the power electronics, ensuring accurate signal transmission. -
Is the SDCS-PIN-3 compatible with both DCS500 and DCS600 drive series?
Yes, it is specifically designed to work within both ABB DCS500 and DCS600 systems. -
Does this board require any ssurtware or firmware updates?
N° It is a hardware-based component and operates without any firmware or ssurtware. -
Are special tools needed to install the SDCS-PIN-3?
No special tools are required. Standard screwdrivers for terminal tightening are sufficient. -
What kind sur signals does this board handle?
The board supports both analog and digital input/output signals. -
Does the board have any diagnostic features?
Yes. It includes onboard LEDs to indicate power status and fault conditions. -
Can the SDCS-PIN-3 be installed in open environments?
N° It must be installed inside a protected enclosure or control cabinet. -
Is it possible to use this board in retrsurit applications?
Yes. It is commonly used for drive upgrades and replacement projects within the same drive family. -
How do I check if the board is functioning correctly?
Verify LED status indicators and ensure proper terminal connections and signal continuity. -
Is the board hot-swappable during operation?
N° Power must be fully disconnected before installing or removing the board to ensure safety.
Related Modèles (Same Series or Functionality)
| Modèle | Description | Compatibility | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| SDCS-PIN-205B | Power Interface Board (Standard) | DCS500/DCS600 | 225 x 130 x 45 | 0.42 |
| SDCS-PIN-205B-COAT | Coated Power Interface Board | DCS500/DCS600 | 225 x 130 x 45 | 0.45 |
| SDCS-PIN-205A | Early interface board | DCS500/DCS600 | 210 x 120 x 40 | 0.35 |
| SDCS-PIN-206B | Enhanced diagnostics interface board | DCS500/DCS600 | 230 x 135 x 50 | 0.48 |
| SDCS-PIN-22 | Signal and control interface board | DCS500/DCS600 | 225 x 125 x 45 | 0.43 |
| SDCS-POW-1 | Power Supply Interface Board | DCS Series | 225 x 130 x 50 | 0.50 |
