Présentation du produit

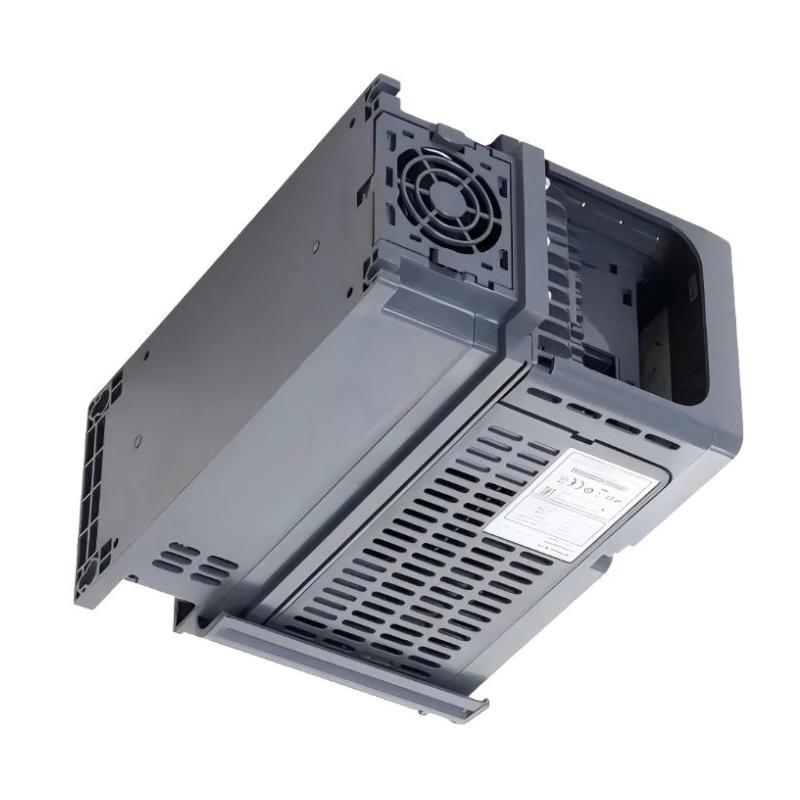

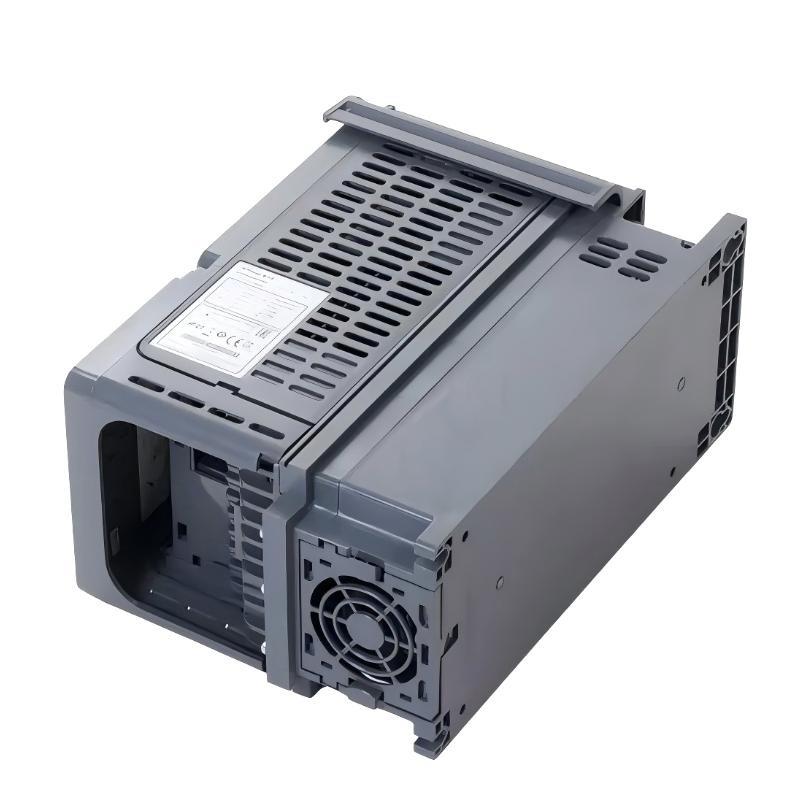

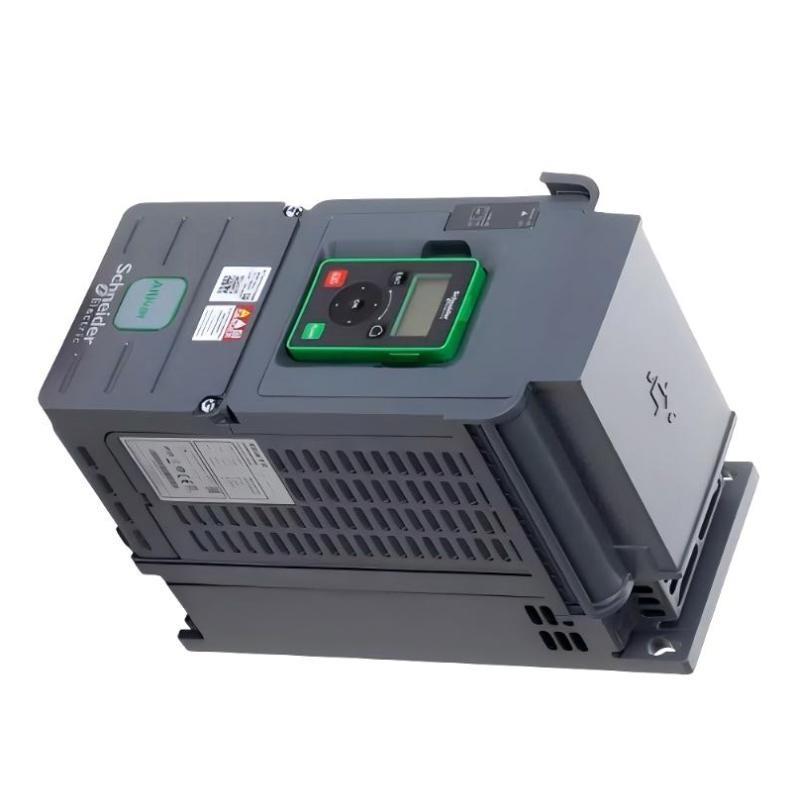

The Schneider Electric ATV610U15N4 is an Easy Altivar 610 Variable Speed Drive (VSD) designed for reliable speed control sur three-phase asynchronous and synchronous motors. It operates within a rated supply voltage range sur 380 to 460 VAC, making it suitable for standard low-voltage industrial power systems.
This drive is intended for motors with a rated power sur up to 1.5 kW (2 hp) under light overload conditions and up to 0.75 kW (1 hp) in applications requiring severe overload capability. Its design emphasizes simplicity, robustness, and ease sur commissioning, making it ideal for users who need dependable motor control without complex configuration.
The ATV610U15N4 features an integrated input EMC filter and complies with IEC/EN 61800-3 (Edition 2), Catégorie C3, for both first and second environments. It is specifically developed for standard applications in water and wastewater treatment, oil and gas, as well as process, equipment, and building management systems.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | Schneider Electric ATV610U15N4 |
| Product Series | Easy Altivar 610 |
| Product Type | Variable Speed Drive (VSD) |
| Motor Type Supported | Three-phase asynchronous and synchronous motors |
| Rated Supply Voltage | 380 – 460 VAC |
| Rated Motor Power (Light Overload) | Up to 1.5 kW / 2 hp (120% overload) |
| Rated Motor Power (Heavy Overload) | Up to 0.75 kW / 1 hp (150% overload) |
| Control Method | Scalar (V/f) motor control |
| Integrated EMC Filter | Yes |
| EMC Compliance | IEC/EN 61800-3, Catégorie C3 |
| Application Catégorie | Standard industrial applications |
| Cooling Method | Forced air cooling |
| Dimensions | 297 × 145 × 203 mm |
| Poids | 3.135 kg |
Applications
• Water and wastewater treatment installations, such as pumps and blowers requiring stable speed regulation.
• Oil and gas auxiliary systems, supporting standard motor-driven equipment.
• Process management applications, where simple and reliable motor control improves operational efficiency.
• Equipment management systems, including conveyors, mixers, and fans.
• Building management systems, providing energy-efficient motor control for HVAC and utility equipment.
Advantages
• Plug-and-play functionality, with factory-preconfigured parameters that reduce commissioning time.
• Integrated EMC filtering, eliminating the need for external filters in most installations.
• Optimized for standard applications, avoiding unnecessary complexity while maintaining reliability.
• Compact and space-efficient design, allowing easy installation in control cabinets.
• Flexible overload capability, supporting both light-duty and heavy-duty operating conditions.
