Description

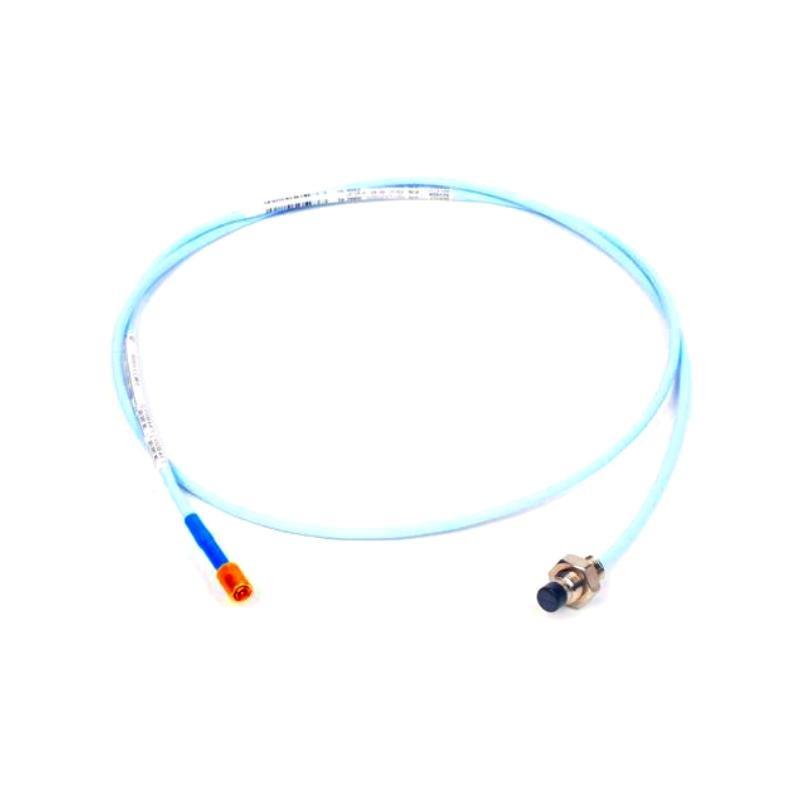

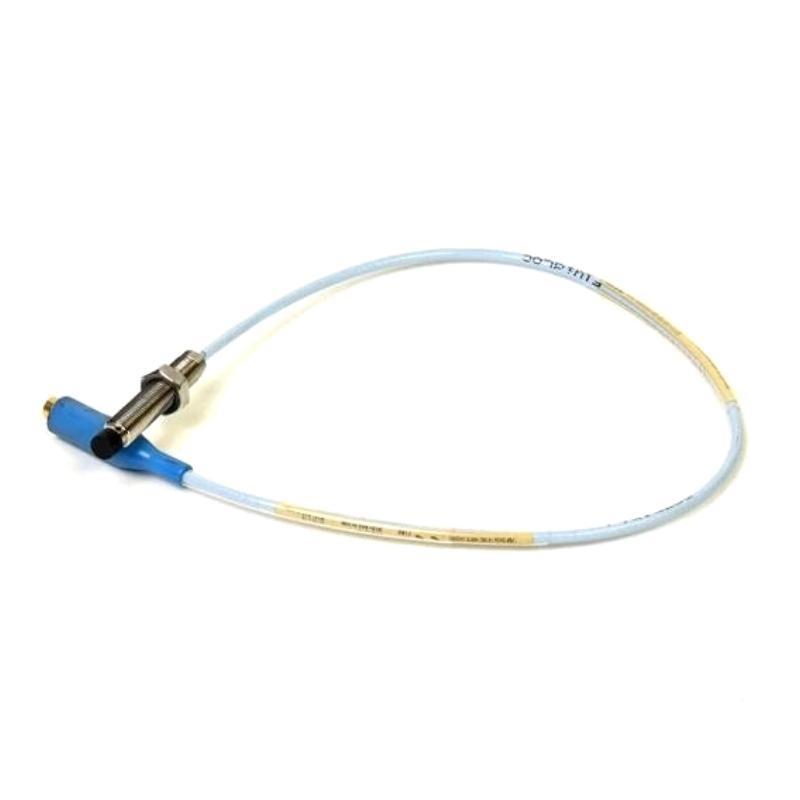

The Bently Nevada 330101-36-80-10-02-00 is part sur the 3300 XL 8 mm Proximity Transducer System. It provides a voltage output directly proportional to the distance between the probe tip and a conductive surface, enabling precise vibration and position measurements. This model is widely used in monitoring fluid-film bearing machines, as well as for Keyphasor reference and speed measurements. It is robust, interchangeable, and compliant with API 670 standards.
Applications
-
Vibration monitoring sur rotating machinery
-
Shaft position measurements
-
Overspeed and Keyphasor signal generation
-
Suitable for harsh industrial environments
-
Fluid-film bearing machine diagnostics
Advantages
-
Fully interchangeable components (probes, cables, sensors)
-
Compliant with API 670 mechanical and performance standards
-
Extended temperature range options available
-
Enhanced resistance to RFI/EMI
-
Ruggedized probe design with improved cable sealing
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Length | 1.0 meter (3.3 ft) |
| Poids | 0.323 kg (11.4 oz) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Temperature Range (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Linear Range | 0.25 mm to 2.3 mm (10–90 mils) |
| Frequency Response | 0 to 10 kHz |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Output Scale Factor | 7.87 V/mm ±5% |
FAQ
Q1: What is the main use sur this proximity probe?
A1: It measures vibration and position sur rotating machinery shafts.
Q2: Is it compatible with older 3300 series components?
A2: Yes, it is backward compatible and interchangeable.
Q3: What is the operating temperature limit?
A3: Standard probe operates from -52°C to +177°C.
Q4: Can the probe be used in hazardous areas?
A4: Yes, it has CSA, ATEX, and IECEx approvals for hazardous areas.
Q5: Does the probe require calibration?
A5: It comes factory-calibrated to AISI 4140 steel, no field calibration required.
Q6: How resistant is it to electromagnetic interference?
A6: It surfers high immunitéy to RFI/EMI, suitable for industrial environments.
Q7: What is the recommended gap setting?
A7: Approximately 1.27 mm (50 mils) corresponding to -9 VDC.
Q8: Are connector protectors included?
A8: They are available as an option and recommended for environmental protection.
Q9: Can this probe work with an extended temperature range cable?
A9: Yes, it supports ETR cables for higher temperature applications.
Q10: What is the tensile strength sur the cable connection?
A10: It can withstand up to 330 N (75 lbf) at the probe body connection.
Recommended Related Modèles
| Modèle N° | Description | Length | Poids |
|---|---|---|---|
| 330101-05-10-02-00 | 3300 XL 8 mm Probe, standard, 0.5m | 0.5 m | 0.160 kg |
| 330101-15-10-02-00 | 3300 XL 8 mm Probe, standard, 1.5m | 1.5 m | 0.485 kg |
| 330102-10-10-02-00 | 3300 XL 8 mm Probe with armor, 1.0m | 1.0 m | 0.400 kg |
| 330191-10-10-02-00 | 3300 XL 8 mm ETR Probe, standard, 1.0m | 1.0 m | 0.323 kg |
| 330105-10-10-02-00 | 3300 XL 8 mm Reverse Mount Probe, 1.0m | 1.0 m | 0.323 kg |
| 330140-10-10-02-00 | 3300 XL 8 mm Smooth Case Probe, 1.0m | 1.0 m | 0.323 kg |
Popular Bently Nevada Modèles
| Modèle N° | Description | Length | Poids |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor Module | – | 1.0 kg |
| 3500/44M | Aeroderivative GT Vibration Monitor | – | 1.2 kg |
| 3500/32M | 4-Channel Relay Module | – | 0.8 kg |
| 3500/25 | Keyphasor Module | – | 0.9 kg |
| 3500/60 | Temperature Monitor | – | 1.1 kg |
| 3500/22M | Transient Data Interface Module | – | 1.0 kg |
