Présentation du produit

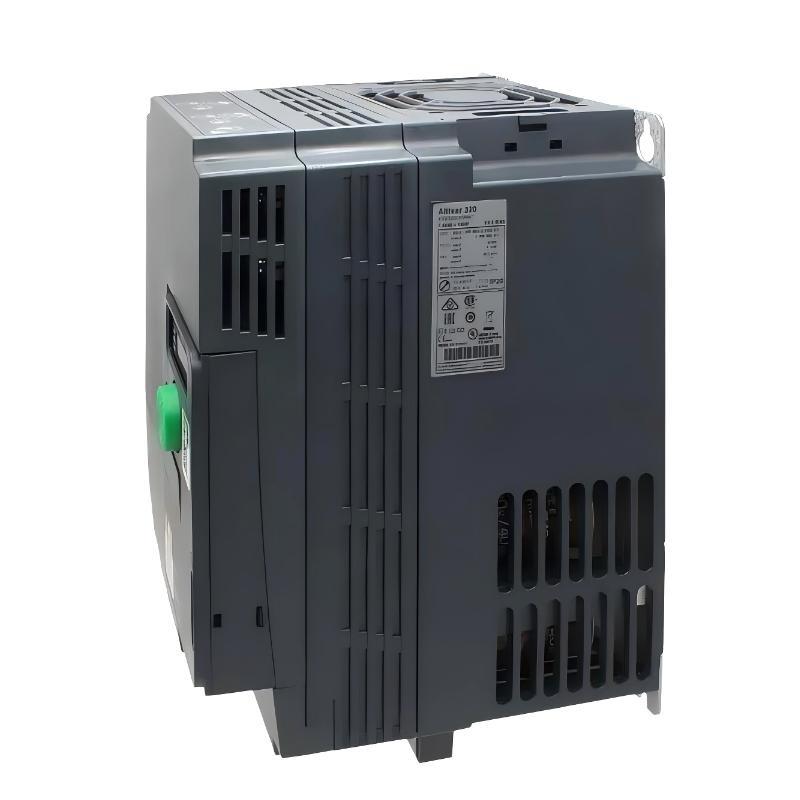

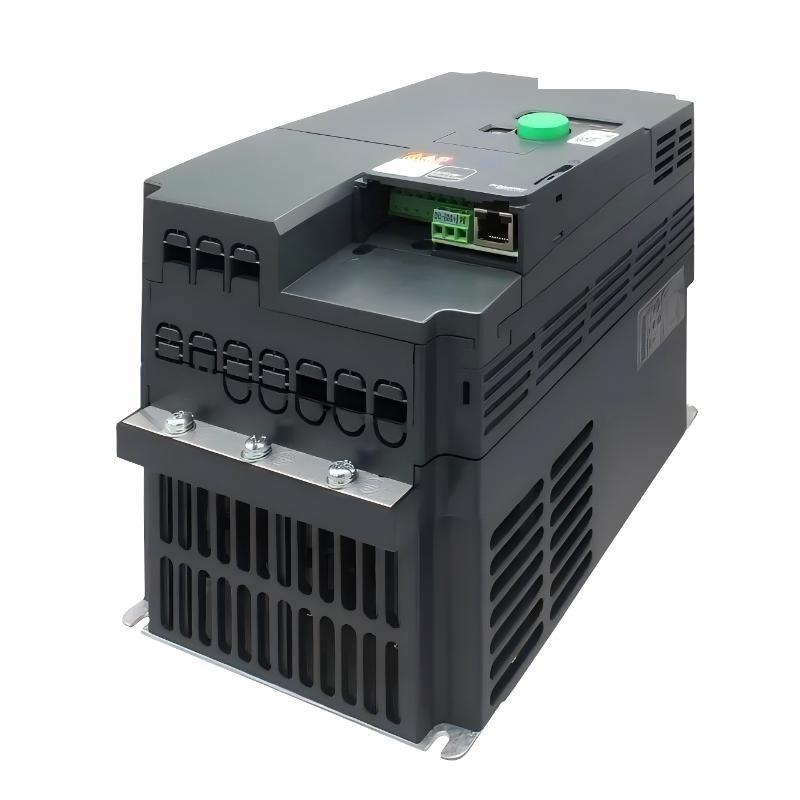

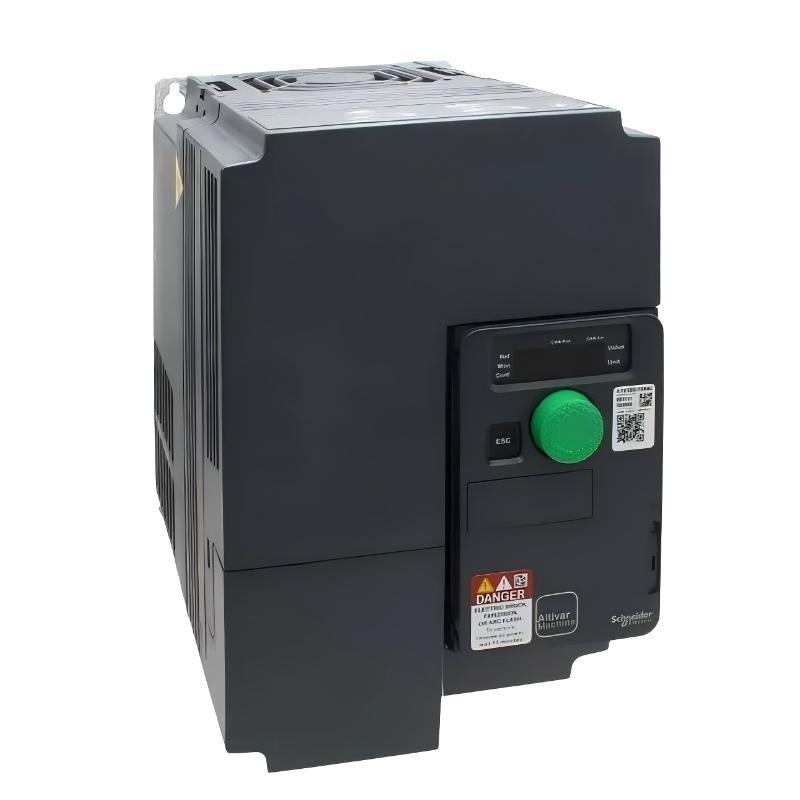

The Schneider Electric ATV320U75N4C Variable Speed Drive is part sur the Altivar Machine ATV320 series, specifically developed for original equipment manufacturers (OEMs) who require compact, flexible, and high-performance motor control solutions. Its compact mechanical design allows vertical stacking inside machine frames, making it especially suitable for space-constrained installations.
Rated at 7.5 kW (10 hp) with a supply voltage range sur 380–500 VAC, the ATV320U75N4C is designed to drive three-phase asynchronous and synchronous motors across a wide range sur industrial applications. The drive features a robust construction with conformal-coated printed circuit boards compliant with IEC 60721-3-3 class 3C3, ensuring reliable operation in harsh environments. Even at ambient temperatures up to 60°C, the drive maintains stable operation without the need for additional cooling.
The ATV320U75N4C integrates advanced motor control functions suitable for most common machine applications. These include high torque and speed accuracy at extremely low speeds, high dynamic performance through sensorless vector flux control, and an extended output frequency range for high-speed motor applications. It also supports parallel motor operation and special drive configurations using V/f control, providing good static speed accuracy.
Energy-saving operation for open-loop synchronous motors is supported, helping to reduce energy consumption in continuous-duty systems. The Altivar Machine ATV320 series is designed to meet both simple and advanced application requirements in packaging, material handling, textile machinery, material processing equipment, mechanical actuators, and lifting systems. The drive complies with major international standards, including IEC, UL, TUV, and KC.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Series | Altivar Machine ATV320 |
| Product Type | Variable Speed Drive (VFD) |
| Rated Motor Power | 7.5 kW / 10 hp |
| Supply Voltage Range | 380–500 VAC |
| Motor Type Compatibility | Three-phase asynchronous and synchronous motors |
| Control Methods | Sensorless vector control, V/f control |
| Low-Speed Performance | High torque and speed accuracy |
| Dynamic Performance | High dynamic response without motor feedback |
| Extended Output Frequency | Supported for high-speed motors |
| Parallel Motor Operation | Supported |
| Energy Optimization | Open-loop energy saving for synchronous motors |
| Installation Concept | Compact design, vertical stacking supported |
| Environmental Protection | Coated PCBs, IEC 60721-3-3 class 3C3 |
| Maximum Ambient Temperature | Up to 60°C without additional cooling |
| Compliance Standards | IEC, UL, TUV, KC |
| Dimensions | 232 × 150 × 178 mm |
| Poids | 3.6 kg |
Applications
• Packaging Machinery: Compact installation and precise control for cartoners, wrappers, and conveyor systems.
• Material Handling Equipment: Ideal for vertically stacked installations in conveyors, lifters, and transfer unités.
• Textile Machinery: Stable torque at low speeds for spinning, weaving, and winding applications.
• Material Processing Systems: Reliable performance for cutting, shaping, and forming machines under variable load conditions.
• Mechanical Actuators: Accurate speed and torque control for linear and rotary actuator systems.
• Lifting and Hoisting Applications: Smooth acceleration and deceleration for controlled load handling.
Advantages
• Compact Footprint: Allows vertical stacking inside machine frames, reducing panel space requirements.
• OEM-Oriented Design: Optimized for machine builders requiring flexible integration.
• High Environmental Robustness: Conformal-coated electronics ensure long-term reliability in harsh conditions.
• Excellent Low-Speed Control: Maintains torque and speed precision at very low operating speeds.
• Sensorless Vector Control: High dynamic performance without encoders or feedback devices.
• Energy-Efficient Operation: Supports energy-saving strategies for synchronous motors.
