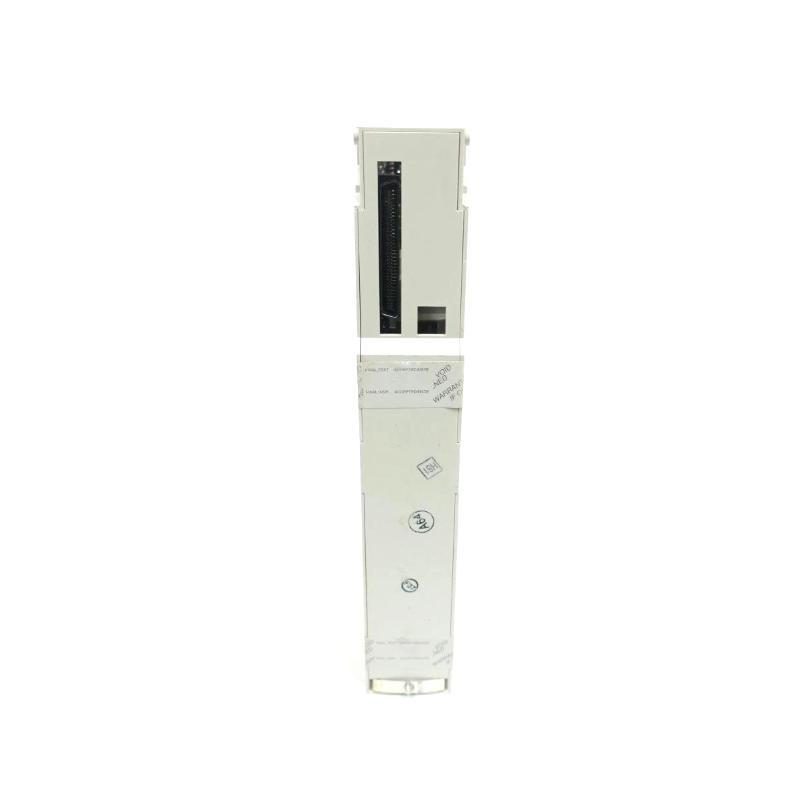

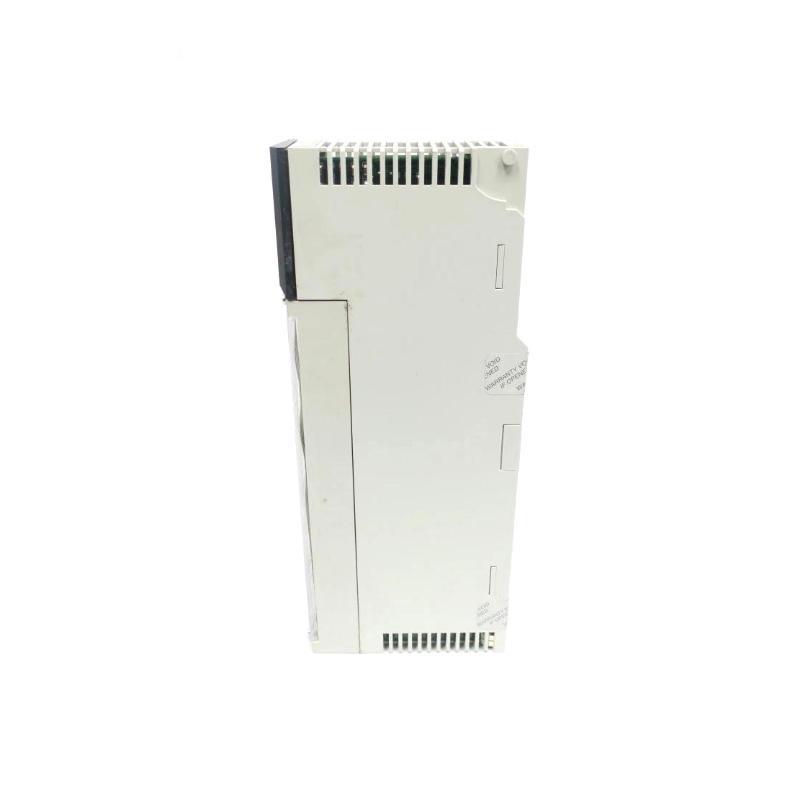

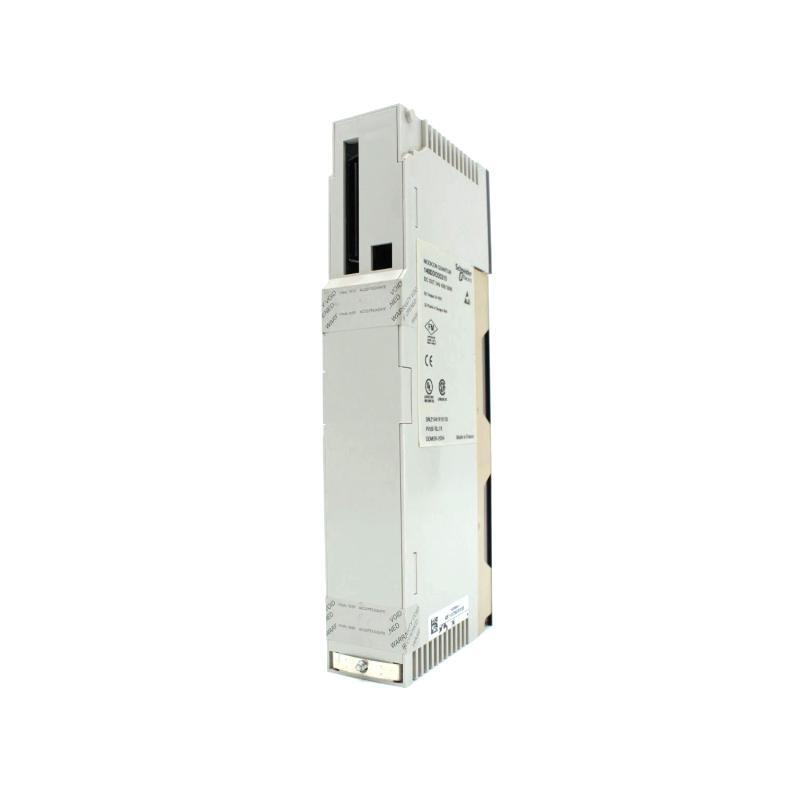

Schneider 140DDO35310C Discrete Output Module Overview
The Schneider 140DDO35310C is a discrete output module designed for high-reliability industrial automation systems. It delivers fast, precise digital output signals, making it ideal for controlling actuators, solenoids, and other digital devices. It is part sur the Modicon Quantum series.
Technical Specifications
| Parameter | Value |
|---|---|
| Fabricant | Schneider Electric |
| Modèle | 140DDO35310C |
| Series | Modicon Quantum |
| Type | Discrete Output Module |
| Number sur Outputs | 32 |
| Output Type | Source (Positive Logic) |
| Output Voltage | 24 VDC |
| Output Current per Point | 0.5 A max |
| Isolation | Yes |
| Mounting | Rack-mounted |
| Dimensions (W×D×H) | 103.9 × 40.3 × 250 mm |
| Poids | 0.45 kg |
Applications
The 140DDO35310C is widely used in industrial environments such as manufacturing plants, process control systems, and material handling. It is ideal for:
-
Driving digital actuators
-
Controlling solenoids and relays
-
Automated assembly lines
-
Discrete signal interfacing
Advantages
-
High-density 32-output design for space efficiency
-
Fast response for real-time operations
-
Reliable isolation between channels
-
Easy integration with Modicon Quantum PLC systems
-
Robust construction for industrial environments
FAQ
Q1: What is the output voltage sur the 140DDO35310C?
A1: The output voltage is 24 VDC.
Q2: How many outputs does this module provide?
A2: It provides 32 discrete outputs.
Q3: Is it compatible with Modicon Quantum PLCs?
A3: Yes, it is designed for the Modicon Quantum series.
Q4: What is the output type sur this module?
A4: It uses positive logic (source) outputs.
Q5: What is the maximum output current per point?
A5: The maximum output current per channel is 0.5 A.
Q6: Does it include isolation between outputs?
A6: Yes, it provides isolation to enhance safety and reliability.
Q7: Can it be rack-mounted?
A7: Yes, it is intended for standard rack mounting.
Q8: What are its dimensions?
A8: The dimensions are 103.9 × 40.3 × 250 mm.
Q9: How much does the module weigh?
A9: It weighs approximately 0.45 kg.
Q10: Is it suitable for harsh industrial environments?
A10: Yes, it is built for robust industrial applications.
Recommended Related or Same-Series Modèles
| Modèle | Type | Outputs/Inputs | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| 140DDO35300 | Discrete Output Module | 32 Outputs | 103.9 × 40.3 × 250 | 0.45 |
| 140DDO36400 | Discrete Output Module | 64 Outputs | 103.9 × 40.3 × 250 | 0.50 |
| 140DDO35320 | Discrete Output Module | 32 Outputs | 103.9 × 40.3 × 250 | 0.45 |
| 140DDI35310 | Discrete Input Module | 32 Inputs | 103.9 × 40.3 × 250 | 0.40 |
| 140DDI36400 | Discrete Input Module | 64 Inputs | 103.9 × 40.3 × 250 | 0.50 |
| 140DAO84210 | Analog Output Module | 8 Outputs | 103.9 × 40.3 × 250 | 0.50 |
Popular Schneider Modèles
| Modèle | Type | Outputs/Inputs | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| BMXDDO1602 | Discrete Output Module | 16 Outputs | 100 × 32 × 115 | 0.25 |
| BMXDDO6402K | Discrete Output Module | 64 Outputs | 100 × 32 × 115 | 0.35 |
| BMXDDI1602 | Discrete Input Module | 16 Inputs | 100 × 32 × 115 | 0.20 |
| BMXDAI040 | Analog Input Module | 4 Inputs | 100 × 32 × 115 | 0.25 |
| BMXDAO1605 | Analog Output Module | 16 Outputs | 100 × 32 × 115 | 0.30 |
| BMXP342020 | CPU Module | – | 100 × 55 × 140 | 0.45 |
