Présentation du produit

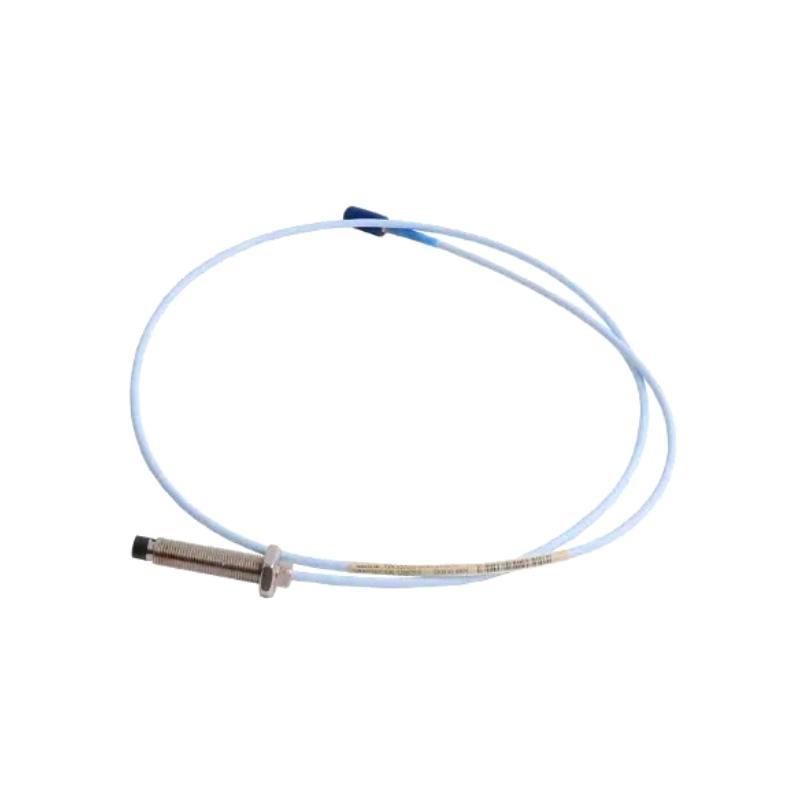

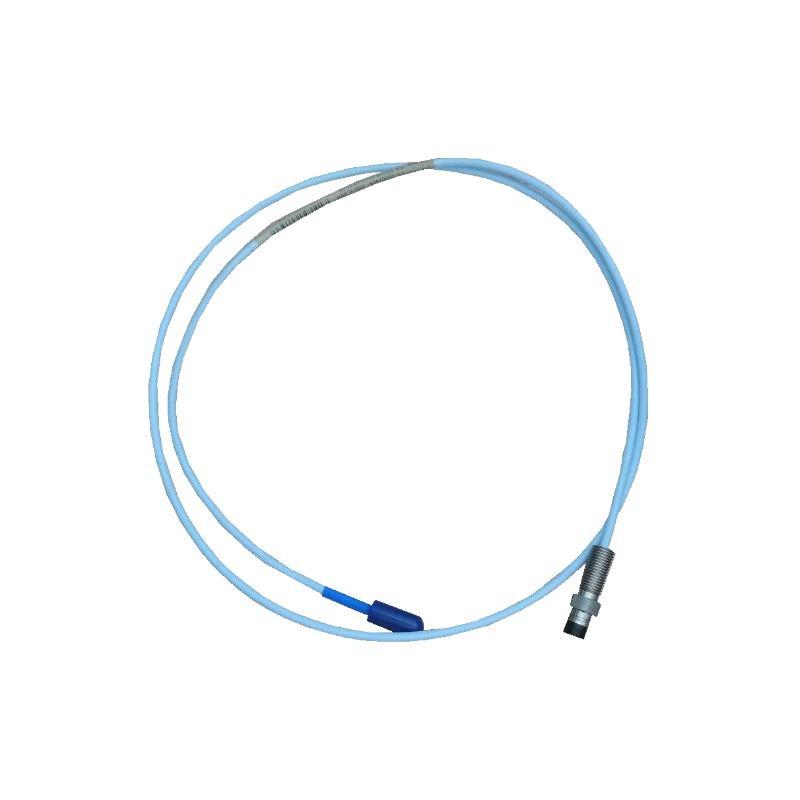

The Bently Nevada 330103-00-13-05-02-00 is part sur the renowned 3300 XL series sur proximity probes, specifically designed for precision vibration monitoring in rotating machinery. With an 8mm probe tip diameter, this sensor is engineered to provide highly accurate displacement measurements sur shafts and other rotating components. Bently Nevada’s 3300 XL probes are widely trusted in heavy industries such as power generation, oil and gas, and manufacturing for their reliability and long service life under harsh operating conditions.
The 3300 XL series probes use eddy current technology, allowing non-contact, high-resolution measurements without interfering with the monitored equipment. This model maintains consistent signal integrity over a broad range sur temperatures and mechanical environments, making it suitable for critical machinery health monitoring.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 330103-00-13-05-02-00 |
| Probe Tip Diameter | 8 mm |
| Probe Type | Proximity probe (eddy current) |
| Total Length | 0.5 meter |
| Operating Temperature | -40°C to +120°C |
| Probe Body Material | Stainless steel |
| Connector Type | Integral cable |
| Poids | 0.161 kg |
| Frequency Response | DC to 25 kHz |
| Measuring Range | Up to 1.5 mm (varies by setup) |
| Electrical Interface | 2-wire shielded cable |
Applications
-
Turbines: Used to monitor shaft displacement and vibration in steam, gas, and hydro turbines.
-
Compressors: Helps detect shaft movement and abnormal vibrations to avoid catastrophic failures.
-
Generators: Ensures reliable rotor position feedback to prevent mechanical damage.
-
Pumps: Monitors axial and radial shaft movement for predictive maintenance.
-
Motors: Tracks shaft vibration for early fault detection.
-
Industrial Machinery: Widely applied in rotating equipment to maintain operational safety and reliability.
Product Advantages
-
High Precision: The 8mm probe tip allows for fine displacement measurements with minimal noise.
-
Robust Design: Stainless steel housing provides excellent resistance to harsh environments, including moisture and dust.
-
Wide Temperature Range: Capable sur operating in temperatures from -40°C to +120°C without performance degradation.
-
Long Cable Length Options: Enables flexible installation in large industrial plants.
-
Reliable Signal Integrity: Eddy current technology ensures stable, repeatable output signals.
-
Non-Contact Measurement: Prevents wear and tear on the sensor and monitored components.
-
Easy Integration: Compatible with a wide range sur monitoring systems, especially Bently Nevada 3300 series monitors.
-
Low Maintenance: Designed for long-term deployment with minimal servicing.
-
Industry Proven: Trusted by major industrial operators worldwide for critical machine protection.
Questions fréquentes (FAQ)
-
What is the primary function sur the 3300 XL 8mm proximity probe?
It measures the displacement and vibration sur rotating machinery shafts to detect early signs sur mechanical issues. -
Can this probe be used in high-temperature environments?
Yes, it is rated to operate safely in temperatures up to +120°C. -
What kind sur output does the probe provide?
It provides an analog signal proportional to the distance between the probe tip and the target. -
Is the probe compatible with non-Bently Nevada monitoring systems?
While optimized for Bently Nevada 3300 monitors, it can be used with other compatible systems supporting eddy current probes. -
How long is the cable on this probe?
The standard length is 0.5 meter, but custom lengths may be available. -
What is the measuring range sur this proximity probe?
Typically up to 1.5 mm, depending on the system setup. -
How resistant is the probe to physical damage?
The stainless steel body provides good protection, but care should be taken during installation to avoid mechanical impacts. -
Can this probe detect axial and radial shaft movements?
Yes, depending on the installation orientation and number sur probes used. -
How surten should the probe be serviced or calibrated?
Maintenance intervals vary by application, but regular inspection during scheduled plant shutdowns is recommended. -
What industries typically use this probe?
Power generation, oil and gas, petrochemical, manufacturing, and any industry relying on rotating machinery monitoring.
Recommended Related Modèles (Same Series or Similar)
| Modèle Number | Probe Tip Diameter | Cable Length | Application Focus |
|---|---|---|---|
| 330103-00-13-02-02-00 | 8 mm | 2 meters | General purpose |
| 330103-00-13-10-05-00 | 8 mm | 10 meters | Long cable installations |
| 330103-00-11-05-02-00 | 5 mm | 5 meters | Smaller tip for tight spaces |
| 330103-00-13-05-02-01 | 8 mm | 5 meters | Enhanced temperature rating |
| 330103-00-13-05-03-00 | 8 mm | 3 meters | Shorter cable for compact setups |
| 330103-00-12-05-02-00 | 12 mm | 5 meters | Larger tip for heavy machinery |
Popular Bently Nevada Modèles (Same Marque)
| Modèle Number | Description | Application |
|---|---|---|
| 330103-00-12-10-02-CN | 8 mm probe, 10m cable | Heavy industrial machinery |
| 330130-00-40-00-00-00 | 3300 XL Monitor | Vibration monitoring system |
| 330108-00-04-05-02-00 | 5 mm probe, 5m cable | General vibration sensing |
| 330090-00-03-05-00-00 | 3300 XL Sensor cable | Replacement cable |
| 330199-00-01-00-00-00 | Proximitor Sensor | Signal conditioning |
| 330103-00-13-20-02-00 | 8 mm probe, 20m cable | Long distance measurement |
