Présentation du produit

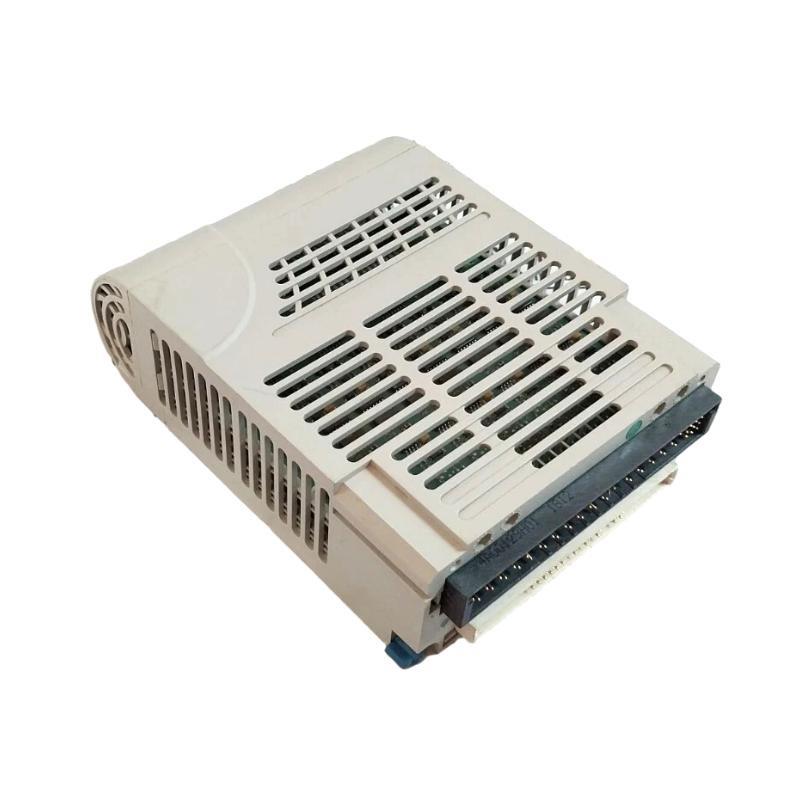

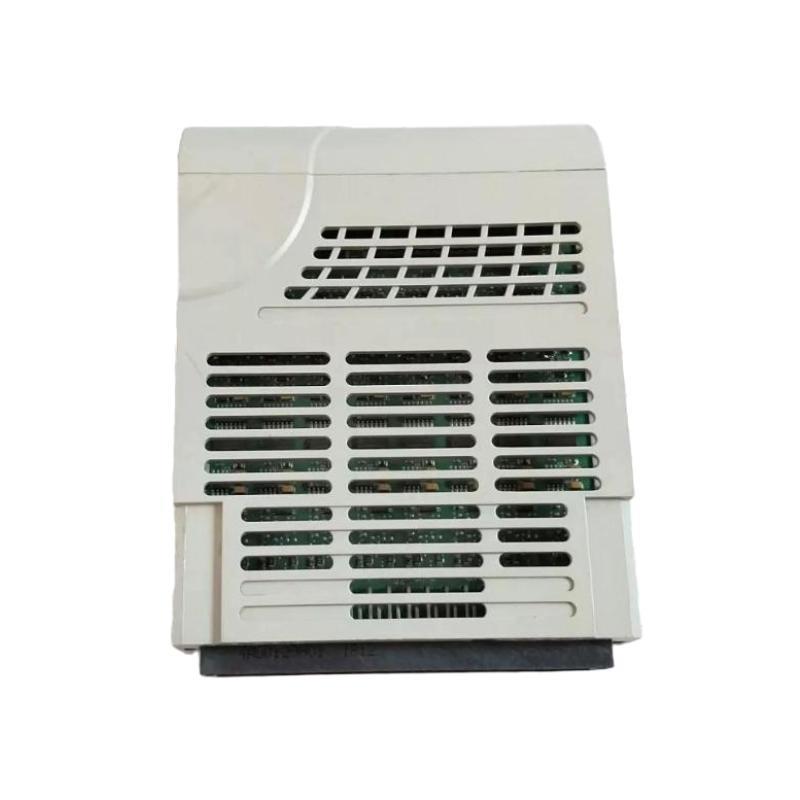

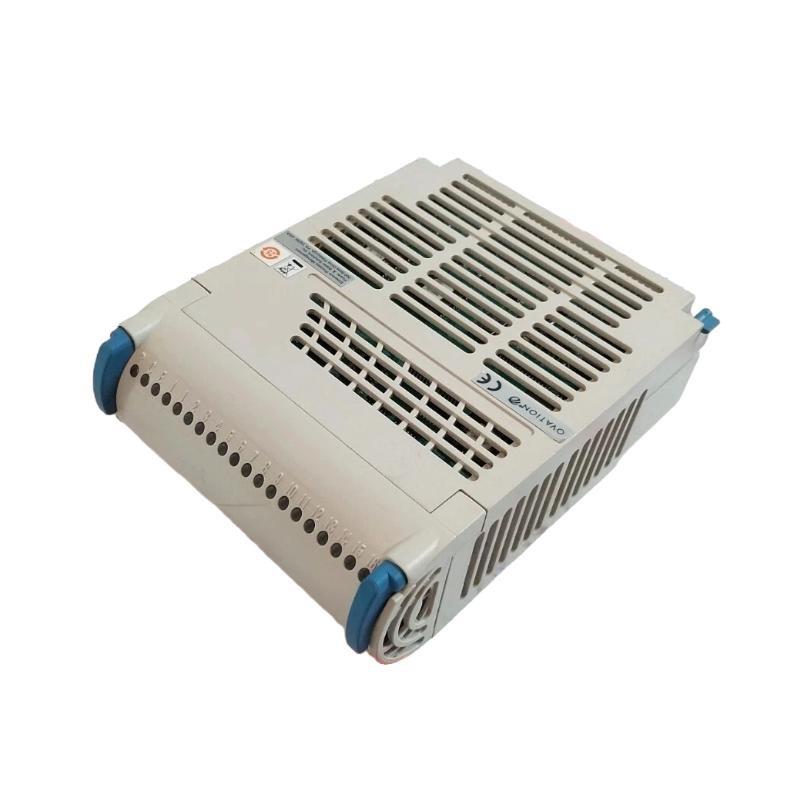

The Ovation 5X00357G02 Digital Input Moduleis an advanced input interface designed for high-performance distributed control systems (DCS) in demanding industrial environments. As part sur Emerson’s Ovation platform, this module provides 16 independent digital input channels specifically optimized for high-speed event capture and precise time stamping. It plays a critical role in monitoring field signals, detecting rapid state changes, and logging events for process analysis and plant diagnostics. Its robust construction and noise-immune design ensure dependable operation in power generation, petrochemical, and heavy industrial applications.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | 5X00357G02 |
| Module Type | Digital Input Module |
| Number sur Input Channels | 16 isolated channels |
| Input Voltage Range | 24 VDC nominal (18–32 VDC) |
| Input Isolation | 1500 V RMS channel-to-channel and channel-to-ground |
| Input Response Time | < 1 millisecond |
| Time-Stamp Resolution | 1 millisecond or better |
| Event Capture | Rising/falling edge detection with noise filtering |
| Communication Interface | High-speed Ovation I/O bus |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5%–95% non-condensing |
| Power Consumption | Approx. 6 W |
| Mounting Method | Standard Ovation I/O card cage |
| Diagnostic Features | Self-test, channel-status LEDs, fault reporting |
| Dimensions (L × W × H) | 210 × 25 × 185 mm |
| Poids | 0.45 kg |
Applications
-
Power Generation Plants: Captures turbine trip events, breaker operations, and grid disturbances with millisecond precision for improved plant reliability.
-
Oil & Gas and Petrochemical Facilities: Monitors emergency shutdown signals and process interlocks to ensure rapid, fail-safe responses.
-
Water & Wastewater Treatment: Records valve actuation and pump start/stop events to aid in compliance reporting.
-
Industrial Manufacturing: Tracks conveyor operations, motor starts, and safety system triggers for operational analytics.
-
Substation Automation: Provides accurate logging sur breaker status changes for electrical network analysis.
-
Process Control Systems: Integrates seamlessly with DCS Ovation for continuous real-time event monitoring.
Advantages
-
High-Speed Event Capture: Millisecond-level detection ensures accurate logging sur fast digital transitions.
-
Advanced Time-Stamping: Provides precise chronological records essential for root cause analysis.
-
Robust Electrical Isolation: 1500 V RMS isolation protects critical equipment from surges and ground loops.
-
Noise Immunitéy: Built-in filtering and shielding minimize false triggers in noisy industrial settings.
-
Integrated Diagnostics: On-board self-test and channel-status LEDs simplify maintenance and troubleshooting.
-
Seamless Integration: Fully compatible with Ovation controllers and I/O infrastructure for plug-and-play deployment.
-
Scalable Design: Multiple modules can be combined to expand input capacity without additional wiring complexity.
-
Reliable Operation: Rugged construction supports continuous operation in harsh industrial environments.
FAQ
-
What is the maximum input voltage supported per channel?
Each channel supports a nominal 24 VDC input, with an operating range sur 18–32 VDC. -
How fast can the module detect and log state changes?
It can register input transitions with less than 1 millisecond response time. -
What is the time-stamp resolution for event recording?
Time-stamp accuracy is 1 millisecond or better. -
Does each channel have electrical isolation?
Yes, every channel is isolated to 1500 V RMS from each other and from ground. -
How is the module mounted in the Ovation system?
It mounts directly in a standard Ovation I/O card cage for easy installation. -
Are there on-board diagnostics?
Yes, it includes built-in self-test routines and individual channel-status LEDs. -
Can it handle both rising and falling edge detection?
Yes, it supports detection sur both rising and falling signal transitions. -
What is the module’s power requirement?
It consumes approximately 6 watts from the Ovation backplane supply. -
What operating temperature range is supported?
The module operates reliably from 0 °C to +60 °C. -
Is it compatible with existing Ovation controllers?
Yes, it is fully compatible with DCS Ovation hardware and ssurtware platforms.
Recommended Related Modèles (Same Series or Similar)
| Modèle | Description |
|---|---|
| 5X00357G01 | Standard 16-Channel Events Input Module |
| 5X00357G03 | High-speed variant with enhanced noise immunitéy |
| 5X00358G01 | 32-Channel Digital Input Module for larger applications |
| 5X00359G01 | 16-Channel Isolated Contact Input Module for mixed-voltage systems |
| 5X00360G01 | Digital Output Module with matching form factor |
| 5X00361G01 | Redundant Events Input Module for critical fault-tolerant systems |
Popular Ovation Modèles
| Modèle | Description |
|---|---|
| 1X00024H03 | Ovation 24 VDC Redundant Power Supply Module |
| 1D54582G01 | High-efficiency Ovation Power Supply |
| 1X00188H01 | P MOD Cavity Insert for secure module alignment |
| 1X00093G04 | Ovation Ethernet Network Switch |
| 1X00090G01 | Advanced Ovation Controller Module |
| 1X00046H02 | Copper-to-Fiber Media Converter for long-distance industrial networks |
