Présentation du produit

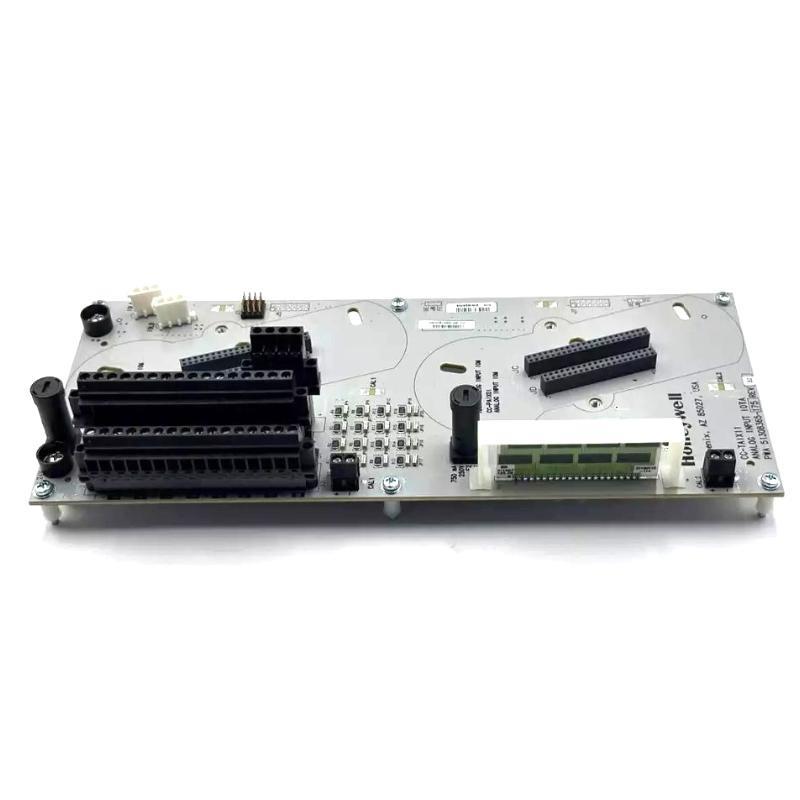

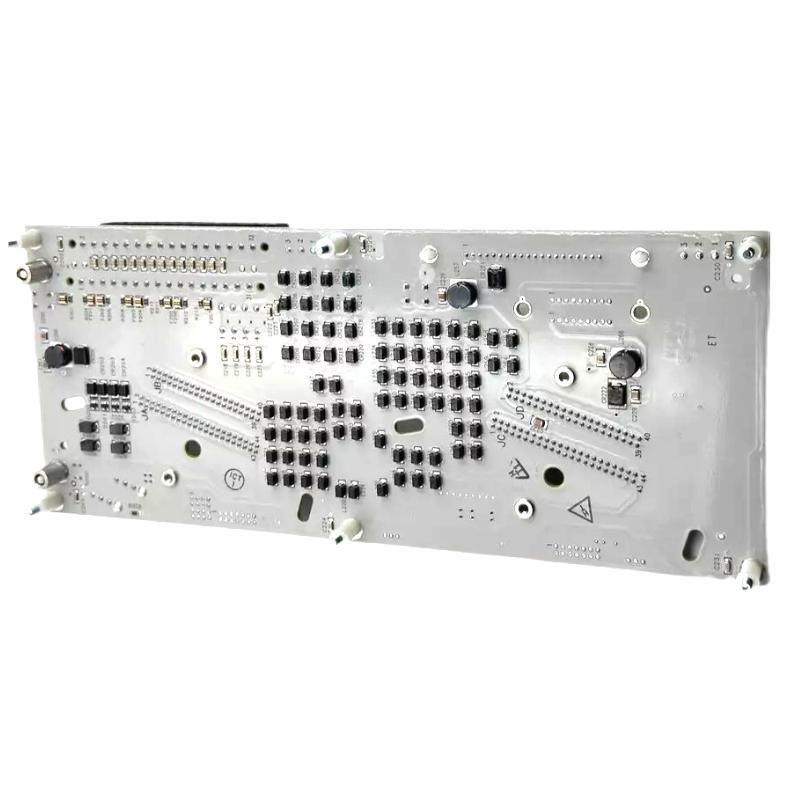

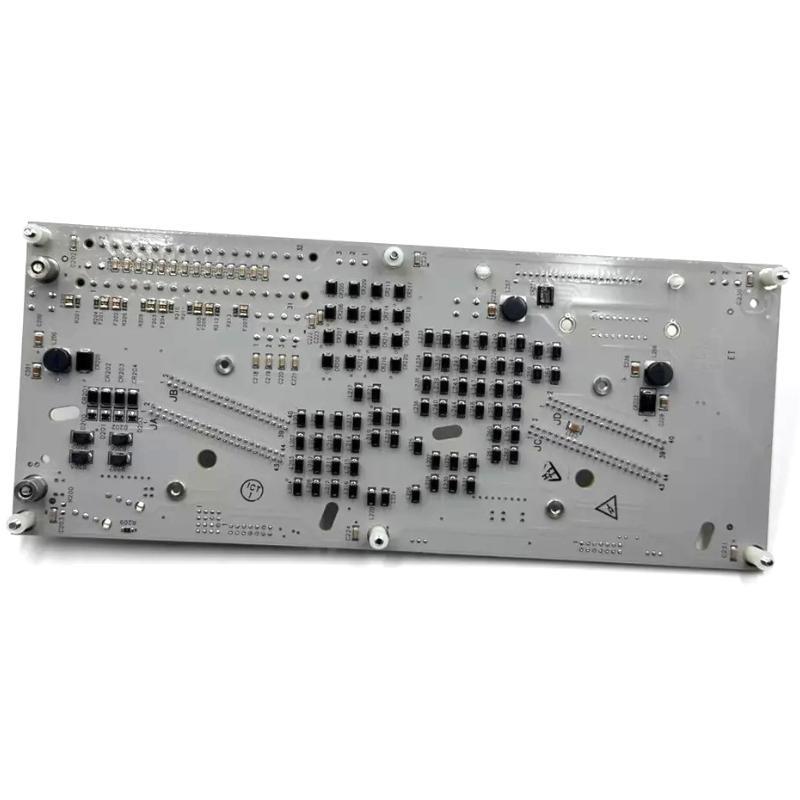

The Honeywell CC-TAIX11 51308365-175 is a high-performance analog input module designed for industrial automation and process control systems. It is part sur Honeywell’s Experion® Process Knowledge System (PKS) and is widely used in critical applications requiring precise signal conditioning and reliable data acquisition. This module supports multiple input types, including thermocouples, RTDs, and millivolt signals, making it versatile for various industrial environments.
Built with robust materials and advanced electronics, the CC-TAIX11 ensures long-term stability, noise immunitéy, and compliance with industry standards. Its modular design allows easy integration into Honeywell’s control systems, reducing installation time and maintenance costs.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | CC-TAIX11 51308365-175 |
| Input Type | Thermocouple, RTD, mV, Voltage (configurable) |
| Channels | 16 single-ended or 8 differential |
| Accuracy | ±0.1% sur full scale |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Communication | Honeywell Experion PKS via C-series I/O interface |
| Power Supply | 24V DC (typical) |
| Operating Temp. | -40°C to +70°C (-40°F to +158°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | Contact Customer Service |
| Poids | 0.8 kg |
| Certifications | CE, ATEX, IECEx, SIL2/3 (depending on configuration) |
Applications
The CC-TAIX11 is widely used in industries requiring high-accuracy signal measurement and control, including:
-
Oil & Gas: Monitoring temperature and pressure in pipelines and refineries.
-
Power Generation: Turbine control, boiler temperature sensing.
-
Chemical Processing: Precise measurement sur reactor temperatures.
-
Pharmaceutical: Compliance with strict environmental and data integrity standards.
-
Water Treatment: pH and conductivity monitoring.
-
Manufacturing: Process automation in automotive, food, and beverage sectors.
Product Advantages
-
High Accuracy & Resolution: Ensures reliable data for critical processes.
-
Flexible Input Configurations: Supports multiple sensor types without additional hardware.
-
Robust Isolation: Reduces noise interference and enhances safety.
-
Easy Integration: Compatible with Honeywell’s Experion PKS and other control systems.
-
Durability: Operates in harsh environments with wide temperature and humidity ranges.
-
Certified Compliance: Meets ATEX, IECEx, and SIL standards for hazardous areas.
-
Low Maintenance: Modular design simplifies troubleshooting and replacement.
Questions fréquentes (FAQ)
Q1: What input signals does the CC-TAIX11 support?
A: It supports thermocouples (J, K, T, E, etc.), RTDs (Pt100, Pt1000), millivolt, and voltage inputs.
Q2: Is the module hot-swappable?
A: Yes, it supports hot swapping for minimal downtime during maintenance.
Q3: What is the maximum cable length for sensors?
A: Recommended up to 100m (328 ft) with proper shielding to avoid noise interference.
Q4: Can it be used in hazardous areas?
A: Yes, it is certified for ATEX/IECEx Zone 2 and SIL2/3 applications.
Q5: How is the module calibrated?
A: Calibration is done via Honeywell’s Experion PKS ssurtware or handheld configurators.
Q6: What is the lifespan sur the CC-TAIX11?
A: Typically 10+ years under normal operating conditions.
Q7: Does it require external signal conditioning?
A: No, built-in isolation and conditioning eliminate the need for external devices.
Q8: What communication protocols are supported?
A: Integrates with Experion PKS via C-series I/O; no direct fieldbus support.
Q9: Can it handle high-vibration environments?
A: Yes, it is designed for industrial environments with vibration resistance.
Q10: Where can I find the wiring diagrams?
A: Refer to the Honeywell Manual (DOC-REF-51308365-175) or Experion PKS documentation.
Recommended Related & Popular Modèles
Same Series / Related Modèles
| Modèle | Description | Key Difference |
|---|---|---|
| CC-TAIX01 | 8-channel analog input module | Fewer channels, lower cost |
| CC-TAIX12 | 16-channel RTD-only input | Dedicated to RTD sensors |
| CC-TAOX01 | Analog output module (4-20mA) | Output instead sur input |
| CC-TDOX11 | Digital output module | For relay/switch control |
| CC-TDIX01 | Digital input module | For discrete signal monitoring |
| CC-TCNT01 | Pulse counter module | For flowmeter/tachometer applications |
Popular Honeywell Modèles
| Modèle | Description | Application |
|---|---|---|
| CC-PDIL01 | Dual-channel digital input | Safety systems, interlocks |
| CC-PAOX01 | 4-channel analog output | Valve/actuator control |
| CC-PDCN01 | Prsuribus DP communication module | Fieldbus integration |
| CC-TAOX11 | High-density analog output (16-channel) | Large-scale process control |
| CC-TDIX11 | 32-channel digital input | High-speed event monitoring |
| CC-TCFM01 | Foundation Fieldbus module | Smart device integration |
