Présentation du produit

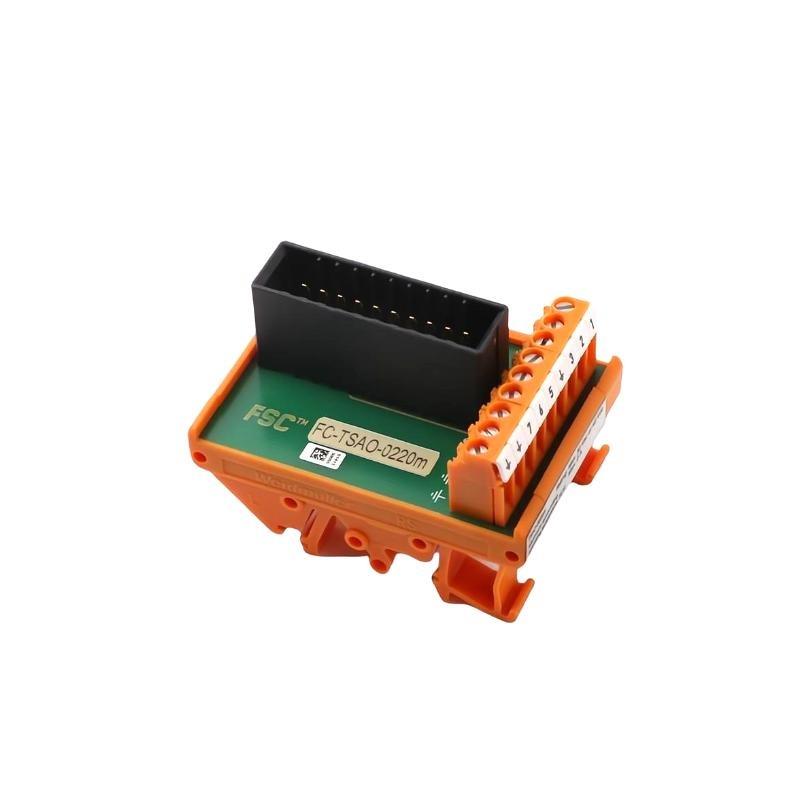

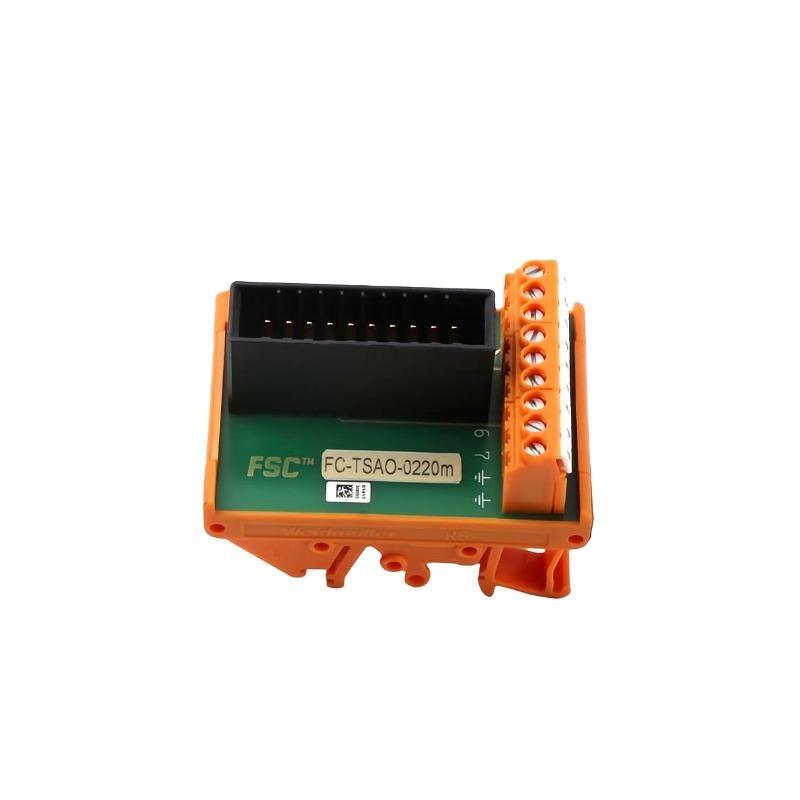

The Honeywell FC-TSAOH-0220m is a high-reliability Safe Analog Output Field Terminal Assembly (FTA) Module specifically designed for use within Honeywell’s Safety Manager and Fail-Safe Control (FSC) systems. It is typically employed in safety-critical applications where analog output signals—such as those controlling valves, actuators, or indicators—require secure and reliable transmission under stringent industrial and safety standards.
This module serves as an interface between the control system and field devices, ensuring isolated, filtered, and safe analog signal outputs. It supports multiple channel configurations and adheres to SIL3 requirements in accordance with IEC 61508, making it ideal for use in process industries such as oil and gas, petrochemicals, and power generation.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | FC-TSAOH-0220m |
| Product Type | Safe Analog Output FTA Module |
| Fabricant | Honeywell |
| System Compatibility | Safety Manager / Fail-Safe Controller (FSC) Series |
| Output Channels | 2 channels |
| Output Type | Analog (typically 4–20 mA current output) |
| Signal Isolation | Optically isolated |
| Accuracy | ±0.05% sur full-scale output |
| Load Resistance | 0 – 750 Ohms |
| Output Voltage Range (open loop) | 0 – 24 VDC (typical) |
| Operating Voltage | 24 VDC nominal |
| Power Consumption | < 1.5 W |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Safety Integrity Level | SIL 3 (IEC 61508 certified) |
| EMC Compliance | EN 61326, CE compliant |
| Mounting Type | DIN rail mounted |

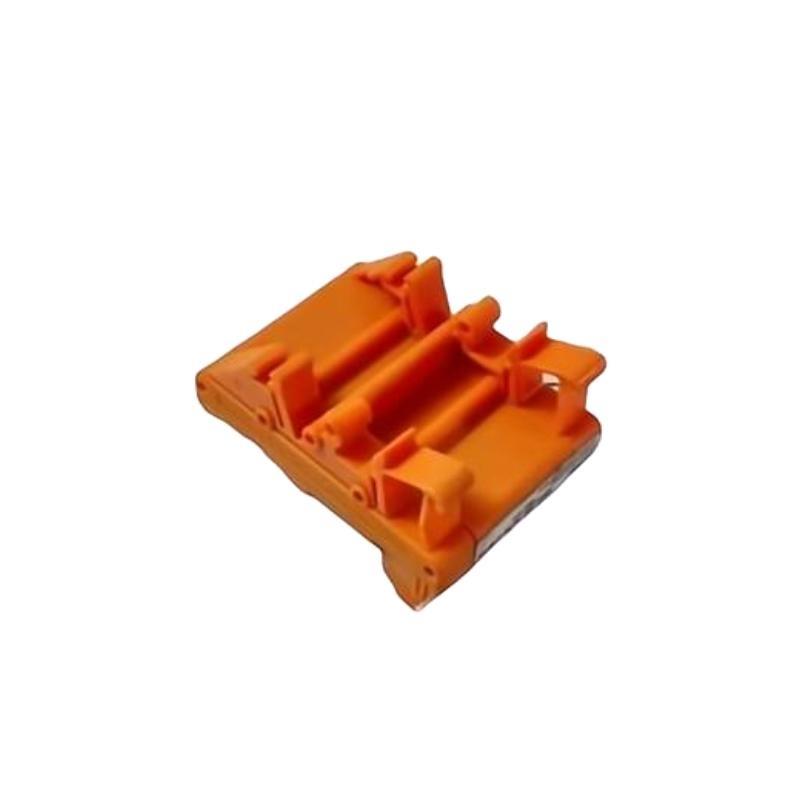

| Housing Material | Industrial-grade plastic, flame-retardant |
| Dimensions (W x H x D) | 64 × 109× 66 mm |
| Poids | 0.22 kg |
Applications
The FC-TSAOH-0220m is tailored for mission-critical process automation and safety environments where secure analog signal output is necessary. Its main application areas include:
-
Emergency shutdown (ESD) systems
-
Burner management systems
-
High-integrity pressure protection systems (HIPPS)
-
Safety Instrumented Systems (SIS)
-
Process control loops involving actuators or final control elements
-
Hazardous environment automation (surfshore/onshore oil rigs)
-
Chemical plant automation and interlock control
-
Safety-rated control valve modulation
Its dual-channel architecture enables high-availability redundancy or multi-loop control in a single unité, optimizing cabinet space and reducing wiring complexity.
Product Advantages
-
Certified SIL3 Safety Compliance: Fully IEC 61508 compliant for use in Safety Instrumented Systems (SIS).
-
High Output Accuracy: Offers precise analog signal control, critical for modulating final control elements like valves or I/P converters.
-
Optical Isolation: Ensures safety and signal integrity by isolating field signals from the control logic system.
-
DIN-Rail Mountable: Standardized form factor makes installation easy and modular in any industrial cabinet setup.
-
Low Power Consumption: Designed for energy-efficient operation in both standard and hazardous environments.
-
Temperature and Vibration Resistant: Operates reliably across extreme industrial conditions, including surfshore platforms.
-
Fail-Safe Architecture: Designed to default to a safe state during power failure or communication loss.
-
Compact Size: Enregistrers panel space without sacrificing functionality or safety.
Questions fréquentes (FAQ)
-
Q: What does “Safe Analog Output” mean in the FC-TSAOH-0220m?
A: It refers to the module’s capability to provide analog output signals in a safety-rated and SIL3-compliant manner. -
Q: How many channels does the FC-TSAOH-0220m support?
A: It supports 2 isolated analog output channels. -
Q: Is this module compatible with Honeywell’s Safety Manager system?
A: Yes, it is fully compatible with Honeywell’s Safety Manager and FSC systems. -
Q: What is the power supply requirement for this module?
A: It typically requires 24 VDC. -
Q: Can this module operate in harsh environments?
A: Yes, it supports a wide temperature range and is resistant to humidity and EMI. -
Q: Does the module support redundancy?
A: Yes, the dual-channel design enables redundancy or multiple loop control. -
Q: What kind sur signals does the module output?
A: It outputs analog current signals, typically in the 4–20 mA range. -
Q: Is any ssurtware configuration required?
A: It depends on the application, but it can be integrated into FSC/Safety Manager via configuration tools. -
Q: Can it be mounted on a DIN rail?
A: Yes, the module is DIN-rail mountable for quick and secure installation. -
Q: What certifications does this module hold?
A: It is SIL3 certified per IEC 61508 and CE marked for EMC compliance.
Related or Compatible Modèles from the Same Series
| Modèle Number | Description |
|---|---|
| FC-TSAIH-1620m | Safe Analog Input FTA Module, 16 channels |
| FC-TSDI-1624m | Digital Input Module, 16 channels with diagnostic support |
| FC-TSDO-0824m | Digital Output Module, 8 channels, safe output |
| FC-TSXK2520 | Baseplate for mounting Honeywell FTA modules |
| FC-TSHART-1620m | HART-compatible Analog Input Module |
| FC-TSPAG1-2320 | General-purpose FTA for analog/digital signals |
Popular Modèles from the Honeywell Marque
| Modèle Number | Product Type | Key Feature |
|---|---|---|
| C300 Controller (CC-PCNT01) | Process Controller | High-speed controller for Experion PKS |
| FC-SDO-0824 | Safe Digital Output Module | 8-channel digital output for safety systems |
| FC-AI-1615 | Analog Input Module | High-density analog input, 16 channels |
| HC900 (900C52-0001) | Process Controller | Modular hybrid controller for critical processes |
| Experion PKS HMIWeb | HMI Ssurtware Platform | Integrated SCADA/HMI for control and safety |
| SM System Power Supply | Power Module | Redundant power module for Safety Manager systems |
