Présentation du produit

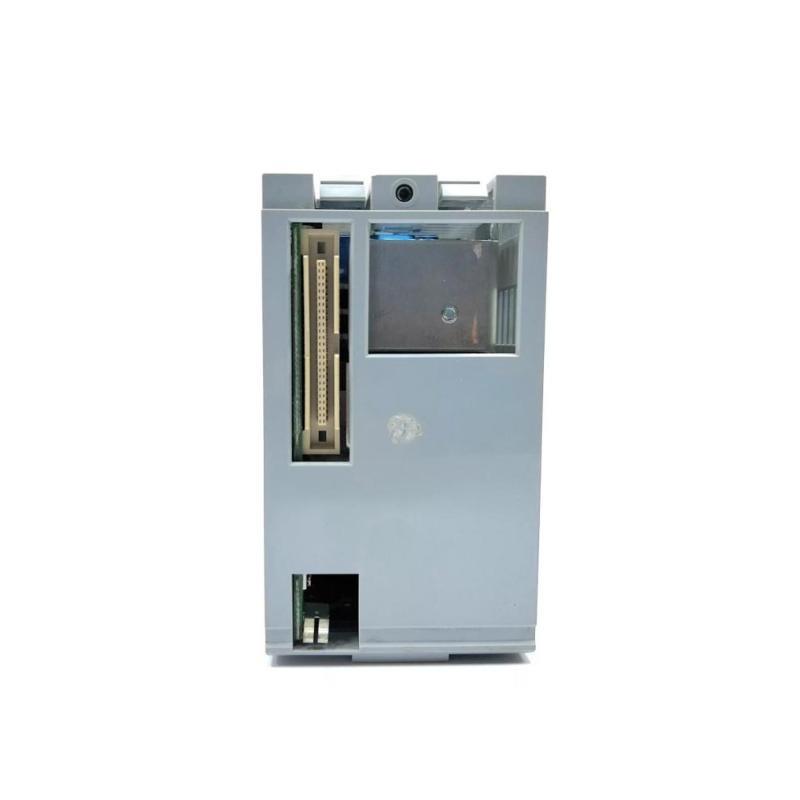

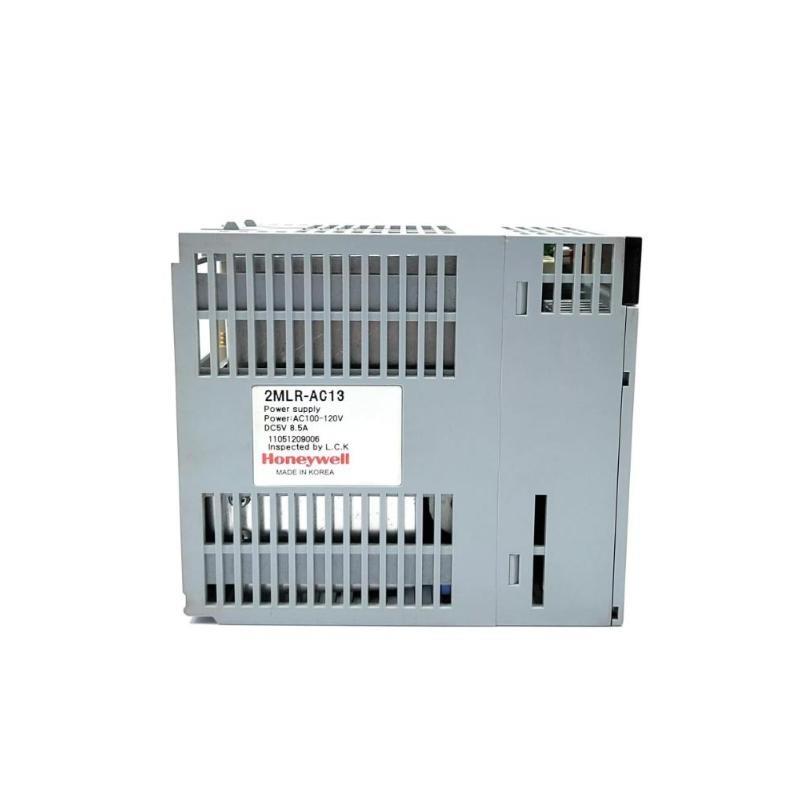

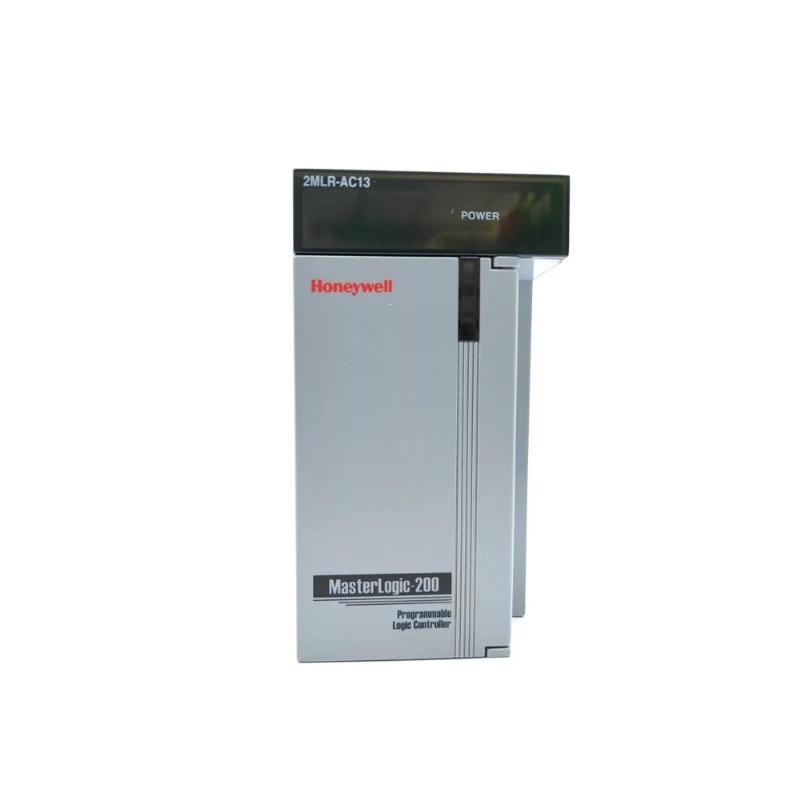

The Honeywell 2MLR-AC13 Redundant Power Supply Module is an integral component sur Honeywell’s industrial control systems, specifically designed for use within critical process automation environments. Engineered to provide reliable and uninterrupted power to controller modules and field devices, it ensures system resilience even in the event sur a power supply failure.
The module supports redundant operation, which means two power supplies can operate in parallel to guarantee continuous operation. In the case that one power unité fails, the second one automatically takes over without causing any process disruption. The 2MLR-AC13 is typically deployed within Honeywell’s Experion PKS and C300 controller environments and plays a pivotal role in mission-critical applications where power stability is non-negotiable.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Name | Honeywell 2MLR-AC13 Redundant Power Supply Module |
| Power Input Voltage | 100–240 VAC, 50/60 Hz |
| Power Output | 24 VDC, up to 20 A (nominal) |
| Redundancy Type | Active-Active Redundant Operation |
| Protection Features | Overload, Overvoltage, Overtemperature Protection |
| LED Indicators | Input OK, Output OK, Redundancy Status |
| Mounting Type | DIN Rail or Panel Mount |
| Cooling Method | Natural Convection |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Communication Interface | Status Signaling via relay contact |
| Certifications | CE, UL, CSA, RoHS compliant |
| Dimensions (W × H × D) | 55 x 95 x 110 mm |
| Poids | 0.334 kg |
Product Applications
The 2MLR-AC13 is widely applied in the following environments:
-
Oil & Gas Refining and Distribution
-
Petrochemical Plants
-
Power Generation Facilities
-
Pharmaceutical Manufacturing
-
Pulp and Paper Industries
-
Water and Wastewater Treatment Plants
-
Food and Beverage Processing Plants
Product Advantages
-
High Availability Design
Dual redundant mode allows for seamless power transfer during module failures, significantly enhancing system uptime. -
Industrial-Grade Reliability
Designed to withstand harsh industrial environments with wide operating temperature ranges and rugged construction. -
Plug-and-Play Integration
Compatible with Honeywell Experion systems and supports easy installation with minimal system configuration. -
Intelligent Status Monitoring
Built-in LED indicators and relay outputs provide real-time status updates for proactive maintenance. -
Scalable Power Infrastructure
Suitable for expanding systems with scalable load-sharing capability in parallel operation. -
Regulatory Compliance
Certified under major international standards, ensuring global applicability. -
Energy Efficient Operation
Minimal power loss and high efficiency reduce energy consumption and thermal output.
Questions fréquentes (FAQ)
-
What is the main function sur the 2MLR-AC13 module?
It provides redundant DC power supply to Honeywell control systems, ensuring continuous power delivery. -
Can the 2MLR-AC13 operate independently?
Yes, but for redundancy, two modules should be configured to operate in parallel. -
Is it hot-swappable?
Yes, it supports hot-swapping, enabling replacement without shutting down the system. -
Which control systems is it compatible with?
Primarily with Honeywell’s Experion PKS, C300, and related modules. -
How does it indicate power failure or redundancy loss?
Through LED indicators and external signaling relay contacts. -
Does the module require external cooling?
No, it uses natural convection for cooling and does not require fans. -
What’s the average service life sur the module?
Over 10 years under normal operating conditions. -
How is the module mounted?
It supports both DIN rail and panel mounting configurations. -
Can it be used in outdoor environments?
It’s recommended for indoor, cabinet-enclosed industrial use only. -
Is the 2MLR-AC13 RoHS compliant?
Yes, it adheres to RoHS environmental safety standards.
Related Modèles in the Same Series
| Modèle Number | Description | Output Voltage | Redundancy Support | Dimensions (mm) |
|---|---|---|---|---|
| 2MLR-AC14 | High-capacity redundant PSU for large systems | 24 VDC / 40 A | Yes | 150 × 125 × 130 |
| 2MLR-DC10 | DC input version sur redundant power supply | 24 VDC / 20 A | Yes | 140 × 125 × 120 |
| 2MLR-AC11 | Compact version for limited space applications | 24 VDC / 10 A | Yes | 120 × 100 × 110 |
| 2MLR-AC12 | Mid-range power redundancy module | 24 VDC / 15 A | Yes | 135 × 115 × 125 |
| 2MLR-AC13R | Ruggedized version for outdoor/harsh use | 24 VDC / 20 A | Yes | 145 × 125 × 130 |
| 2MLR-PRM01 | Power Redundancy Monitor for 2MLR series | Monitoring only | Monitors redundancy | 110 × 100 × 90 |
Popular Honeywell Power Modules
| Modèle Number | Description | Output Voltage | Application | Poids |
|---|---|---|---|---|
| CC-PWRR01 | Redundant Power Supply Module for ControlEdge | 24 VDC / 20 A | DCS/PLC Redundancy | 1.6 kg |
| FC-PWR-0720 | Power supply for Field Control Modules | 24 VDC / 7.2 A | Process Automation Systems | 1.2 kg |
| FTA-PWR-02 | Terminal Assembly Power Module | 24 VDC / 10 A | Field Wiring | 1.5 kg |
| HS-PWRR01 | High-Speed Redundant Power Module | 24 VDC / 30 A | Fast Response Control Environments | 2.0 kg |
| CC-TAIX01 | Analog Input Power Étating Module | Signal Power Only | I/O Processing | 0.9 kg |
| MU-TD0D12 | Power Supply Interface Terminal Board | 24 VDC Interface | Power Distribution | 1.1 kg |
