Product Overview

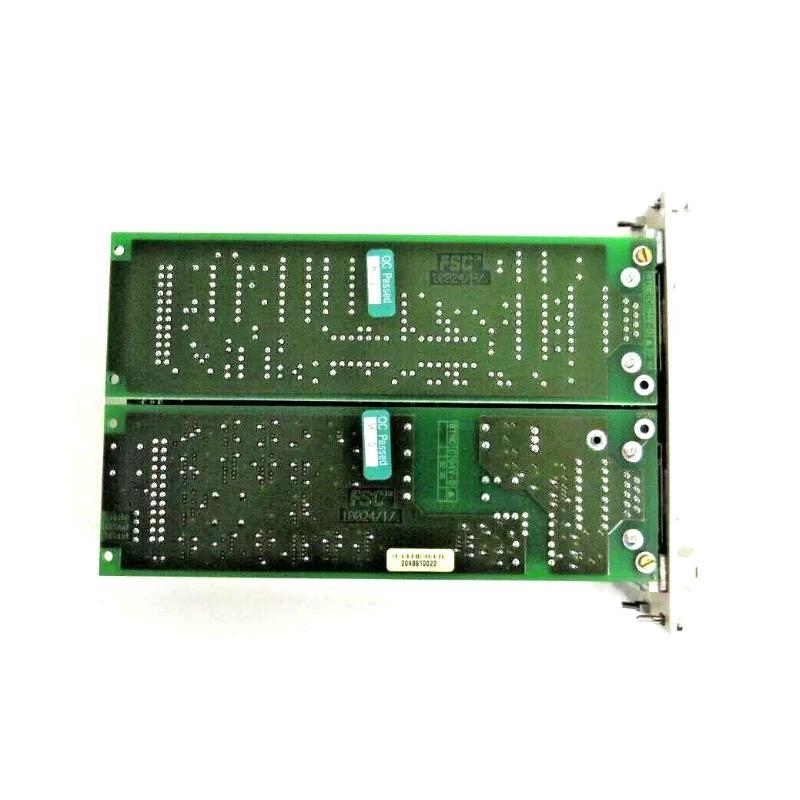

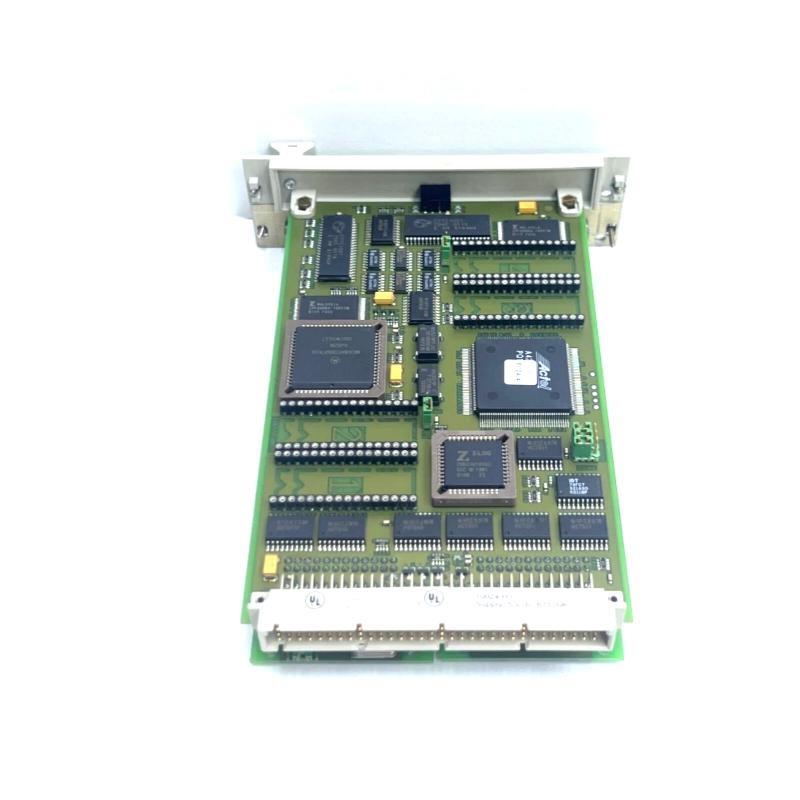

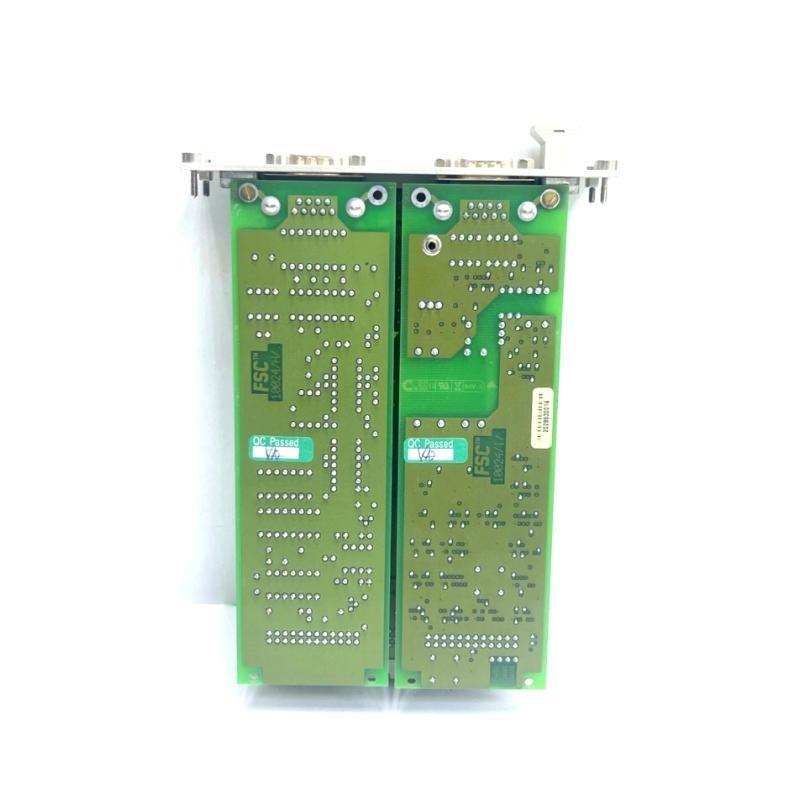

The Honeywell 10024/H/I is a communication module designed for the FSC (Fail Safe Controller) system. It provides reliable serial communication using RS422/485 protocols and includes internal computing capabilities for protocol handling. It is widely used in safety-critical industrial applications, ensuring secure and deterministic communication between control system elements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | 10024/H/I |
| Communication Interfaces | RS422/RS485 |
| Internal Processor | Integrated protocol handling controller |
| Power Supply | Supplied via FSC chassis |
| Module Type | Enhanced COM Module |
| Installation | Central Part (CP) compatible |
| Mounting | Plug-in module |
| Dimensions (W×H×D) | 40 × 130 × 160 mm |
| Poids | 0.5 kg |
| Operating Temperature | 0°C to 60°C |
| Compatibility | FSC system (Honeywell Safety Manager) |
Applications
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
High Integrity Pressure Protection Systems (HIPPS)
-
Distributed Control Systems (DCS) interface
-
SIL-rated safety systems
-
Critical infrastructure monitoring and communication
Advantages
-
Integrated RS422/485 support for long-distance, noise-resistant communication
-
Internal computing resources for protocol management reduce controller load
-
Compact form factor fits into standard FSC chassis
-
Designed for harsh industrial environments with robust build
-
Ensures deterministic communication required for safety applications
-
Fully compatible with Honeywell FSC and Safety Manager platforms
FAQ
Q1: What type sur communication does the 10024/H/I support?
A1: It supports RS422 and RS485 serial communication protocols.
Q2: Can this module be used in safety-critical applications?
A2: Yes, it is specifically designed for use in Honeywell’s FSC safety systems.
Q3: Does the 10024/H/I include internal processing capability?
A3: Yes, it features an internal computing processor for protocol handling.
Q4: What are the physical dimensions sur the module?
A4: 40 × 130 × 160 mm.
Q5: What is the weight sur the module?
A5: 0.5 kg.
Q6: Is this module hot-swappable?
A6: No, it should be installed during system maintenance with power surf.
Q7: What Honeywell system is this module compatible with?
A7: It is compatible with the FSC (Fail Safe Controller) system.
Q8: What is the operating temperature range?
A8: It operates reliably between 0°C and 60°C.
Q9: Is the module compliant with industrial safety standards?
A9: Yes, it complies with SIL-rated safety system requirements.
Q10: Can this module be replaced with other variants in the 10024 series?
A10: Yes, depending on interface requirements (e.g., RS232, dual RS485).
Recommended Related FSC Communication Modules
| Modèle | Interface | Internal CP | Dimensions (mm) | Poids |
|---|---|---|---|---|
| 10024/F/F | 2×RS232 | Yes | 40×130×160 | 0.5 kg |
| 10024/H/F | RS232 + CP | Yes | 40×130×160 | 0.5 kg |
| 10024/I/F | RS422/485 + RS232 | Yes | 40×130×160 | 0.5 kg |
| 10024/I/I | 2×RS422/485 | Yes | 40×130×160 | 0.5 kg |
| 10007/1/1 | SBD (Bus Driver) | Yes | 40×130×160 | 0.5 kg |
| 10018/E/E | Ethernet ×2 | Yes | 40×130×160 | 0.5 kg |
Popular Honeywell Modules (Same Marque)
| Modèle | Description | Application | Dimensions (mm) | Poids |
|---|---|---|---|---|
| CC-PCNT02 | C300 Controller Module | Process control | 40×130×160 | 0.5 kg |
| 8C-PCNT01 | C300 Controller | Redundant control systems | 40×130×160 | 0.5 kg |
| 8C-TAIDA1 | Analog Input IOTA | Analog signal acquisition | 40×130×160 | 0.5 kg |
| 8C-PDILA1 | Digital Input Module | Binary input handling | 40×130×160 | 0.5 kg |
| 8C-PAONA1 | Analog Output Module | Analog output control | 40×130×160 | 0.5 kg |
| FC-IO-0001 | FSC Extended I/O Module | Redundant I/O support | 40×130×160 | 0.5 kg |
