Product Description

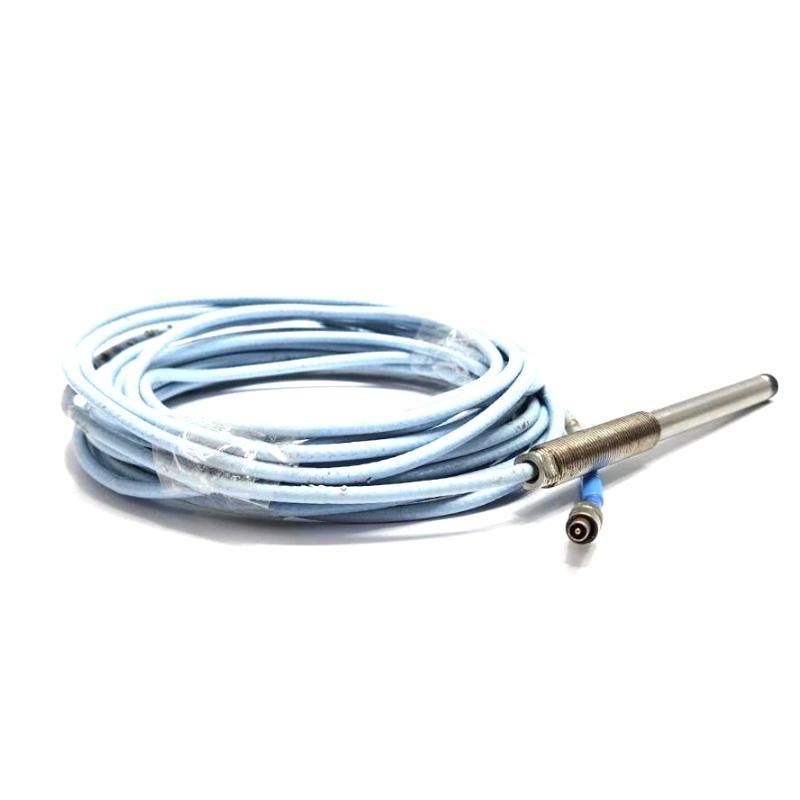

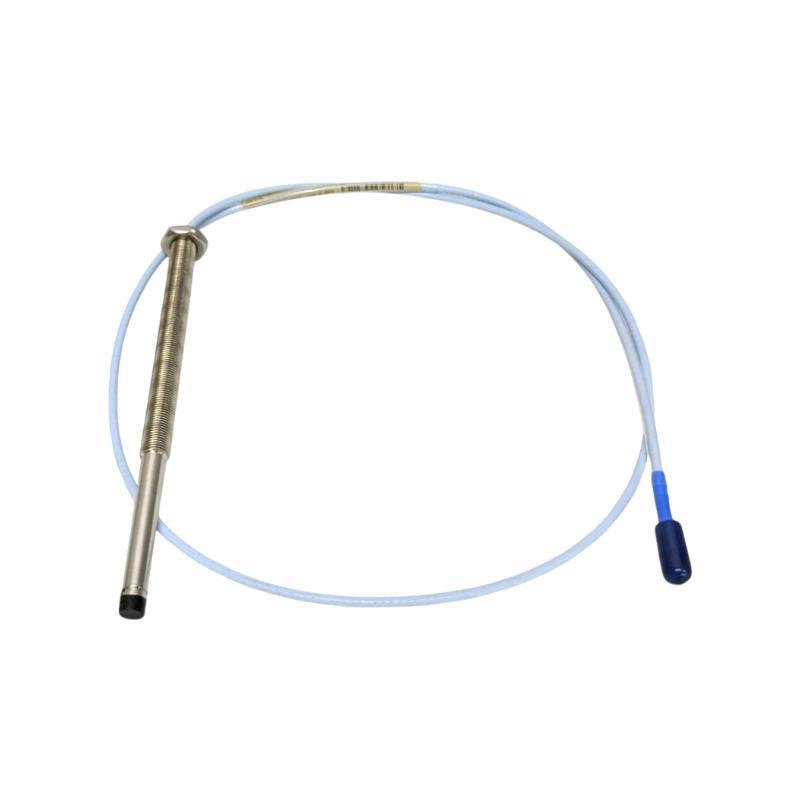

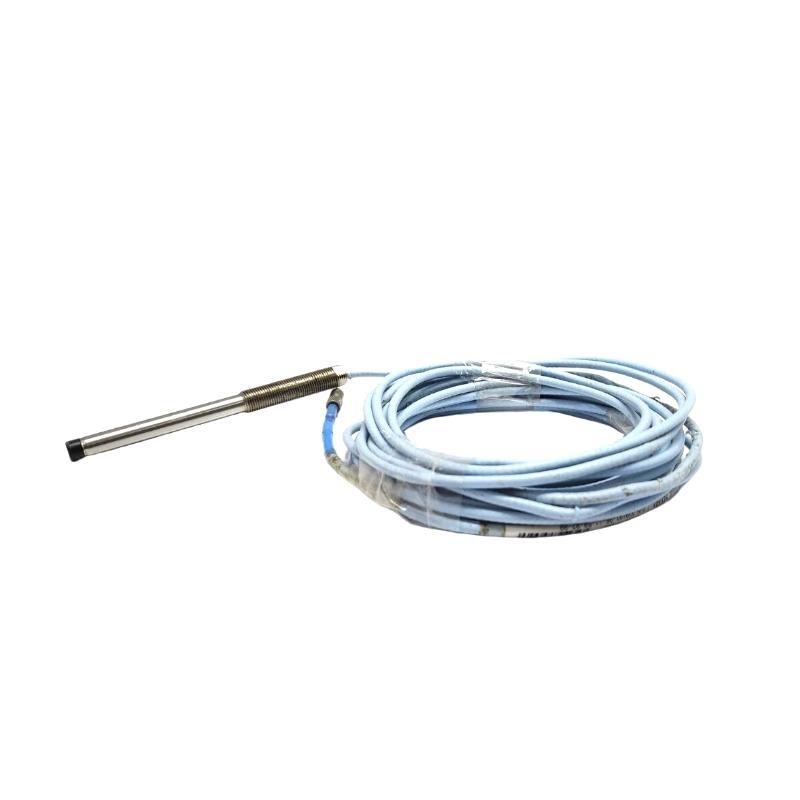

The Bently Nevada 330103-00-14-10-02-CN is a metric-threaded 3300 XL 8 mm Proximity Probe. It delivers precise measurements sur vibration and shaft position in rotating machinery. As part sur the 3300 XL system, it is compatible with XL and non-XL 3300 8 mm and 5 mm components, surfering interchangeable installation without recalibration.
Applications
-
Vibration monitoring on fluid-film bearing machines
-
Shaft position and displacement measurement
-
Keyphasor reference and speed sensing
-
Use in harsh industrial environments, including high-temperature zones
Advantages
-
Fully compliant with API 670 standards
-
Robust PPS-molded tip and stainless-steel construction
-
Gold-plated ClickLoc connectors for reliable, tool-free connections
-
Extended temperature range options available
-
Backward and cross-compatible with earlier 3300 systems
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | 3300 XL 8 mm |
| Thread Size | M10 x 1 |
| Probe Tip Material | PPS |
| Probe Body Material | Stainless Steel 303/304 |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Operating Temperature | -52°C to +177°C (standard) |
| Extended Temp (Optional) | up to +218°C |
| Frequency Response | 0 to 10 kHz |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Minimum Target Size | 15.2 mm |
| Connector Type | ClickLoc miniature coaxial |
| Cable Type | 75Ω triaxial |
FAQ
Q1: Is the 330103 compatible with older 3300 systems?
A1: Yes, it is backward and cross-compatible with non-XL 3300 8 mm and 5 mm components.
Q2: What is the recommended gap setting?
A2: Approximately 1.27 mm (50 mils) corresponding to -9 Vdc.
Q3: Can this probe operate in high-temperature environments?
A3: Yes, the standard probe supports up to 177°C, and extended temperature versions are rated up to 218°C.
Q4: Does the probe require calibration before installation?
A4: No, probes are factory-calibrated and fully interchangeable without the need for field calibration.
Q5: What is the advantage sur ClickLoc connectors?
A5: They ensure secure, corrosion-resistant connections without tools and prevent loosening.
Q6: What is the minimum recommended shaft diameter for accurate measurements?
A6: At least 76.2 mm (3 inches) for optimal performance.
Q7: How resistant is the probe to oil ingress?
A7: Optional FluidLoc cables prevent oil from leaking through the cable interior.
Q8: What certifications does the probe meet?
A8: Complies with API 670, FCC Part 15, CE mark (EMC/RoHS), and ATEX/IECEx hazardous area certifications.
Q9: Is an armored version available?
A9: Yes, armored and non-armored versions are available depending on application needs.
Q10: What is the maximum recommended torque when installing the probe?
A10: Standard M10x1 probes recommend 7.5 N•m (66 in•lbf) torque.
Recommended Related Modèles
| Modèle Number | Description | Total Length | Poids |
|---|---|---|---|
| 330101-00-08-10-02 | 8 mm UNF-thread probe, unarmored | 1.0 m | 0.323 kg |
| 330102-00-08-10-02 | 8 mm UNF-thread probe, armored | 1.0 m | 0.340 kg |
| 330104-00-06-10-02 | 8 mm M10-thread probe, armored | 1.0 m | 0.340 kg |
| 330105-02-12-10-02 | 8 mm UNF-thread reverse mount | 1.0 m | 0.323 kg |
| 330140-00-08-10-02 | 8 mm smooth case probe, unarmored | 1.0 m | 0.323 kg |
| 330191-00-08-10-02 | 8 mm UNF-thread ETR probe, unarmored | 1.0 m | 0.323 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Total Length | Poids |
|---|---|---|---|
| 330180-01-00 | Proximitor Sensor, panel mount | 1.0 m | 0.246 kg |
| 330104-00-06-10-02 | 8 mm M10-thread probe, armored | 1.0 m | 0.340 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | — | 1.5 kg |
| 3500/44M-02-00 | Aeroderivative GT Vibration Monitor | — | 1.7 kg |
| 330130-03-00 | Standard extension cable, 3 m | 3.0 m | 0.102 kg |
| 3500/22M-01-00 | Transient Data Interface Module | — | 1.8 kg |
