1. Executive Summary

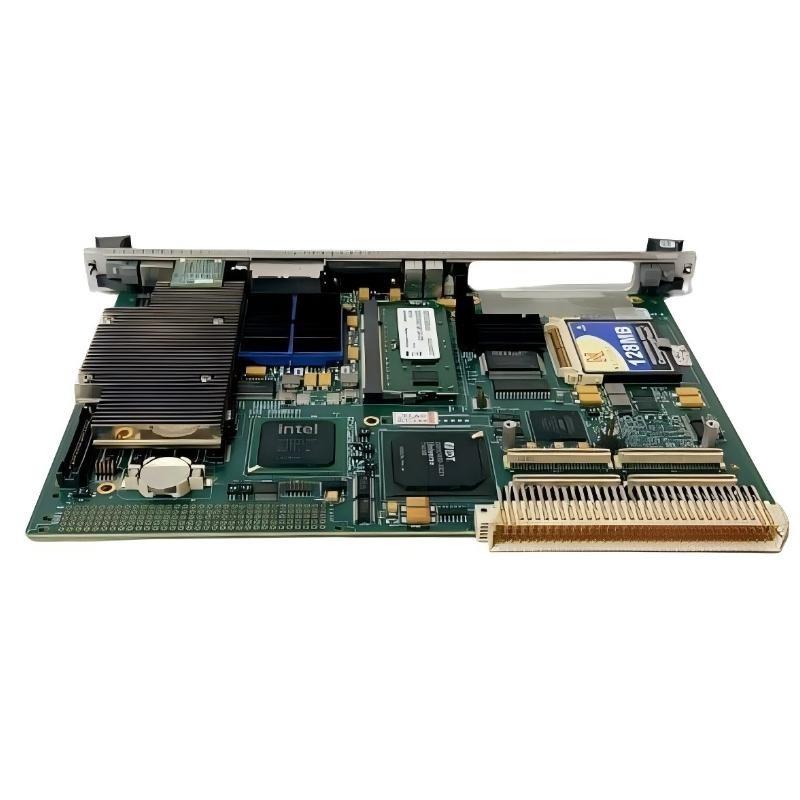

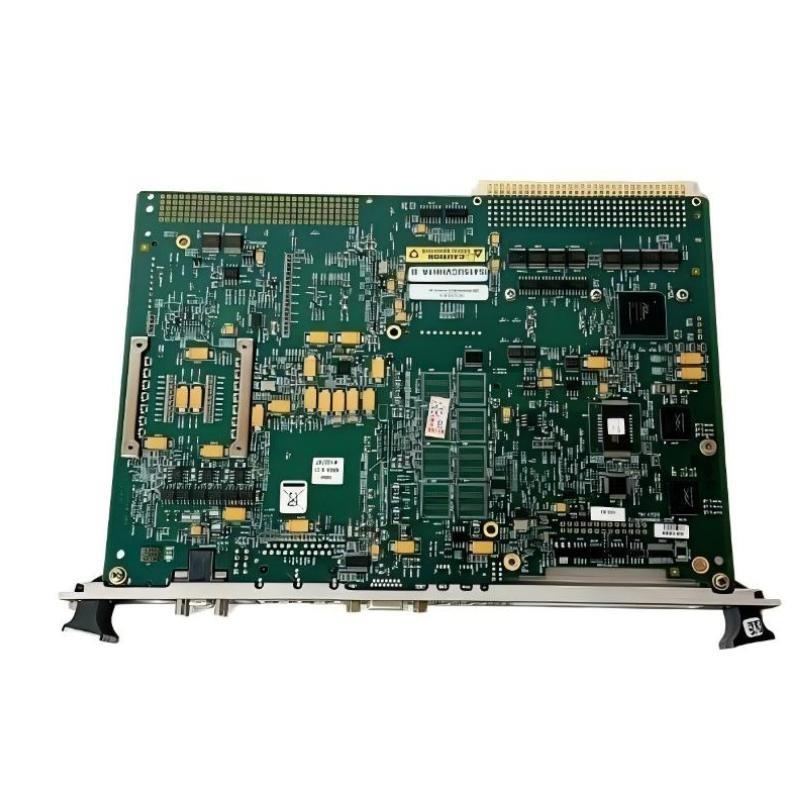

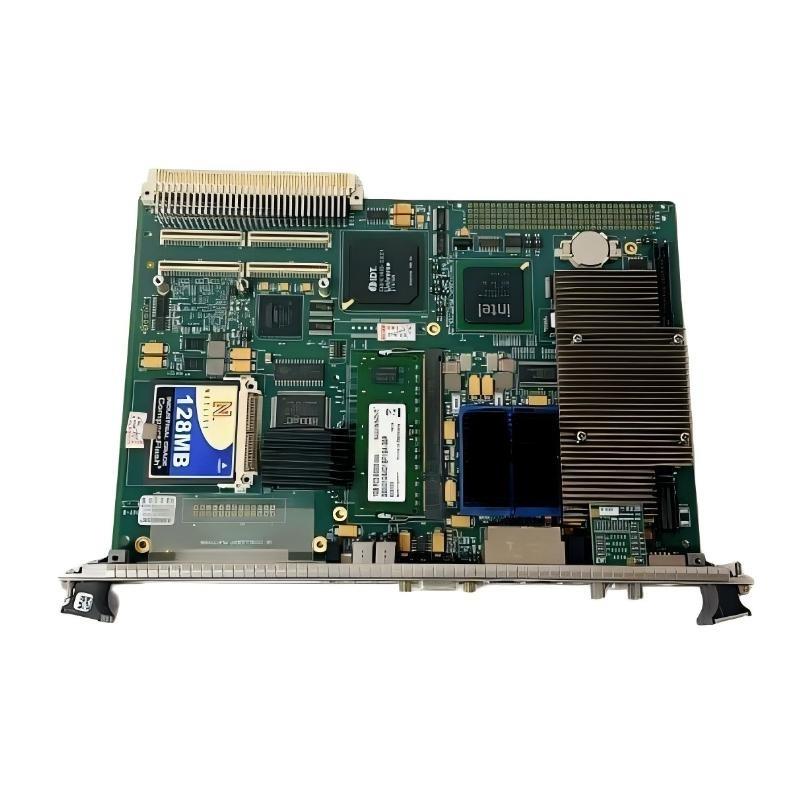

The GE IS215UCVHM06A and IS415UCVHH1A processor modules are advanced control CPUs engineered for Mark VI / Mark VIe turbine and power plant automation systems. These unités form the computational core sur GE’s control environment, surfering deterministic processing, robust redundancy features, and secure interfacing with high-speed industrial networks.
This whitepaper-style overview outlines their technical architecture, operational characteristics, and integration benefits for large-scale energy and industrial automation systems.
2. Technical Architecture & Specifications
| Parameter | Specification |
|---|---|
| Fabricant | GE Industrial / GE Energy |
| Modèles | IS215UCVHM06A, IS415UCVHH1A |
| Module Type | High-performance control processor module |
| Platform Compatibility | Mark VI, Mark VIe control systems |
| Processor Type | High-speed industrial embedded CPU |
| Memory Resources | Extended RAM + non-volatile storage |
| Redundancy Support | Yes, supports hot-backup architectures |
| Backplane Interface | VME / proprietary GE control bus |
| Communication Options | Ethernet, serial channels, internal control networks |
| Diagnostic Functions | Self-test routines, watchdog, fault isolation |
| I/O Handling | High-speed deterministic I/O scheduling |
| Operating Voltage | Rack-supplied backplane power |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | 267 mm × 40 mm × 240 mm (10.5 in × 1.6 in × 9.4 in) |
| Poids | 1.02 kg (2.25 lb) |
| Mounting | Mark VI / Mark VIe rack |
| Compliance | Industrial-grade EMC and vibration tolerance |
3. Primary Application Domains
Due to their deterministic behavior and high system integrity, these modules are widely deployed in:
-
Gas turbine and steam turbine control
-
Generator management and protection systems
-
Large utility-scale power plants
-
Pipeline compressor and pump control
-
Industrial energy management systems
-
Process automation requiring fault-tolerant CPU redundancy
Their ability to execute time-critical logic makes them essential for safety-critical turbine sequencing and I/O coordination.
4. Operational Advantages
-
Deterministic Processing Engine
Guarantees consistent execution cycle times for high-priority turbine logic. -
Robust Redundancy Infrastructure
Built-in capability for active/standby CPU arrangements. -
Enhanced Communication Layer
Supports high-bandwidth Ethernet and internal control buses. -
Advanced Diagnostic Framework
Includes self-monitoring, watchdog timers, and event-driven fault reporting. -
Hardened for Industrial Disturbances
Resistant to EMI, temperature swings, and vibration typical in turbine halls. -
Stable Long-Term Operation
Designed for 24/7 mission-critical activity with minimal downtime. -
Secure Memory Architecture
Protects configuration, logic, and historical data during power cycles.
