Présentation du produit

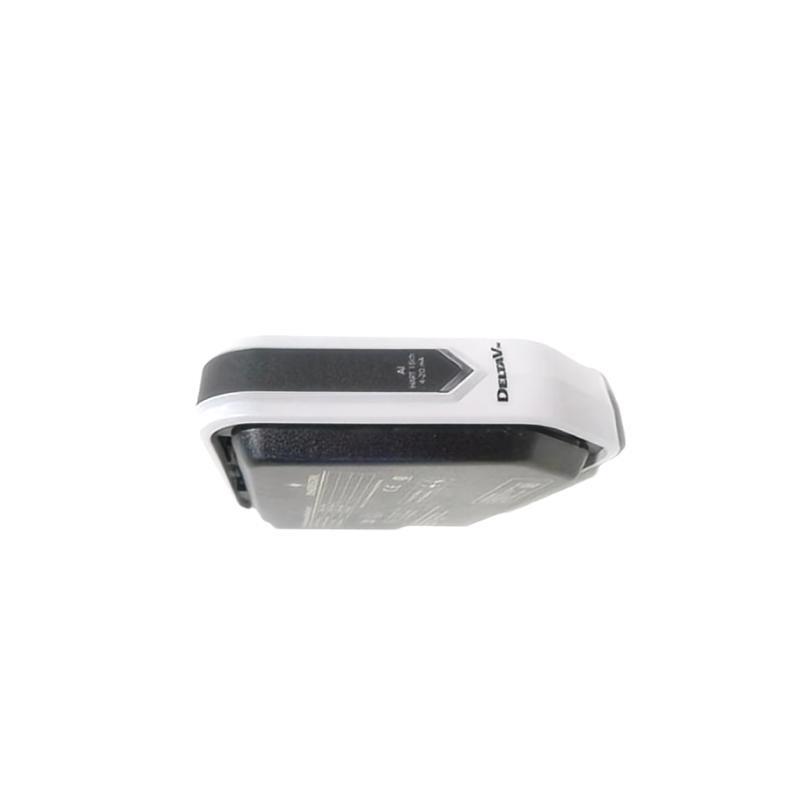

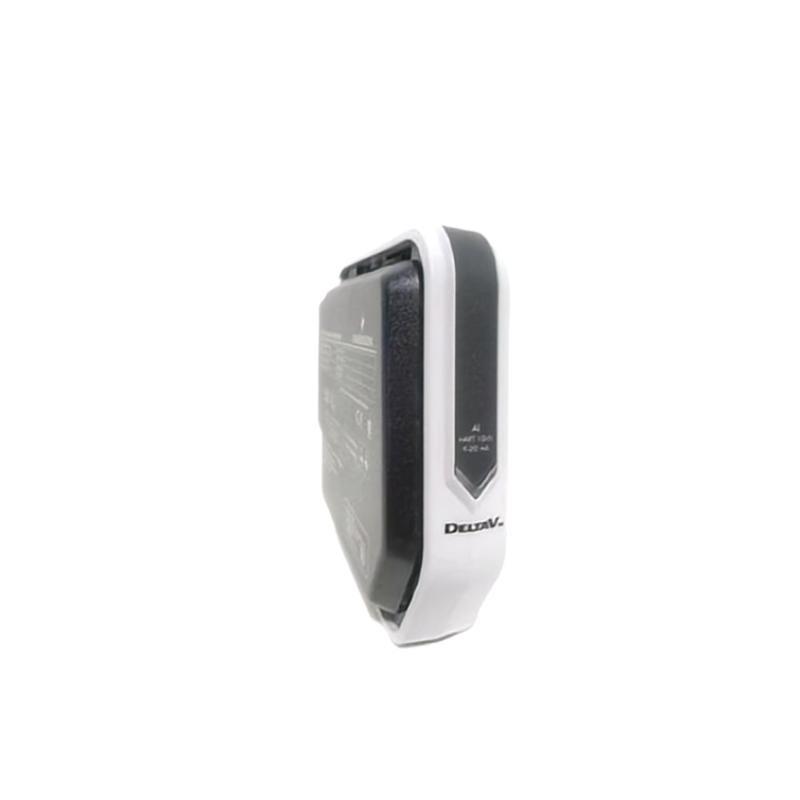

The Emerson KL2001X1-BD1 Ethernet I/O Card is designed to provide high-performance, reliable communication for industrial automation systems. As part sur Emerson’s modular I/O family, this card surfers seamless integration with safety and control platforms by supporting Ethernet connectivity. It serves as an interface between field I/O modules and the higher-level control system or network, enabling fast and secure data exchange via standard Ethernet protocols.
With a focus on durability and robust performance, the KL2001X1-BD1 supports harsh industrial environments, providing consistent connectivity for real-time data acquisition and control. This Ethernet I/O card is commonly used in conjunction with Emerson safety controllers and PLC systems, enhancing system scalability and flexibility.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | KL2001X1-BD1 |
| Function | Ethernet I/O communication card |
| Communication Protocol | Ethernet/IP, Modbus TCP/IP |
| Data Transfer Rate | 10/100 Mbps |
| Number sur Ports | 1 Ethernet port |
| Connector Type | RJ-45 |
| Supported I/O Modules | Emerson KL series I/O modules |
| Power Supply | 24 V DC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 156 x 132 x 50 mm |
| Poids | 0.3 kg |
| Mounting | DIN Rail Mounting |
| Certifications | CE, UL, RoHS compliant |
| Status Indicators | LED indicators for power, communication status |
Product Applications
The KL2001X1-BD1 Ethernet I/O Card is widely used across multiple sectors where robust and efficient industrial communication is essential. Common applications include:
-
Process Automation: Linking distributed I/O modules to central control systems in chemical, oil & gas, and refining plants.
-
Manufacturing: Facilitating real-time data transfer between field devices and programmable logic controllers (PLCs).
-
Energy Sector: Integrating sensors and actuators with SCADA systems for power generation and distribution.
-
Water and Wastewater Treatment: Providing reliable communication for process monitoring and control.
-
Automotive Industry: Supporting automated assembly lines with fast and stable networked I/O.
-
Food & Beverage: Ensuring hygienic and efficient control with robust industrial communications.
Product Advantages
-
High-Speed Communication: Supports 10/100 Mbps Ethernet for fast data transfer and minimal latency.
-
Broad Protocol Support: Compatible with Ethernet/IP and Modbus TCP/IP, enabling flexible integration into existing networks.
-
Robust Industrial Design: Constructed to withstand wide temperature ranges and harsh environmental conditions.
-
Easy Installation: DIN rail mounting and standard RJ-45 connector simplify system setup and maintenance.
-
LED Diagnostics: Visual indicators assist with quick status checks and troubleshooting.
-
Modular Flexibility: Seamlessly interfaces with Emerson’s modular I/O system, allowing scalable expansion.
-
Reliable Power Supply: Operates on a standard 24 V DC power source, common in industrial settings.
-
Compliance and Safety: Meets key international certifications ensuring quality and operational safety.
-
Scalable Networking: Supports multiple network topologies for optimized system design.
-
Long Service Life: Designed with durable components for continuous industrial operations.
Questions fréquentes (FAQ)
-
What communication protocols does the KL2001X1-BD1 support?
It supports Ethernet/IP and Modbus TCP/IP protocols. -
Is the Ethernet port auto-negotiating for speed and duplex?
Yes, it supports automatic negotiation sur 10/100 Mbps and full/half duplex. -
Can this card be used with Emerson safety controllers?
Yes, it is designed to integrate fully with Emerson’s safety and control systems. -
What is the operating temperature range sur the device?
The device operates reliably from -20°C to +60°C. -
What type sur mounting does the card support?
The card mounts on a standard DIN rail for easy installation. -
Does the card provide any diagnostic LEDs?
Yes, it has LED indicators for power and communication status. -
What power supply voltage is required?
The card requires a 24 V DC power supply. -
Can the card be used in hazardous environments?
The KL2001X1-BD1 is suitable for industrial environments but verify specific hazardous area certifications before use. -
What are the dimensions and weight sur the card?
Dimensions are 156 x 132 x 50 mm; weight is 0.3 kg. -
How many Ethernet ports does this card provide?
It includes a single RJ-45 Ethernet port.
Recommended Related Modèles (Same Series / Related)
| Modèle Number | Description | Key Feature |
|---|---|---|
| KL2002X1-BD1 | Dual-port Ethernet I/O Card | Supports two Ethernet ports |
| KL2010X1-BD1 | Ethernet I/O Card with extended temperature range | Wider operating temp range |
| KL2004X1-BD1 | Ethernet I/O Card with PoE support | Power over Ethernet enabled |
| KL2020X1-BD1 | High-speed Ethernet I/O Card | Enhanced throughput |
| KL2101X1-BD1 | Ethernet I/O Card with integrated firewall | Added network security |
| KL2501X1-BD1 | Fiber Optic Ethernet I/O Card | Supports fiber optic link |
Recommended Popular Emerson Modèles (Same Marque)
| Modèle Number | Description | Typical Use Case |
|---|---|---|
| KL2602X1-BA1 | Safety Relay Module | Safety relay integration |
| KL2800X1-BA1 | Safety Controller | Programmable safety control |
| KL9000X1-BA1 | Safety PLC | Advanced safety automation |
| KL1504X1-BA1 | Signal Étater | Signal filtering and conditioning |
| KL1704X1-BA1 | Safety Communication Module | Network safety communication |
| KL3200X1-BA1 | Safety Input Module | Input signal processing |
