Présentation du produit

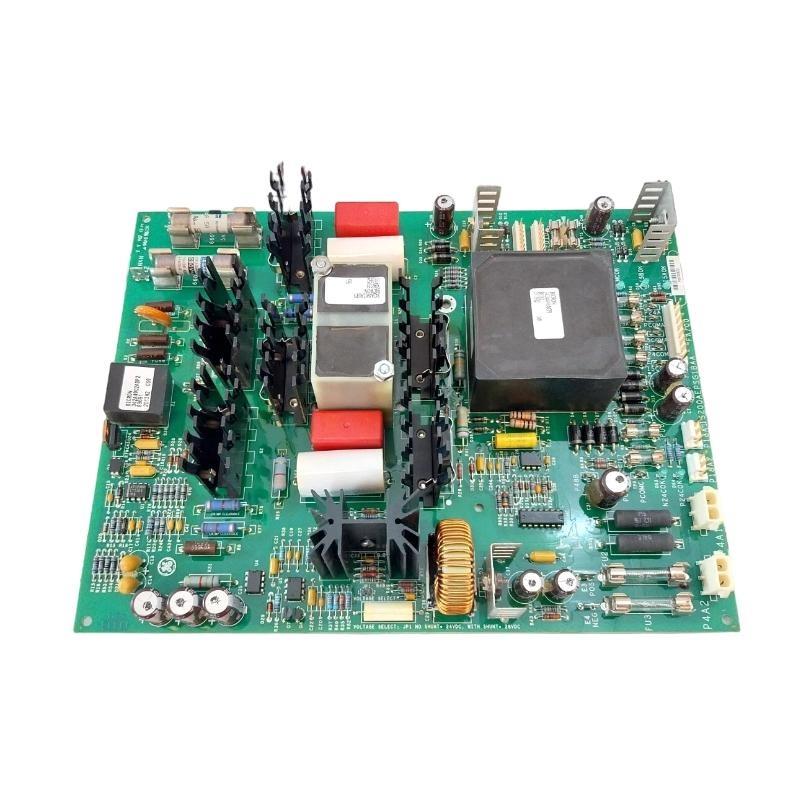

The GE IS210AEPSG2B Power Board is an industrial-grade power conversion and distribution module designed for GE Mark VIe and related turbine control systems. Built to provide stable, low-noise DC power, the IS210AEPSG2B ensures reliable operation sur control processors, I/O modules, and communication interfaces in demanding environments. Its rugged design, advanced regulation circuitry, and comprehensive protection features make it a dependable choice for mission-critical power generation and process control applications.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | IS210AEPSG2B |
| Series | GE Mark VIe / Mark VI Control Platform |
| Function | High-efficiency AC-to-DC power supply and regulated distribution |
| Input Voltage Range | 90–264 V AC (universal input) |
| Output Voltages | +24 V DC, +5 V DC, ±15 V DC isolated outputs |
| Continuous Power Rating | 250 W nominal, 300 W peak |
| Efficiency | Greater than 85 % at full load |
| Protection Features | Over-voltage, over-current, surge suppression, thermal shutdown |
| Cooling Method | Natural convection or forced-air assisted |
| Operating Temperature | –40 °C to +70 °C |
| Humidity Range | 0–95 % non-condensing |
| Vibration Tolerance | Up to 5 g, 10–2000 Hz |
| Shock Resistance | 30 g, 11 ms half-sine |
| Diagnostics | Built-in LEDs and remote health reporting |
| Dimensions (W×H×D) | 240 × 120 × 40 mm |
| Poids | 1.35 kg |
| Mounting | Rack or panel mount with secure grounding |
| Board Material | Multilayer FR4 PCB with conformal coating |
Applications
The IS210AEPSG2B Power Board is widely used across various industrial and energy sectors:
-
Gas and Steam Turbine Control: Supplies regulated DC power to Mark VIe control processors and I/O racks.
-
Power Generation Plants: Maintains uninterrupted power for protection relays, sensors, and communication modules.
-
Industrial Automation: Provides clean DC output for distributed control systems and process controllers.
-
Oil & Gas Infrastructure: Powers SCADA equipment and turbine monitoring systems in remote environments.
-
Process Control Facilities: Ensures stable operation sur sensitive instrumentation in chemical and manufacturing plants.
Advantages
-
High Efficiency and Stability: Delivers precise, low-ripple DC output, critical for sensitive electronic control hardware.
-
Comprehensive Protection: Integrated over-voltage, over-current, and thermal shutdown safeguards extend system longevity.
-
Built-In Diagnostics: Real-time health indicators and remote monitoring simplify maintenance and troubleshooting.
-
Global Input Compatibility: Accepts a broad AC input range, allowing worldwide deployment without modification.
-
Rugged Design: Conformal-coated PCB and robust construction withstand vibration, shock, and harsh environmental conditions.
-
Seamless Integration: Designed for direct compatibility with GE Mark VIe and other GE control platforms.
Questions fréquentes (FAQ)
-
What type sur input isolation is used on the IS210AEPSG2B?
The board employs high-frequency transformer isolation with reinforced insulation to meet industrial safety standards. -
How does the board handle inrush current during startup?
A ssurt-start circuit limits inrush current to protect upstream breakers and reduce electrical stress. -
What methods are used to minimize output voltage ripple?
Multi-stage LC filtering and low-ESR capacitors keep ripple levels below 50 mV for stable operation. -
Can the power board operate in parallel for redundant configurations?
Yes, it supports current sharing for redundancy when properly configured in Mark VIe systems. -
How is thermal protection implemented?
Embedded thermistors and temperature sensors provide over-temperature detection and automatic shutdown. -
Does it support remote status monitoring through the Mark VIe system?
Yes, output voltage, current, and fault conditions can be monitored via the Mark VIe diagnostic interface. -
What EMI suppression features are included?
Common-mode chokes, ferrite beads, and shielded PCB layouts reduce electromagnetic interference. -
How does the board maintain output stability during input voltage fluctuations?
Wide-range AC/DC conversion and surge suppression circuits ensure stable DC outputs even during transient events. -
What is the typical response time for load regulation changes?
The board maintains output voltage within ±2 % sur nominal within less than 1 ms during sudden load variations. -
Is hot-swap replacement supported?
Yes, the design allows hot-swap replacement when installed in a de-energized backplane segment.
