Présentation du produit

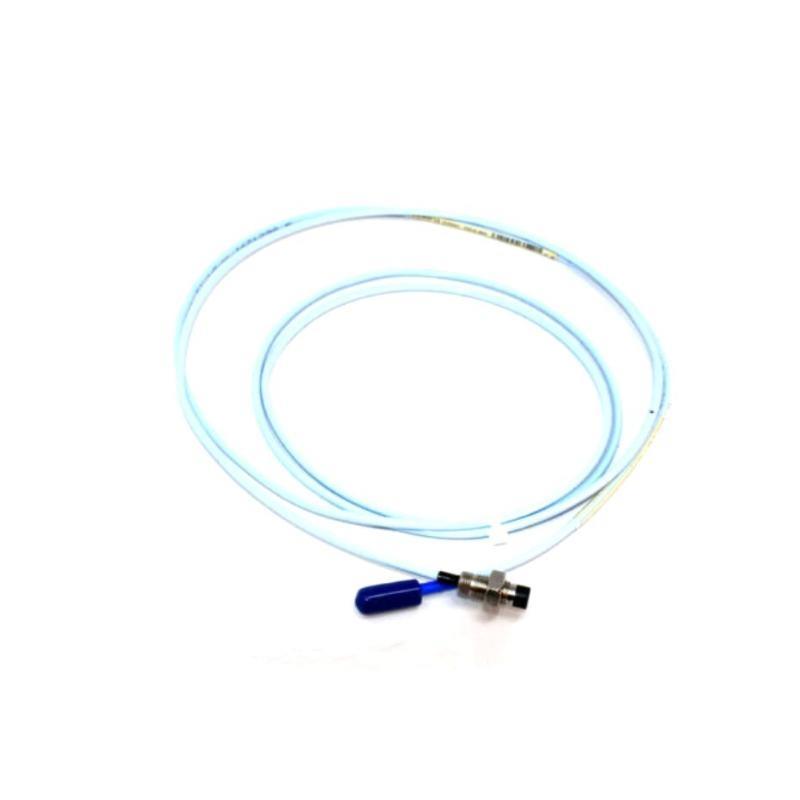

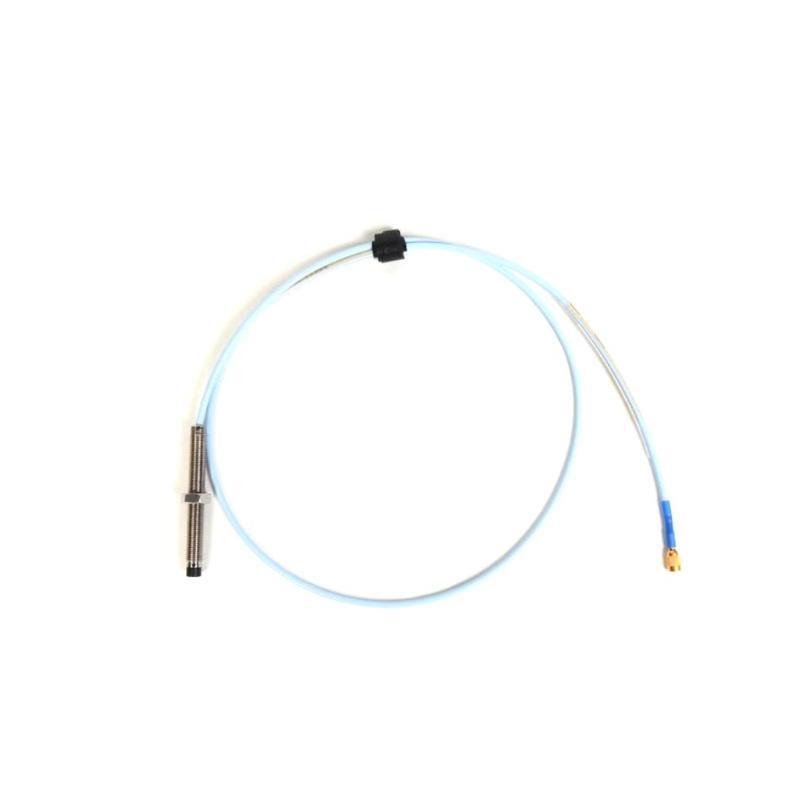

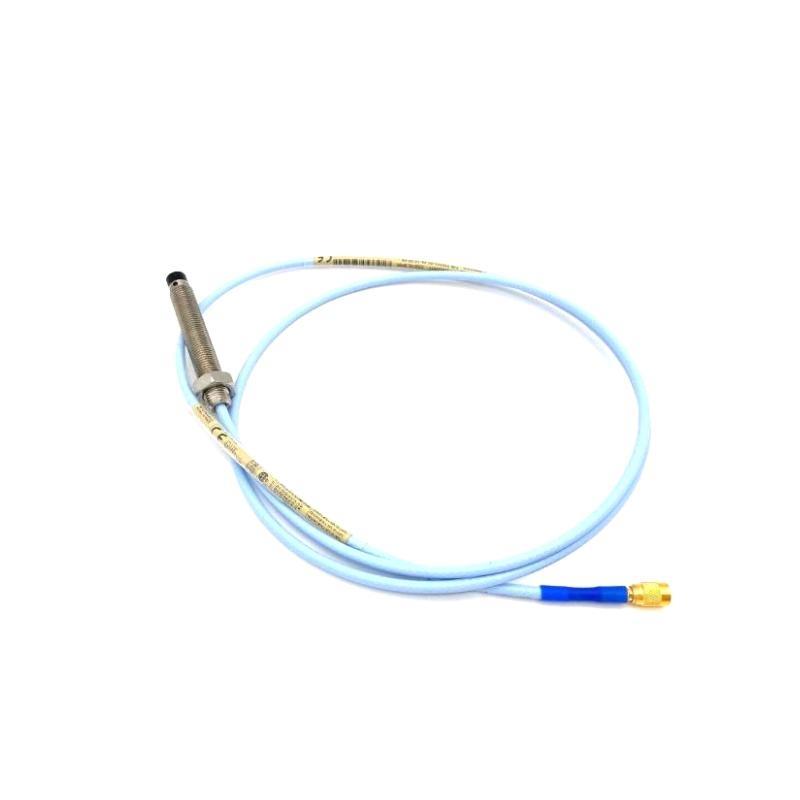

The Bently Nevada 330101-00-10-10-02-05 is a high-precision, non-contact proximity probe engineered for use in the 3300 XL 8mm Proximity Transducer System. This system is globally recognized for delivering accurate measurements sur shaft vibration, axial position, and rotational speed in rotating machinery, contributing to reliable machinery protection and predictive maintenance strategies.
This specific model features an 8mm probe tip diameter, a system cable length sur 10 feet (including the probe and extension cable), and armored construction with a connector protector option “05”, indicating enhanced environmental protection and mechanical stability. It is paired with the 3300 XL Proximitor Sensor and is ideally suited for continuous monitoring in harsh industrial environments, including oil refineries, gas plants, and power stations.
The 330101-00-10-10-02-05 is designed to comply with API 670 standards, ensuring its suitability for critical turbomachinery monitoring applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | 330101-00-10-10-02-05 |
| Series | 3300 XL 8mm |
| Sensor Type | Eddy Current Proximity Probe (Non-contact) |
| Tip Diameter | 8 mm (0.31 in) |
| Cable Length (System) | 10 feet (includes probe and extension cable) |
| Connector | ClickLoc™ Miniature Coaxial with Connector Protector (Option 05) |
| Mounting Thread | 1/4-28 UNF-2A |
| Body Style | Unthreaded, Armored Cable |
| Target Material | Calibrated for AISI 4140 steel |
| Linear Range | 2 mm (80 mils) |
| Non-linearity | Within ±0.25% sur full-scale |
| Output Voltage | Typically -200 mV/mil (≈ -7.87 mV/µm) |
| Temperature Range | -35°C to +177°C (-31°F to +350°F) |
| Enclosure Rating | IP65 (with proper installation) |
| Compliance Standards | API 670, CE, RoHS |
| Poids | 0.323 kg |
| Total Length | 1.0 meter |
Applications
The Bently Nevada 330101-00-10-10-02-05 probe is widely implemented in industrial and critical rotating machinery applications due to its precision and robust design. Its primary uses include:
-
Steam & Gas Turbine Monitoring
Measures shaft vibration and axial position, essential for turbine protection. -
Compressor Vibration Analysis
Integral to dynamic condition monitoring sur centrifugal and reciprocating compressors. -
Motor and Generator Monitoring
Detects early signs sur mechanical degradation in critical assets. -
Pump État Monitoring
Monitors bearing wear, imbalance, and misalignment in high-speed pump systems. -
Thrust Bearing Wear Detection
Measures shaft displacement for thrust wear and axial misalignment. -
Predictive Maintenance Programs
Deployed as part sur online condition monitoring systems to reduce unplanned downtime.
Product Advantages
-
High Environmental Resistance
Equipped with option 05 connector protector, ensuring excellent performance in dusty, humid, and high-vibration environments. -
Reliable Long-Term Stability
Minimal signal drift over extended operating periods, reducing recalibration needs. -
API 670 Certified
Fully meets API 670 guidelines for machine protection systems, surfering industry-standard assurance. -
Mechanical Durability
Armored cable and stainless-steel probe housing withstand rough handling and industrial conditions. -
Flexible Integration
Compatible with standard 3300 XL Proximitor Sensors and extension cables, surfering modularity. -
Non-Invasive Measurement
Eddy current sensing surfers accurate measurements without physical contact, minimizing wear.
Questions fréquentes (FAQ)
1. What does the part number 330101-00-10-10-02-05 represent?
This part number indicates a 3300 XL 8mm probe with 10-foot cable length, armored body, and connector protection option 05.
2. Is this probe suitable for use in hazardous areas?
It can be used in hazardous areas when installed within an approved system or housing that complies with hazardous location certifications.
3. Can I install the probe in a vertical orientation?
Yes, the probe functions accurately in any orientation as long as the probe tip is properly aligned with the target surface.
4. How surten should the probe be recalibrated?
It is factory calibrated and typically does not require frequent recalibration. However, annual verification is recommended in critical applications.
5. What type sur connector is used on this model?
It uses the ClickLoc™ miniature coaxial connector with an additional connector protector for improved reliability.
6. How is this probe different from the standard 330101 model?
The 3330101 version includes added mechanical and environmental protection (option 05) and may have enhanced durability in harsh environments.
7. Can this be used in high-temperature environments?
Yes, it operates reliably up to 177°C (350°F), making it suitable for high-temperature industrial settings.
8. What sensor does it pair with?
It is designed to work with the 3300 XL Proximitor Sensor and the appropriate extension cable for a complete system.
9. Is it compatible with Keyphasor™ measurements?
Yes, when used in the appropriate configuration, it can support Keyphasor applications for speed and phase reference.
10. What installation tools are recommended?
Use a torque wrench for the mounting threads and follow Bently Nevada’s installation manual for gap adjustment and alignment.
Related Modèles – Same Series or Function
| Modèle Number | Description | Tip Size | Cable Length | Features |
|---|---|---|---|---|
| 330101-00-10-10-02-00 | Standard 8mm Probe with armored cable | 8 mm | 10 ft | No connector protector |
| 330101-00-15-10-02-00 | Extended 15 ft version sur standard 8mm probe | 8 mm | 15 ft | Standard performance |
| 330104-00-10-10-02-00 | High Temperature 8mm Probe | 8 mm | 10 ft | Withstands higher temperature |
| 330105-02-12-10-02-00 | Reverse Mount 8mm Probe | 8 mm | 12 ft | Designed for back-side mounting |
| 330103-00-10-10-02-00 | Compact 5mm Probe for limited clearance | 5 mm | 10 ft | For small shaft diameters |
| 3300 XL NSv Probe | Narrow Side View Probe | 5 mm | Various | For radial clearance constraints |
Popular Modèles from Bently Nevada
| Modèle Number | Function | Application | Series | Mounting |
|---|---|---|---|---|
| 3500/42M | Vibration Monitor Module | Rack-Based Machinery Monitoring | 3500 Series | Rack Mounted |
| 330180-90-00 | Proximitor Sensor Module | Probe Signal Processing | 3300 XL | DIN Rail |
| 330130-040-00 | 10 ft Extension Cable | Cable Interconnect | 3300 XL | Cable System |
| 330500-02-00 | Seismic Velocity Transducer | Low-frequency Vibration Sensing | 330500 Series | Stud Mount |
| 330104-00-12-10-02-00 | High-Temperature 8mm Probe | Steam Turbines & Compressors | 3300 XL | Threaded Mount |
| 190501-00-00 | Accelerometer | General Vibration Monitoring | Seismic Series | Epoxy or Stud Mount |
