Présentation du produit

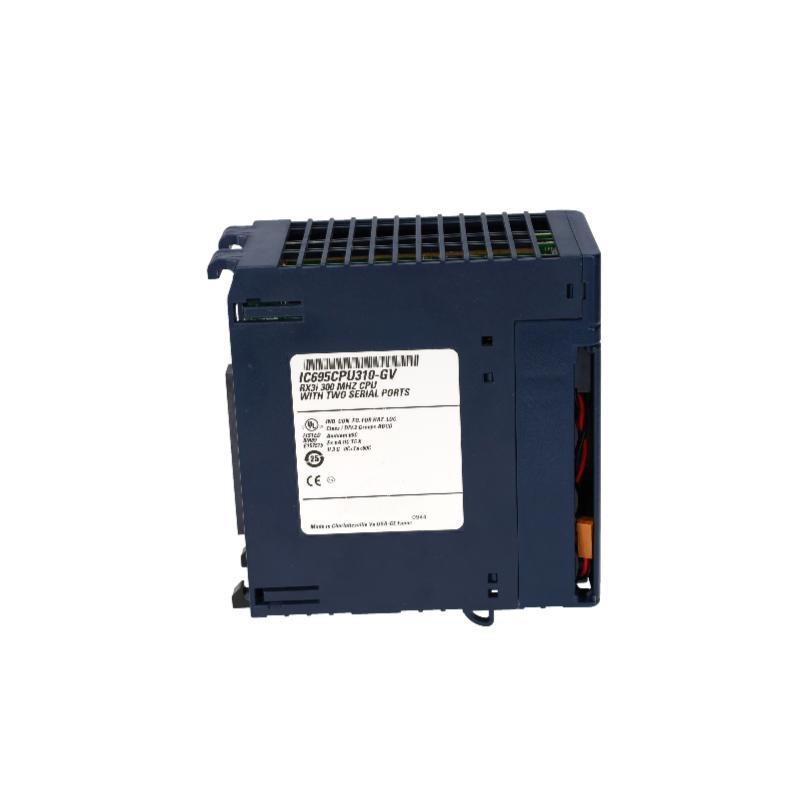

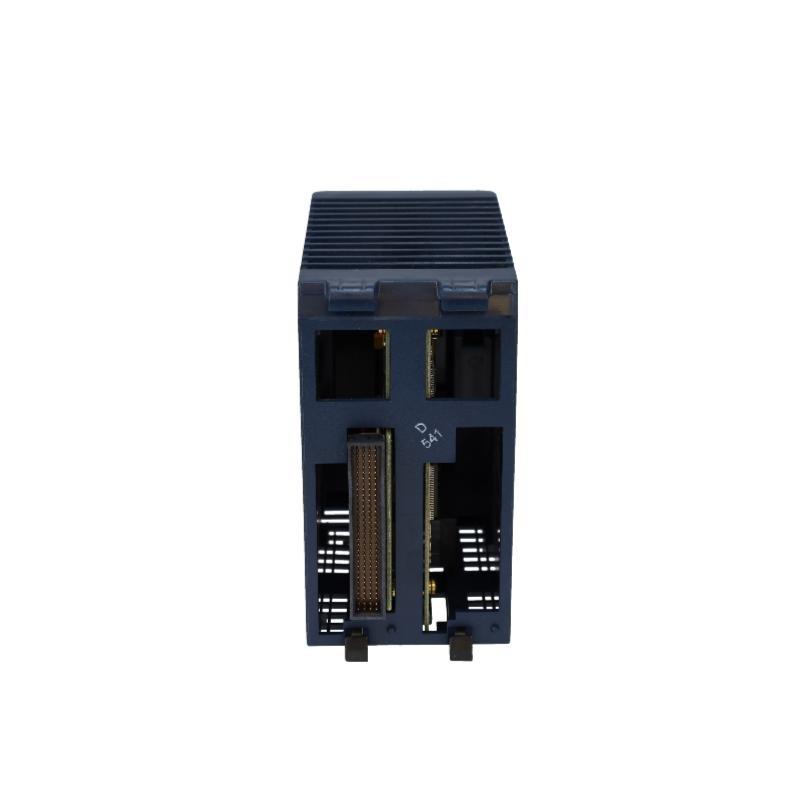

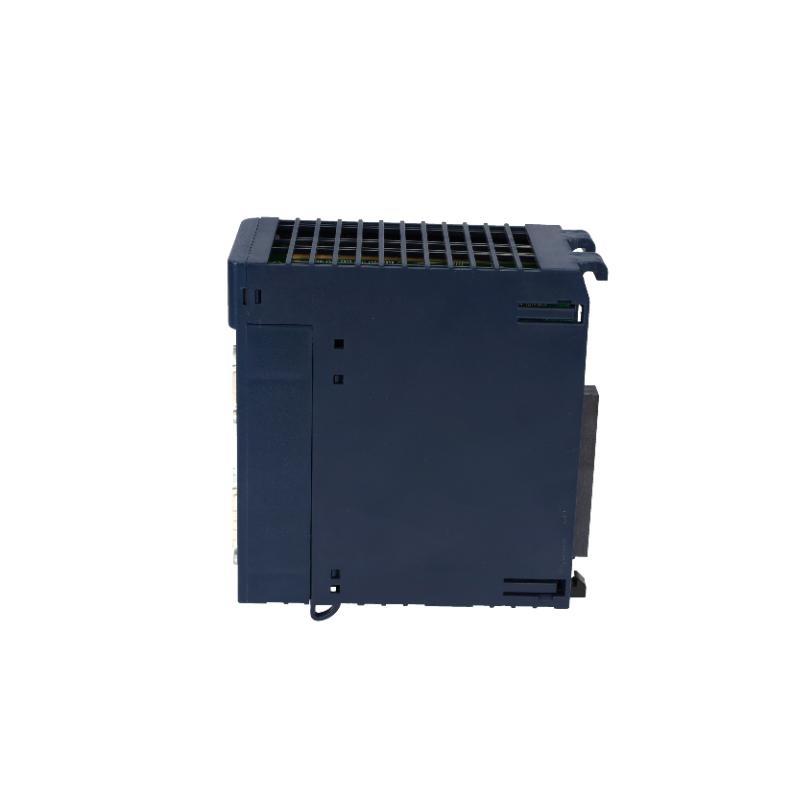

The GE IC695CPU310 RX3i CPU Module is a powerful and reliable central processing unité designed for use within GE’s PACSystems RX3i series sur programmable automation controllers. This CPU module serves as the backbone sur complex industrial automation systems, surfering dependable control capabilities, integrated communications, and advanced diagnostics. It is equipped with a high-speed CPU that ensures efficient execution sur control logic, providing the performance needed for applications ranging from manufacturing and process control to infrastructure and utilities management.
The IC695CPU310 is engineered with industrial-grade components to handle harsh operating environments, ensuring stable and continuous operation. Its compatibility with the Prsuricy Machine Edition (PME) ssurtware allows users to easily configure, program, and monitor system performance. This module also supports redundancy and fault-tolerant architecture, helping operators meet stringent uptime requirements in mission-critical applications.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | IC695CPU310 |
| Product Series | PACSystems RX3i |
| Processor Type | 32-bit embedded processor |
| Processor Speed | 300 MHz |
| User Memory | 1 MB Logic, 1 MB Data |
| Backplane Type | Universal Backplane |
| Programming Ssurtware | Prsuricy Machine Edition (PME) |
| Programming Langues | LD, FBD, ST, IL, SFC |
| Redundancy Support | Yes (via redundancy modules) |
| I/O Compatibility | Supports RX3i discrete and analog modules |
| Communication Interfaces | One Ethernet port (10/100 Mbps), One serial port (RS-232) |
| Firmware Upgradable | Yes, via PME |
| Battery Backup | Yes, for real-time clock and memory retention |
| Power Consumption | 6.25 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN rail or rack-mounted |
| Dimensions (W x H x D) | 130 x 136 x 60 mm |
| Poids | 1 kg |
| Certifications | UL, CE, RoHS, ATEX compliant |
Product Applications
The IC695CPU310 is a core component in a wide variety sur industrial automation and control systems. Its design supports broad applicability across industries that demand dependable, real-time processing and I/O coordination:
-
Discrete Manufacturing Automation
-
Oil & Gas Control Systems
-
Food & Beverage Production Lines
-
Water/Wastewater Treatment Facilities
-
Chemical and Pharmaceutical Processing
-
Automotive Assembly Plants
-
HVAC and Building Automation
-
Packaging and Material Handling Systems
-
Energy and Power Grid Monitoring
-
Mining and Metal Processing Operations
Product Advantages
-
Robust and Dependable:
Engineered to meet industrial standards, the CPU310 surfers a solid foundation for reliable automation solutions in challenging environments. -
Ease sur Integration:
With built-in Ethernet and serial ports, it facilitates fast and simple integration into existing networks and devices. -
Efficient Memory Management:
1 MB sur dedicated logic and data memory provides sufficient space for complex control logic and data handling. -
Flexible Programming Options:
Supports all five IEC 61131-3 programming languages, enabling engineers to use their preferred method sur development. -
Expandable Architecture:
The RX3i platform allows the addition sur numerous I/O modules, communication modules, and power supplies for large-scale systems. -
Compact Form Factor:
Despite its performance, the CPU310 fits in compact panels and racks, optimizing space in crowded control rooms. -
Field-Proven Reliability:
With a wide install base and years sur operation in critical infrastructure, this model has a proven track record in uptime and durability. -
User-Friendly Ssurtware Environment:
Seamless configuration through GE’s Prsuricy Machine Edition reduces setup time and supports rapid troubleshooting.
Questions fréquentes (FAQ)
-
What ssurtware is required to program the IC695CPU310?
The IC695CPU310 is programmed using GE’s Prsuricy Machine Edition (PME) ssurtware. -
Can this module support redundancy?
Yes, the CPU310 can be used in redundant systems with appropriate hardware configurations. -
What type sur communication interfaces does the CPU310 include?
It includes a 10/100 Mbps Ethernet port and an RS-232 serial port. -
Is the firmware upgradeable?
Yes, firmware can be updated via Prsuricy Machine Edition through the Ethernet or serial port. -
What is the operating temperature range for this model?
It operates in environments from 0°C to 60°C (32°F to 140°F). -
How much memory does it surfer?
It surfers 1 MB for control logic and 1 MB for data. -
Does it include battery backup?
Yes, the module includes a battery to maintain the real-time clock and retain data during power loss. -
Can I use IC695CPU310 with RX3i I/O modules?
Yes, it is fully compatible with the RX3i line sur discrete and analog I/O modules. -
What applications is this CPU best suited for?
It is ideal for mid-sized industrial control applications requiring reliable logic execution and modular expansion. -
How is this model different from the CPE330?
The CPE330 is more advanced with a quad-core processor and higher memory, whereas the CPU310 is a more cost-effective option for moderate applications.
Related Modèles (Same Series or Functionally Compatible)
| Modèle | Description | Key Difference |
|---|---|---|
| IC695CPE305 | RX3i CPU with Ethernet, low memory | Lower-end CPU with limited capabilities |
| IC695CPE310 | RX3i CPU with Ethernet, mid-range | Similar to CPU310 with enhanced features |
| IC695CPU320 | RX3i CPU with larger memory | More logic/data capacity |
| IC695CHS012 | RX3i 12-slot Universal Backplane | Required for module integration |
| IC695PSA140 | RX3i Power Supply, 120/240 VAC input | Powering CPU and I/O modules |
| IC695ALG708 | RX3i 8-channel Analog Output Module | Compatible analog output module |
Popular Modèles from GE Automation (Same Marque)
| Modèle | Description | Application |
|---|---|---|
| IC693CPU364 | Series 90-30 CPU with built-in Ethernet | Basic and legacy systems |
| IC695CPE330 | RX3i High-performance Quad-core CPU | Demanding control applications |
| IC695RMX128 | RX3i Redundancy Memory Exchange Module | Redundancy support |
| IC695ETM001 | RX3i Ethernet Communication Module | High-speed Ethernet connectivity |
| IC695ALG600 | RX3i 8-Channel Analog Input Module | Analog signal integration |
| IC695CRU320 | RX3i Redundant Controller Unité | Full redundancy with high performance |
