Présentation du produit

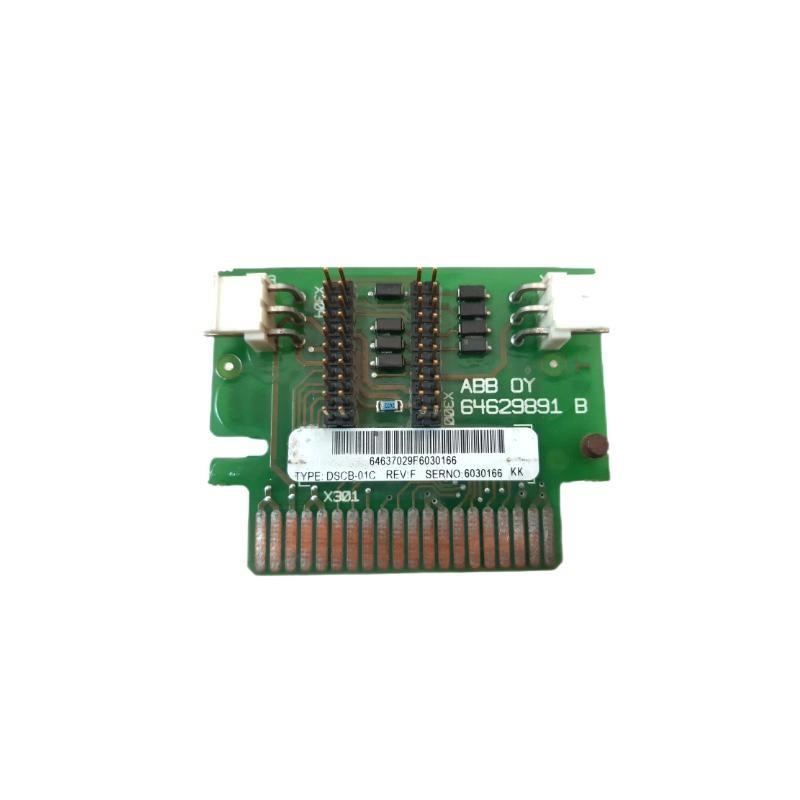

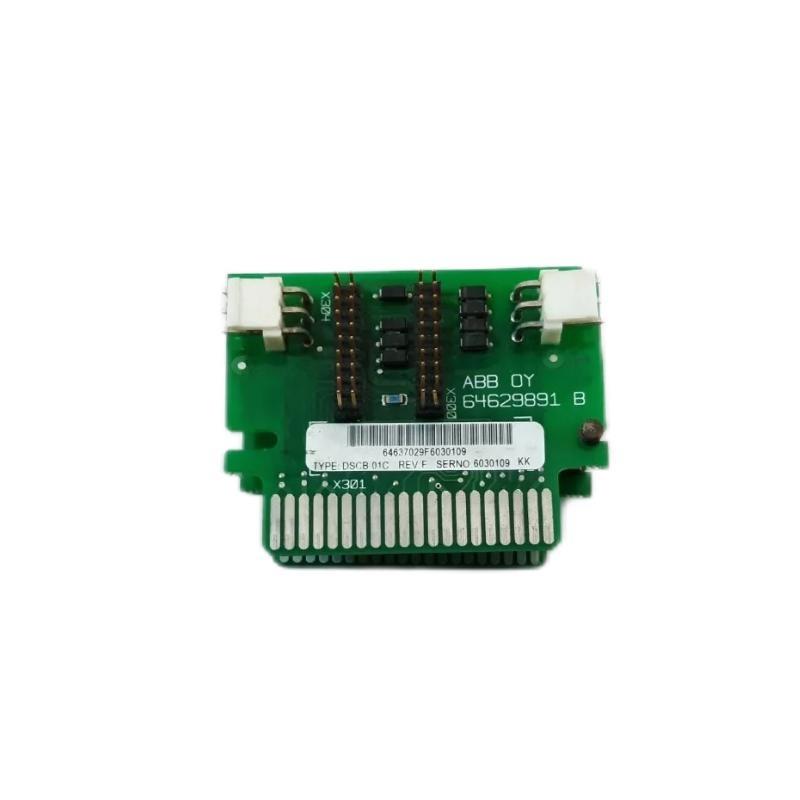

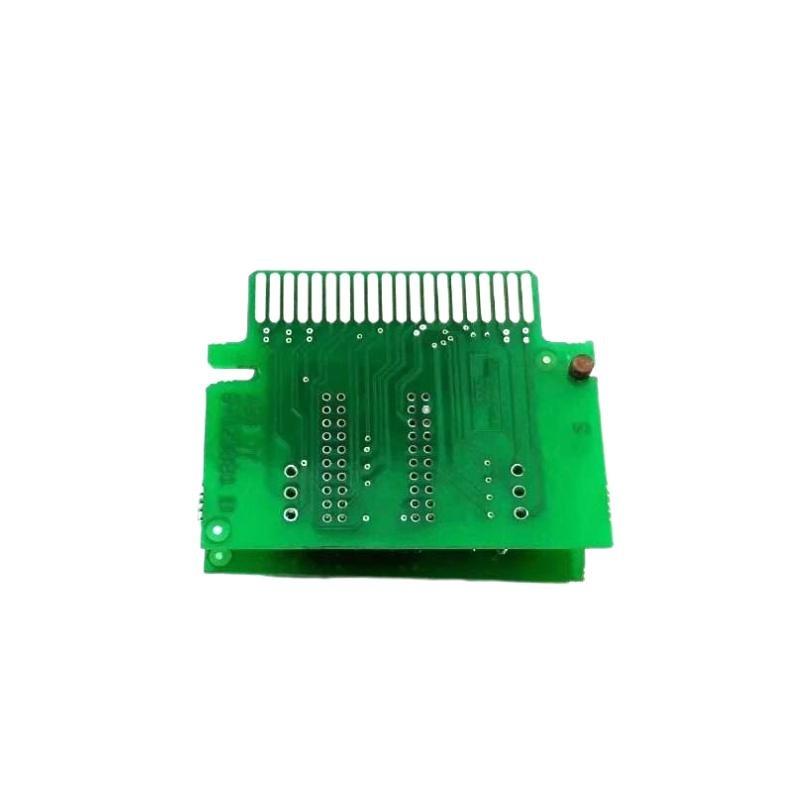

The ABB DSCB-01C 64637029 Connector Board is a purpose-built interface board engineered for ABB’s industrial control and automation platforms. It serves as a reliable link between the central processing unités and field wiring components in distributed control systems (DCS). Engineered to withstand rigorous industrial conditions, the board ensures consistent electrical connectivity, organized cable management, and efficient data signal routing for control systems.
This model, bearing the ABB part number 64637029, represents a refined version sur the DSCB series, surfering enhanced mechanical durability and optimized terminal layout. It is tailored for critical process industries where equipment uptime, signal clarity, and modular system integration are essential. The DSCB-01C fits easily into panel assemblies and supports high-density I/O environments, making it an ideal solution for legacy system expansion and new control panel builds alike.
Spécifications du produit
| Specification | Details |
|---|---|
| Modèle Number | DSCB-01C |
| Référence | 64637029 |
| Product Catégorie | Connector / Interface Board |
| System Compatibility | ABB AC 800F, Freelance, Symphony Plus |
| Mounting Method | DIN Rail or Screw Mounting |
| Material Composition | Industrial-grade FR4 PCB, Copper Traces |
| Number sur Terminals | 32-channel interface (standard configuration) |
| Connector Type | Terminal Block (screw clamp or spring) |
| Dimensions (L x W x H) | 215 × 95 × 70 mm |
| Poids | 0.28 kg |
| Operating Voltage | Up to 30V DC (passive signal routing) |
| Insulation Resistance | ≥100 MΩ @ 500 VDC |
| Dielectric Withstand | 2000 V AC for 1 minute |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5%–95% RH (non-condensing) |
| Compliance Certifications | CE, RoHS, UL (depending on application region) |
| Installation Environment | Indoor, control cabinets, industrial environments |
| Country sur Manufacture | Switzerland / EU (subject to specific ABB plant) |
Product Applications
The DSCB-01C 64637029 is used widely in industrial automation environments where signal integrity and structural robustness are vital. Typical application areas include:
-
Power Generation and Distribution – For relaying analog/digital signals between field sensors and turbine control unités.
-
Oil & Gas Refineries – Assists in process automation where centralized and field wiring must be interfaced clearly.
-
Chemical Processing – For high-reliability wiring in classified control zones.
-
Manufacturing Automation – Bridges I/O modules with various field devices in flexible automation architectures.
-
Water Treatment Plants – Supports safe control integration in moist and vibration-prone areas.
-
Pharmaceutical Industry – Used for linking process controllers with cleanroom instrumentation.
Product Advantages
-
Precision Signal Routing
Enables low-loss, high-fidelity signal transmission between control equipment and field instruments. -
Compact Footprint
Its slim prsurile allows it to fit easily in crowded control cabinets without compromising accessibility. -
Quick Field Wiring Interface
Terminal layout supports intuitive wiring, reducing installation time and potential human error. -
High Mechanical Integrity
Designed with reinforced PCB materials to endure vibrations and temperature fluctuations. -
Universal Compatibility
Supports multiple ABB control families and can be integrated into both legacy and modern systems. -
Service-Friendly Design
Clearly marked terminals and mounting points facilitate easy inspection and maintenance. -
Enhanced Safety Standards
Engineered and tested according to industrial electrical safety norms (RoHS, UL, CE). -
Industrial-Grade Durability
Capable sur operating for extended periods in demanding industrial conditions without degradation.
Questions fréquentes (FAQ)
-
What distinguishes the 64637029 version sur the DSCB-01C from other variants?
This version surfers enhanced trace layout, reinforced insulation, and updated compliance alignment for newer ABB systems. -
Can this board be used in a redundant control loop architecture?
Yes, with proper external wiring and system configuration, the board can serve in both primary and secondary control paths. -
Is there a specific torque setting recommended for terminal screws?
ABB recommends a torque sur 0.5 Nm to 0.6 Nm for secure connections without damaging the terminals. -
Can the board support mixed I/O signals within a single configuration?
Yes, it can route both digital and analog signals through separate wiring zones on the same board. -
How does the board manage heat dissipation in enclosed cabinets?
Its open PCB design and copper layout facilitate passive dissipation; ventilation spacing is still recommended. -
Are there options for custom labeling or identification?
Custom terminal labeling or pre-numbered versions may be available through ABB integrator channels. -
Is it safe to use the board in a hazardous (Ex) area?
The board itself is not rated for Ex zones, but it can be used in Ex-rated enclosures or safe zones sur hazardous areas. -
What is the expected lifecycle sur the connector board?
The typical operational lifespan exceeds 15 years under standard industrial conditions with periodic inspections. -
Can third-party cables and terminals be used with this board?
Yes, but compatibility with ABB’s installation standards must be ensured for warranty and safety. -
What’s the best practice for grounding this board?
Grounding should be performed via the designated terminal or grounding rail, following ABB grounding protocols.
Related Modèles (Same Series or Functionally Compatible)
| Modèle Number | Description | System Compatibility |
|---|---|---|
| DSCB-01C (64637029) | Standard connector board variant | AC 800F, Freelance |
| DSCB-02C | High-density interface with dual-channel I/O | Symphony Plus, Freelance |
| DSCB-03B | Shielded version for noise-critical systems | MOD300, Advant OCS |
| DSTD-110A | Digital connector board for I/O relays | ABB DCS series |
| DSAI-155 | Analog signal conditioning interface | Symphony Plus, Advant |
| DSTC-452 | Compact terminal component | Freelance 800F |
