Présentation du produit

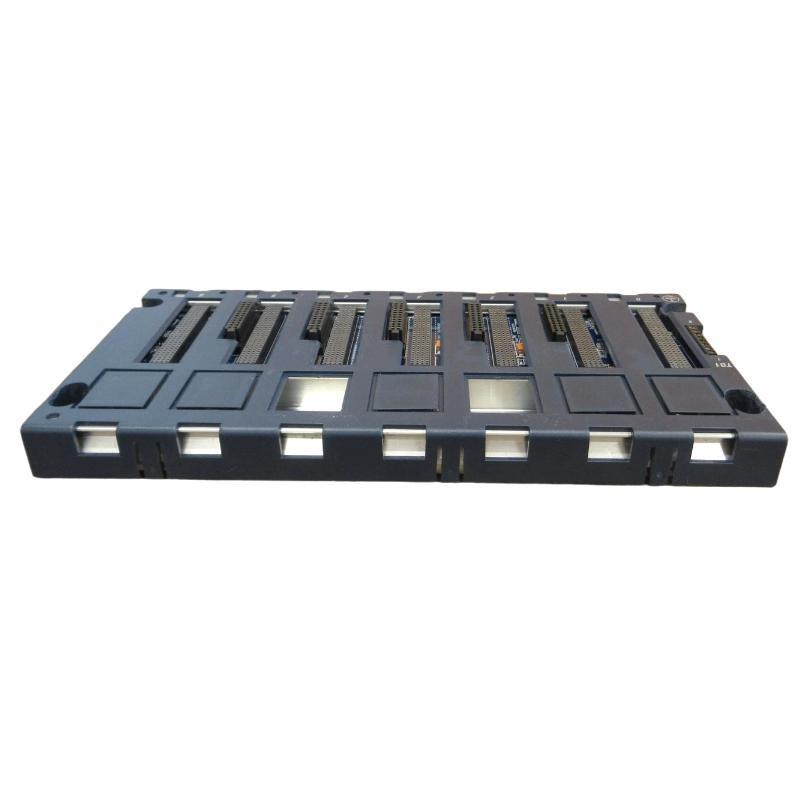

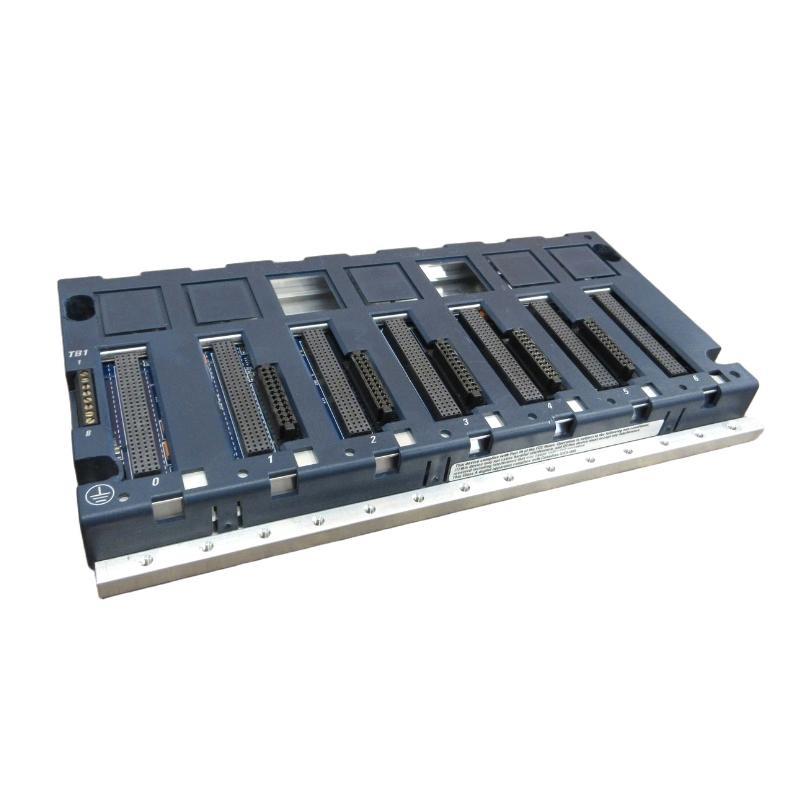

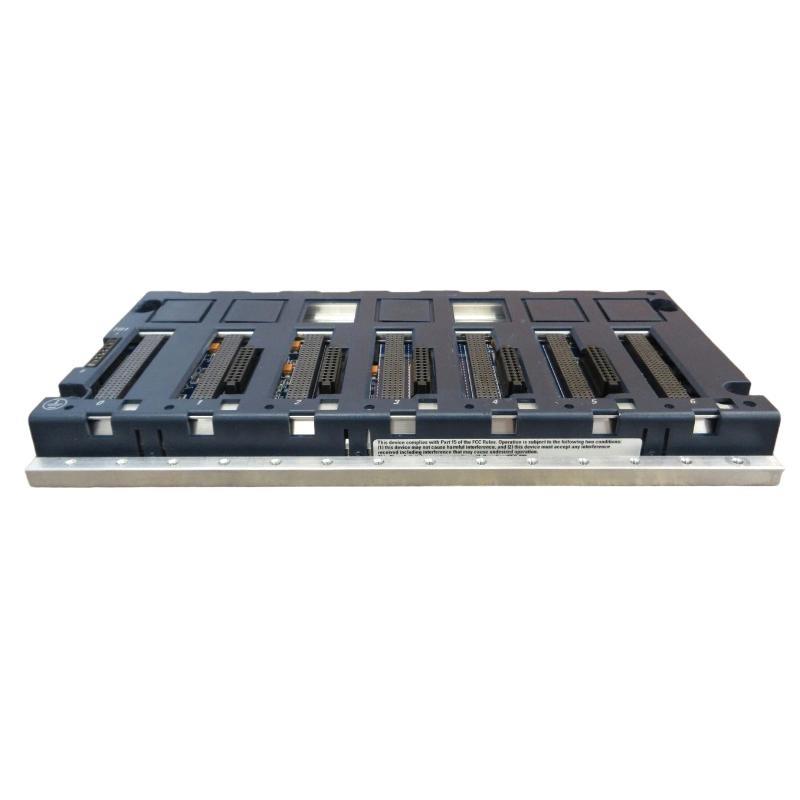

The GE IC695CHS007 RX3i 7-Slot Universal Backplane is a compact, high-performance component sur the GE PACSystems RX3i family, designed to serve as the foundation for modular industrial control systems. It provides the necessary infrastructure for integrating various RX3i modules, including CPUs, power supplies, I/O modules, and communication modules, into a single, unified system.
The IC695CHS007 is the smallest member sur the RX3i Universal Backplane family, making it the preferred choice for applications that demand high control performance within limited space. Its dual-purpose architecture allows it to support both PCI-based (IC695) and serial backplane (IC693 and IC694) modules, providing exceptional compatibility and flexibility. This unique feature enables engineers to integrate both modern RX3i components and legacy Series 90-30 I/O modules within the same rack, ensuring long-term investment protection.
Compact, reliable, and versatile, the IC695CHS007 surfers industrial users a flexible platform that can be adapted to various automation, process control, and data acquisition environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Fabricant | GE Automation & Controls |
| Product Modèle | IC695CHS007 |
| Product Type | RX3i Universal Backplane |
| Series | PACSystems RX3i |
| Number sur Slots | 7 universal slots |
| Compatible Modules | IC695 (PCI-based), IC693/IC694 (serial-based), Series 90-30 I/O |
| Backplane Type | Dual-purpose (PCI and serial) |
| Bus Type | High-speed 32-bit PCI and serial bus |
| Bus Speed | Up to 33 MHz PCI bus |
| Power Supply Slots | 1 slot (leftmost) |
| CPU/Controller Slots | 1 slot (adjacent to power supply) |
| I/O Module Slots | 5 slots (for various input/output or communication modules) |
| Mounting Type | Panel or rack mounting |
| Power Distribution | Integrated power rails for backplane power delivery |
| Module Retention | Locking clips and guide rails for secure module fit |
| Operating Voltage | 5 VDC and 3.3 VDC distributed via backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Shock Resistance | 30 g, 11 ms half-sine pulse |
| Vibration Resistance | 5–10 Hz, 0.2 inches displacement; 10–500 Hz, 2 g acceleration |
| Cooling Method | Natural convection (air-cooled) |
| Compliance Standards | CE, UL, cUL, RoHS compliant |
| Dimensions (W x H x D) | 265 x 141.5 x 148 mm |
| Poids | 1.03 kg |
| Color | Industrial black/gray |
| Construction Material | Powder-coated aluminum and high-strength polymer |
| System Expansion | Supports additional RX3i racks via expansion cables |
| Typical Bus Length | Up to 10 meters with expansion connections |
| Isolation | Electrical isolation between backplane segments |
| Certifications | UL508, CSA C22.2, IEC 61131-2 compliant |
Product Applications
The GE IC695CHS007 RX3i 7-Slot Universal Backplane is a core component for industrial automation and control systems. Its compact form and dual-bus design make it particularly suitable for mixed architecture systems, where both new and legacy modules need to be integrated.
Common applications include:
-
Process Automation Systems – Supports control modules for process monitoring and control in refineries, chemical plants, and food manufacturing.
-
Factory Automation – Provides a robust platform for programmable control systems in assembly lines, robotics, and motion control.
-
Power Generation and Distribution – Used in turbine control, substation automation, and energy monitoring systems.
-
Oil and Gas Control Systems – Offers stable platform integration for wellhead monitoring and pipeline management.
-
Water and Wastewater Treatment – Manages distributed I/O systems for pump stations, filtration control, and SCADA integration.
-
Pharmaceutical and Biotech Automation – Enables precise control and data acquisition in cleanroom or production facilities.
-
Transportation and Logistics – Supports control infrastructure in rail automation, material handling, and automated storage systems.
Product Advantages
-
Dual-Bus Compatibility
Supports both PCI-based (IC695) and serial-based (IC693/IC694) backplane modules, surfering seamless integration sur new and legacy hardware. -
Compact Design
The 7-slot configuration is ideal for installations where panel space is limited but control requirements remain high. -
High Reliability
Robust mechanical design with industrial-grade materials ensures long-term stability in harsh environments. -
Flexible System Configuration
Compatible with Series 90-30 I/O modules, providing backward compatibility and migration flexibility. -
Efficient Power Distribution
Integrated power rails deliver consistent voltage and current across all module slots. -
Secure Module Mounting
Locking clips and precision guide rails prevent vibration-induced disconnection in industrial settings. -
Ease sur Maintenance
Modular architecture allows hot-swapping sur components and simplified field replacement. -
Future-Prosur Architecture
Designed for scalability and long-term use, ensuring compatibility with future RX3i system modules. -
Enhanced Noise Immunitéy
Grounding and shielding features ensure reliable communication and low EMI in demanding environments. -
Wide Operating Range
Supports extended temperature and humidity conditions for diverse industrial deployments.
FAQ
-
What types sur modules can be installed in the IC695CHS007 backplane?
It supports IC695 (PCI-based), IC693, and IC694 (serial-based) modules, as well as Series 90-30 I/O modules. -
How many total slots are available for modules?
The backplane has 7 slots, including one for power supply, one for CPU/controller, and five for I/O or communication modules. -
Can the IC695CHS007 support both old and new generation modules?
Yes, it is specifically designed to support both legacy Series 90-30 and modern RX3i modules. -
What type sur communication bus does the backplane use?
It uses a high-speed 32-bit PCI bus and a serial communication bus for dual compatibility. -
Does the backplane require active cooling?
No, it is naturally air-cooled and suitable for environments with proper ventilation. -
Is hot-swapping sur modules supported?
Certain modules support hot-swapping, depending on system configuration and firmware compatibility. -
What are the recommended mounting options?
The backplane can be panel-mounted or rack-mounted using standard industrial enclosures. -
Can the backplane be expanded to include more slots?
Yes, additional RX3i racks can be connected using GE expansion cables. -
How does the backplane ensure electrical isolation?
It provides isolation between PCI and serial buses and employs grounding tracks to reduce electrical noise. -
Is the IC695CHS007 compatible with RX3i CPUs like IC695CPU310 or IC695CPU315?
Yes, it is fully compatible with both models, supporting stable communication and data exchange.
Related Modèles (Same Series or Function)
| Modèle | Description |
|---|---|
| IC695CHS012 | 12-slot RX3i Universal Backplane for large system configurations |
| IC695CHS016 | 16-slot RX3i backplane with extended I/O capability |
| IC695CHS032 | 32-slot backplane for large distributed control systems |
| IC695CHS100 | Modular expansion rack for RX3i backplane systems |
| IC695CHS002 | Compact 5-slot RX3i backplane for small control applications |
| IC695CBL002 | 3-foot backplane interconnect cable for RX3i expansion |
Popular GE Modèles (Same Marque)
| Modèle | Description |
|---|---|
| IC695CPU310 | RX3i CPU module with high-speed Ethernet and logic processing |
| IC695PSA040 | 40W power supply module for RX3i systems |
| IC695ALG808 | 8-channel analog output module for precision control |
| IC695ALG728 | 8-channel analog output module supporting multiple signal types |
| IC695ETM001 | RX3i Ethernet communication module |
| IC695PWR330 | 330W power supply for expanded RX3i control systems |
